TPEFHeaders.hh File Reference

#include "TPEFBaseType.hh"

Include dependency graph for TPEFHeaders.hh:

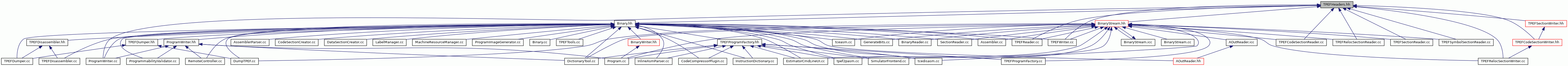

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	TPEF
namespace	TPEF::TPEFHeaders

Enumerations
enum	TPEF::TPEFHeaders::TPEFVersion { TPEF::TPEFHeaders::TPEF_V1 = 0x01 , TPEF::TPEFHeaders::TPEF_V2 = 0x02 }
enum	TPEF::TPEFHeaders::FileHeaderOffset {   TPEF::TPEFHeaders::FH_ID = 0 , TPEF::TPEFHeaders::FH_ARCH = 10 , TPEF::TPEFHeaders::FH_TYPE = 11 , TPEF::TPEFHeaders::FH_SHOFF = 12 ,   TPEF::TPEFHeaders::FH_SIZE = 16 , TPEF::TPEFHeaders::FH_SHSIZE = 18 , TPEF::TPEFHeaders::FH_SHNUM = 20 , TPEF::TPEFHeaders::FH_SHSTRTAB = 22 }
enum	TPEF::TPEFHeaders::SectionHeaderOffset {   TPEF::TPEFHeaders::SH_NAME = 0 , TPEF::TPEFHeaders::SH_TYPE = 4 , TPEF::TPEFHeaders::SH_FLAGS = 5 , TPEF::TPEFHeaders::SH_ADDR = 6 ,   TPEF::TPEFHeaders::SH_OFFSET = 10 , TPEF::TPEFHeaders::SH_SIZE = 14 , TPEF::TPEFHeaders::SH_ID = 18 , TPEF::TPEFHeaders::SH_ASPACE = 20 ,   TPEF::TPEFHeaders::SH_PADDING = 21 , TPEF::TPEFHeaders::SH_LINK = 22 , TPEF::TPEFHeaders::SH_INFO = 24 , TPEF::TPEFHeaders::SH_ENTSIZE = 28 }
enum	TPEF::TPEFHeaders::SymbolOtherValues { TPEF::TPEFHeaders::STO_ABS = 0x80 }
enum	TPEF::TPEFHeaders::RelocTypeValues { TPEF::TPEFHeaders::STF_RELOCATION_TYPE_MASK = 0x0F , TPEF::TPEFHeaders::STF_CHUNK = 0x80 }
enum	TPEF::TPEFHeaders::InstructionAnnotationMasks { TPEF::TPEFHeaders::IANNOTE_CONTINUATION = 0x80 , TPEF::TPEFHeaders::IANNOTE_SIZE = 0x7f }
enum	TPEF::TPEFHeaders::InstructionAttributeField {   TPEF::TPEFHeaders::IA_TYPE = 0x01 , TPEF::TPEFHeaders::IA_END = 0x02 , TPEF::TPEFHeaders::IA_ANNOTE = 0x04 , TPEF::TPEFHeaders::IA_EMPTY = 0x08 ,   TPEF::TPEFHeaders::IA_IMMSIZE = 0xf0 , TPEF::TPEFHeaders::IA_MGUARD = 0x10 }
enum	TPEF::TPEFHeaders::InstructionFieldType {   TPEF::TPEFHeaders::IE_SRC_TYPE_MASK = 0x0c , TPEF::TPEFHeaders::IE_DST_TYPE_MASK = 0x30 , TPEF::TPEFHeaders::IE_GUARD_TYPE_MASK = 0x80 , TPEF::TPEFHeaders::MVS_NULL = 0x00 ,   TPEF::TPEFHeaders::MVS_RF = 0x04 , TPEF::TPEFHeaders::MVS_IMM = 0x08 , TPEF::TPEFHeaders::MVS_UNIT = 0x0c , TPEF::TPEFHeaders::MVD_NULL = 0x00 ,   TPEF::TPEFHeaders::MVD_RF = 0x10 , TPEF::TPEFHeaders::MVD_ILLEGAL = 0x20 , TPEF::TPEFHeaders::MVD_UNIT = 0x30 , TPEF::TPEFHeaders::MVG_UNIT = 0x00 ,   TPEF::TPEFHeaders::MVG_RF = 0x80 , TPEF::TPEFHeaders::IE_GUARD_INV_MASK = 0x40 }

Variables
const Byte	TPEF::TPEFHeaders::FH_ID_BYTES []
	File format identification mark (TPEF version 1). See TPEF documentation for more info.
const Byte	TPEF::TPEFHeaders::FH_ID_SIZE = 10
	Size of file identification code.
const HalfWord	TPEF::TPEFHeaders::FH_HEADER_SIZE = 26
	Size of file header.
const HalfWord	TPEF::TPEFHeaders::SH_HEADER_SIZE = 32
	Suze of section header.

Detailed Description

TPEF file and section header related offsets and some other TPEF binary file related values.

Author

Mikael Lepistö 2004 (tmlepist-no.spam-cs.tut.fi)

Note

rating: yellow

Definition in file TPEFHeaders.hh.
