BusDialog.cc File Reference

#include <wx/wx.h>
#include <wx/listctrl.h>
#include <wx/radiobox.h>
#include <wx/spinctrl.h>
#include <boost/format.hpp>
#include "BusDialog.hh"
#include "Bus.hh"
#include "Segment.hh"
#include "Guard.hh"
#include "Conversion.hh"
#include "WxConversion.hh"
#include "WarningDialog.hh"
#include "ErrorDialog.hh"
#include "InformationDialog.hh"
#include "Machine.hh"
#include "MachineTester.hh"
#include "UserManualCmd.hh"
#include "ProDeConstants.hh"
#include "FUPort.hh"
#include "RFGuardDialog.hh"
#include "FUGuardDialog.hh"
#include "ModelConstants.hh"
#include "WidgetTools.hh"
#include "GUITextGenerator.hh"
#include "ProDeTextGenerator.hh"

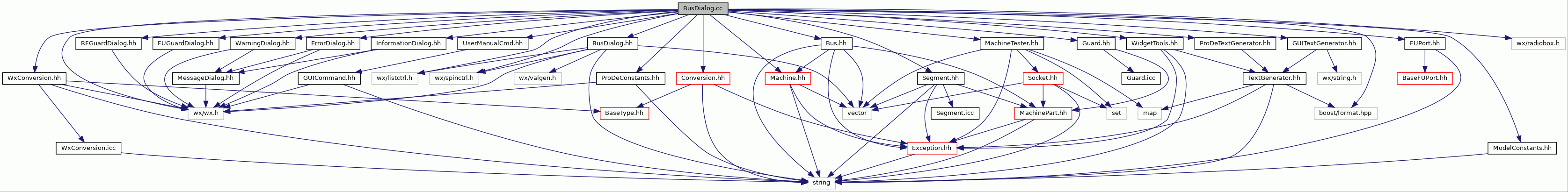

Include dependency graph for BusDialog.cc:

Go to the source code of this file.

Functions
int wxCALLBACK	ListCompareFunction (long item1, long item2, long WXUNUSED(sortData))

Detailed Description

Definition of BusDialog class.

Author

Veli-Pekka Jääskeläinen 2004 (vjaaskel-no.spam-cs.tut.fi)

Note

rating: red

Definition in file BusDialog.cc.

Function Documentation

ListCompareFunction()

int wxCALLBACK ListCompareFunction	(	long	item1,
		long	item2,
		long	WXUNUSEDsortData
	)

Defines how SortItems() does comparison between two items to sort the list.

Order: names in ascending order. Within same name, index numbers in ascending order. Within same name and index number, non-inverted guard comes before inverted.

Definition at line 375 of file BusDialog.cc.

{
    // items are set with SetItemData to contain pointers to the rf guards
    RegisterGuard* rfGuard1 = (RegisterGuard*) item1;
    RegisterGuard* rfGuard2 = (RegisterGuard*) item2;
    assert (rfGuard1 != NULL);
    assert (rfGuard2 != NULL);

    string name1 = rfGuard1->registerFile()->name();
    int index1 = rfGuard1->registerIndex();
    bool inverted1 = rfGuard1->isInverted();

    string name2 = rfGuard2->registerFile()->name();
    int index2 = rfGuard2->registerIndex();
    bool inverted2 = rfGuard2->isInverted();

    if (name1 < name2) {
        return -1;
    } else if (name1 > name2) {
        return 1;
    } else if (index1 < index2) {
        return -1;
    } else if (index1 > index2) {
        return 1;
    } else if (!inverted1 && inverted2) {
        return -1;
    } else if (inverted1 && !inverted2) {
        return 1;
    }

    return 0;
}

References assert, TTAMachine::Guard::isInverted(), TTAMachine::Component::name(), TTAMachine::RegisterGuard::registerFile(), and TTAMachine::RegisterGuard::registerIndex().

Referenced by BusDialog::updateGuardLists().

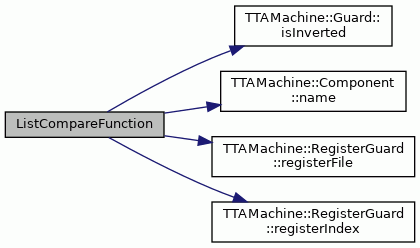

Here is the call graph for this function:
