AddRFFromHDBCmd Class Reference

#include <AddRFFromHDBCmd.hh>

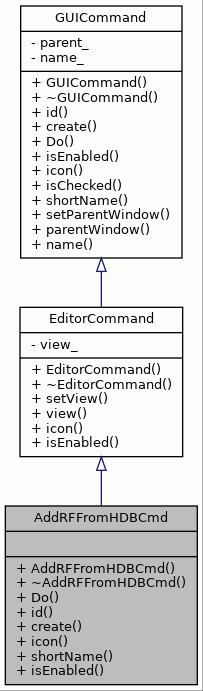

Inheritance diagram for AddRFFromHDBCmd:

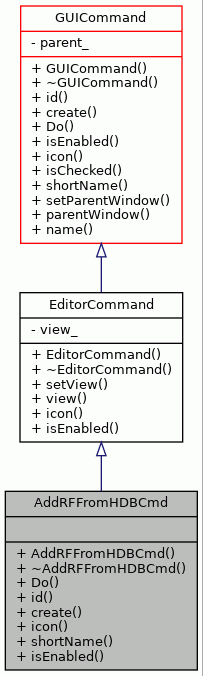

Collaboration diagram for AddRFFromHDBCmd:

Public Member Functions
	AddRFFromHDBCmd ()
virtual	~AddRFFromHDBCmd ()
virtual bool	Do ()
virtual int	id () const
virtual AddRFFromHDBCmd *	create () const
virtual std::string	icon () const
virtual std::string	shortName () const
virtual bool	isEnabled ()
Public Member Functions inherited from EditorCommand
	EditorCommand (std::string name, wxWindow *parent=NULL)
virtual	~EditorCommand ()
void	setView (wxView *view)
wxView *	view () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

wxCommand for opening a dialog for adding register files from a HDB.

Definition at line 41 of file AddRFFromHDBCmd.hh.

Constructor & Destructor Documentation

AddRFFromHDBCmd()

AddRFFromHDBCmd::AddRFFromHDBCmd

(

)

The Constructor.

Definition at line 48 of file AddRFFromHDBCmd.cc.

                                :
    EditorCommand(ProDeConstants::CMD_NAME_ADD_RF_FROM_HDB) {
}

Referenced by create().

~AddRFFromHDBCmd()

AddRFFromHDBCmd::~AddRFFromHDBCmd ( )

virtual

The Destructor.

Definition at line 56 of file AddRFFromHDBCmd.cc.

{}

Member Function Documentation

create()

AddRFFromHDBCmd * AddRFFromHDBCmd::create ( ) const

virtual

Creates and returns a new instance of this command.

Implements GUICommand.

Definition at line 94 of file AddRFFromHDBCmd.cc.

                              {
    return new AddRFFromHDBCmd();
}

References AddRFFromHDBCmd().

Here is the call graph for this function:

Do()

bool AddRFFromHDBCmd::Do ( )

virtual

Executes the command.

Returns

True, if the command was succesfully executed, false otherwise.

Implements GUICommand.

Definition at line 65 of file AddRFFromHDBCmd.cc.

                    {

    assert(parentWindow() != NULL);
    assert(view() != NULL);

    Model* model = dynamic_cast<MDFDocument*>(
        view()->GetDocument())->getModel();


    AddRFFromHDBDialog dialog(parentWindow(), model);

    dialog.ShowModal();
    return true;
}

References assert, GUICommand::parentWindow(), and EditorCommand::view().

Here is the call graph for this function:

icon()

string AddRFFromHDBCmd::icon ( ) const

virtual

Returns path to the command's icon file.

Reimplemented from EditorCommand.

Definition at line 104 of file AddRFFromHDBCmd.cc.

                            {
    return ProDeConstants::CMD_ICON_DEFAULT;
}

References ProDeConstants::CMD_ICON_DEFAULT.

id()

int AddRFFromHDBCmd::id ( ) const

virtual

Returns id of this command.

Implements GUICommand.

Definition at line 85 of file AddRFFromHDBCmd.cc.

                          {
    return ProDeConstants::COMMAND_ADD_RF_FROM_HDB;
}

References ProDeConstants::COMMAND_ADD_RF_FROM_HDB.

isEnabled()

bool AddRFFromHDBCmd::isEnabled ( )

virtual

Returns true when the command is executable, false when not.

This command is executable when a document is open.

Returns

True, if a document is open.

Reimplemented from EditorCommand.

Definition at line 126 of file AddRFFromHDBCmd.cc.

                           {
    wxDocManager* manager = wxGetApp().docManager();
    if (manager->GetCurrentView() != NULL) {
    return true;
    }
    return false;
}

shortName()

string AddRFFromHDBCmd::shortName ( ) const

virtual

Returns short version of the command name.

Reimplemented from GUICommand.

Definition at line 113 of file AddRFFromHDBCmd.cc.

                                 {
    return ProDeConstants::CMD_SNAME_ADD_RF_FROM_HDB;
}

References ProDeConstants::CMD_SNAME_ADD_RF_FROM_HDB.

---

The documentation for this class was generated from the following files:

• AddRFFromHDBCmd.hh
• AddRFFromHDBCmd.cc
