#include <ArrayImageWriter.hh>

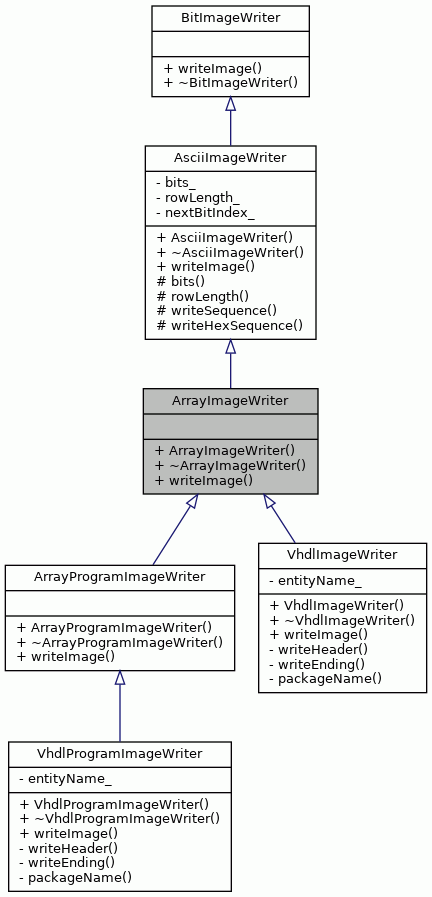

Inheritance diagram for ArrayImageWriter:

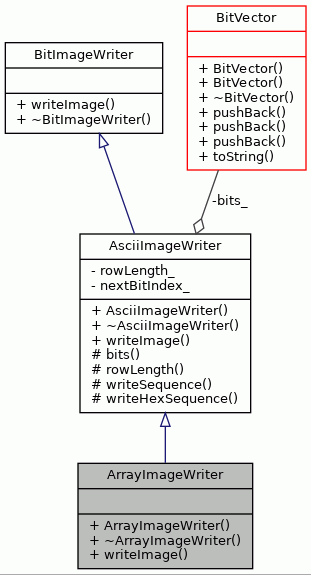

Collaboration diagram for ArrayImageWriter:

Public Member Functions
	ArrayImageWriter (const BitVector &bits, int rowLength)

virtual	~ArrayImageWriter ()

virtual void	writeImage (std::ostream &stream) const

Public Member Functions inherited from AsciiImageWriter
	AsciiImageWriter (const BitVector &bits, int rowLength)

virtual	~AsciiImageWriter ()

Public Member Functions inherited from BitImageWriter
virtual	~BitImageWriter ()

Additional Inherited Members
Protected Member Functions inherited from AsciiImageWriter
const BitVector &	bits () const

int	rowLength () const

void	writeSequence (std::ostream &stream, int length, bool padEnd=false) const

void	writeHexSequence (std::ostream &stream, int length, bool padEnd=false) const

Detailed Description

Writes the bit image with ASCII 1's and 0's such that each line is enveloped by " marks. Can be used to initialize an VHDL array, for example.

Definition at line 43 of file ArrayImageWriter.hh.

Constructor & Destructor Documentation

◆ ArrayImageWriter()

ArrayImageWriter::ArrayImageWriter	(	const BitVector &	bits,
		int	rowLength
	)

The constructor.

Parameters

bits	The bits to write.
rowLength	Length of the rows to write.

Definition at line 45 of file ArrayImageWriter.cc.

                                                                        :
     AsciiImageWriter(bits, rowLength) {
 }

◆ ~ArrayImageWriter()

ArrayImageWriter::~ArrayImageWriter ( )

virtual

The destructor.

Definition at line 53 of file ArrayImageWriter.cc.

53 {

54 }

Member Function Documentation

◆ writeImage()

void ArrayImageWriter::writeImage ( std::ostream & stream ) const

virtual

Writes the bit image to the given stream.

Parameters

stream The stream to write.

Reimplemented from AsciiImageWriter.

Reimplemented in VhdlImageWriter, ArrayProgramImageWriter, and VhdlProgramImageWriter.

Definition at line 63 of file ArrayImageWriter.cc.

                                                      {
     int lineCount =
         static_cast<int>(
             ceil(static_cast<double>(bits().size()) / rowLength()));

     for (int line = 1; line < lineCount; line++) {
         stream << "\"";
         writeSequence(stream, rowLength());
         stream << "\"," << std::endl;
     }
     stream << "\"";
     bool padRemainingBits = true;
     writeSequence(stream, rowLength(), padRemainingBits);
     stream << "\"";
 }

References AsciiImageWriter::bits(), AsciiImageWriter::rowLength(), and AsciiImageWriter::writeSequence().

Referenced by VhdlImageWriter::writeImage().

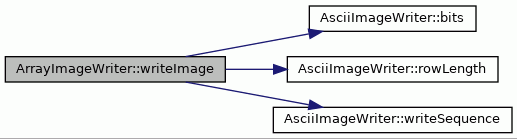

Here is the call graph for this function:

The documentation for this class was generated from the following files:
