#include <BFEarlyBypasser.hh>

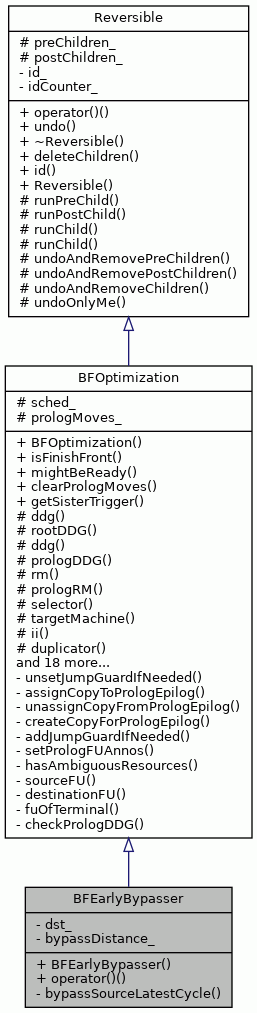

Inheritance diagram for BFEarlyBypasser:

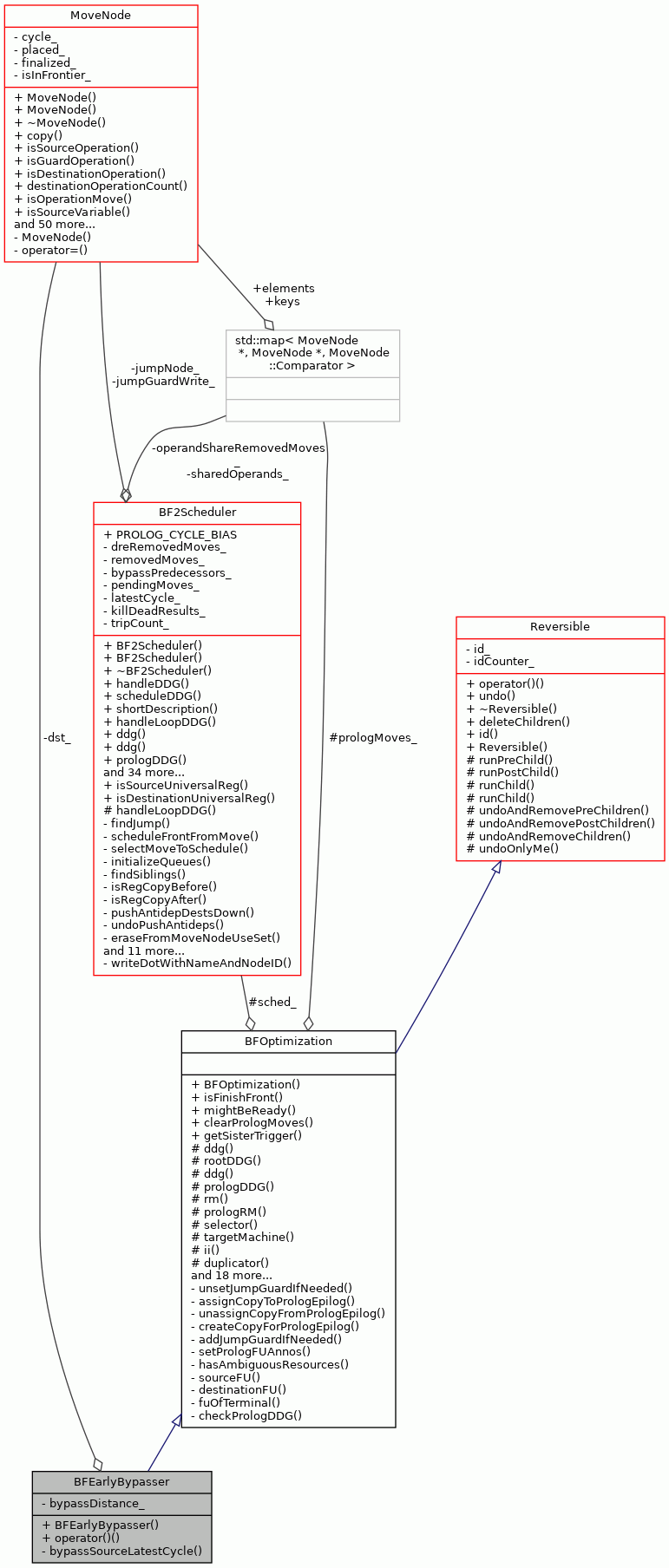

Collaboration diagram for BFEarlyBypasser:

Public Member Functions
	BFEarlyBypasser (BF2Scheduler &sched, MoveNode &mn)

bool	operator() ()

Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)

virtual bool	isFinishFront ()

virtual void	mightBeReady (MoveNode &mn)

Public Member Functions inherited from Reversible
virtual void	undo ()

virtual	~Reversible ()

void	deleteChildren (std::stack< Reversible * > &children)

int	id ()

	Reversible ()

Private Member Functions
int	bypassSourceLatestCycle (MoveNode &bypassSrc, MoveNode &bypassDst)

Private Attributes
MoveNode &	dst_

int	bypassDistance_ = 5

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()

static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()

DataDependenceGraph *	rootDDG ()

const DataDependenceGraph &	ddg () const

DataDependenceGraph *	prologDDG ()

SimpleResourceManager &	rm () const

SimpleResourceManager *	prologRM () const

BUMoveNodeSelector &	selector ()

const TTAMachine::Machine &	targetMachine () const

unsigned int	ii () const

MoveNodeDuplicator &	duplicator () const

virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU_=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setJumpGuard (MoveNode &mn)

void	unsetJumpGuard (MoveNode &mn)

bool	needJumpGuard (const MoveNode &mn, int cycle)

int	jumpGuardAvailableCycle (const MoveNode &mn)

bool	canBeSpeculated (const Operation &op)

bool	canBeSpeculated (const MoveNode &mn)

bool	usePrologMove (const MoveNode &mn)

bool	canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool	immCountPreventsScheduling (const MoveNode &mn)

Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)

bool	runPostChild (Reversible *preChild)

bool	runChild (std::stack< Reversible * > &children, Reversible *child)

bool	runChild (Reversible *child, bool pre)

void	undoAndRemovePreChildren ()

void	undoAndRemovePostChildren ()

void	undoAndRemoveChildren (std::stack< Reversible * > &children)

virtual void	undoOnlyMe ()

Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_

Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_

std::stack< Reversible * >	postChildren_

Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode , MoveNode , MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 42 of file BFEarlyBypasser.hh.

Constructor & Destructor Documentation

◆ BFEarlyBypasser()

BFEarlyBypasser::BFEarlyBypasser	(	BF2Scheduler &	sched,
		MoveNode &	mn
	)

Definition at line 141 of file BFEarlyBypasser.cc.

                                                                   :
     BFOptimization(sched),  dst_(mn) {
     SchedulerCmdLineOptions* opts =
         dynamic_cast<SchedulerCmdLineOptions*>(Application::cmdLineOptions());
     if (opts != NULL && opts->bypassDistance() > -1) {
         bypassDistance_ = opts->bypassDistance();
     }
 }

References SchedulerCmdLineOptions::bypassDistance(), bypassDistance_, and Application::cmdLineOptions().

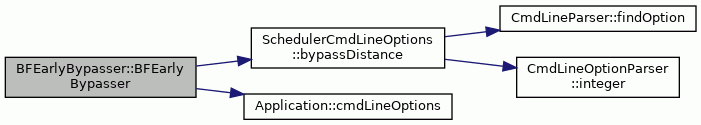

Here is the call graph for this function:

Member Function Documentation

◆ bypassSourceLatestCycle()

int BFEarlyBypasser::bypassSourceLatestCycle	(	MoveNode &	bypassSrc,
		MoveNode &	bypassDst
	)

private

Checks that bypass source does not WHAT???

Definition at line 91 of file BFEarlyBypasser.cc.

                                               {
     DataDependenceGraph::NodeSet nodes;

     int lc = INT_MAX;

     if (bypassSrc.isSourceOperation()) {
         ProgramOperation& po = bypassSrc.sourceOperation();
         for (int j = 0; j < po.inputMoveCount(); j++) {
             MoveNode& inputMove = po.inputMove(j);
             // may also be a shared operand
             if (!sched_.isPreLoopSharedOperand(inputMove)) {
                 nodes.insert(&inputMove);
             }
         }

         for (int j = 0; j < po.outputMoveCount(); j++) {
             MoveNode& outputMove = po.outputMove(j);
             if (!sched_.isDeadResult(outputMove)) {
                 nodes.insert(&outputMove);
             }
         }
     } else {
         nodes.insert(&bypassSrc);
     }

     for (auto mn : nodes) {
         DataDependenceGraph::EdgeSet edges = ddg().outEdges(*mn);
         for (auto e : edges) {
             MoveNode& head = ddg().headNode(*e);
             if (head.isScheduled()) {
                 lc = std::min(lc, head.cycle());
                 continue;
             }
             if (&head == &bypassDst || head.isInFrontier() ||
                 e->isBackEdge() || nodes.count(&head)) {
                 continue;
             }
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
             std::cerr << "\t\t\t\tEdge almost preventing bypass from: "
                       << bypassSrc.toString() << "to: " <<bypassDst.toString()
                       << ": " << e->toString() << " dst: "
                       << head.toString() << std::endl;
 #endif
             return -1;
         }
     }
     return lc;
 }

References MoveNode::cycle(), BFOptimization::ddg(), BoostGraph< GraphNode, GraphEdge >::headNode(), ProgramOperation::inputMove(), ProgramOperation::inputMoveCount(), BF2Scheduler::isDeadResult(), MoveNode::isInFrontier(), BF2Scheduler::isPreLoopSharedOperand(), MoveNode::isScheduled(), MoveNode::isSourceOperation(), BoostGraph< GraphNode, GraphEdge >::outEdges(), ProgramOperation::outputMove(), ProgramOperation::outputMoveCount(), BFOptimization::sched_, MoveNode::sourceOperation(), and MoveNode::toString().

Referenced by operator()().

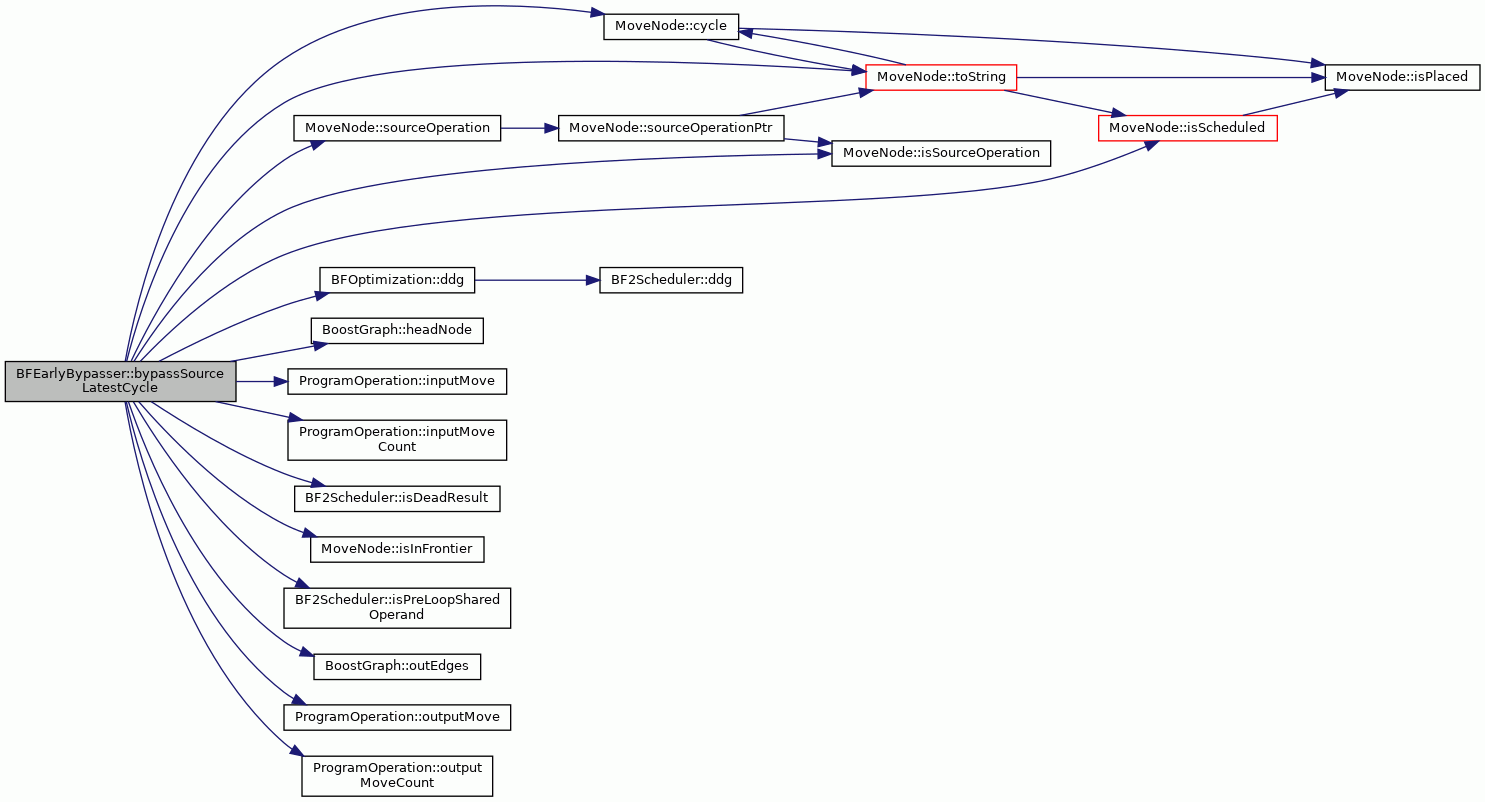

Here is the call graph for this function:

◆ operator()()

bool BFEarlyBypasser::operator() ( )

virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 48 of file BFEarlyBypasser.cc.

                             {

     if (bypassDistance_ == 0) return false;

     DataDependenceEdge* bypassEdge = sched_.findBypassEdge(dst_);
     if (bypassEdge == NULL) {
         return false;
     }
     MoveNode& src = ddg().tailNode(*bypassEdge);

     if (sched_.currentFront()->illegalBypassSources_.count(&src)) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
         std::cerr << "Bypass source illegal: " << src.toString() << std::endl;
 #endif
         return 0;
     }

     if (!ddg().guardsAllowBypass(src, dst_, bypassEdge->isBackEdge())) {
         return false;
     }

     if (!MachineConnectivityCheck::canBypass(
             src, dst_, sched_.targetMachine())) {
         return false;
     }

     int bypassSourceLC = bypassSourceLatestCycle(src, dst_);
     if (bypassSourceLC == -1) {
         return false;
     }

     if (bypassEdge->isBackEdge()) {
         if (!src.isScheduled() || src.cycle() < (int)ii()) {
             return false;
         }
     } else {
         return runPreChild(new BFEarlyBypass(sched_, src, dst_));
     }
     return false;
 }

References bypassDistance_, bypassSourceLatestCycle(), MachineConnectivityCheck::canBypass(), BF2Scheduler::currentFront(), MoveNode::cycle(), BFOptimization::ddg(), dst_, BF2Scheduler::findBypassEdge(), BFOptimization::ii(), BF2ScheduleFront::illegalBypassSources_, DataDependenceEdge::isBackEdge(), MoveNode::isScheduled(), Reversible::runPreChild(), BFOptimization::sched_, BoostGraph< GraphNode, GraphEdge >::tailNode(), BF2Scheduler::targetMachine(), and MoveNode::toString().

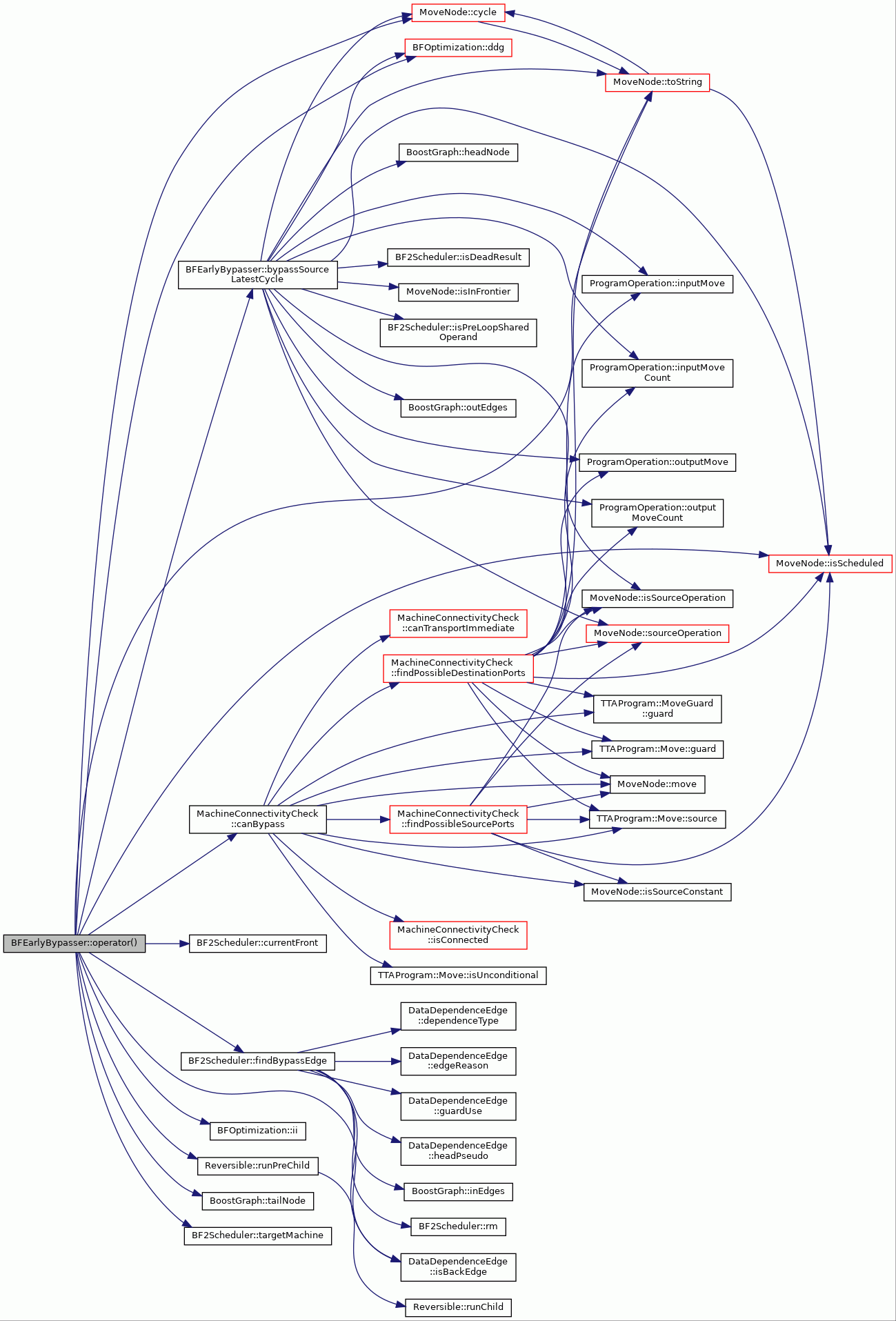

Here is the call graph for this function:

Member Data Documentation

◆ bypassDistance_

int BFEarlyBypasser::bypassDistance_ = 5

private

Definition at line 50 of file BFEarlyBypasser.hh.

Referenced by BFEarlyBypasser(), and operator()().

◆ dst_

MoveNode& BFEarlyBypasser::dst_

private

Definition at line 49 of file BFEarlyBypasser.hh.

Referenced by operator()().

The documentation for this class was generated from the following files:
