BFPushAntidepsDown Class Reference

#include <BFPushAntidepsDown.hh>

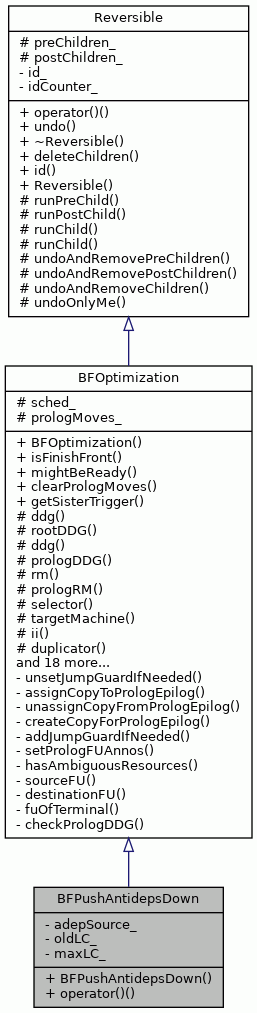

Inheritance diagram for BFPushAntidepsDown:
Inheritance graph

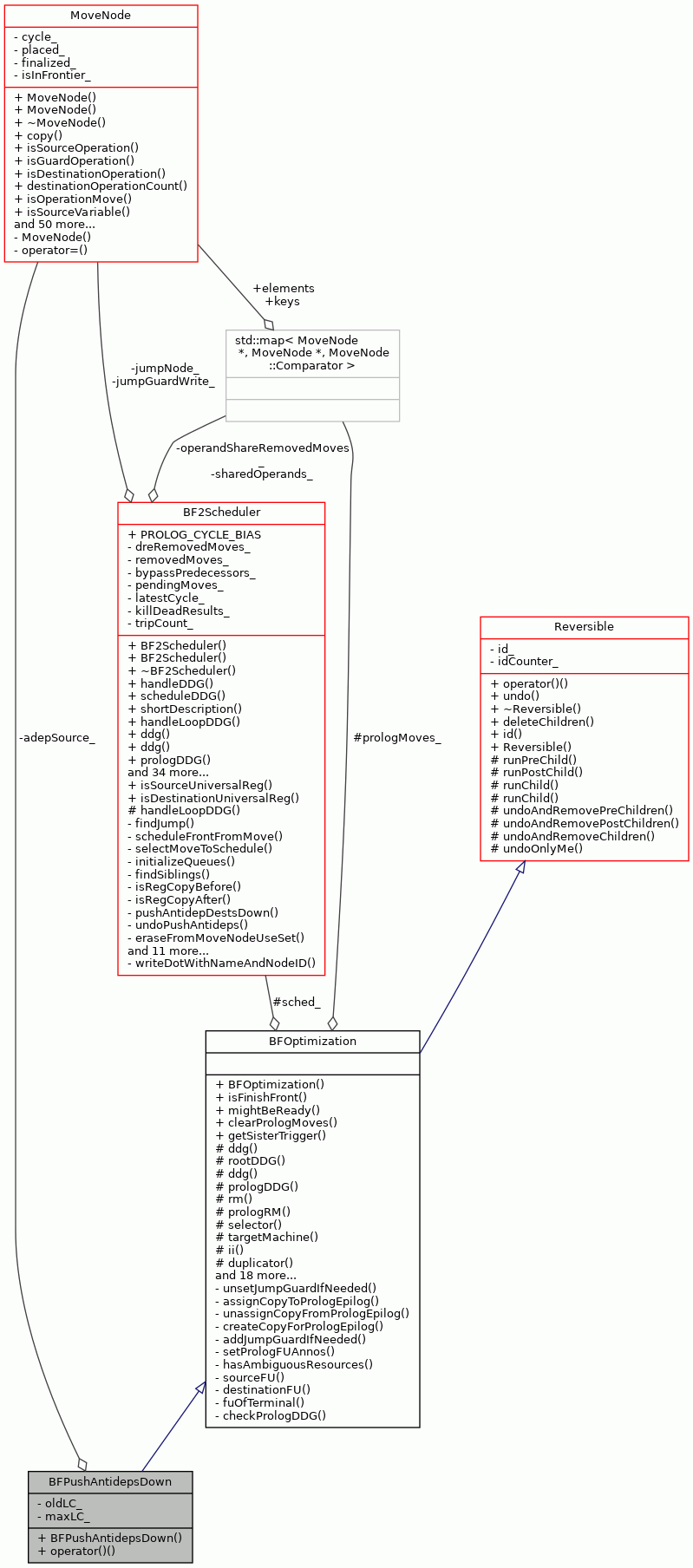

Collaboration diagram for BFPushAntidepsDown:
Collaboration graph

Public Member Functions

 BFPushAntidepsDown (BF2Scheduler &sched, MoveNode &adepSrc, int oldLC, int maxLC)

bool operator() ()

- Public Member Functions inherited from BFOptimization
 BFOptimization (BF2Scheduler &sched)

virtual bool isFinishFront ()

virtual void mightBeReady (MoveNode &mn)

- Public Member Functions inherited from Reversible
virtual void undo ()

virtual ~Reversible ()

void deleteChildren (std::stack< Reversible * > &children)

int id ()

 Reversible ()


Private Attributes

MoveNode & adepSource_

int oldLC_

int maxLC_


Additional Inherited Members

- Static Public Member Functions inherited from BFOptimization
static void clearPrologMoves ()

static MoveNode * getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

- Protected Member Functions inherited from BFOptimization
DataDependenceGraph & ddg ()

DataDependenceGraph * rootDDG ()

const DataDependenceGraph & ddg () const

DataDependenceGraph * prologDDG ()

SimpleResourceManager & rm () const

SimpleResourceManager * prologRM () const

BUMoveNodeSelector & selector ()

const TTAMachine::Machine & targetMachine () const

unsigned int ii () const

MoveNodeDuplicator & duplicator () const

virtual bool assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setJumpGuard (MoveNode &mn)

void unsetJumpGuard (MoveNode &mn)

bool needJumpGuard (const MoveNode &mn, int cycle)

int jumpGuardAvailableCycle (const MoveNode &mn)

bool canBeSpeculated (const Operation &op)

bool canBeSpeculated (const MoveNode &mn)

bool usePrologMove (const MoveNode &mn)

bool canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile * RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool immCountPreventsScheduling (const MoveNode &mn)

- Protected Member Functions inherited from Reversible
bool runPreChild (Reversible *preChild)

bool runPostChild (Reversible *preChild)

bool runChild (std::stack< Reversible * > &children, Reversible *child)

bool runChild (Reversible *child, bool pre)

void undoAndRemovePreChildren ()

void undoAndRemovePostChildren ()

void undoAndRemoveChildren (std::stack< Reversible * > &children)

virtual void undoOnlyMe ()

- Protected Attributes inherited from BFOptimization
BF2Scheduler & sched_

- Protected Attributes inherited from Reversible
std::stack< Reversible * > preChildren_

std::stack< Reversible * > postChildren_

- Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::Comparator > prologMoves_


Detailed Description

Definition at line 44 of file BFPushAntidepsDown.hh.

Constructor & Destructor Documentation

◆ BFPushAntidepsDown()

BFPushAntidepsDown::BFPushAntidepsDown ( BF2Scheduler &  sched,
MoveNode &  adepSrc,
int  oldLC,
int  maxLC
)
inline

Definition at line 46 of file BFPushAntidepsDown.hh.

47  :
48  BFOptimization(sched),
49  adepSource_(adepSrc), oldLC_(oldLC), maxLC_(maxLC) {}

Member Function Documentation

◆ operator()()

bool BFPushAntidepsDown::operator() ( )
virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 46 of file BFPushAntidepsDown.cc.

46  {
47
48  DataDependenceGraph::EdgeSet outEdges = ddg().outEdges(adepSource_);
49  int newLC = maxLC_;
50
51  std::list<BFPushAntidepDown*> rescheds;
52
53  for (auto e: outEdges) {
54  if ((e->edgeReason() == DataDependenceEdge::EDGE_REGISTER ||
55  e->edgeReason() == DataDependenceEdge::EDGE_RA) &&
56  e->isFalseDep()) {
57  MoveNode& aDepHead = ddg().headNode(*e);
58  if (!aDepHead.isScheduled()) {
59  continue;
60  }
61  int cycle = aDepHead.cycle();
62  int lat = 1;
63  if (e->guardUse()) {
64  lat = adepSource_.guardLatency();
65  }
66  if (cycle + lat > maxLC_) {
67  continue;
68  }
69  int dstLC = ddg().latestCycle(aDepHead);
70 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
71  std::cerr << "\t\tShould rescheduling move at: "
72  << aDepHead.toString() << std::endl;
73  std::cerr << "\t\tdstLC: " << dstLC << std::endl;
74 #endif
75  if (dstLC > aDepHead.cycle()) {
76  rescheds.push_back(
77  new BFPushAntidepDown(sched_, aDepHead, lat, newLC));
78  }
79
80
81  int curLC = dstLC - lat + 1;
82  if (curLC < newLC) {
83  newLC = curLC;
84  }
85  }
86  }
87  // can we improve the situation at all?
88  if (newLC <= oldLC_) {
89 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
90  std::cerr << "newLC: " << newLC << " old LC: " << oldLC_ << std::endl;
91 #endif
92  for (std::list<BFPushAntidepDown*>::iterator i = rescheds.begin();
93  i != rescheds.end();) {
94  BFPushAntidepDown* bfo = *i;
95  delete bfo;
96  rescheds.erase(i++);
97  }
98 // assert(rescheds.empty());
99  return false;
100  } else {
101 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
102  std::cerr << "\t\t\tCould improve? newLC: " << newLC << std::endl;
103 #endif
104  }
105
106  for (auto i = rescheds.begin(); i != rescheds.end();) {
107  BFPushAntidepDown* bfo = *i;
108  rescheds.erase(i++);
109  runPostChild(bfo);
110  }
111  return !postChildren_.empty();
112 }

References adepSource_, MoveNode::cycle(), BFOptimization::ddg(), DataDependenceEdge::EDGE_RA, DataDependenceEdge::EDGE_REGISTER, MoveNode::guardLatency(), BoostGraph< GraphNode, GraphEdge >::headNode(), MoveNode::isScheduled(), DataDependenceGraph::latestCycle(), maxLC_, oldLC_, BoostGraph< GraphNode, GraphEdge >::outEdges(), Reversible::postChildren_, Reversible::runPostChild(), BFOptimization::sched_, and MoveNode::toString().

Here is the call graph for this function:

Member Data Documentation

◆ adepSource_

MoveNode& BFPushAntidepsDown::adepSource_
private

Definition at line 52 of file BFPushAntidepsDown.hh.

Referenced by operator()().

◆ maxLC_

int BFPushAntidepsDown::maxLC_
private

Definition at line 54 of file BFPushAntidepsDown.hh.

Referenced by operator()().

◆ oldLC_

int BFPushAntidepsDown::oldLC_
private

Definition at line 53 of file BFPushAntidepsDown.hh.

Referenced by operator()().

The documentation for this class was generated from the following files:
