#include <BFSwapOperands.hh>

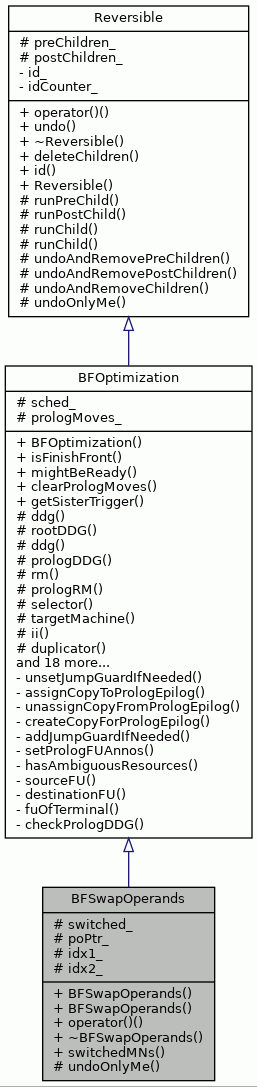

Inheritance diagram for BFSwapOperands:

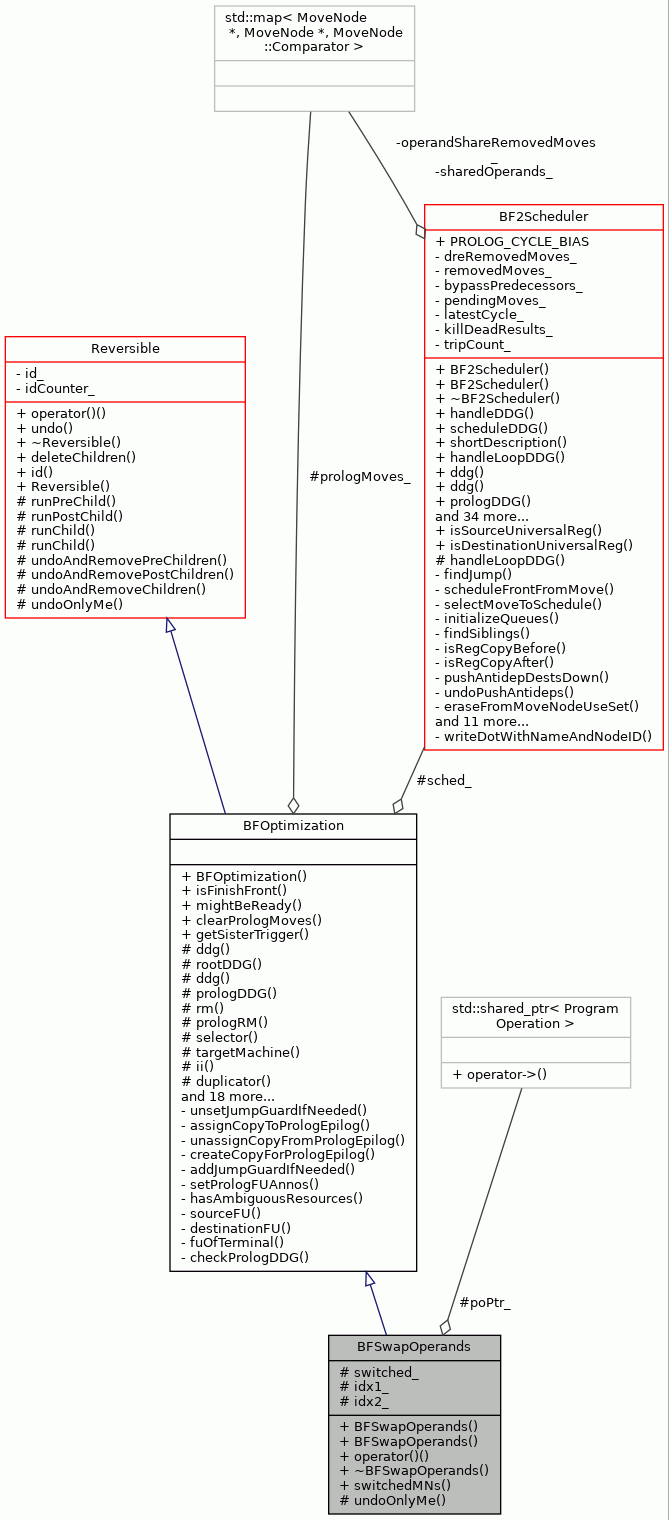

Collaboration diagram for BFSwapOperands:

Public Member Functions
	BFSwapOperands (BF2Scheduler &sched, MoveNode &mn)

	BFSwapOperands (BF2Scheduler &sched, ProgramOperationPtr po, MoveNode &mn1, MoveNode &mn2)

virtual bool	operator() ()

virtual	~BFSwapOperands ()

std::pair< MoveNode , MoveNode >	switchedMNs ()

Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)

virtual bool	isFinishFront ()

virtual void	mightBeReady (MoveNode &mn)

Public Member Functions inherited from Reversible
virtual void	undo ()

virtual	~Reversible ()

void	deleteChildren (std::stack< Reversible * > &children)

int	id ()

	Reversible ()

Protected Member Functions
virtual void	undoOnlyMe ()

Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()

DataDependenceGraph *	rootDDG ()

const DataDependenceGraph &	ddg () const

DataDependenceGraph *	prologDDG ()

SimpleResourceManager &	rm () const

SimpleResourceManager *	prologRM () const

BUMoveNodeSelector &	selector ()

const TTAMachine::Machine &	targetMachine () const

unsigned int	ii () const

MoveNodeDuplicator &	duplicator () const

virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU_=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setJumpGuard (MoveNode &mn)

void	unsetJumpGuard (MoveNode &mn)

bool	needJumpGuard (const MoveNode &mn, int cycle)

int	jumpGuardAvailableCycle (const MoveNode &mn)

bool	canBeSpeculated (const Operation &op)

bool	canBeSpeculated (const MoveNode &mn)

bool	usePrologMove (const MoveNode &mn)

bool	canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool	immCountPreventsScheduling (const MoveNode &mn)

Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)

bool	runPostChild (Reversible *preChild)

bool	runChild (std::stack< Reversible * > &children, Reversible *child)

bool	runChild (Reversible *child, bool pre)

void	undoAndRemovePreChildren ()

void	undoAndRemovePostChildren ()

void	undoAndRemoveChildren (std::stack< Reversible * > &children)

Protected Attributes
std::pair< MoveNode , MoveNode >	switched_

ProgramOperationPtr	poPtr_

int	idx1_

int	idx2_

Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_

Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_

std::stack< Reversible * >	postChildren_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()

static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode , MoveNode , MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 41 of file BFSwapOperands.hh.

Constructor & Destructor Documentation

◆ BFSwapOperands() [1/2]

BFSwapOperands::BFSwapOperands	(	BF2Scheduler &	sched,
		MoveNode &	trigger
	)

Tries to switch operand and trigger so that it makees immediates triggers, but minimizes the critical path if both operands come from variables.

Definition at line 56 of file BFSwapOperands.cc.

                                                                      :
     BFOptimization(sched), switched_(NULL,NULL), poPtr_(),
     idx1_(0), idx2_(0) {

     if (trigger.destinationOperationCount() != 1) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
         std::cerr << "not exactly one destop:" << trigger.toString()
                   << std::endl;
 #endif
         return;
     }

     // keep immediates as triggers
     if (trigger.move().source().isImmediate()) {
         return;
     }

     int index = trigger.move().destination().operationIndex();
     ProgramOperationPtr poPtr = trigger.destinationOperationPtr(0);
     const Operation &op = poPtr->operation();
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     std::cerr << "trying to swap operand of po: "
               << poPtr->toString() << std::endl;
 #endif

     for (int i = 1; i <= op.numberOfInputs(); i++) {
         if (i == index) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
             std::cerr << "\tNot swapping with itself" << std::endl;
 #endif
             continue;
         }
         if (!op.canSwap(i, index)) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
             std::cerr << "\tnot commutative" << std::endl;
 #endif
             continue;
         }

         MoveNodeSet& otherInputs = poPtr->inputNode(i);
         if (otherInputs.count() != 1) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
             std::cerr << "\tother input count not 1" << std::endl;
 #endif
             continue;
         }

         MoveNode& other = otherInputs.at(0);
         if (other.isScheduled()) {
             continue;
         }

         if (sched_.isPreLoopSharedOperand(other)) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
             std::cerr << "\tCannot swap operand with pre-loop-shared" << std::endl;
 #endif
             continue;
         }


         // make longer path OR immediate into trigger
         // currently only immediate.
         if (other.move().source().isImmediate()) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
             std::cerr << "\tshould swap indeces: " << i << " and  " << index
                       << std::endl;
 #endif
             idx1_ = index;
             idx2_ = i;
             poPtr_ = poPtr;
             switched_.first = &trigger;
             switched_.second = &other;
             return;
         }
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
         std::cerr << "\tother input is: " << other.toString() << std::endl;
 #endif
     }
     return;
 }

References MoveNodeSet::at(), Operation::canSwap(), MoveNodeSet::count(), TTAProgram::Move::destination(), MoveNode::destinationOperationCount(), MoveNode::destinationOperationPtr(), idx1_, idx2_, TTAProgram::Terminal::isImmediate(), BF2Scheduler::isPreLoopSharedOperand(), MoveNode::isScheduled(), MoveNode::move(), Operation::numberOfInputs(), TTAProgram::Terminal::operationIndex(), poPtr_, BFOptimization::sched_, TTAProgram::Move::source(), switched_, and MoveNode::toString().

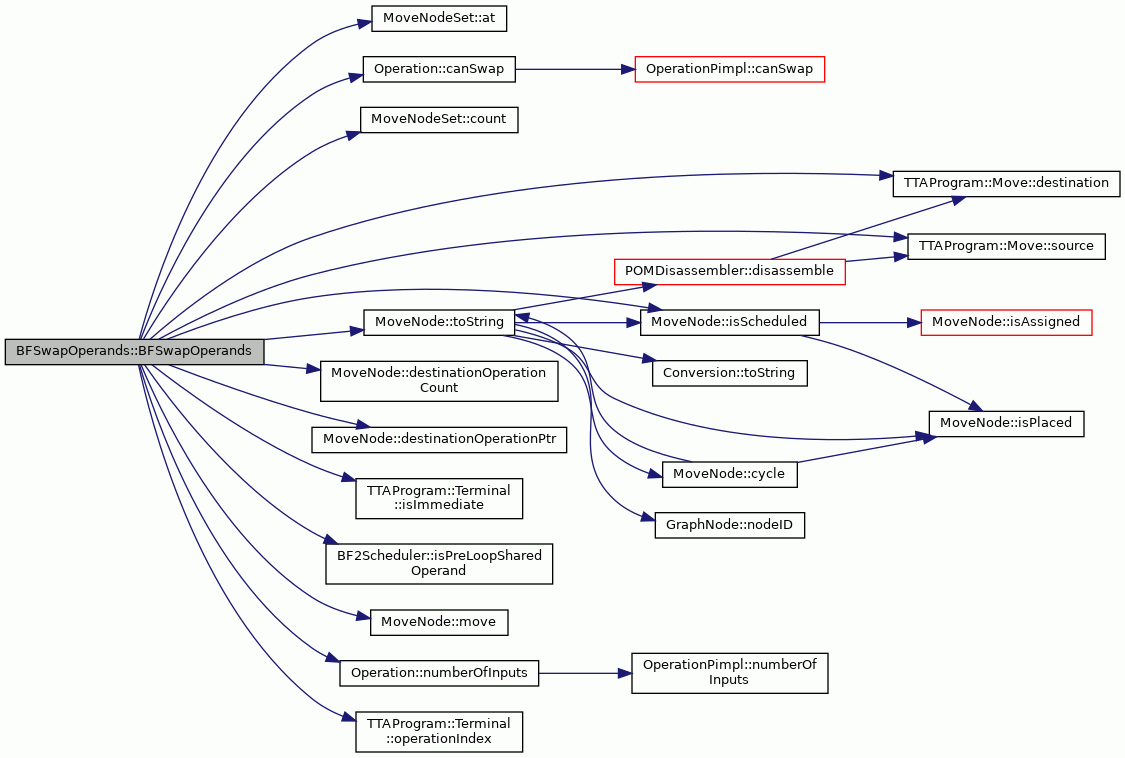

Here is the call graph for this function:

◆ BFSwapOperands() [2/2]

BFSwapOperands::BFSwapOperands	(	BF2Scheduler &	sched,
		ProgramOperationPtr	po,
		MoveNode &	mn1,
		MoveNode &	mn2
	)

Definition at line 45 of file BFSwapOperands.cc.

                                                                 :
     BFOptimization(sched), switched_(&mn1, &mn2), poPtr_(po),
     idx1_(mn1.move().destination().operationIndex()),
     idx2_(mn2.move().destination().operationIndex()) {}

◆ ~BFSwapOperands()

virtual BFSwapOperands::~BFSwapOperands ( )

inlinevirtual

Definition at line 48 of file BFSwapOperands.hh.

48 {}

Member Function Documentation

◆ operator()()

bool BFSwapOperands::operator() ( )

virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 137 of file BFSwapOperands.cc.

                                 {
     if (poPtr_ == NULL) {
         return false;
     }
     const Operation &op = poPtr_->operation();
     if (!op.canSwap(idx1_, idx2_)) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
         std::cerr << "Cannot swap: " << idx1_ << " and " << idx2_ << std::endl;
 #endif
         return false;
     }
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     std::cerr << "Swapping inputs: " << poPtr_->toString() << std::endl;
 #endif
     poPtr_->switchInputs(idx1_, idx2_);
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     std::cerr << "Swapped inputs: " << poPtr_->toString() << std::endl;
 #endif
     return true;
 }

References Operation::canSwap(), idx1_, idx2_, and poPtr_.

Here is the call graph for this function:

◆ switchedMNs()

std::pair<MoveNode*,MoveNode*> BFSwapOperands::switchedMNs ( )

inline

Definition at line 49 of file BFSwapOperands.hh.

49 { return switched_; }

References switched_.

Referenced by BF2ScheduleFront::getMoveNodeFromFrontBU().

◆ undoOnlyMe()

void BFSwapOperands::undoOnlyMe ( )

protectedvirtual

Undoes the operations done by this class but not children. This method should be overloaded by most derived classes.

Reimplemented from Reversible.

Definition at line 158 of file BFSwapOperands.cc.

                                 {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     std::cerr << "undoing swap: " << poPtr_->toString() << std::endl;
 #endif
     poPtr_->switchInputs(idx1_, idx2_);
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     std::cerr << "undid swap: " << poPtr_->toString() << std::endl;
 #endif
 }

References idx1_, idx2_, and poPtr_.

Member Data Documentation

◆ idx1_

int BFSwapOperands::idx1_

protected

Definition at line 54 of file BFSwapOperands.hh.

Referenced by BFSwapOperands(), operator()(), and undoOnlyMe().

◆ idx2_

int BFSwapOperands::idx2_

protected

Definition at line 55 of file BFSwapOperands.hh.

Referenced by BFSwapOperands(), operator()(), and undoOnlyMe().

◆ poPtr_

ProgramOperationPtr BFSwapOperands::poPtr_

protected

Definition at line 53 of file BFSwapOperands.hh.

Referenced by BFSwapOperands(), operator()(), and undoOnlyMe().

◆ switched_

std::pair<MoveNode*, MoveNode*> BFSwapOperands::switched_

protected

Definition at line 52 of file BFSwapOperands.hh.

Referenced by BFSwapOperands(), and switchedMNs().
