#include <BitMatrix.hh>

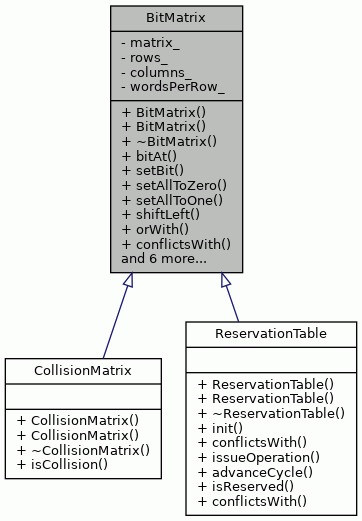

Inheritance diagram for BitMatrix:

Collaboration diagram for BitMatrix:

Public Member Functions
	BitMatrix (int width, int height, bool initialValue)

	BitMatrix (const BitMatrix &another)

virtual	~BitMatrix ()

bool	bitAt (int column, int row) const

void	setBit (int column, int row, bool value)

void	setAllToZero ()

void	setAllToOne ()

void	shiftLeft ()

void	orWith (const BitMatrix &another)

bool	conflictsWith (const BitMatrix &another) const

int	rowCount () const

int	columnCount () const

std::string	toString () const

std::string	toDotString () const

bool	operator== (const BitMatrix &other) const

bool	operator< (const BitMatrix &rightHand) const

Private Types
typedef unsigned	RowWord

Private Attributes
RowWord *	matrix_

const int	rows_

const int	columns_

const int	wordsPerRow_

Detailed Description

Models a bit matrix.

The implementation should be quite efficient. It uses natural words of the machine to store the bits to provide fast logical operations on larger bit chunks at the same time. Especially functions such as fully ORing and ANDing two bit matrices should be quite efficient. Checking a single matrix element is couple of cycles slower than the naive implementation of storing one bit per word. The main methods are inline non-virtual methods for fastest possible access.

Definition at line 49 of file BitMatrix.hh.

Member Typedef Documentation

◆ RowWord

typedef unsigned BitMatrix::RowWord

private

Definition at line 73 of file BitMatrix.hh.

Constructor & Destructor Documentation

◆ BitMatrix() [1/2]

BitMatrix::BitMatrix	(	int	width,
		int	height,
		bool	initialValue
	)

Builds a bit matrix of given size and default content.

Parameters

width	The width of the matrix.
height	The height of the matrix.
initialValue	The initial value for elements.

Definition at line 46 of file BitMatrix.cc.

                                                              :
     rows_(height), columns_(width), wordsPerRow_(
         static_cast<int>(
             std::ceil(columns_ / float(sizeof(RowWord) * BYTE_BITWIDTH)))) {

     matrix_ = new RowWord[rows_ * wordsPerRow_];

     RowWord word = 0;
     if (initialValue) {
         word = ~word;
     }
     for (int row = 0; row < rows_; ++row) {
         for (int col = 0; col < wordsPerRow_; ++col) {
             matrix_[row * wordsPerRow_ + col] = word;
         }
     }
 }

References matrix_, rows_, and wordsPerRow_.

◆ BitMatrix() [2/2]

BitMatrix::BitMatrix ( const BitMatrix & another )

Copy constructor.

Definition at line 75 of file BitMatrix.cc.

                                              :
     rows_(another.rows_), columns_(another.columns_),
     wordsPerRow_(another.wordsPerRow_) {

     matrix_ = new RowWord[rows_ * wordsPerRow_];

     for (int row = 0; row < rows_; ++row) {
         for (int col = 0; col < wordsPerRow_; ++col) {
             matrix_[row * wordsPerRow_ + col] =
                 another.matrix_[row * wordsPerRow_ + col];
         }
     }
 }

References matrix_, rows_, and wordsPerRow_.

◆ ~BitMatrix()

BitMatrix::~BitMatrix ( )

virtual

Frees the bit matrix content storage.

Definition at line 67 of file BitMatrix.cc.

                       {
     delete[] matrix_;
     matrix_ = NULL;
 }

References matrix_.

Member Function Documentation

◆ bitAt()

bool BitMatrix::bitAt	(	int	column,
		int	row
	)		const

Referenced by CollisionMatrix::isCollision(), operator<(), operator==(), toDotString(), and toString().

◆ columnCount()

int BitMatrix::columnCount ( ) const

Referenced by CollisionMatrix::CollisionMatrix(), FUCollisionMatrixIndex::FUCollisionMatrixIndex(), and ReservationTable::ReservationTable().

◆ conflictsWith()

bool BitMatrix::conflictsWith ( const BitMatrix & another ) const

◆ operator<()

bool BitMatrix::operator< ( const BitMatrix & rightHand ) const

Returns true in case the given matrix is "smaller" than this one.

The one that has the first non-equal non-zero matrix element is considered larger. That is, the matrix is considered as a bit string. This is an arbitrary ordering constraint to make it possible to store BitMatrices in sets.

Parameters

rightHand The right hand side of the comparison.

Returns: True in case the the right hand is considered larger.

Definition at line 192 of file BitMatrix.cc.

                                                      {

     for (int row = 0; row < rows_; ++row) {
         for (int column = 0; column < columns_; ++column) {
             bool left = bitAt(column, row);
             bool right = rightHand.bitAt(column, row);
             if (left != right)
                 return static_cast<int>(left) < static_cast<int>(right);
         }
     }
     // they are equal
     return false;
 }

References bitAt(), columns_, and rows_.

Here is the call graph for this function:

◆ operator==()

bool BitMatrix::operator== ( const BitMatrix & other ) const

Compares two bit matrices..

Parameters

other The RT to compare to.

Returns: True in case all values in both reservation tables are equal and the dimensions are the same.

Definition at line 143 of file BitMatrix.cc.

                                                   {

     if (other.rows_ != rows_ || other.columns_ != columns_)
         return false;

     for (int row = 0; row < rows_; ++row) {
         for (int col = 0; col < columns_; ++col) {
             if (other.bitAt(col, row) != bitAt(col, row))
                 return false;
         }
     }
     return true;
 }

References bitAt(), columns_, and rows_.

Here is the call graph for this function:

◆ orWith()

void BitMatrix::orWith ( const BitMatrix & another )

Referenced by FUFiniteStateAutomaton::resolveState().

◆ rowCount()

int BitMatrix::rowCount ( ) const

Referenced by CollisionMatrix::CollisionMatrix(), and FUCollisionMatrixIndex::FUCollisionMatrixIndex().

◆ setAllToOne()

void BitMatrix::setAllToOne ( )

Sets all bits to one.

Definition at line 106 of file BitMatrix.cc.

                        {

     for (int row = 0; row < rows_; ++row) {
         for (int col = 0; col < wordsPerRow_; ++col) {
             matrix_[row * wordsPerRow_ + col] = ~0;
         }
     }
 }

References matrix_, rows_, and wordsPerRow_.

◆ setAllToZero()

void BitMatrix::setAllToZero ( )

Sets all bits to zero.

Definition at line 93 of file BitMatrix.cc.

                         {

     for (int row = 0; row < rows_; ++row) {
         for (int col = 0; col < wordsPerRow_; ++col) {
             matrix_[row * wordsPerRow_ + col] = 0;
         }
     }
 }

References matrix_, rows_, and wordsPerRow_.

Referenced by DCMFUResourceConflictDetector::reset(), and ReservationTableFUResourceConflictDetector::reset().

◆ setBit()

void BitMatrix::setBit	(	int	column,
		int	row,
		bool	value
	)

Referenced by CollisionMatrix::CollisionMatrix(), and ReservationTable::ReservationTable().

◆ shiftLeft()

void BitMatrix::shiftLeft ( )

Referenced by FUFiniteStateAutomaton::resolveState().

◆ toDotString()

std::string BitMatrix::toDotString ( ) const

Returns a textual description of the matrix suitable to be used as a dot edge/node label.

Returns: A string describing the matrix.

Definition at line 164 of file BitMatrix.cc.

                              {

     std::string theString = "";
     for (int row = 0; row < rows_; ++row) {
         for (int column = 0; column < columns_;
              ++column) {
             if (bitAt(column, row))
                 theString += "1 ";
             else
                 theString += "0 ";
         }
         theString += "\\n";
     }
     return theString;
 }

References bitAt(), columns_, and rows_.

Here is the call graph for this function:

◆ toString()

std::string BitMatrix::toString ( ) const

ASCII representation of the bit matrix.

For debugging and testing.

Returns: A string representation of the matrix.

Definition at line 124 of file BitMatrix.cc.

                           {
     std::ostringstream s;
     for (int row = 0; row < rows_; ++row) {
         for (int col = 0; col < columns_; ++col) {
             s << bitAt(col, row) << " ";
         }
         s << std::endl;
     }
     return s.str();
 }

References bitAt(), columns_, and rows_.

Here is the call graph for this function:

Member Data Documentation

◆ columns_

const int BitMatrix::columns_

private

Definition at line 79 of file BitMatrix.hh.

Referenced by operator<(), operator==(), toDotString(), and toString().

◆ matrix_

RowWord* BitMatrix::matrix_

private

Definition at line 75 of file BitMatrix.hh.

Referenced by BitMatrix(), setAllToOne(), setAllToZero(), and ~BitMatrix().

◆ rows_

const int BitMatrix::rows_

private

Definition at line 77 of file BitMatrix.hh.

Referenced by BitMatrix(), operator<(), operator==(), setAllToOne(), setAllToZero(), toDotString(), and toString().

◆ wordsPerRow_

const int BitMatrix::wordsPerRow_

private

Definition at line 81 of file BitMatrix.hh.

Referenced by BitMatrix(), setAllToOne(), and setAllToZero().

The documentation for this class was generated from the following files:
