#include <BlocksLSU.hh>

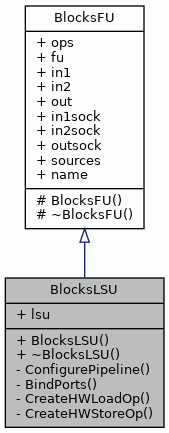

Inheritance diagram for BlocksLSU:

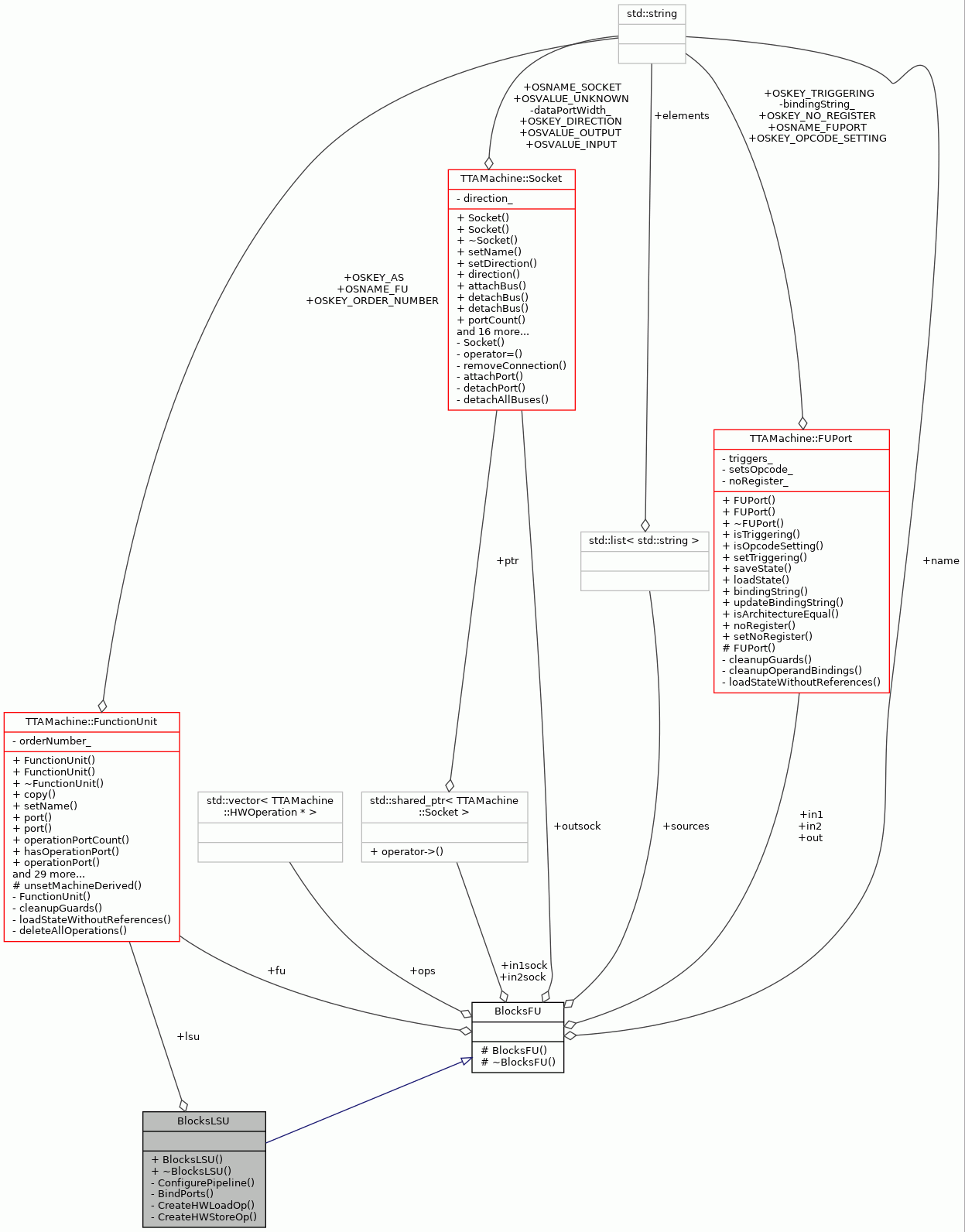

Collaboration diagram for BlocksLSU:

Public Member Functions
	BlocksLSU (TTAMachine::Machine &mach, const std::string &name, std::list< std::string > sources, TTAMachine::AddressSpace &asData, std::shared_ptr< TTAMachine::Socket > in1sock, std::shared_ptr< TTAMachine::Socket > in2sock)

	~BlocksLSU ()

Public Attributes
TTAMachine::FunctionUnit *	lsu

Public Attributes inherited from BlocksFU
std::vector< TTAMachine::HWOperation * >	ops

TTAMachine::FunctionUnit *	fu

TTAMachine::FUPort *	in1

TTAMachine::FUPort *	in2

TTAMachine::FUPort *	out

std::shared_ptr< TTAMachine::Socket >	in1sock

std::shared_ptr< TTAMachine::Socket >	in2sock

TTAMachine::Socket *	outsock

std::list< std::string >	sources

std::string	name

Private Member Functions
void	ConfigurePipeline (TTAMachine::ExecutionPipeline *pipeline, bool isLoadOp)

void	BindPorts (TTAMachine::HWOperation *hwOp, bool isLoadOp)

TTAMachine::HWOperation *	CreateHWLoadOp (const std::string &name)

TTAMachine::HWOperation *	CreateHWStoreOp (const std::string &name)

Additional Inherited Members
Protected Member Functions inherited from BlocksFU
	BlocksFU (TTAMachine::Machine &mach, const std::string &name, std::list< std::string > sources, std::shared_ptr< TTAMachine::Socket > in1sock, std::shared_ptr< TTAMachine::Socket > in2sock)

	~BlocksFU ()

Detailed Description

Definition at line 41 of file BlocksLSU.hh.

Constructor & Destructor Documentation

◆ BlocksLSU()

BlocksLSU::BlocksLSU	(	TTAMachine::Machine &	mach,
		const std::string &	name,
		std::list< std::string >	sources,
		TTAMachine::AddressSpace &	asData,
		std::shared_ptr< TTAMachine::Socket >	in1sock,
		std::shared_ptr< TTAMachine::Socket >	in2sock
	)

BlocksLSU with default instructions

Parameters

mach	The TTA machine where the LSU needs to be added.
name	The name of the LSU.
sources	A list of sources that are attached to this unit's input.
asData	The address space containing the program data.
in1sock	(shared) pointer to the TTA socket for in1 input port.
in2sock	(shared) pointer to the TTA socket for in2 input port.

Definition at line 47 of file BlocksLSU.cc.

     : BlocksFU::BlocksFU(mach, name, sources, in1sock, in2sock) {
     // Function unit and ports
     lsu = this->fu;
     // Set adress space to data
     lsu->setAddressSpace(&asData);

     // HWOps
     ops.push_back(CreateHWLoadOp("ld32"));
     ops.push_back(CreateHWLoadOp("ldu16"));
     ops.push_back(CreateHWLoadOp("ldu8"));
     ops.push_back(CreateHWStoreOp("st16"));
     ops.push_back(CreateHWStoreOp("st8"));
     ops.push_back(CreateHWStoreOp("st32"));
     ops.push_back(CreateHWLoadOp("copy"));
 }

References CreateHWLoadOp(), CreateHWStoreOp(), BlocksFU::fu, lsu, BlocksFU::ops, and TTAMachine::FunctionUnit::setAddressSpace().

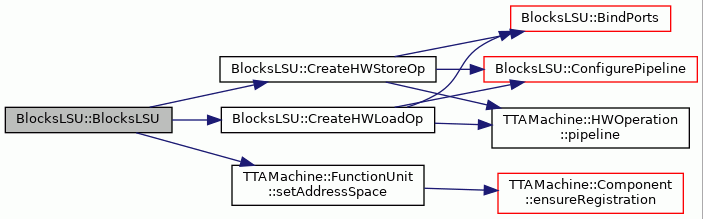

Here is the call graph for this function:

◆ ~BlocksLSU()

BlocksLSU::~BlocksLSU ( )

inline

Definition at line 49 of file BlocksLSU.hh.

                  {
         while (!ops.empty()) {
             delete ops.back();
             ops.pop_back();
         }
     }

References BlocksFU::ops.

Member Function Documentation

◆ BindPorts()

void BlocksLSU::BindPorts	(	TTAMachine::HWOperation *	hwOp,
		bool	isLoadOp
	)

private

Bind the operation's operands to FU ports.

Parameters

hwOp	A pointer to the hardware operation of which the operands need to be binded to FU ports.
isLoadOp	A boolean that indicates whether the operation given is a load operation(true) or store operation(false).

Definition at line 132 of file BlocksLSU.cc.

                                                                {
     if (isLoadOp) {               // Load operation
         hwOp->bindPort(1, *in1);  // Memory address to read
         hwOp->bindPort(2, *out);  // Data
     } else {                      // Store operation
         hwOp->bindPort(1, *in1);  // Memory address to write
         hwOp->bindPort(2, *in2);  // Data to write
     }
 }

References TTAMachine::HWOperation::bindPort(), BlocksFU::in1, BlocksFU::in2, and BlocksFU::out.

Referenced by CreateHWLoadOp(), and CreateHWStoreOp().

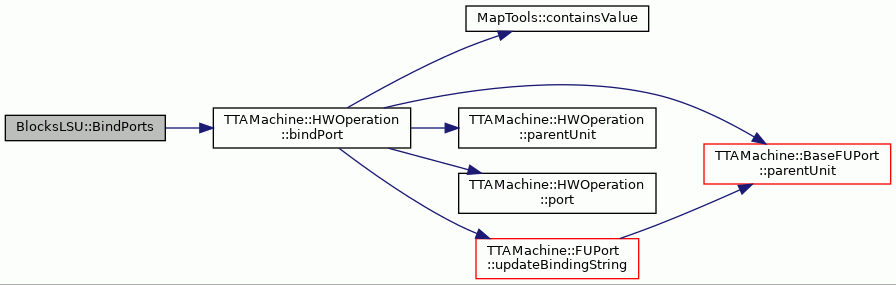

Here is the call graph for this function:

◆ ConfigurePipeline()

void BlocksLSU::ConfigurePipeline	(	TTAMachine::ExecutionPipeline *	pipeline,
		bool	isLoadOp
	)

private

Configure the operation pipeline.

Parameters

pipeline	A pointer to the execution pipeline of the operation of which the pipeline needs to be configured.
isLoadOp	A boolean that indicates whether the operation given is a load operation(true) or store operation(false).

Definition at line 151 of file BlocksLSU.cc.

                                                           {
     if (isLoadOp) {
         pipeline->addPortRead(1, 0, 1);
         pipeline->addPortWrite(2, 0, 1);
     } else {
         pipeline->addPortRead(1, 0, 1);
         pipeline->addPortRead(2, 0, 1);
     }
 }

References TTAMachine::ExecutionPipeline::addPortRead(), and TTAMachine::ExecutionPipeline::addPortWrite().

Referenced by CreateHWLoadOp(), and CreateHWStoreOp().

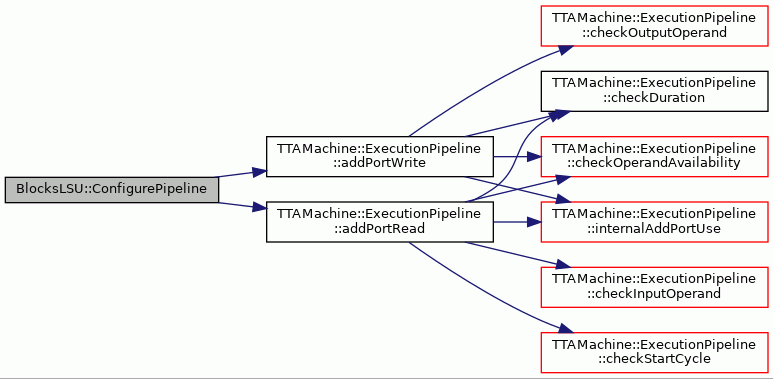

Here is the call graph for this function:

◆ CreateHWLoadOp()

HWOperation * BlocksLSU::CreateHWLoadOp ( const std::string & name )

private

Creates a hardware load operation.

Parameters

name	The name of the hardware operation. This needs to exactly match the name in OSEd.

Definition at line 103 of file BlocksLSU.cc.

                                                {
     HWOperation* op = new HWOperation(name, *lsu);
     BindPorts(op, true);
     ConfigurePipeline(op->pipeline(), true);
     return op;
 }

References BindPorts(), ConfigurePipeline(), lsu, BlocksFU::name, and TTAMachine::HWOperation::pipeline().

Referenced by BlocksLSU().

Here is the call graph for this function:

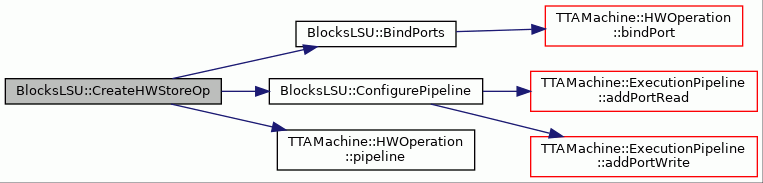

◆ CreateHWStoreOp()

HWOperation * BlocksLSU::CreateHWStoreOp ( const std::string & name )

private

Creates a hardware store operation.

Parameters

name	The name of the hardware operation. This needs to exactly match the name in OSEd.

Definition at line 116 of file BlocksLSU.cc.

                                                 {
     HWOperation* op = new HWOperation(name, *lsu);
     BindPorts(op, false);
     ConfigurePipeline(op->pipeline(), false);
     return op;
 }
