#include <CallPathTracker.hh>

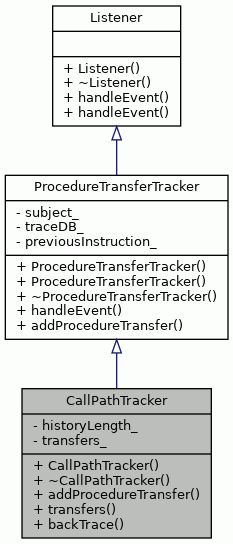

Inheritance diagram for CallPathTracker:

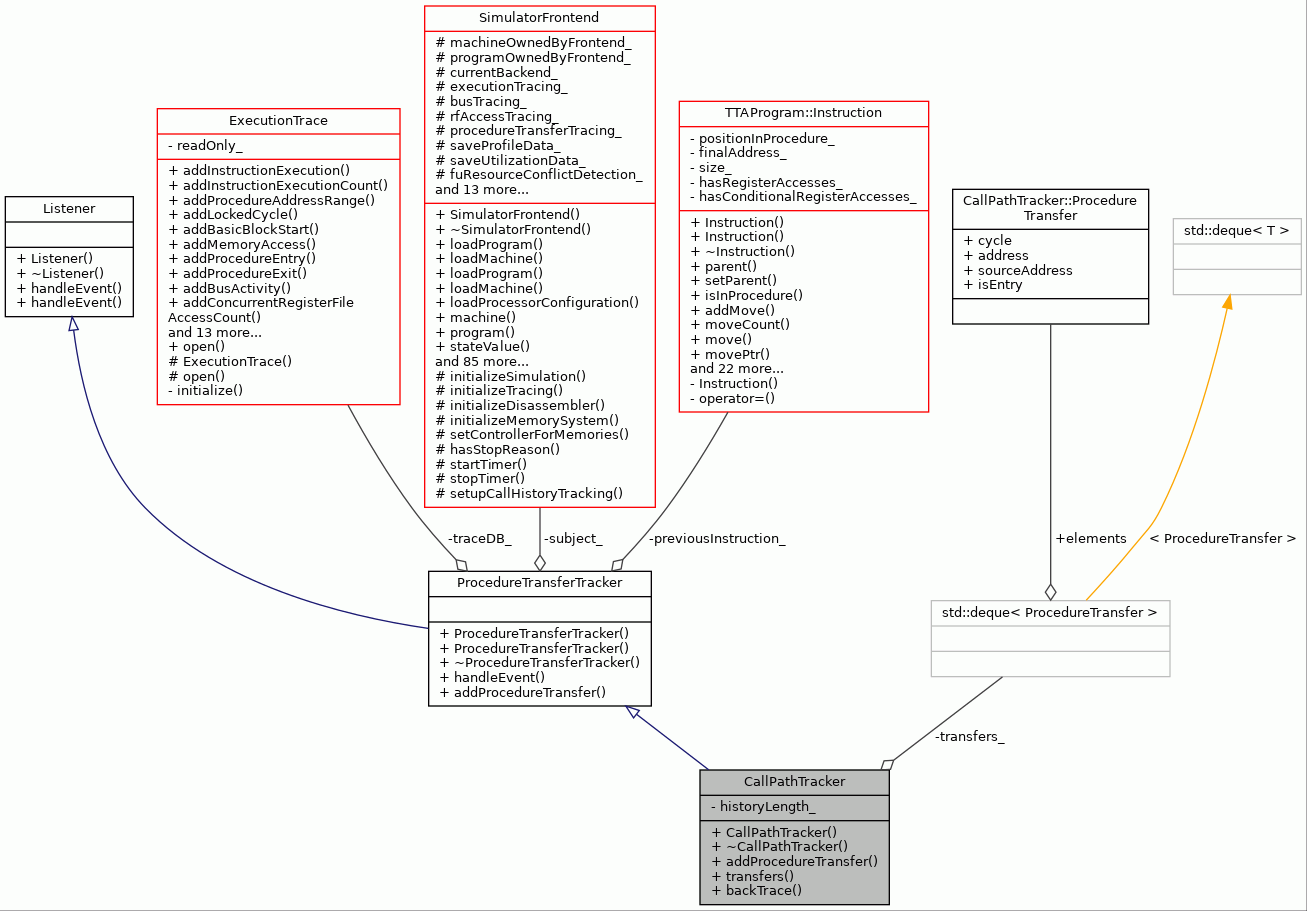

Collaboration diagram for CallPathTracker:

Classes
struct	ProcedureTransfer

Public Types
typedef std::deque< ProcedureTransfer >	ProcedureTransferQueue

Public Member Functions
	CallPathTracker (SimulatorFrontend &subject, unsigned, int historyLength)

virtual	~CallPathTracker ()

virtual void	addProcedureTransfer (ClockCycleCount cycle, InstructionAddress address, InstructionAddress sourceAddress, bool isEntry)

const ProcedureTransferQueue &	transfers () const

const ProcedureTransferQueue	backTrace () const

Public Member Functions inherited from ProcedureTransferTracker
	ProcedureTransferTracker (SimulatorFrontend &subject, ExecutionTrace &traceDB)

	ProcedureTransferTracker (SimulatorFrontend &subject)

virtual	~ProcedureTransferTracker ()

virtual void	handleEvent ()

Public Member Functions inherited from Listener
	Listener ()

virtual	~Listener ()

virtual void	handleEvent (int event)

Private Attributes
std::size_t	historyLength_
	max number of last calls/returns to store More...

ProcedureTransferQueue	transfers_
	the transfers are stored in a queue of which size is kept under historyLength_ More...

Detailed Description

Tracks procedure transfers in the simulated program and stores them in memory for quick viewing during simulation/debugging.

There should be one instance of this tracker for each tracked core.

Definition at line 51 of file CallPathTracker.hh.

Member Typedef Documentation

◆ ProcedureTransferQueue

typedef std::deque<ProcedureTransfer> CallPathTracker::ProcedureTransferQueue

Definition at line 60 of file CallPathTracker.hh.

Constructor & Destructor Documentation

◆ CallPathTracker()

CallPathTracker::CallPathTracker	(	SimulatorFrontend &	subject,
		unsigned	,
		int	historyLength
	)

inline

Definition at line 62 of file CallPathTracker.hh.

                            :
         ProcedureTransferTracker(subject),
         historyLength_(historyLength) {}

◆ ~CallPathTracker()

virtual CallPathTracker::~CallPathTracker ( )

inlinevirtual

Definition at line 68 of file CallPathTracker.hh.

68 {}

Member Function Documentation

◆ addProcedureTransfer()

void CallPathTracker::addProcedureTransfer	(	ClockCycleCount	cycle,
		InstructionAddress	address,
		InstructionAddress	sourceAddress,
		bool	isEntry
	)

virtual

This function is called to record a procedure transfer (call or return).

The default implementation stores the transfer to a TraceDB.

Reimplemented from ProcedureTransferTracker.

Definition at line 33 of file CallPathTracker.cc.

                   {

     if (transfers_.size() > historyLength_)
         transfers_.pop_front();
     ProcedureTransfer transfer;
     transfer.cycle = cycle;
     transfer.address = address;
     transfer.sourceAddress = sourceAddress;
     transfer.isEntry = isEntry;
     transfers_.push_back(transfer);
 }

References CallPathTracker::ProcedureTransfer::address, CallPathTracker::ProcedureTransfer::cycle, historyLength_, CallPathTracker::ProcedureTransfer::isEntry, CallPathTracker::ProcedureTransfer::sourceAddress, and transfers_.

◆ backTrace()

const CallPathTracker::ProcedureTransferQueue CallPathTracker::backTrace ( ) const

Returns the history in a "back trace form" with calls and returns not contributing to the current call path stripped out.

Definition at line 54 of file CallPathTracker.cc.

                                  {
     ProcedureTransferQueue allTransfers = transfers();
     ProcedureTransferQueue bt;
     int callsToSkip = 0;
     CallPathTracker::ProcedureTransferQueue::const_reverse_iterator i =
         allTransfers.rbegin();
     // Define end iterator as an explilcit variable to avoid compiling
     // bug under Mac OS X.
     CallPathTracker::ProcedureTransferQueue::const_reverse_iterator e =
         allTransfers.rend();
     for (; i != e; ++i) {
         CallPathTracker::ProcedureTransfer tr = *i;
         if (!tr.isEntry) {
             ++callsToSkip;
             continue;
         }
         if (callsToSkip == 0) {
             bt.push_back(tr);
         } else {
             callsToSkip--;
         }
     }
     return bt;
 }
