CmdLineOptionParser Class Reference

#include <CmdLineOptionParser.hh>

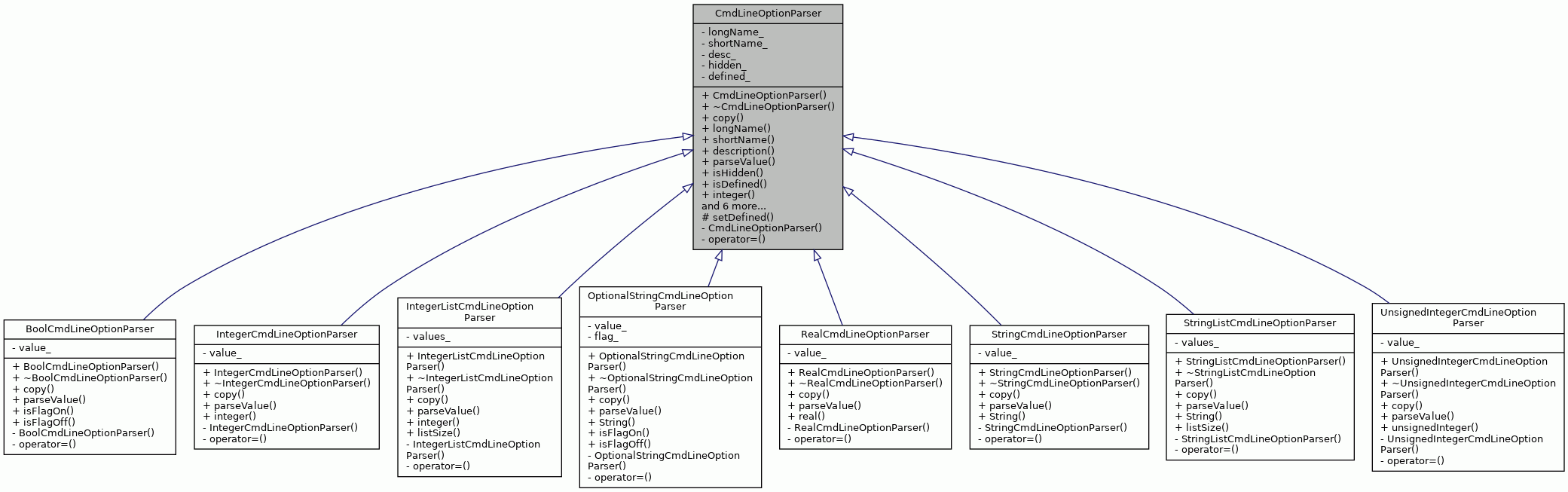

Inheritance diagram for CmdLineOptionParser:

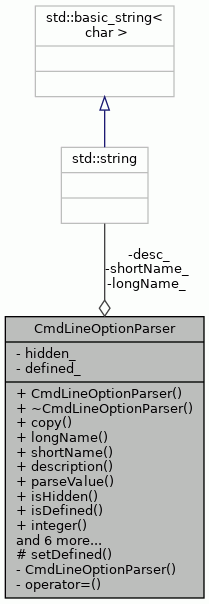

Collaboration diagram for CmdLineOptionParser:

Public Member Functions
	CmdLineOptionParser (std::string name, std::string desc, std::string alias, bool hidden=false)
virtual	~CmdLineOptionParser ()
virtual OptionValue *	copy () const =0
std::string	longName () const
std::string	shortName () const
std::string	description () const
virtual bool	parseValue (std::string arguments, std::string prefix)=0
	Pure virtual function that parses the value of option.
bool	isHidden ()
bool	isDefined ()
virtual int	integer (int index=0) const
virtual unsigned	unsignedInteger (int index=0) const
virtual std::string	String (int index=0) const
virtual double	real () const
virtual bool	isFlagOn () const
virtual bool	isFlagOff () const
virtual int	listSize () const

Protected Member Functions
void	setDefined ()

Private Member Functions
	CmdLineOptionParser (const CmdLineOptionParser &)
	Copying not allowed.
CmdLineOptionParser &	operator= (const CmdLineOptionParser &)
	Assignment not allowed.

Private Attributes
std::string	longName_
	The full name of an option.
std::string	shortName_
	The optional alias (shorter name).
std::string	desc_
	The description of option.
bool	hidden_ = false
	The hidden flag. If set, no entry is printed in the normal help text.
bool	defined_
	Is the value of this option set in the parsed command line?

Detailed Description

Abstract base class for modeling command line options and their built-in mini-parser.

All option types have a set of properties that identify the option: name, description and short name (alias). Possible concrete types of options are: Boolean, real, integer, and character string.

Definition at line 56 of file CmdLineOptionParser.hh.

Constructor & Destructor Documentation

CmdLineOptionParser() [1/2]

CmdLineOptionParser::CmdLineOptionParser	(	std::string	name,
		std::string	desc,
		std::string	alias,
		bool	hidden = false
	)

Constructor.

Parameters

name	The name of the option.
desc	The description of the option.
alias	The short name of the option.

Definition at line 62 of file CmdLineOptionParser.cc.

                 :
    longName_(name), shortName_(alias), desc_(desc), hidden_(hidden),
    defined_(false) {
}

~CmdLineOptionParser()

CmdLineOptionParser::~CmdLineOptionParser ( )

virtual

Destructor.

Definition at line 74 of file CmdLineOptionParser.cc.

                                          {
}

CmdLineOptionParser() [2/2]

CmdLineOptionParser::CmdLineOptionParser ( const CmdLineOptionParser &  )

private

Copying not allowed.

Member Function Documentation

copy()

virtual OptionValue * CmdLineOptionParser::copy ( ) const

pure virtual

Implemented in IntegerCmdLineOptionParser, UnsignedIntegerCmdLineOptionParser, StringCmdLineOptionParser, OptionalStringCmdLineOptionParser, RealCmdLineOptionParser, BoolCmdLineOptionParser, IntegerListCmdLineOptionParser, and StringListCmdLineOptionParser.

Referenced by CmdLineParser::storeOptions().

description()

std::string CmdLineOptionParser::description

(

)

const

Referenced by CmdLineOptions::printHelp().

integer()

int CmdLineOptionParser::integer ( int  index = 0 ) const

virtual

This implementation should never be called.

Returns

Nothing.

Exceptions

WrongSubclass

Called for a wrong subclass.

Reimplemented in IntegerCmdLineOptionParser, and IntegerListCmdLineOptionParser.

Definition at line 84 of file CmdLineOptionParser.cc.

                                      {
    throw WrongSubclass(__FILE__, __LINE__, __func__);
    return 0;
}

References __func__.

Referenced by ExplorerCmdLineOptions::applicationIDToRemove(), SchedulerCmdLineOptions::bypassDistance(), ProGeCmdLineOptions::clockFrequency(), ExplorerCmdLineOptions::configurationToWrite(), PIGCmdLineOptions::dataMemoryWidthInMAUs(), TestHDBCmdLineOptions::fuEntryID(), SchedulerCmdLineOptions::ifConversionThreshold(), SchedulerCmdLineOptions::lowMemModeThreshold(), SchedulerCmdLineOptions::noDreBypassDistance(), SchedulerCmdLineOptions::operandShareDistance(), LLVMTCECmdLineOptions::optLevel(), TestHDBCmdLineOptions::rfEntryID(), SchedulerCmdLineOptions::schedulingWindowSize(), ProGeCmdLineOptions::simulationRuntime(), and ExplorerCmdLineOptions::startConfiguration().

isDefined()

bool CmdLineOptionParser::isDefined

(

)

Returns true if the option was defined in the command line.

Returns

True if the option was defined in the command line.

Definition at line 169 of file CmdLineOptionParser.cc.

                               {
    return defined_;
}

References defined_.

Referenced by ExplorerCmdLineOptions::adfFile(), ExplorerCmdLineOptions::adfOutFile(), LLVMTCECmdLineOptions::analyzeInstructionPatterns(), LLVMTCECmdLineOptions::assumeADFStackAlignment(), ExplorerCmdLineOptions::compilerOptions(), PIGCmdLineOptions::dataMemoryWidthInMAUs(), ProgramImageGenerator::dataStartAddress(), LLVMTCECmdLineOptions::dataStartAddress(), LLVMTCECmdLineOptions::disableAddressSpaceAA(), LLVMTCECmdLineOptions::disableDelaySlotFiller(), LLVMTCECmdLineOptions::disableHWLoops(), LLVMTCECmdLineOptions::disableLLVMAA(), LLVMTCECmdLineOptions::dumpDDGsDot(), LLVMTCECmdLineOptions::dumpDDGsXML(), ExplorerCmdLineOptions::idfFile(), LLVMTCECmdLineOptions::isDataStartAddressSet(), ProgramImageGenerator::isDataStartSet(), TestHDBCmdLineOptions::isFUEntryIDGiven(), LLVMTCECmdLineOptions::isInitialStackPointerValueSet(), SchedulerCmdLineOptions::isLoopOptDefined(), SchedulerCmdLineOptions::isMachineFileDefined(), LLVMTCECmdLineOptions::isOptLevelDefined(), SchedulerCmdLineOptions::isOutputFileDefined(), TestHDBCmdLineOptions::isRFEntryIDGiven(), LLVMTCECmdLineOptions::isStandardEmulationLibDefined(), CmdLineOptions::isVerboseSpamSwitchDefined(), LLVMTCECmdLineOptions::isVerboseSwitchDefined(), CmdLineOptions::isVerboseSwitchDefined(), LLVMTCECmdLineOptions::isWorkItemAAFileDefined(), CmdLineOptions::optionGiven(), DisasmCmdLineOptions::outputFileDefined(), ExplorerCmdLineOptions::printSummary(), LLVMTCECmdLineOptions::saveBackendPlugin(), SchedulerCmdLineOptions::schedulingWindowSize(), LLVMTCECmdLineOptions::useBubbleFish2Scheduler(), LLVMTCECmdLineOptions::useBUScheduler(), LLVMTCECmdLineOptions::useOldBackendSources(), SchedulerCmdLineOptions::useRestrictedAliasAnalyzer(), LLVMTCECmdLineOptions::useTDScheduler(), LLVMTCECmdLineOptions::useVectorBackend(), and ExplorerCmdLineOptions::writeOutBestConfiguration().

isFlagOff()

bool CmdLineOptionParser::isFlagOff ( ) const

virtual

This implementation should never be called.

Returns

Nothing.

Exceptions

WrongSubclass

Called for a wrong subclass.

Reimplemented in OptionalStringCmdLineOptionParser, and BoolCmdLineOptionParser.

Definition at line 138 of file CmdLineOptionParser.cc.

                                     {
    throw WrongSubclass(__FILE__, __LINE__, __func__);
    return false;
}

References __func__.

Referenced by AsmCmdLineOptions::printWarnings().

isFlagOn()

bool CmdLineOptionParser::isFlagOn ( ) const

virtual

This implementation should never be called.

Returns

Nothing.

Exceptions

WrongSubclass

Called for a wrong subclass.

Reimplemented in OptionalStringCmdLineOptionParser, and BoolCmdLineOptionParser.

Definition at line 126 of file CmdLineOptionParser.cc.

                                    {
    throw WrongSubclass(__FILE__, __LINE__, __func__);
    return false;
}

References __func__.

Referenced by ProGeCmdLineOptions::asyncReset(), SimulatorCmdLineOptions::backendType(), SimulatorCmdLineOptions::debugMode(), DictionaryToolCmdLineOptions::doNotPrintErrors(), SchedulerCmdLineOptions::dumpIfConversionCFGs(), SchedulerCmdLineOptions::enableOffsetAA(), SchedulerCmdLineOptions::enableStackAA(), DisasmCmdLineOptions::flatFile(), ProGeCmdLineOptions::forceOutputDirectory(), PIGCmdLineOptions::generateDataImages(), PIGCmdLineOptions::generateDecompressor(), ProGeCmdLineOptions::generateTestbench(), BuildOpsetOptions::ignore(), SchedulerCmdLineOptions::killDeadResults(), TestHDBCmdLineOptions::leaveDirty(), TTAUnitTesterCmdLineOptions::leaveDirty(), DisasmCmdLineOptions::lineNumbers(), ProGeCmdLineOptions::listAvailableIntegrators(), EstimatorCmdLineOptions::longestPath(), ExplorerCmdLineOptions::numberOfConfigurations(), ProGeCmdLineOptions::preferHDLGeneration(), ExplorerCmdLineOptions::printApplications(), DictionaryToolCmdLineOptions::printConnections(), DictionaryToolCmdLineOptions::printGlobalRegister(), DictionaryToolCmdLineOptions::printMissingConnections(), ExplorerCmdLineOptions::printPlugins(), DictionaryToolCmdLineOptions::printPrimitive(), SchedulerCmdLineOptions::printResourceConstraints(), DictionaryToolCmdLineOptions::printRFConnections(), DisasmCmdLineOptions::printToStdout(), SchedulerCmdLineOptions::renameRegisters(), ProGeCmdLineOptions::resetAllRegisters(), LLVMTCECmdLineOptions::saveBackendPlugin(), PIGCmdLineOptions::showCompressors(), ProGeCmdLineOptions::syncReset(), EstimatorCmdLineOptions::totalArea(), EstimatorCmdLineOptions::totalEnergy(), ProGeCmdLineOptions::useAbsolutePaths(), TestHDBCmdLineOptions::verbose(), TTAUnitTesterCmdLineOptions::verbose(), and DictionaryToolCmdLineOptions::writeBinary().

isHidden()

bool CmdLineOptionParser::isHidden ( )

inline

Definition at line 75 of file CmdLineOptionParser.hh.

{ return hidden_; }

References hidden_.

Referenced by CmdLineOptions::printHelp().

listSize()

int CmdLineOptionParser::listSize ( ) const

virtual

This implementation should never be called.

Returns

Nothing.

Exceptions

WrongSubclass

Called for a wrong subclass.

Reimplemented in IntegerListCmdLineOptionParser, and StringListCmdLineOptionParser.

Definition at line 150 of file CmdLineOptionParser.cc.

                                    {
    throw WrongSubclass(__FILE__, __LINE__, __func__);
    return 0;
}

References __func__.

Referenced by ExplorerCmdLineOptions::applicationIDToRemoveCount(), ExplorerCmdLineOptions::compilerOptionsString(), PIGCmdLineOptions::compressorParameterCount(), ProgramImageGenerator::dataStartAddress(), LLVMTCECmdLineOptions::dataStartAddress(), ExplorerCmdLineOptions::explorerPluginParameterCount(), ExplorerCmdLineOptions::hdbFileNameCount(), ExplorerCmdLineOptions::hdbFileNames(), LLVMTCECmdLineOptions::isDataStartAddressSet(), ProgramImageGenerator::isDataStartSet(), SchedulerCmdLineOptions::noaliasFunctions(), ExplorerCmdLineOptions::numberOfConfigurationsToWrite(), LLVMTCECmdLineOptions::primaryFunctions(), ExplorerCmdLineOptions::testApplicationDirectoryCount(), PIGCmdLineOptions::tpefFileCount(), and ExplorerCmdLineOptions::writeOutConfiguration().

longName()

std::string CmdLineOptionParser::longName

(

)

const

Referenced by IntegerCmdLineOptionParser::parseValue(), UnsignedIntegerCmdLineOptionParser::parseValue(), RealCmdLineOptionParser::parseValue(), BoolCmdLineOptionParser::parseValue(), IntegerListCmdLineOptionParser::parseValue(), StringListCmdLineOptionParser::parseValue(), and CmdLineOptions::printHelp().

operator=()

CmdLineOptionParser & CmdLineOptionParser::operator= ( const CmdLineOptionParser &  )

private

Assignment not allowed.

parseValue()

virtual bool CmdLineOptionParser::parseValue ( std::string  arguments, std::string  prefix  )

pure virtual

Pure virtual function that parses the value of option.

Implemented in IntegerCmdLineOptionParser, UnsignedIntegerCmdLineOptionParser, StringCmdLineOptionParser, OptionalStringCmdLineOptionParser, RealCmdLineOptionParser, BoolCmdLineOptionParser, IntegerListCmdLineOptionParser, and StringListCmdLineOptionParser.

Referenced by CmdLineOptions::parseAll(), and CmdLineParser::parseAll().

real()

double CmdLineOptionParser::real ( ) const

virtual

This implementation should never be called.

Returns

Nothing.

Exceptions

WrongSubclass

Called for a wrong subclass.

Reimplemented in RealCmdLineOptionParser.

Definition at line 114 of file CmdLineOptionParser.cc.

                                {
    throw WrongSubclass(__FILE__, __LINE__, __func__);
    return 0;
}

References __func__.

setDefined()

void CmdLineOptionParser::setDefined ( )

protected

Sets the CmdLineOptionParser to be defined in the parsed command line.

Definition at line 159 of file CmdLineOptionParser.cc.

                                {
    defined_ = true;
}

References defined_.

Referenced by IntegerCmdLineOptionParser::parseValue(), UnsignedIntegerCmdLineOptionParser::parseValue(), StringCmdLineOptionParser::parseValue(), OptionalStringCmdLineOptionParser::parseValue(), RealCmdLineOptionParser::parseValue(), BoolCmdLineOptionParser::parseValue(), IntegerListCmdLineOptionParser::parseValue(), and StringListCmdLineOptionParser::parseValue().

shortName()

std::string CmdLineOptionParser::shortName

(

)

const

Referenced by CmdLineOptions::printHelp().

String()

std::string CmdLineOptionParser::String ( int  index = 0 ) const

virtual

This implementation should be never called.

Returns

Nothing.

Exceptions

WrongSubclass

Called for a wrong subclass.

Reimplemented in StringCmdLineOptionParser, OptionalStringCmdLineOptionParser, and StringListCmdLineOptionParser.

Definition at line 102 of file CmdLineOptionParser.cc.

                                     {
    throw WrongSubclass(__FILE__, __LINE__, __func__);
    return "";
}

References __func__.

Referenced by ExplorerCmdLineOptions::adfFileName(), TTAUnitTesterCmdLineOptions::adfFileName(), ExplorerCmdLineOptions::adfOutFileName(), LLVMTCECmdLineOptions::backendCacheDir(), PIGCmdLineOptions::bemFile(), ProGeCmdLineOptions::bemFile(), ProGeCmdLineOptions::commaSeparatedList(), ExplorerCmdLineOptions::compilerOptionsString(), PIGCmdLineOptions::compressorParameter(), PIGCmdLineOptions::compressorPlugin(), PIGCmdLineOptions::dataImageOutputFormat(), ProgramImageGenerator::dataStartAddress(), LLVMTCECmdLineOptions::dataStartAddress(), ProGeCmdLineOptions::deviceFamilyName(), ProGeCmdLineOptions::deviceName(), ProGeCmdLineOptions::dmemType(), PIGCmdLineOptions::entityName(), ProGeCmdLineOptions::entityName(), ExplorerCmdLineOptions::explorerPlugin(), ExplorerCmdLineOptions::explorerPluginParameter(), LLVMTCECmdLineOptions::getLLVMargv(), ExplorerCmdLineOptions::hdbFileName(), ProGeCmdLineOptions::hdl(), ProGeCmdLineOptions::idfFile(), ExplorerCmdLineOptions::idfFileName(), ProGeCmdLineOptions::imemType(), ProGeCmdLineOptions::integratorName(), LLVMTCECmdLineOptions::isDataStartAddressSet(), ProgramImageGenerator::isDataStartSet(), SimulatorCmdLineOptions::machineFile(), SchedulerCmdLineOptions::machineFile(), SchedulerCmdLineOptions::noaliasFunctions(), ProGeCmdLineOptions::outputDirectory(), AsmCmdLineOptions::outputFile(), DisasmCmdLineOptions::outputFile(), SchedulerCmdLineOptions::outputFile(), BEMGeneratorCmdLineOptions::outputFile(), MachInfoCmdLineOptions::outputFileNameSuffix(), MachInfoCmdLineOptions::outputFormat(), ExplorerCmdLineOptions::paretoSetValues(), ExplorerCmdLineOptions::pluginInfo(), ProGeCmdLineOptions::pluginParametersQuery(), LLVMTCECmdLineOptions::primaryFunctions(), PIGCmdLineOptions::progeOutputDirectory(), SimulatorCmdLineOptions::programFile(), PIGCmdLineOptions::programImageOutputFormat(), SimulatorCmdLineOptions::scriptString(), ProGeCmdLineOptions::sharedOutputDirectory(), BuildOpsetOptions::sourceDir(), LLVMTCECmdLineOptions::standardEmulationLib(), ExplorerCmdLineOptions::summaryOrdering(), LLVMTCECmdLineOptions::tempDir(), ExplorerCmdLineOptions::testApplicationDirectory(), EstimatorCmdLineOptions::TPEF(), PIGCmdLineOptions::tpefFile(), ProGeCmdLineOptions::tpefName(), EstimatorCmdLineOptions::traceDB(), TestHDBCmdLineOptions::vhdlSim(), TTAUnitTesterCmdLineOptions::vhdlSim(), and LLVMTCECmdLineOptions::workItemAAFile().

unsignedInteger()

unsigned CmdLineOptionParser::unsignedInteger ( int  index = 0 ) const

virtual

Reimplemented in UnsignedIntegerCmdLineOptionParser.

Definition at line 90 of file CmdLineOptionParser.cc.

                                              {
    throw WrongSubclass(__FILE__, __LINE__, __func__);
    return 0;
}

References __func__.

Referenced by LLVMTCECmdLineOptions::initialStackPointerValue().

Member Data Documentation

defined_

bool CmdLineOptionParser::defined_

private

Is the value of this option set in the parsed command line?

Definition at line 106 of file CmdLineOptionParser.hh.

Referenced by isDefined(), and setDefined().

desc_

std::string CmdLineOptionParser::desc_

private

The description of option.

Definition at line 101 of file CmdLineOptionParser.hh.

hidden_

bool CmdLineOptionParser::hidden_ = false

private

The hidden flag. If set, no entry is printed in the normal help text.

Definition at line 103 of file CmdLineOptionParser.hh.

Referenced by isHidden().

longName_

std::string CmdLineOptionParser::longName_

private

The full name of an option.

Definition at line 97 of file CmdLineOptionParser.hh.

shortName_

std::string CmdLineOptionParser::shortName_

private

The optional alias (shorter name).

Definition at line 99 of file CmdLineOptionParser.hh.

---

The documentation for this class was generated from the following files:

• CmdLineOptionParser.hh
• CmdLineOptionParser.cc
