#include <ConflictDetectionCodeGenerator.hh>

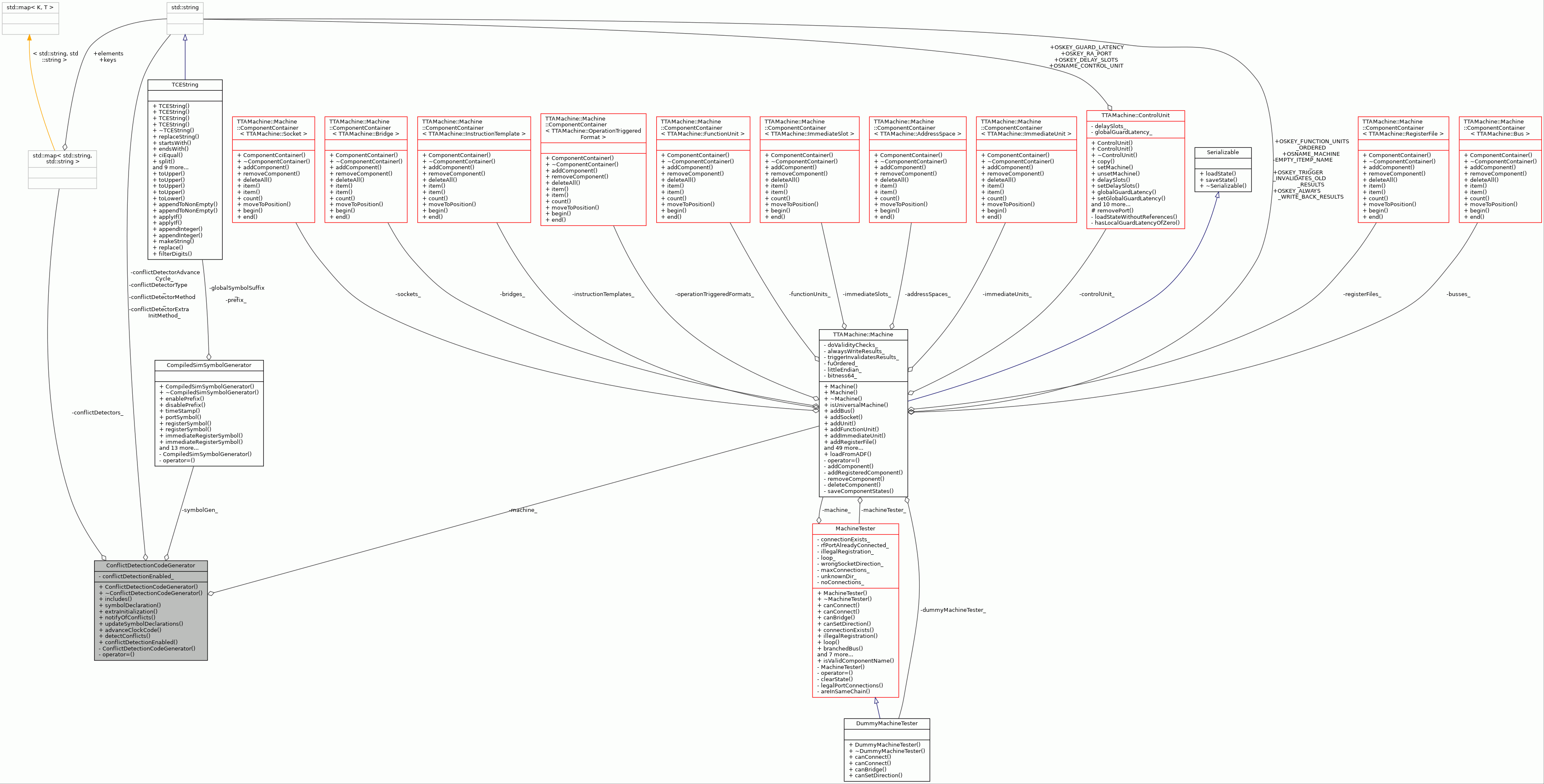

Collaboration diagram for ConflictDetectionCodeGenerator:

Public Member Functions
	ConflictDetectionCodeGenerator (const TTAMachine::Machine &machine, const CompiledSimSymbolGenerator &, bool conflictDetectionEnabled=false)

virtual	~ConflictDetectionCodeGenerator ()

std::string	includes ()

std::string	symbolDeclaration (const TTAMachine::FunctionUnit &fu)

std::string	extraInitialization ()

std::string	notifyOfConflicts ()

std::string	updateSymbolDeclarations ()

std::string	advanceClockCode ()

std::string	detectConflicts (const TTAMachine::HWOperation &op)

bool	conflictDetectionEnabled () const

Private Types
typedef std::map< std::string, std::string >	ConflictDetectorObjectNameMap
	1=fu.name(), 2=conflict detector object name More...

Private Member Functions
	ConflictDetectionCodeGenerator (const ConflictDetectionCodeGenerator &)
	Copying not allowed. More...

ConflictDetectionCodeGenerator &	operator= (const ConflictDetectionCodeGenerator &)
	Assignment not allowed. More...

Private Attributes
const TTAMachine::Machine &	machine_
	The machine. More...

bool	conflictDetectionEnabled_
	True, if the conflict detection is enabled. More...

std::string	conflictDetectorType_
	The FU resource conflict detector used, empty string if disabled. More...

std::string	conflictDetectorMethod_
	The method in the resource conflict detector used to detect conflicts, empty string if disabled. More...

std::string	conflictDetectorAdvanceCycle_
	The method to be called on the conflict detector on cycle advance. More...

std::string	conflictDetectorExtraInitMethod_
	A method to be called on the conflict detector for initialization, empty if none. More...

ConflictDetectorObjectNameMap	conflictDetectors_
	The resource conflict detector object name for each FU if any. More...

const CompiledSimSymbolGenerator &	symbolGen_
	Symbol generator. More...

Detailed Description

A class that generates C/C++ code for FU conflict detection cases

Used for the compiled simulation

Definition at line 67 of file ConflictDetectionCodeGenerator.hh.

Member Typedef Documentation

◆ ConflictDetectorObjectNameMap

typedef std::map<std::string, std::string> ConflictDetectionCodeGenerator::ConflictDetectorObjectNameMap

private

1=fu.name(), 2=conflict detector object name

Definition at line 109 of file ConflictDetectionCodeGenerator.hh.

Constructor & Destructor Documentation

◆ ConflictDetectionCodeGenerator() [1/2]

ConflictDetectionCodeGenerator::ConflictDetectionCodeGenerator	(	const TTAMachine::Machine &	machine,
		const CompiledSimSymbolGenerator &	symbolGenerator,
		bool	conflictDetectionEnabled = `false`
	)

The constructor.

Gets the conflict detection settings and initializes the generator

Parameters

machine The machine model

Definition at line 57 of file ConflictDetectionCodeGenerator.cc.

                                    :
     machine_(machine), conflictDetectionEnabled_(conflictDetectionEnabled),
     symbolGen_(symbolGenerator) {

     if (!conflictDetectionEnabled) {
         return;
     }

     string conflictDetectionSetting;

     std::string SETTING =
         Environment::environmentVariable("TTASIM_CONFLICT_DETECTOR");
     if (SETTING == "") {
         conflictDetectionSetting = "AFSA"; // by default
     } else {
         conflictDetectionSetting = SETTING;
     }

     if (conflictDetectionSetting == "CRT") {
         conflictDetectorType_ = "ReservationTableFUResourceConflictDetector";
         conflictDetectorMethod_ = "issueOperationInline";
         conflictDetectorAdvanceCycle_ = "advanceCycle";
         conflictDetectorExtraInitMethod_ = "";
     } else if (conflictDetectionSetting == "AFSA") {
         conflictDetectorType_ = "FSAFUResourceConflictDetector";
         conflictDetectorMethod_ = "issueOperationInline";
         conflictDetectorAdvanceCycle_ = "advanceCycle";
         conflictDetectorExtraInitMethod_ = "initializeAllStates";
     } else if (conflictDetectionSetting == "LFSA") {
         conflictDetectorType_ = "FSAFUResourceConflictDetector";
         conflictDetectorMethod_ = "issueOperationLazyInline";
         conflictDetectorAdvanceCycle_ = "advanceCycle";
         conflictDetectorExtraInitMethod_ = "";
     } else if (conflictDetectionSetting == "DCM") {
         conflictDetectorType_ = "DCMFUResourceConflictDetector";
         conflictDetectorMethod_ = "issueOperationInline";
         conflictDetectorAdvanceCycle_ = "advanceCycle";
         conflictDetectorExtraInitMethod_ = "";
     } else {
         Application::logStream()
             << "Unknown CONFLICT_DETECTION_SETTING: '"
             << conflictDetectionSetting << "'" << endl;
         conflictDetectionEnabled_ = false;
         return;
     }

     // initialize the detectors
     Application::logStream()
         << "Using conflict detector " << conflictDetectorType_ << std::endl;

     const Machine::FunctionUnitNavigator& fus =
         machine_.functionUnitNavigator();
     for (int i = 0; i < fus.count(); ++i) {
         const FunctionUnit& fu = *fus.item(i);
         if (!fu.needsConflictDetection()) { // no need for conflict detection?
             continue;
         } else {
             conflictDetectors_[fu.name()] =
                 symbolGen_.conflictDetectorSymbol(fu);
         }
     }

     // No conflict detection is needed
     if (conflictDetectors_.empty()) {
         conflictDetectionEnabled_ = false;
     }
 }

References conflictDetectionEnabled(), conflictDetectionEnabled_, conflictDetectorAdvanceCycle_, conflictDetectorExtraInitMethod_, conflictDetectorMethod_, conflictDetectors_, CompiledSimSymbolGenerator::conflictDetectorSymbol(), conflictDetectorType_, TTAMachine::Machine::Navigator< ComponentType >::count(), Environment::environmentVariable(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), Application::logStream(), machine_, TTAMachine::Component::name(), TTAMachine::FunctionUnit::needsConflictDetection(), and symbolGen_.

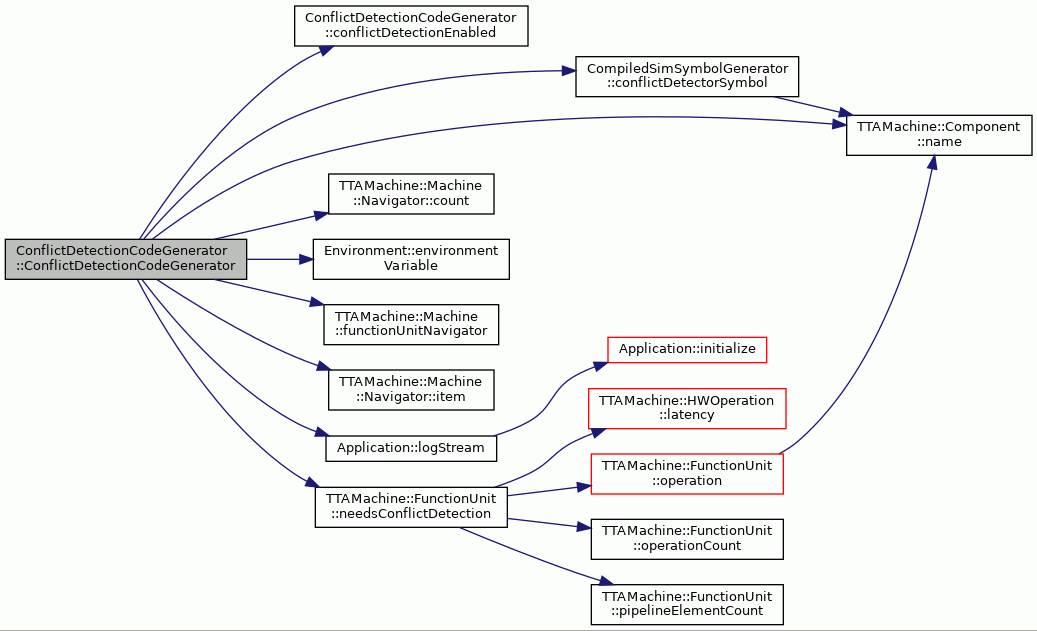

Here is the call graph for this function:

◆ ~ConflictDetectionCodeGenerator()

ConflictDetectionCodeGenerator::~ConflictDetectionCodeGenerator ( )

virtual

The destructor

Definition at line 131 of file ConflictDetectionCodeGenerator.cc.

131 {

132 }

◆ ConflictDetectionCodeGenerator() [2/2]

ConflictDetectionCodeGenerator::ConflictDetectionCodeGenerator ( const ConflictDetectionCodeGenerator & )

private

Copying not allowed.

Member Function Documentation

◆ advanceClockCode()

string ConflictDetectionCodeGenerator::advanceClockCode ( )

Generates code for a function that advances clocks of each conflict detector

Returns: A std::string containing generated code for the clock advances

Definition at line 234 of file ConflictDetectionCodeGenerator.cc.

                                                  {

     if (!conflictDetectionEnabled_)
         return "";

     std::stringstream ss;
     // advance clock of all conflict detection models
     for (ConflictDetectorObjectNameMap::const_iterator i =
         conflictDetectors_.begin(); i != conflictDetectors_.end(); ++i) {
         ss << "\t" << (*i).second << "."
            << conflictDetectorAdvanceCycle_ << "();" << endl;
     }

     return ss.str();
 }

References conflictDetectionEnabled_, conflictDetectorAdvanceCycle_, and conflictDetectors_.

Referenced by CompiledSimCodeGenerator::generateAdvanceClockCode().

◆ conflictDetectionEnabled()

bool ConflictDetectionCodeGenerator::conflictDetectionEnabled ( ) const

Returns a boolean describing if the conflict detection is enabled or not

Returns: True if the conflict detection is enabled

Definition at line 288 of file ConflictDetectionCodeGenerator.cc.

                                                                {
     return conflictDetectionEnabled_;
 }

References conflictDetectionEnabled_.

Referenced by ConflictDetectionCodeGenerator(), CompiledSimCodeGenerator::generateHeaderAndMainCode(), and CompiledSimCodeGenerator::generateInstruction().

◆ detectConflicts()

string ConflictDetectionCodeGenerator::detectConflicts ( const TTAMachine::HWOperation & op )

Generates code for detecting an FU pipeline resource conflicts.

Parameters

op	the triggered operation

Returns: A std::string containing generated code for the operation call

Definition at line 257 of file ConflictDetectionCodeGenerator.cc.

                                      {

     if (!conflictDetectionEnabled_)
         return "";

     const TTAMachine::FunctionUnit& fu = *op.parentUnit();

     if (conflictDetectors_.find(fu.name()) == conflictDetectors_.end())
         return ""; // no conflict detection for the FU of the given operation

     int operationID = -1;
     for (int i = 0; i < fu.operationCount(); ++i) {
         if (fu.operation(i)->name() == op.name()) {
             operationID = i;
             break;
         }
     }
     std::stringstream ss;
     std::string detector = conflictDetectors_[fu.name()];
     ss << "engine.conflictDetected_ |= !engine." << detector << "."
        << conflictDetectorMethod_ << "(" << operationID << ");" << endl;
     return ss.str();
 }

References conflictDetectionEnabled_, conflictDetectorMethod_, conflictDetectors_, TTAMachine::HWOperation::name(), TTAMachine::Component::name(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), and TTAMachine::HWOperation::parentUnit().

Referenced by CompiledSimCodeGenerator::generateInstruction().

Here is the call graph for this function:

◆ extraInitialization()

string ConflictDetectionCodeGenerator::extraInitialization ( )

Generates exra initialization call for conflict detectors that require a one

Returns: The generated code for extra initialization call

Definition at line 174 of file ConflictDetectionCodeGenerator.cc.

                                                     {
     std::stringstream ss;
     if (conflictDetectionEnabled_ && conflictDetectorExtraInitMethod_ != "") {
         for (ConflictDetectorObjectNameMap::const_iterator i =
             conflictDetectors_.begin(); i != conflictDetectors_.end(); ++i) {
                 ss << "\t" << i->second << "."
                    << conflictDetectorExtraInitMethod_ << "();" << std::endl;
         }
     }
     return ss.str();
 }

References conflictDetectionEnabled_, conflictDetectorExtraInitMethod_, and conflictDetectors_.

Referenced by CompiledSimCodeGenerator::generateConstructorCode().

◆ includes()

string ConflictDetectionCodeGenerator::includes ( )

Generates code for including the conflict detectors

Returns: The generated code for including the conflict detectors

Definition at line 139 of file ConflictDetectionCodeGenerator.cc.

                                          {

     if (!conflictDetectionEnabled_)
         return "";

     std::stringstream ss;
     ss << "#include \"FSAFUResourceConflictDetector.hh\"" << endl << endl;
     return ss.str();
 }

References conflictDetectionEnabled_.

Referenced by CompiledSimCodeGenerator::generateHeaderAndMainCode().

◆ notifyOfConflicts()

string ConflictDetectionCodeGenerator::notifyOfConflicts ( )

Generates code for notifying of detected conflicts

Returns: Generated code for notifying of detected conflicts

Definition at line 192 of file ConflictDetectionCodeGenerator.cc.

                                                   {

     if (!conflictDetectionEnabled_)
         return "";

     std::stringstream ss;
     ss << endl
        << "\tif (conflictDetected_) {" << endl
        << "\thaltSimulation(__FILE__, __LINE__, __FUNCTION__,"
        << "\"Conflict detected!\");" << endl
        << "\t}" << endl;

     return ss.str();
 }

References conflictDetectionEnabled_.

Referenced by CompiledSimCodeGenerator::generateConstructorCode().

◆ operator=()

ConflictDetectionCodeGenerator& ConflictDetectionCodeGenerator::operator= ( const ConflictDetectionCodeGenerator & )

private

Assignment not allowed.

◆ symbolDeclaration()

string ConflictDetectionCodeGenerator::symbolDeclaration ( const TTAMachine::FunctionUnit & fu )

Creates symbol declaration code for the given FU's conflict detectors

Parameters

fu	FU to create the conflict detector for

Returns: The generated symbol declaration code

Definition at line 156 of file ConflictDetectionCodeGenerator.cc.

                                                                         {

     if (!conflictDetectionEnabled_ || !fu.needsConflictDetection())
         return "";

     std::stringstream ss;
     ss << "\t" << conflictDetectorType_ << " "
        << symbolGen_.conflictDetectorSymbol(fu) << ";" << endl;

     return ss.str();
 }

References conflictDetectionEnabled_, CompiledSimSymbolGenerator::conflictDetectorSymbol(), conflictDetectorType_, TTAMachine::FunctionUnit::needsConflictDetection(), and symbolGen_.

Referenced by CompiledSimCodeGenerator::generateHeaderAndMainCode().

Here is the call graph for this function:

◆ updateSymbolDeclarations()

string ConflictDetectionCodeGenerator::updateSymbolDeclarations ( )

Generates code for notifying of detected conflicts

Returns: Generated code for notifying of detected conflicts

Definition at line 213 of file ConflictDetectionCodeGenerator.cc.

                                                          {
     if (!conflictDetectionEnabled_)
         return "";

     std::stringstream ss;

     for (ConflictDetectorObjectNameMap::const_iterator i =
         conflictDetectors_.begin(); i != conflictDetectors_.end(); ++i) {
     ss << "\t," << i->second
        << "(functionUnit(\"" << i->first << "\"))"
        << endl;
     }
     return ss.str();
 }
