CostDBEntryStats Class Reference

#include <CostDBEntryStats.hh>

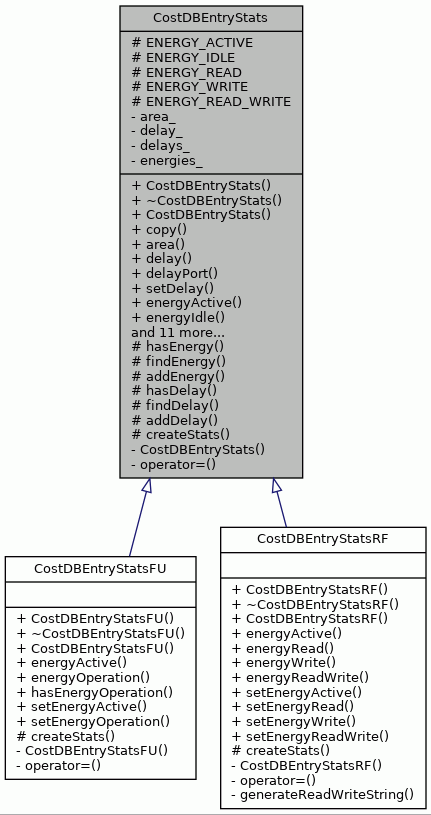

Inheritance diagram for CostDBEntryStats:

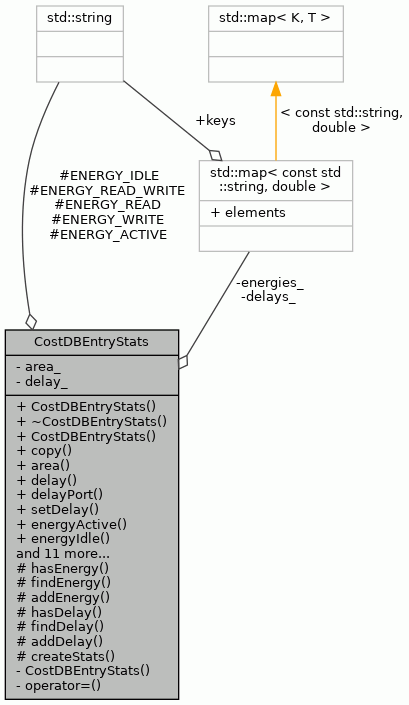

Collaboration diagram for CostDBEntryStats:

Public Member Functions
	CostDBEntryStats (double areaData, double internalDelayData)
virtual	~CostDBEntryStats ()
	CostDBEntryStats (const CostDBEntryStats &stats1, const CostDBEntryStats &stats2, double coefficient)
virtual CostDBEntryStats *	copy () const
virtual double	area () const
virtual double	delay () const
virtual double	delayPort (const std::string &port) const
virtual void	setDelay (const std::string &port, double delay)
virtual double	energyActive () const
virtual double	energyIdle () const
virtual double	energyOperation (const std::string &name) const
virtual bool	hasEnergyOperation (const std::string &name) const
virtual double	energyRead () const
virtual double	energyWrite () const
virtual double	energyReadWrite (int reads, int writes) const
virtual void	setEnergyActive (double energy)
virtual void	setEnergyIdle (double energy)
virtual void	setEnergyOperation (const std::string &name, double energy)
virtual void	setEnergyRead (double energy)
virtual void	setEnergyWrite (double energy)
virtual void	setEnergyReadWrite (int reads, int writes, double energy)

Protected Member Functions
virtual bool	hasEnergy (const std::string &key) const
virtual double	findEnergy (const std::string &key) const
virtual void	addEnergy (const std::string &name, double energy)
virtual bool	hasDelay (const std::string &key) const
virtual double	findDelay (const std::string &key) const
virtual void	addDelay (const std::string &name, double delay)
virtual CostDBEntryStats *	createStats () const

Static Protected Attributes
static const std::string	ENERGY_ACTIVE = "(active)"
	String for active energy. More...
static const std::string	ENERGY_IDLE = "(idle)"
	String for idle energy. More...
static const std::string	ENERGY_READ = "(read)"
	String for read energy. More...
static const std::string	ENERGY_WRITE = "(write)"
	String for write energy. More...
static const std::string	ENERGY_READ_WRITE = "(rd,wr)"
	String for reads and writes energy. More...

Private Types
typedef std::map< const std::string, double >	EnergyMap
	Map of energies. More...
typedef std::map< const std::string, double >	DelayMap
	Map of delays. More...

Private Member Functions
	CostDBEntryStats (const CostDBEntryStats &)
	Copying not allowed. More...
CostDBEntryStats &	operator= (const CostDBEntryStats &)
	Assignment not allowed. More...

Private Attributes
double	area_
	area in gates. More...
double	delay_
	delay in nanoseconds. More...
DelayMap	delays_
	input and output delays in nanoseconds. More...
EnergyMap	energies_
	Energies of one specific type of usage of a resource. Usually the map contains energies for active and idle usage of a resource. However, in case of FUs the active energy does not exist and but energies are defined for each operation. More...

Detailed Description

Stores area, delay and energy statistics.

Definition at line 46 of file CostDBEntryStats.hh.

Member Typedef Documentation

DelayMap

typedef std::map<const std::string, double> CostDBEntryStats::DelayMap

private

Map of delays.

Definition at line 100 of file CostDBEntryStats.hh.

EnergyMap

typedef std::map<const std::string, double> CostDBEntryStats::EnergyMap

private

Map of energies.

Definition at line 98 of file CostDBEntryStats.hh.

Constructor & Destructor Documentation

CostDBEntryStats() [1/3]

CostDBEntryStats::CostDBEntryStats	(	double	areaData,
		double	internalDelayData
	)

Constructor.

Parameters

areaData	area.
internalDelayData	Components internal delay.

Definition at line 58 of file CostDBEntryStats.cc.

                                                                            :
    area_(areaData), delay_(internalDelayData) {
}

Referenced by createStats().

~CostDBEntryStats()

CostDBEntryStats::~CostDBEntryStats ( )

virtual

Destructor.

Definition at line 144 of file CostDBEntryStats.cc.

                                    {
}

CostDBEntryStats() [2/3]

CostDBEntryStats::CostDBEntryStats	(	const CostDBEntryStats &	stats1,
		const CostDBEntryStats &	stats2,
		double	coefficient
	)

Constructor.

Combines two statistics into one using coefficient as a weighting factor on interpolating the statistics. For example, if weighting factor is 0.4, the first area 100 and the second 200, area of new statistics will be 140. delay and energy will be handled similarly.

Parameters

stats1	First statistics.
stats2	Second statistics.
coefficient	Weighting factor.

Exceptions

KeyNotFound

Thrown in case that the two statistics won't contain equal keys.

Definition at line 76 of file CostDBEntryStats.cc.

                        {
    area_  = stats1.area() + coefficient * (stats2.area()  - stats1.area());
    delay_ = stats1.delay() + coefficient * (stats2.delay() - stats1.delay());

    for (EnergyMap::const_iterator i = stats1.energies_.begin();
         i != stats1.energies_.end(); i++) {

        string key = (*i).first;
        double energy1 = (*i).second;
        double energy2 = stats2.findEnergy(key);

        double energy = energy1 + coefficient * (energy2 - energy1);

        addEnergy(key, energy);
    }

    // checks that the energy keys are equal in both statistics
    for (EnergyMap::const_iterator i = stats2.energies_.begin();
         i != stats2.energies_.end(); i++) {

        string key = (*i).first;
        // checks if the energy exist for the key
        stats1.findEnergy(key);
    }
    // check also keys of the other stats
    for (EnergyMap::const_iterator i = stats1.energies_.begin();
         i != stats1.energies_.end(); i++) {

        string key = (*i).first;
        // checks if the energy exist for the key
        stats2.findEnergy(key);
    }

    for (DelayMap::const_iterator i = stats1.delays_.begin();
         i != stats1.delays_.end(); i++) {

        string key = (*i).first;
        double delay1 = (*i).second;
        double delay2 = stats2.findDelay(key);

        double delay = delay1 + coefficient * (delay2 - delay1);

        addDelay(key, delay);
    }

    // checks that the delay keys are equal in both statistics
    for (DelayMap::const_iterator i = stats2.delays_.begin();
         i != stats2.delays_.end(); i++) {

        string key = (*i).first;
        // checks if the delay exist for the key
        stats1.findDelay(key);
    }
    // check also keys of the other stats
    for (DelayMap::const_iterator i = stats1.delays_.begin();
         i != stats1.delays_.end(); i++) {

        string key = (*i).first;
        // checks if the delay exist for the key
        stats2.findDelay(key);
    }
}

References addDelay(), addEnergy(), area(), area_, delay(), delay_, delays_, energies_, findDelay(), and findEnergy().

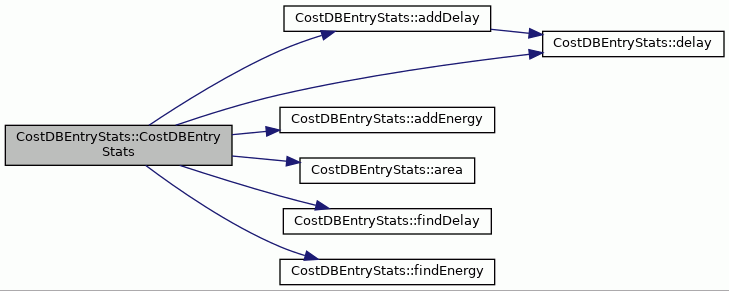

Here is the call graph for this function:

CostDBEntryStats() [3/3]

CostDBEntryStats::CostDBEntryStats ( const CostDBEntryStats &  )

private

Copying not allowed.

Member Function Documentation

addDelay()

void CostDBEntryStats::addDelay ( const std::string &  key, double  delay  )

protectedvirtual

Set the delay of an entry for a given key.

Removes the old value.

Parameters

key	The key.
delay	The delay of an entry for a given key.

Definition at line 477 of file CostDBEntryStats.cc.

                                                             {

    // if old value for delay is found it is removed first
    DelayMap::iterator iter = delays_.find(key);
    if (iter != delays_.end()) {
        delays_.erase(iter);
    }
    std::pair<const std::string, double> delayKey =
        std::pair<const std::string, double>(key, delay);
    delays_.insert(delayKey);
}

References delay(), and delays_.

Referenced by CostDBEntryStats(), and setDelay().

Here is the call graph for this function:

addEnergy()

void CostDBEntryStats::addEnergy ( const std::string &  key, double  energy  )

protectedvirtual

Set the energy of an entry for a given key.

Removes the old value.

Parameters

key	The key.
energy	The energy of an entry for a given key.

Definition at line 413 of file CostDBEntryStats.cc.

                                                               {

    // if old value for energy is found it is removed first
    EnergyMap::iterator iter = energies_.find(key);
    if (iter != energies_.end()) {
        energies_.erase(iter);
    }
    std::pair<const std::string, double> energyKey =
        std::pair<const std::string, double>(key, energy);
    energies_.insert(energyKey);
}

References energies_.

Referenced by copy(), CostDBEntryStats(), setEnergyActive(), setEnergyIdle(), CostDBEntryStatsFU::setEnergyOperation(), CostDBEntryStatsRF::setEnergyRead(), CostDBEntryStatsRF::setEnergyReadWrite(), and CostDBEntryStatsRF::setEnergyWrite().

area()

virtual double CostDBEntryStats::area ( ) const

virtual

Referenced by CostDBEntryStats(), CostDBEntryStatsFU::createStats(), CostDBEntryStatsRF::createStats(), and createStats().

copy()

CostDBEntryStats * CostDBEntryStats::copy ( ) const

virtual

Returns the copy of the statistics.

Returns

Copy of statistics.

Definition at line 153 of file CostDBEntryStats.cc.

                             {

    CostDBEntryStats* newStats = createStats();

    for (EnergyMap::const_iterator i = energies_.begin();
         i != energies_.end(); i++) {

        newStats->addEnergy((*i).first, (*i).second);
    }
    for (DelayMap::const_iterator i = delays_.begin();
         i != delays_.end(); i++) {

        newStats->setDelay((*i).first, (*i).second);
    }

    return newStats;
}

References addEnergy(), createStats(), delays_, energies_, and setDelay().

Referenced by CostDatabase::insertEntry().

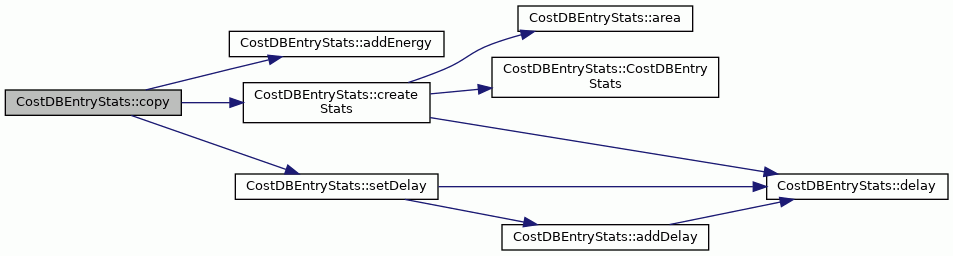

Here is the call graph for this function:

createStats()

CostDBEntryStats * CostDBEntryStats::createStats ( ) const

protectedvirtual

Create correct type of statistics.

Returns

Correct type of statistics.

Reimplemented in CostDBEntryStatsRF, and CostDBEntryStatsFU.

Definition at line 177 of file CostDBEntryStats.cc.

                                    {

    return new CostDBEntryStats(area(), delay());
}

References area(), CostDBEntryStats(), and delay().

Referenced by copy().

Here is the call graph for this function:

delay()

virtual double CostDBEntryStats::delay ( ) const

virtual

Referenced by addDelay(), CostDBEntryStats(), CostDBEntryStatsFU::createStats(), CostDBEntryStatsRF::createStats(), createStats(), and setDelay().

delayPort()

double CostDBEntryStats::delayPort ( const std::string &  port ) const

virtual

Returns the delay of given port is usage an an input/output.

Parameters

port	The name of the port.

Returns

The delay of an entry when given port is used.

Exceptions

WrongSubclass	Never thrown by this function.
KeyNotFound	Thrown if delay for given port is not set.

Definition at line 434 of file CostDBEntryStats.cc.

                                                       {
    return findDelay(port);
}

References findDelay().

Here is the call graph for this function:

energyActive()

double CostDBEntryStats::energyActive ( ) const

virtual

Returns the energy of an entry in an active cycle.

Returns

The energy of an entry in an active cycle.

Exceptions

WrongSubclass	Never thrown.
KeyNotFound	Thrown if active energy is not set.

Reimplemented in CostDBEntryStatsRF, and CostDBEntryStatsFU.

Definition at line 190 of file CostDBEntryStats.cc.

                                     {
    return findEnergy(ENERGY_ACTIVE);
}

References ENERGY_ACTIVE, and findEnergy().

Here is the call graph for this function:

energyIdle()

double CostDBEntryStats::energyIdle ( ) const

virtual

Returns the energy of an entry in an idle cycle.

Returns

The energy of an entry in an idle cycle.

Exceptions

WrongSubclass	Never thrown by this function.
KeyNotFound	Thrown if idle enrgy is not set.

Definition at line 202 of file CostDBEntryStats.cc.

                                   {
    return findEnergy(ENERGY_IDLE);
}

References ENERGY_IDLE, and findEnergy().

Here is the call graph for this function:

energyOperation()

double CostDBEntryStats::energyOperation ( const std::string &  name ) const

virtual

Returns the energy of an entry when given operation is executed.

The function will fail since this class should be used for entries which do not have operation set as a search key.

Parameters

name	The name of the operation.

Returns

The energy of an entry when given operation is executed.

Exceptions

WrongSubclass	An illegal function was called for this instance.
KeyNotFound	No energy matching the string found.

Reimplemented in CostDBEntryStatsFU.

Definition at line 219 of file CostDBEntryStats.cc.

                                                        {
    throw WrongSubclass(__FILE__, __LINE__,
                        "CostDBEntryStats::energyOperation");
    return 0.0; // stupid return statement to make compiler quiet
}

energyRead()

double CostDBEntryStats::energyRead ( ) const

virtual

Returns the read energy of an entry.

Returns

The read energy of an entry.

Exceptions

WrongSubclass	An illegal function was called for this instance.
KeyNotFound	Never thrown by this function.

Reimplemented in CostDBEntryStatsRF.

Definition at line 249 of file CostDBEntryStats.cc.

                                   {
    throw WrongSubclass(__FILE__, __LINE__,
                        "CostDBEntryStats::energyRead");
    return 0.0; // stupid return statement to make compiler quiet
}

energyReadWrite()

double CostDBEntryStats::energyReadWrite ( int  reads, int  writes  ) const

virtual

Returns the reads and writes energy of an entry.

Parameters

reads	The number of simultaneus reads done for the unit.
writes	The number of simultaneus writes done for the unit.

Returns

The reads and writes energy of an entry.

Exceptions

WrongSubclass	An illegal function was called for this instance.
KeyNotFound	Never thrown by this function.

Reimplemented in CostDBEntryStatsRF.

Definition at line 281 of file CostDBEntryStats.cc.

                                                {
    throw WrongSubclass(__FILE__, __LINE__,
                        "CostDBEntryStats::energyReadsWrites");
    return 0.0; // stupid return statement to make compiler quiet
}

energyWrite()

double CostDBEntryStats::energyWrite ( ) const

virtual

Returns the write energy of an entry.

Returns

The write energy of an entry.

Exceptions

WrongSubclass	An illegal function was called for this instance.
KeyNotFound	Never thrown by this function.

Reimplemented in CostDBEntryStatsRF.

Definition at line 264 of file CostDBEntryStats.cc.

                                    {
    throw WrongSubclass(__FILE__, __LINE__,
                        "CostDBEntryStats::energyRead");
    return 0.0; // stupid return statement to make compiler quiet
}

findDelay()

double CostDBEntryStats::findDelay ( const std::string &  key ) const

protectedvirtual

Returns the input/output delay of an entry usign given key as an input/output port.

Parameters

key

The key.

Returns

The input/output delay using the given port.

Exceptions

KeyNotFound

Requested key was not found.

Definition at line 459 of file CostDBEntryStats.cc.

                                                      {
    DelayMap::const_iterator i = delays_.find(key);

    if (i == delays_.end()) {
        throw KeyNotFound(__FILE__, __LINE__, "CostDBEntryStats::findDelay");
    }
    return i->second;
}

References delays_.

Referenced by CostDBEntryStats(), and delayPort().

findEnergy()

double CostDBEntryStats::findEnergy ( const std::string &  key ) const

protectedvirtual

Returns the energy of an entry for a given key.

Parameters

key

The key.

Returns

The energy of an entry in an active cycle.

Exceptions

KeyNotFound

Requested key was not found.

Definition at line 308 of file CostDBEntryStats.cc.

                                                       {
    EnergyMap::const_iterator i = energies_.find(key);
    if (i == energies_.end()) {
        throw KeyNotFound(__FILE__, __LINE__, "CostDBEntryStats::findEnergy");
    }
    return i->second;
}

References energies_.

Referenced by CostDBEntryStats(), energyActive(), energyIdle(), CostDBEntryStatsFU::energyOperation(), CostDBEntryStatsRF::energyRead(), CostDBEntryStatsRF::energyReadWrite(), and CostDBEntryStatsRF::energyWrite().

hasDelay()

bool CostDBEntryStats::hasDelay ( const std::string &  key ) const

protectedvirtual

Checks whether the delay exists for a given key.

Parameters

key

The key.

Returns

True if delay exists for a given key, otherwise false.

Definition at line 496 of file CostDBEntryStats.cc.

                                                     {

    DelayMap::const_iterator i = delays_.find(key);
    return i != delays_.end();
}

References delays_.

hasEnergy()

bool CostDBEntryStats::hasEnergy ( const std::string &  key ) const

protectedvirtual

Checks whether the energy exists for a given key.

Parameters

key

The key.

Returns

True if energy exists for a given key, otherwise false.

Definition at line 294 of file CostDBEntryStats.cc.

                                                      {

    EnergyMap::const_iterator i = energies_.find(key);
    return i != energies_.end();
}

References energies_.

Referenced by CostDBEntryStatsFU::hasEnergyOperation().

hasEnergyOperation()

bool CostDBEntryStats::hasEnergyOperation ( const std::string &  name ) const

virtual

Checks whether the energy exists for the given operation.

Parameters

name	name of the operation.

Returns

True if the energy exists for the given operation.

Exceptions

WrongSubclass

An illegal function was called for this instance.

Reimplemented in CostDBEntryStatsFU.

Definition at line 234 of file CostDBEntryStats.cc.

                                                           {
    throw WrongSubclass(__FILE__, __LINE__,
                        "CostDBEntryStats::hasEnergyOperation");
    return false; // stupid return statement to make compiler quiet
}

operator=()

CostDBEntryStats& CostDBEntryStats::operator= ( const CostDBEntryStats &  )

private

Assignment not allowed.

setDelay()

void CostDBEntryStats::setDelay ( const std::string &  port, double  delay  )

virtual

Set the delay of an input/output port usage.

Parameters

port	Name of the input/output port.
delay	The delay of an input/ouput when using the given port.

Exceptions

WrongSubclass

Never thrown by this function.

Definition at line 446 of file CostDBEntryStats.cc.

                                                              {
    addDelay(port, delay);
}

References addDelay(), and delay().

Referenced by CostDatabase::buildFunctionUnits(), CostDatabase::buildRegisterFiles(), CostDatabase::buildSockets(), and copy().

Here is the call graph for this function:

setEnergyActive()

void CostDBEntryStats::setEnergyActive ( double  energy )

virtual

Set the energy of an entry in an active cycle.

Parameters

energy

The energy of an entry in an active cycle.

Exceptions

WrongSubclass

Never thrown by this function.

Reimplemented in CostDBEntryStatsRF, and CostDBEntryStatsFU.

Definition at line 323 of file CostDBEntryStats.cc.

                                               {
    EnergyMap::iterator iter = energies_.find(ENERGY_ACTIVE);
    if (iter != energies_.end()) {
        energies_.erase(iter);
    }
    addEnergy(ENERGY_ACTIVE, energy);
}

References addEnergy(), energies_, and ENERGY_ACTIVE.

Referenced by CostDatabase::buildBuses(), and CostDatabase::buildSockets().

Here is the call graph for this function:

setEnergyIdle()

void CostDBEntryStats::setEnergyIdle ( double  energy )

virtual

Set the energy of an entry in an idle cycle.

Parameters

energy

The energy of an entry in an idle cycle.

Exceptions

WrongSubclass

Never thrown by this function.

Definition at line 338 of file CostDBEntryStats.cc.

                                             {
    EnergyMap::iterator iter = energies_.find(ENERGY_IDLE);
    if (iter != energies_.end()) {
        energies_.erase(iter);
    }
    addEnergy(ENERGY_IDLE, energy);
}

References addEnergy(), energies_, and ENERGY_IDLE.

Referenced by CostDatabase::buildBuses(), CostDatabase::buildFunctionUnits(), CostDatabase::buildRegisterFiles(), and CostDatabase::buildSockets().

Here is the call graph for this function:

setEnergyOperation()

void CostDBEntryStats::setEnergyOperation ( const std::string &  name, double  energy  )

virtual

Set the energy of an entry when given operation is executed.

The function will fail since this class should be used for entries which do not have operation set as a search key.

Parameters

name	name of the operation.
energy	The energy of an entry when given operation is executed.

Exceptions

WrongSubclass

An illegal function was called for this instance.

Reimplemented in CostDBEntryStatsFU.

Definition at line 358 of file CostDBEntryStats.cc.

                                                             {
    throw WrongSubclass(__FILE__, __LINE__,
                        "CostDBEntryStats::setEnergyOperation");
}

setEnergyRead()

void CostDBEntryStats::setEnergyRead ( double  energy )

virtual

Set the read energy of an entry.

Parameters

energy

The read energy of an entry.

Exceptions

WrongSubclass

An illegal function was called for this instance.

Reimplemented in CostDBEntryStatsRF.

Definition at line 371 of file CostDBEntryStats.cc.

                                      {
    throw WrongSubclass(__FILE__, __LINE__,
                        "CostDBEntryStats::setEnergyRead");
}

setEnergyReadWrite()

void CostDBEntryStats::setEnergyReadWrite ( int  reads, int  writes, double  energy  )

virtual

Set the reads and writes energy of an entry.

Parameters

energy	The reads and writes energy of an entry.
reads	The number of reads of the unit.
writes	The number of writes of the unit.

Exceptions

WrongSubclass

An illegal function was called for this instance.

Reimplemented in CostDBEntryStatsRF.

Definition at line 399 of file CostDBEntryStats.cc.

                                                     {
    throw WrongSubclass(__FILE__, __LINE__,
                        "CostDBEntryStats::setEnergyReadsWrites");
}

setEnergyWrite()

void CostDBEntryStats::setEnergyWrite ( double  energy )

virtual

Set the write energy of an entry.

Parameters

energy

The write energy of an entry.

Exceptions

WrongSubclass

An illegal function was called for this instance.

Reimplemented in CostDBEntryStatsRF.

Definition at line 384 of file CostDBEntryStats.cc.

                                       {
    throw WrongSubclass(__FILE__, __LINE__,
                        "CostDBEntryStats::setEnergyWrite");
}

Member Data Documentation

area_

double CostDBEntryStats::area_

private

area in gates.

Definition at line 103 of file CostDBEntryStats.hh.

Referenced by CostDBEntryStats().

delay_

double CostDBEntryStats::delay_

private

delay in nanoseconds.

Definition at line 105 of file CostDBEntryStats.hh.

Referenced by CostDBEntryStats().

delays_

DelayMap CostDBEntryStats::delays_

private

input and output delays in nanoseconds.

Definition at line 107 of file CostDBEntryStats.hh.

Referenced by addDelay(), copy(), CostDBEntryStats(), findDelay(), and hasDelay().

energies_

EnergyMap CostDBEntryStats::energies_

private

Energies of one specific type of usage of a resource. Usually the map contains energies for active and idle usage of a resource. However, in case of FUs the active energy does not exist and but energies are defined for each operation.

Definition at line 112 of file CostDBEntryStats.hh.

Referenced by addEnergy(), copy(), CostDBEntryStats(), findEnergy(), hasEnergy(), setEnergyActive(), and setEnergyIdle().

ENERGY_ACTIVE

const std::string CostDBEntryStats::ENERGY_ACTIVE = "(active)"

staticprotected

String for active energy.

Definition at line 86 of file CostDBEntryStats.hh.

Referenced by energyActive(), and setEnergyActive().

ENERGY_IDLE

const std::string CostDBEntryStats::ENERGY_IDLE = "(idle)"

staticprotected

String for idle energy.

Definition at line 88 of file CostDBEntryStats.hh.

Referenced by energyIdle(), and setEnergyIdle().

ENERGY_READ

const std::string CostDBEntryStats::ENERGY_READ = "(read)"

staticprotected

String for read energy.

Definition at line 90 of file CostDBEntryStats.hh.

Referenced by CostDBEntryStatsRF::energyRead(), and CostDBEntryStatsRF::setEnergyRead().

ENERGY_READ_WRITE

const std::string CostDBEntryStats::ENERGY_READ_WRITE = "(rd,wr)"

staticprotected

String for reads and writes energy.

Definition at line 94 of file CostDBEntryStats.hh.

Referenced by CostDBEntryStatsRF::generateReadWriteString().

ENERGY_WRITE

const std::string CostDBEntryStats::ENERGY_WRITE = "(write)"

staticprotected

String for write energy.

Definition at line 92 of file CostDBEntryStats.hh.

Referenced by CostDBEntryStatsRF::energyWrite(), and CostDBEntryStatsRF::setEnergyWrite().

---

The documentation for this class was generated from the following files:

• CostDBEntryStats.hh
• CostDBEntryStats.cc
