#include <CostEstimates.hh>

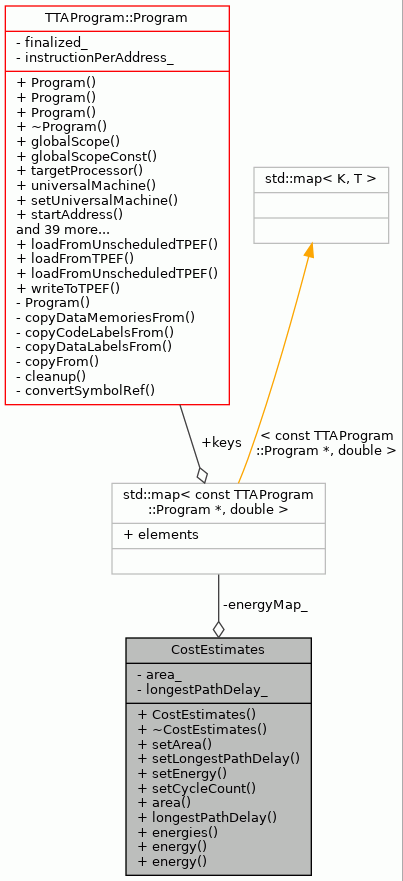

Collaboration diagram for CostEstimates:

Public Member Functions
	CostEstimates ()

virtual	~CostEstimates ()

void	setArea (double area)

void	setLongestPathDelay (double delay)

void	setEnergy (const TTAProgram::Program &program, double energy)

void	setCycleCount (const TTAProgram::Program &program, ClockCycleCount cycles)

double	area () const

double	longestPathDelay () const

int	energies () const

double	energy (int index) const

double	energy (const TTAProgram::Program &program) const

Private Attributes
std::map< const TTAProgram::Program *, double >	energyMap_
	Map containing programs and energies consumed in running the programs. More...

double	area_
	Area estimation value (in gates). More...

double	longestPathDelay_
	Longest path delay estimation value (in nano seconds). More...

Detailed Description

This class represents cost estimates for a machine configuration.

Class stores estimates of area (in gates), longest path delay (in nano seconds) and energy consumptions (in milli joules) when the configuration is used to run different programs. Area and longest path delay are constants to one configuration while there can be multiple programs executed so multiple energy consumption estimations and cycle counts as well. Each energy consumption is bound to one program.

Definition at line 57 of file CostEstimates.hh.

Constructor & Destructor Documentation

◆ CostEstimates()

CostEstimates::CostEstimates ( )

The contstructor.

Definition at line 42 of file CostEstimates.cc.

                              :
     area_(0), longestPathDelay_(0) {
 }

◆ ~CostEstimates()

CostEstimates::~CostEstimates ( )

virtual

The destructor.

Definition at line 49 of file CostEstimates.cc.

49 {

50 }

Member Function Documentation

◆ area()

double CostEstimates::area ( ) const

Returns the area estimate (in gates).

Returns: Returns the area estimate (in gates).

Definition at line 101 of file CostEstimates.cc.

                           {

     return area_;
 }

References area_.

Referenced by MinimizeMachine::minimizeBuses(), Evaluate::printEstimates(), ComponentImplementationSelector::selectFUs(), ComponentImplementationSelector::selectIUs(), ComponentImplementationSelector::selectRFs(), and setArea().

◆ energies()

int CostEstimates::energies ( ) const

Returns the number of different energy estimates (one for each program) in the cost estimation data.

Returns: Returns the number of stored energy estimates.

Definition at line 124 of file CostEstimates.cc.

                               {

     return energyMap_.size();
 }

References energyMap_.

Referenced by energy(), and Evaluate::printEstimates().

◆ energy() [1/2]

double CostEstimates::energy ( const TTAProgram::Program & program ) const

Returns the energy value corresponding to the Program.

Parameters

program Program of which energy is returned.

Returns: The energy of the Program.

Exceptions

KeyNotFound Is thrown if program has no energy set.

Definition at line 159 of file CostEstimates.cc.

                                                             {
     map<const TTAProgram::Program*, double>::const_iterator iter =
         energyMap_.find(&program);
     if (iter == energyMap_.end()) {
         throw KeyNotFound(__FILE__, __LINE__, __func__);
     }
     return (*iter).second;
 }

References __func__, energyMap_, and program.

◆ energy() [2/2]

double CostEstimates::energy ( int index ) const

Returns the energy value from the given index.

Parameters

index The index.

Returns: The energy value in the given index.

Exceptions

OutOfRange If the given index is less than 0 or greater or equal to the number of energies.

Definition at line 138 of file CostEstimates.cc.

                                      {
     if (index < 0 || index >= energies()) {
         throw OutOfRange(__FILE__, __LINE__, __func__);
     }
     map<const TTAProgram::Program*, double>::const_iterator iter =
         energyMap_.begin();
     while (index > 0) {
         iter++;
         index--;
     }
     return (*iter).second;
 }

References __func__, energies(), and energyMap_.

Referenced by Evaluate::printEstimates(), and setEnergy().

Here is the call graph for this function:

◆ longestPathDelay()

double CostEstimates::longestPathDelay ( ) const

Returns the longest path delay estimate (in nano seconds).

Returns: Returns the longest path delay estimate (in nano seconds).

Definition at line 112 of file CostEstimates.cc.

                                       {

     return longestPathDelay_;
 }

References longestPathDelay_.

Referenced by MinimizeMachine::minimizeBuses(), Evaluate::printEstimates(), ComponentImplementationSelector::selectFUs(), ComponentImplementationSelector::selectIUs(), and ComponentImplementationSelector::selectRFs().

◆ setArea()

void CostEstimates::setArea ( double area )

Sets the area estimate (in gates).

Parameters

area	Area estimate value (in gates).

Definition at line 58 of file CostEstimates.cc.

                                   {

     area_ = area;
 }

References area(), and area_.

Referenced by DesignSpaceExplorer::evaluate(), ComponentImplementationSelector::fuImplementations(), ComponentImplementationSelector::iuImplementations(), and ComponentImplementationSelector::rfImplementations().

Here is the call graph for this function:

◆ setCycleCount()

void CostEstimates::setCycleCount	(	const TTAProgram::Program &	program,
		ClockCycleCount	cycles
	)

◆ setEnergy()

void CostEstimates::setEnergy	(	const TTAProgram::Program &	program,
		double	energy
	)

Sets new energy estimate for the given program.

If there was an old energy value for the given key it is removed first.

Parameters

program	Program that is used as a key.
energy	Energy consumed while running the program (in milli joules).

Definition at line 83 of file CostEstimates.cc.

                                                      {

     map<const TTAProgram::Program*, double>::iterator iter =
         energyMap_.find(&program);
     if (iter != energyMap_.end()) {
         energyMap_.erase(iter);
     }
     energyMap_.insert(
         std::pair<const TTAProgram::Program*, double>(&program, energy));
 }

References energy(), energyMap_, and program.

Referenced by DesignSpaceExplorer::evaluate().

Here is the call graph for this function:

◆ setLongestPathDelay()

void CostEstimates::setLongestPathDelay ( double delay )

Sets the longest path delay estimate (in nano seconds).

Parameters

delay Longest path delay estimte value (in nano seconds).

Definition at line 69 of file CostEstimates.cc.

                                                {

     longestPathDelay_ = delay;
 }

References longestPathDelay_.

Referenced by DesignSpaceExplorer::evaluate(), ComponentImplementationSelector::fuImplementations(), ComponentImplementationSelector::iuImplementations(), and ComponentImplementationSelector::rfImplementations().

Member Data Documentation

◆ area_

double CostEstimates::area_

private

Area estimation value (in gates).

Definition at line 76 of file CostEstimates.hh.

Referenced by area(), and setArea().

◆ energyMap_

std::map<const TTAProgram::Program*, double> CostEstimates::energyMap_

private

Map containing programs and energies consumed in running the programs.

Definition at line 74 of file CostEstimates.hh.

Referenced by energies(), energy(), and setEnergy().

◆ longestPathDelay_

double CostEstimates::longestPathDelay_

private

Longest path delay estimation value (in nano seconds).

Definition at line 78 of file CostEstimates.hh.

Referenced by longestPathDelay(), and setLongestPathDelay().

The documentation for this class was generated from the following files:
