CostEstimator::RFCostEstimationPlugin Class Reference

#include <RFCostEstimationPlugin.hh>

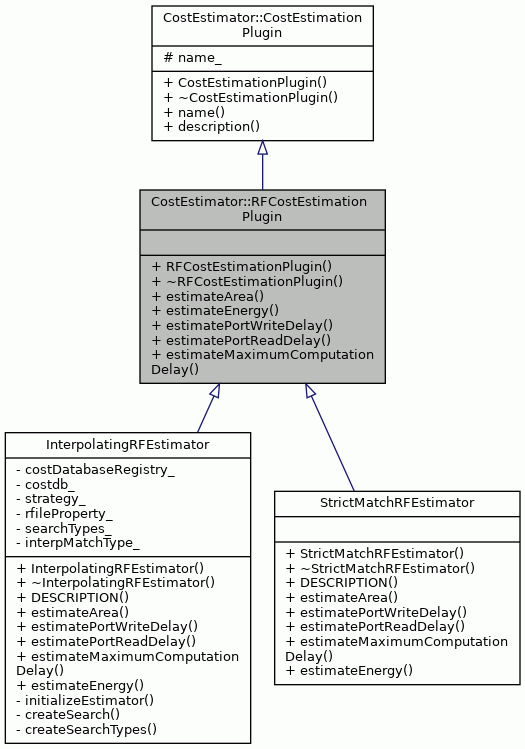

Inheritance diagram for CostEstimator::RFCostEstimationPlugin:

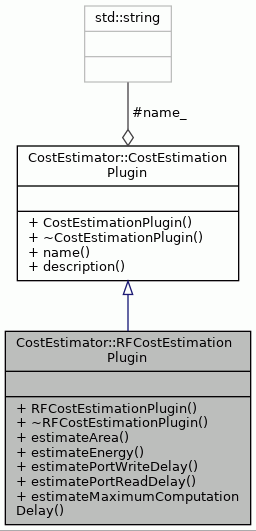

Collaboration diagram for CostEstimator::RFCostEstimationPlugin:

Public Member Functions
	RFCostEstimationPlugin (const std::string &name)
virtual	~RFCostEstimationPlugin ()
virtual bool	estimateArea (const TTAMachine::BaseRegisterFile &architecture, const IDF::RFImplementationLocation &implementation, AreaInGates &area, HDB::HDBManager &hdb)
virtual bool	estimateEnergy (const TTAMachine::BaseRegisterFile &architecture, const IDF::RFImplementationLocation &implementation, const TTAProgram::Program &program, const ExecutionTrace &traceDB, EnergyInMilliJoules &energy, HDB::HDBManager &hdb)
virtual bool	estimatePortWriteDelay (const TTAMachine::RFPort &port, const IDF::RFImplementationLocation &implementation, DelayInNanoSeconds &inputDelay, HDB::HDBManager &hdb)
virtual bool	estimatePortReadDelay (const TTAMachine::RFPort &port, const IDF::RFImplementationLocation &implementation, DelayInNanoSeconds &outputDelay, HDB::HDBManager &hdb)
virtual bool	estimateMaximumComputationDelay (const TTAMachine::BaseRegisterFile &architecture, const IDF::RFImplementationLocation &implementation, DelayInNanoSeconds &computationDelay, HDB::HDBManager &hdb)
Public Member Functions inherited from CostEstimator::CostEstimationPlugin
	CostEstimationPlugin (const std::string &name)
virtual	~CostEstimationPlugin ()
virtual std::string	name () const
virtual std::string	description () const

Additional Inherited Members
Protected Attributes inherited from CostEstimator::CostEstimationPlugin
std::string	name_
	the name of the plugin class in the HDB; used to identify cost data More...

Detailed Description

A base interface for all classes that implement pluggable register file cost estimation algorithms.

Definition at line 67 of file RFCostEstimationPlugin.hh.

Constructor & Destructor Documentation

RFCostEstimationPlugin()

CostEstimator::RFCostEstimationPlugin::RFCostEstimationPlugin

(

const std::string &

name

)

Constructor.

Parameters

name	The name of the created plugin in HDB.
data	The HDB the plugin's data is stored in.

Definition at line 44 of file RFCostEstimationPlugin.cc.

                           :
    CostEstimationPlugin(name) {
}

~RFCostEstimationPlugin()

CostEstimator::RFCostEstimationPlugin::~RFCostEstimationPlugin ( )

virtual

Destructor.

Definition at line 52 of file RFCostEstimationPlugin.cc.

                                                {
}

Member Function Documentation

estimateArea()

bool CostEstimator::RFCostEstimationPlugin::estimateArea ( const TTAMachine::BaseRegisterFile &  architecture, const IDF::RFImplementationLocation &  implementation, AreaInGates &  area, HDB::HDBManager &  hdb  )

virtual

Estimates the area of the given RF.

Parameters

architecture	The RF architecture of which area to estimate.
implementation	(The location of) the implementation of RF.
area	The variable to store the area estimate into.

Returns

True only if area could be estimated successfully.

Reimplemented in InterpolatingRFEstimator, and StrictMatchRFEstimator.

Definition at line 64 of file RFCostEstimationPlugin.cc.

                    {

    return false;
}

estimateEnergy()

bool CostEstimator::RFCostEstimationPlugin::estimateEnergy ( const TTAMachine::BaseRegisterFile &  architecture, const IDF::RFImplementationLocation &  implementation, const TTAProgram::Program &  program, const ExecutionTrace &  traceDB, EnergyInMilliJoules &  energy, HDB::HDBManager &  hdb  )

virtual

Estimates the energy consumed by the given RF when running the given program.

Parameters

architecture	The RF architecture of which area to estimate.
implementation	(The location of) the implementation of RF. Can be an instance of NullFUImplementationLocation.
program	The program of which energy to calculate.
traceDB	The simulation trace database of the program running in the target architecture which can be used in the estimation algorithm.
energy	The variable to store the energy estimate into.

Returns

True only if energy could be estimated successfully.

Reimplemented in StrictMatchRFEstimator, and InterpolatingRFEstimator.

Definition at line 88 of file RFCostEstimationPlugin.cc.

                    {

    return false;
}

estimateMaximumComputationDelay()

bool CostEstimator::RFCostEstimationPlugin::estimateMaximumComputationDelay ( const TTAMachine::BaseRegisterFile &  architecture, const IDF::RFImplementationLocation &  implementation, DelayInNanoSeconds &  computationDelay, HDB::HDBManager &  hdb  )

virtual

Estimates the maximum "computation delay" of the given RF.

The maximum computation delay is the longest stage in the RF's execution. It's used mainly for calculating the maximum clock frequency of target architecture.

Parameters

architecture	The RF architecture of which area to estimate.
implementation	(The location of) the implementation of RF. Can be an instance of NullRFImplementationLocation.
computationDelay	The variable to store the delay estimate into.

Returns

True only if computation delay could be estimated successfully.

Reimplemented in InterpolatingRFEstimator, and StrictMatchRFEstimator.

Definition at line 149 of file RFCostEstimationPlugin.cc.

                    {

    return false;
}

estimatePortReadDelay()

bool CostEstimator::RFCostEstimationPlugin::estimatePortReadDelay ( const TTAMachine::RFPort &  port, const IDF::RFImplementationLocation &  implementation, DelayInNanoSeconds &  outputDelay, HDB::HDBManager &  hdb  )

virtual

Estimates the output delay of the given RF port.

Parameters

port	The RF port of which output delay to estimate.
implementation	(The location of) the implementation of RF.
outputDelay	The variable to store the delay estimate into.

Returns

True only if output delay could be estimated successfully.

Reimplemented in InterpolatingRFEstimator, and StrictMatchRFEstimator.

Definition at line 126 of file RFCostEstimationPlugin.cc.

                    {

    return false;
}

estimatePortWriteDelay()

bool CostEstimator::RFCostEstimationPlugin::estimatePortWriteDelay ( const TTAMachine::RFPort &  port, const IDF::RFImplementationLocation &  implementation, DelayInNanoSeconds &  inputDelay, HDB::HDBManager &  hdb  )

virtual

Estimates the input delay of the given RF port.

Parameters

port	The RF port of which input delay to estimate.
implementation	(The location of) the implementation of RF.
inputDelay	The variable to store the delay estimate into.

Returns

True only if input delay could be estimated successfully.

Reimplemented in InterpolatingRFEstimator, and StrictMatchRFEstimator.

Definition at line 108 of file RFCostEstimationPlugin.cc.

                    {

    return false;
}

---

The documentation for this class was generated from the following files:

• RFCostEstimationPlugin.hh
• RFCostEstimationPlugin.cc
