#include <ParserStructs.hh>

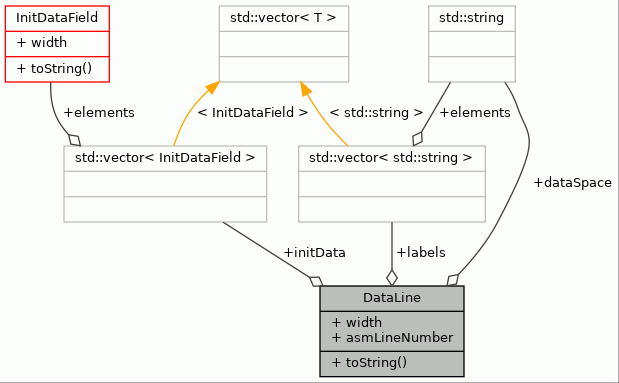

Collaboration diagram for DataLine:

Public Member Functions
std::string	toString () const

Public Attributes
UValue	width
	Number of MAUs initialized by this data line.

std::string	dataSpace
	Address space whose MAUs are initialized.

std::vector< InitDataField >	initData
	Init data fields of data line. Uninitilized data line, if empty.

std::vector< std::string >	labels
	Labels of this data line.

UValue	asmLineNumber
	Line number where in source code this DA line is found.

Detailed Description

Parsed data area definition.

Definition at line 477 of file ParserStructs.hh.

Member Function Documentation

◆ toString()

std::string DataLine::toString ( ) const

inline

String representation of term for error message generation.

Definition at line 495 of file ParserStructs.hh.

                               {

        std::stringstream retVal;

        retVal << "DataLine:\n"
               << "address space:\t" << dataSpace << std::endl
               << "data maus: \t" << width << std::endl;

        retVal << "Labels:" << std::endl;
        for (unsigned int i = 0; i < labels.size(); i++) {
            retVal << "\t" << labels[i] << std::endl;
        }

        retVal << "Init data:" << std::endl;
        for (unsigned int i = 0; i < initData.size(); i++) {
            retVal << (int)initData[i].width << ":";

            if (initData[i].litOrExpr.isExpression) {
                retVal << initData[i].litOrExpr.expression.label;
            } else {
                retVal << (int)initData[i].litOrExpr.value;
            }

            retVal << "\t";

            if ((i+1)%16 == 0) retVal << std::endl;
        }

        retVal << "\n";

        return retVal.str();
    }
