EditBusOrderCmd Class Reference

#include <EditBusOrderCmd.hh>

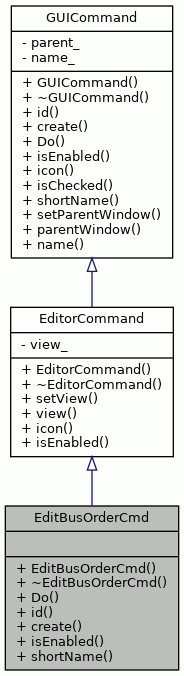

Inheritance diagram for EditBusOrderCmd:

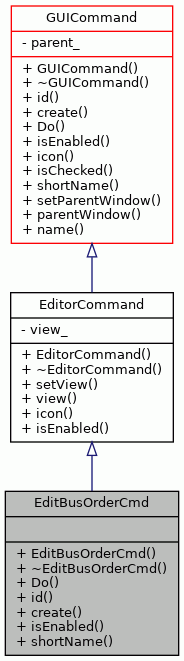

Collaboration diagram for EditBusOrderCmd:

Public Member Functions
	EditBusOrderCmd ()
virtual	~EditBusOrderCmd ()
virtual bool	Do ()
virtual int	id () const
virtual EditBusOrderCmd *	create () const
virtual bool	isEnabled ()
virtual std::string	shortName () const
Public Member Functions inherited from EditorCommand
	EditorCommand (std::string name, wxWindow *parent=NULL)
virtual	~EditorCommand ()
void	setView (wxView *view)
wxView *	view () const
virtual std::string	icon () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for editing order of transport buses in a machine.

Definition at line 41 of file EditBusOrderCmd.hh.

Constructor & Destructor Documentation

EditBusOrderCmd()

EditBusOrderCmd::EditBusOrderCmd

(

)

The Constructor.

Definition at line 50 of file EditBusOrderCmd.cc.

                                :
    EditorCommand(ProDeConstants::CMD_NAME_EDIT_BUS_ORDER) {
}

Referenced by create().

~EditBusOrderCmd()

EditBusOrderCmd::~EditBusOrderCmd ( )

virtual

The Destructor.

Definition at line 58 of file EditBusOrderCmd.cc.

{}

Member Function Documentation

create()

EditBusOrderCmd * EditBusOrderCmd::create ( ) const

virtual

Creates and returns a new instance of this command.

Implements GUICommand.

Definition at line 103 of file EditBusOrderCmd.cc.

                              {
    return new EditBusOrderCmd();
}

References EditBusOrderCmd().

Here is the call graph for this function:

Do()

bool EditBusOrderCmd::Do ( )

virtual

Executes the command.

Returns

True, if the command was succesfully executed, false otherwise.

Implements GUICommand.

Definition at line 67 of file EditBusOrderCmd.cc.

                    {

    assert(parentWindow() != NULL);
    assert(view() != NULL);

    Model* model = dynamic_cast<MDFDocument*>(
        view()->GetDocument())->getModel();

    model->pushToStack();

    ProDeBusOrderDialog dialog(parentWindow(), *model->getMachine());

    if (dialog.ShowModal() == wxID_OK) {
    model->notifyObservers();
        return true;
    } else {
        // Cancel button was pressed, address spaces are not modified.
    model->popFromStack();
        return false;
    }
}

References assert, Model::getMachine(), Model::notifyObservers(), GUICommand::parentWindow(), Model::popFromStack(), Model::pushToStack(), and EditorCommand::view().

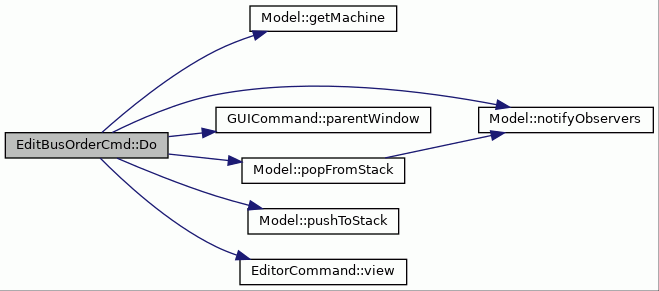

Here is the call graph for this function:

id()

int EditBusOrderCmd::id ( ) const

virtual

Returns id of this command.

Implements GUICommand.

Definition at line 94 of file EditBusOrderCmd.cc.

                          {
    return ProDeConstants::COMMAND_EDIT_BUS_ORDER;
}

References ProDeConstants::COMMAND_EDIT_BUS_ORDER.

isEnabled()

bool EditBusOrderCmd::isEnabled ( )

virtual

Returns true when the command is executable, false when not.

This command is executable when a document is open.

Returns

True, if a document is open.

Reimplemented from EditorCommand.

Definition at line 125 of file EditBusOrderCmd.cc.

                           {
    wxDocManager* manager = wxGetApp().docManager();
    if (manager->GetCurrentView() != NULL) {
    return true;
    }
    return false;
}

shortName()

string EditBusOrderCmd::shortName ( ) const

virtual

Returns short version of the command name.

Reimplemented from GUICommand.

Definition at line 112 of file EditBusOrderCmd.cc.

                                 {
    return ProDeConstants::CMD_SNAME_EDIT_ADDRESS_SPACES;
}

References ProDeConstants::CMD_SNAME_EDIT_ADDRESS_SPACES.

---

The documentation for this class was generated from the following files:

• EditBusOrderCmd.hh
• EditBusOrderCmd.cc
