EditImmediateSlotsCmd Class Reference

#include <EditImmediateSlotsCmd.hh>

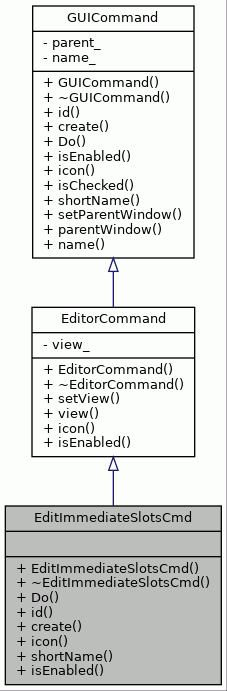

Inheritance diagram for EditImmediateSlotsCmd:

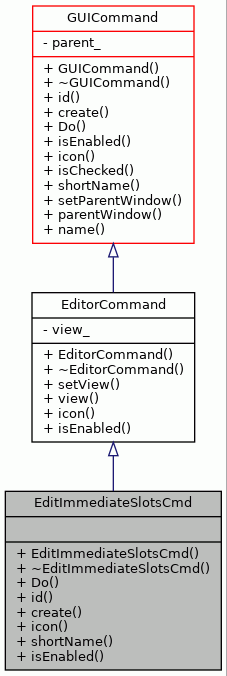

Collaboration diagram for EditImmediateSlotsCmd:

Public Member Functions
	EditImmediateSlotsCmd ()
virtual	~EditImmediateSlotsCmd ()
virtual bool	Do ()
virtual int	id () const
virtual EditImmediateSlotsCmd *	create () const
virtual std::string	icon () const
virtual std::string	shortName () const
virtual bool	isEnabled ()
Public Member Functions inherited from EditorCommand
	EditorCommand (std::string name, wxWindow *parent=NULL)
virtual	~EditorCommand ()
void	setView (wxView *view)
wxView *	view () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

wxCommand for editing machine's immediate slots.

Definition at line 41 of file EditImmediateSlotsCmd.hh.

Constructor & Destructor Documentation

EditImmediateSlotsCmd()

EditImmediateSlotsCmd::EditImmediateSlotsCmd

(

)

The Constructor.

Definition at line 48 of file EditImmediateSlotsCmd.cc.

                                            :
    EditorCommand(ProDeConstants::CMD_NAME_EDIT_IMMEDIATE_SLOTS) {
}

Referenced by create().

~EditImmediateSlotsCmd()

EditImmediateSlotsCmd::~EditImmediateSlotsCmd ( )

virtual

The Destructor.

Definition at line 56 of file EditImmediateSlotsCmd.cc.

{}

Member Function Documentation

create()

EditImmediateSlotsCmd * EditImmediateSlotsCmd::create ( ) const

virtual

Creates and returns a new instance of this command.

Implements GUICommand.

Definition at line 102 of file EditImmediateSlotsCmd.cc.

                                    {
    return new EditImmediateSlotsCmd();
}

References EditImmediateSlotsCmd().

Here is the call graph for this function:

Do()

bool EditImmediateSlotsCmd::Do ( )

virtual

Executes the command.

Returns

True, if the command was succesfully executed, false otherwise.

Implements GUICommand.

Definition at line 65 of file EditImmediateSlotsCmd.cc.

                          {

    assert(parentWindow() != NULL);
    assert(view() != NULL);

    Model* model = dynamic_cast<MDFDocument*>(
        view()->GetDocument())->getModel();

    model->pushToStack();

    ImmediateSlotDialog dialog(parentWindow(), model->getMachine());

    if (dialog.ShowModal() == wxID_OK) {
    model->notifyObservers();
        return true;
    } else {
        // Cancel button was pressed, immediate slot modifications are
    // cancelled.
    model->popFromStack();
        return false;
    }
}

References assert, Model::getMachine(), Model::notifyObservers(), GUICommand::parentWindow(), Model::popFromStack(), Model::pushToStack(), and EditorCommand::view().

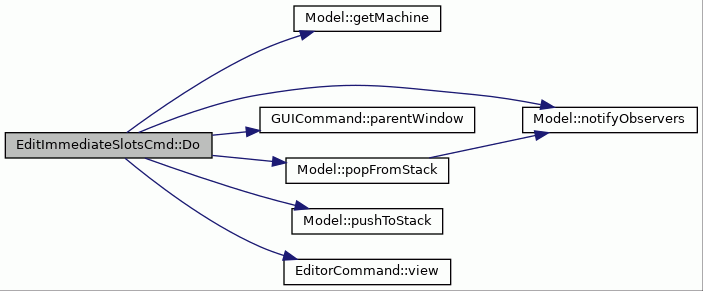

Here is the call graph for this function:

icon()

string EditImmediateSlotsCmd::icon ( ) const

virtual

Returns path to the command's icon file.

Reimplemented from EditorCommand.

Definition at line 112 of file EditImmediateSlotsCmd.cc.

                                  {
    return ProDeConstants::CMD_ICON_DEFAULT;
}

References ProDeConstants::CMD_ICON_DEFAULT.

id()

int EditImmediateSlotsCmd::id ( ) const

virtual

Returns id of this command.

Implements GUICommand.

Definition at line 93 of file EditImmediateSlotsCmd.cc.

                                {
    return ProDeConstants::COMMAND_EDIT_IMMEDIATE_SLOTS;
}

References ProDeConstants::COMMAND_EDIT_IMMEDIATE_SLOTS.

isEnabled()

bool EditImmediateSlotsCmd::isEnabled ( )

virtual

Returns true when the command is executable, false when not.

This command is executable when a document is open.

Returns

True, if a document is open.

Reimplemented from EditorCommand.

Definition at line 134 of file EditImmediateSlotsCmd.cc.

                                 {
    wxDocManager* manager = wxGetApp().docManager();
    if (manager->GetCurrentView() != NULL) {
    return true;
    }
    return false;
}

shortName()

string EditImmediateSlotsCmd::shortName ( ) const

virtual

Returns short version of the command name.

Reimplemented from GUICommand.

Definition at line 121 of file EditImmediateSlotsCmd.cc.

                                       {
    return ProDeConstants::CMD_SNAME_EDIT_IMMEDIATE_SLOTS;
}

References ProDeConstants::CMD_SNAME_EDIT_IMMEDIATE_SLOTS.

---

The documentation for this class was generated from the following files:

• EditImmediateSlotsCmd.hh
• EditImmediateSlotsCmd.cc
