EditTemplatesCmd Class Reference

#include <EditTemplatesCmd.hh>

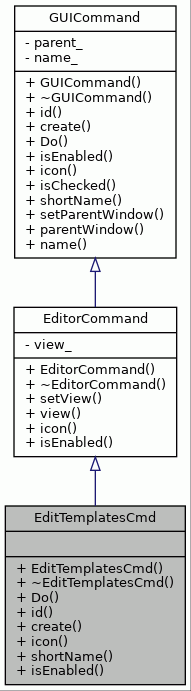

Inheritance diagram for EditTemplatesCmd:

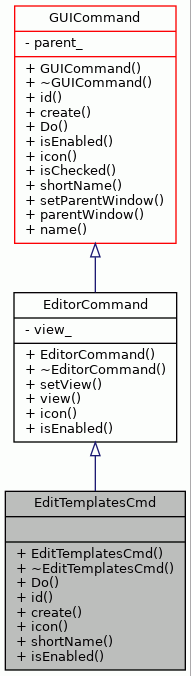

Collaboration diagram for EditTemplatesCmd:

Public Member Functions
	EditTemplatesCmd ()
virtual	~EditTemplatesCmd ()
virtual bool	Do ()
virtual int	id () const
virtual EditTemplatesCmd *	create () const
virtual std::string	icon () const
virtual std::string	shortName () const
virtual bool	isEnabled ()
Public Member Functions inherited from EditorCommand
	EditorCommand (std::string name, wxWindow *parent=NULL)
virtual	~EditorCommand ()
void	setView (wxView *view)
wxView *	view () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for editing instruction templates.

Opens a TemplateListDialog which lists instruction templates in the machine.

Definition at line 43 of file EditTemplatesCmd.hh.

Constructor & Destructor Documentation

EditTemplatesCmd()

EditTemplatesCmd::EditTemplatesCmd

(

)

The Constructor.

Definition at line 52 of file EditTemplatesCmd.cc.

                                  :
    EditorCommand(ProDeConstants::CMD_NAME_EDIT_TEMPLATES) {
}

Referenced by create().

~EditTemplatesCmd()

EditTemplatesCmd::~EditTemplatesCmd ( )

virtual

The Destructor.

Definition at line 60 of file EditTemplatesCmd.cc.

{}

Member Function Documentation

create()

EditTemplatesCmd * EditTemplatesCmd::create ( ) const

virtual

Creates and returns a new instance of this command.

Returns

A new instance of this command.

Implements GUICommand.

Definition at line 109 of file EditTemplatesCmd.cc.

                               {
    return new EditTemplatesCmd();
}

References EditTemplatesCmd().

Here is the call graph for this function:

Do()

bool EditTemplatesCmd::Do ( )

virtual

Executes the command.

Returns

True, if the command was succesfully executed, false otherwise.

Implements GUICommand.

Definition at line 69 of file EditTemplatesCmd.cc.

                     {

    assert(parentWindow() != NULL);
    assert(view() != NULL);

    Model* model = dynamic_cast<MDFDocument*>(
        view()->GetDocument())->getModel();

    model->pushToStack();

    TemplateListDialog dialog(parentWindow(), model->getMachine());

    if (dialog.ShowModal() == wxID_OK) {
    model->notifyObservers();
        return true;
    } else {
        // Cancel button was pressed, templates are not modified.
    model->popFromStack();
        return false;
    }
}

References assert, Model::getMachine(), Model::notifyObservers(), GUICommand::parentWindow(), Model::popFromStack(), Model::pushToStack(), and EditorCommand::view().

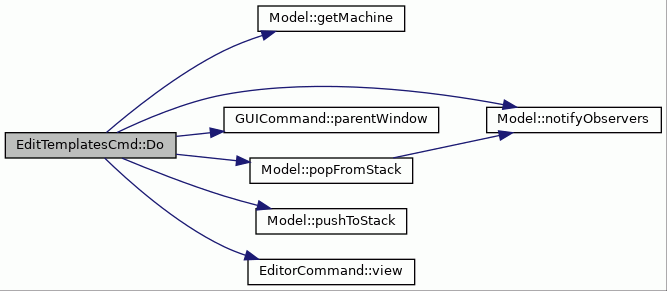

Here is the call graph for this function:

icon()

string EditTemplatesCmd::icon ( ) const

virtual

Returns path to the command's icon file.

Returns

path to the command's icon file.

Reimplemented from EditorCommand.

Definition at line 121 of file EditTemplatesCmd.cc.

                             {
    return ProDeConstants::CMD_ICON_EDIT_TEMPLATES;
}

References ProDeConstants::CMD_ICON_EDIT_TEMPLATES.

id()

int EditTemplatesCmd::id ( ) const

virtual

Returns id of this command.

Returns

Id of this command.

Implements GUICommand.

Definition at line 98 of file EditTemplatesCmd.cc.

                           {
    return ProDeConstants::COMMAND_EDIT_TEMPLATES;
}

References ProDeConstants::COMMAND_EDIT_TEMPLATES.

isEnabled()

bool EditTemplatesCmd::isEnabled ( )

virtual

Returns true when the command is executable, false when not.

This command is executable when a document is open.

Returns

True, if a document is open.

Reimplemented from EditorCommand.

Definition at line 145 of file EditTemplatesCmd.cc.

                            {
    wxDocManager* manager = wxGetApp().docManager();
    if (manager->GetCurrentView() != NULL) {
    return true;
    }
    return false;
}

shortName()

string EditTemplatesCmd::shortName ( ) const

virtual

Returns short version of the command name.

Returns

Short version of the command name.

Reimplemented from GUICommand.

Definition at line 132 of file EditTemplatesCmd.cc.

                                  {
    return ProDeConstants::CMD_SNAME_EDIT_TEMPLATES;
}

References ProDeConstants::CMD_SNAME_EDIT_TEMPLATES.

---

The documentation for this class was generated from the following files:

• EditTemplatesCmd.hh
• EditTemplatesCmd.cc
