EntryKeyDataFunctionUnit Class Reference

#include <EntryKeyData.hh>

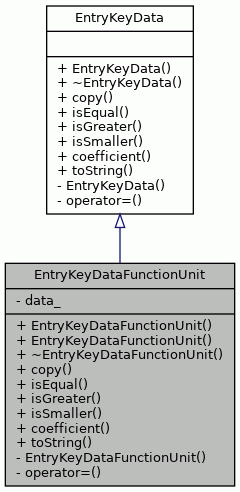

Inheritance diagram for EntryKeyDataFunctionUnit:

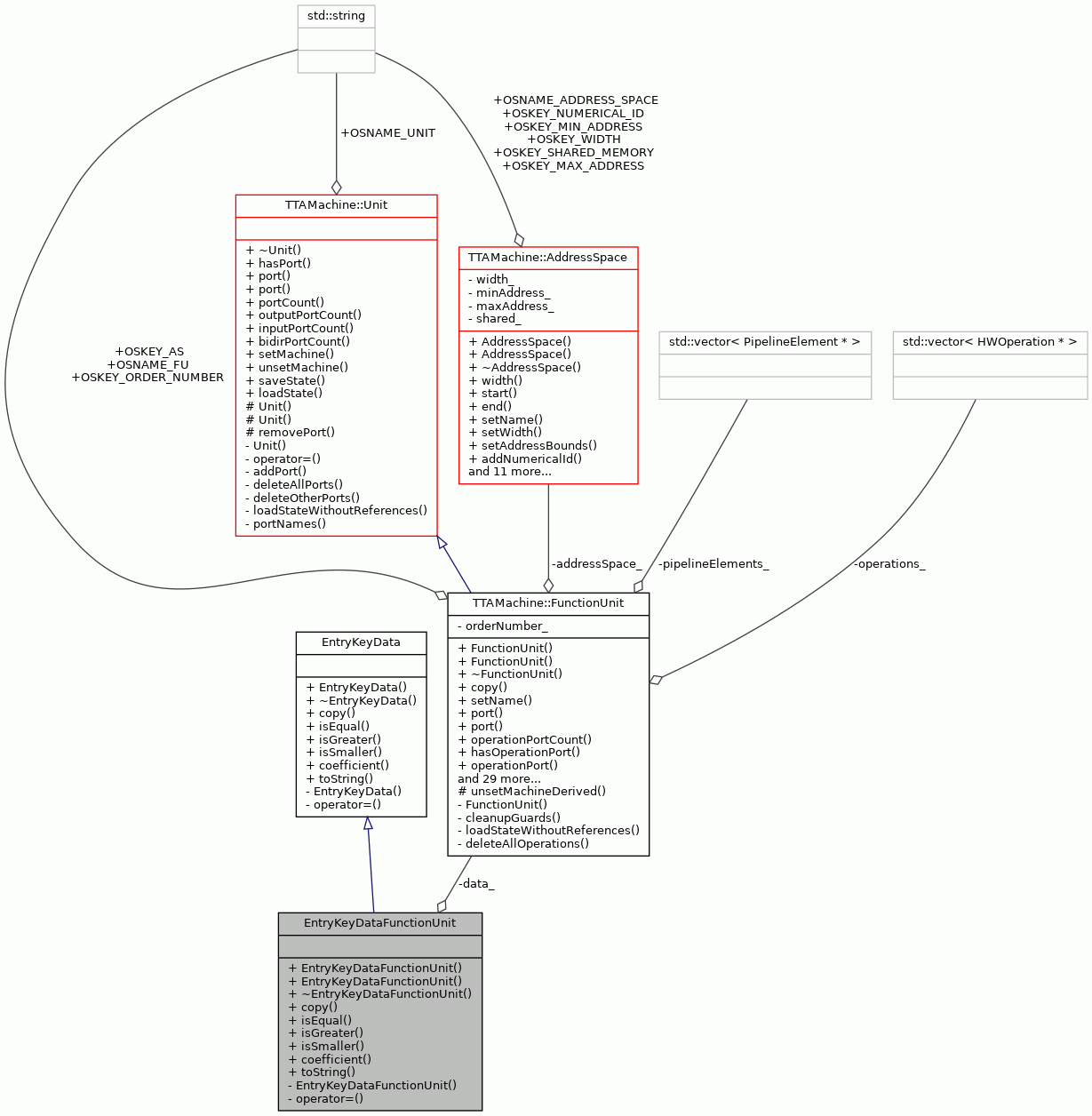

Collaboration diagram for EntryKeyDataFunctionUnit:

Public Member Functions
	EntryKeyDataFunctionUnit ()
	EntryKeyDataFunctionUnit (const TTAMachine::FunctionUnit *fieldData)
virtual	~EntryKeyDataFunctionUnit ()
EntryKeyData *	copy () const
bool	isEqual (const EntryKeyData *fieldData) const
bool	isGreater (const EntryKeyData *fieldData) const
bool	isSmaller (const EntryKeyData *fieldData) const
double	coefficient (const EntryKeyData *data1, const EntryKeyData *data2) const
std::string	toString () const
Public Member Functions inherited from EntryKeyData
	EntryKeyData ()
virtual	~EntryKeyData ()

Private Member Functions
	EntryKeyDataFunctionUnit (const EntryKeyDataFunctionUnit &)
	Copying not allowed. More...
EntryKeyDataFunctionUnit &	operator= (const EntryKeyDataFunctionUnit &)
	Assignment not allowed. More...

Private Attributes
const TTAMachine::FunctionUnit *	data_
	FunctionUnit* data. More...

Detailed Description

Implementation for FunctionUnit type of data.

Definition at line 193 of file EntryKeyData.hh.

Constructor & Destructor Documentation

EntryKeyDataFunctionUnit() [1/3]

EntryKeyDataFunctionUnit::EntryKeyDataFunctionUnit

(

)

Default constructor.

Definition at line 602 of file EntryKeyData.cc.

                                                   : data_() {
}

Referenced by copy().

EntryKeyDataFunctionUnit() [2/3]

EntryKeyDataFunctionUnit::EntryKeyDataFunctionUnit

(

const TTAMachine::FunctionUnit *

fieldData

)

Constructor.

Parameters

fieldData

A set of parameters.

Definition at line 610 of file EntryKeyData.cc.

                                   : data_(fieldData) {
}

~EntryKeyDataFunctionUnit()

EntryKeyDataFunctionUnit::~EntryKeyDataFunctionUnit ( )

virtual

Destructor.

Definition at line 617 of file EntryKeyData.cc.

                                                    {
}

EntryKeyDataFunctionUnit() [3/3]

EntryKeyDataFunctionUnit::EntryKeyDataFunctionUnit ( const EntryKeyDataFunctionUnit &  )

private

Copying not allowed.

Member Function Documentation

coefficient()

double EntryKeyDataFunctionUnit::coefficient ( const EntryKeyData *  data1, const EntryKeyData *  data2  ) const

virtual

Cannot be called for EntryKeyDataFunctionUnit.

FunctionUnits cannot be compared with greater of smaller and no coefficient can be counted.

Parameters

data1	Nothing.
data2	Nothing.

Returns

Nothing

Exceptions

WrongSubclass

Given data type was illegal.

Implements EntryKeyData.

Definition at line 696 of file EntryKeyData.cc.

                                                    {
    throw WrongSubclass(__FILE__, __LINE__,
                        "EntryKeyDataFunctionUnit::coefficient");
    return 0.0; // stupid return statement to keep compiler quiet
}

copy()

EntryKeyData * EntryKeyDataFunctionUnit::copy ( ) const

virtual

Copies the set of parameters.

Client is responsible of deallocating the memory reserved for the returned object.

Returns

A copy of the parameter set.

Implements EntryKeyData.

Definition at line 629 of file EntryKeyData.cc.

                                     {
    return new EntryKeyDataFunctionUnit(data_);
}

References data_, and EntryKeyDataFunctionUnit().

Here is the call graph for this function:

isEqual()

bool EntryKeyDataFunctionUnit::isEqual ( const EntryKeyData *  fieldData ) const

virtual

Checks if two FunctionUnits are equal

Cannot compare to other data types.

Parameters

fieldData

FunctionUnit pointer.

Returns

True if two FunctionUnits are equal.

Exceptions

WrongSubclass

Given data type was illegal.

Implements EntryKeyData.

Definition at line 643 of file EntryKeyData.cc.

                                                                     {
    EntryKeyDataFunctionUnit* data = dynamic_cast<EntryKeyDataFunctionUnit*>(
        const_cast<EntryKeyData*>(fieldData));
    if (data == NULL) {
        throw WrongSubclass(__FILE__, __LINE__,
                            "EntryKeyDataFunctionUnit::isEqual");
    }

    return data_->isArchitectureEqual(data->data_, false);
}

References data_, and TTAMachine::FunctionUnit::isArchitectureEqual().

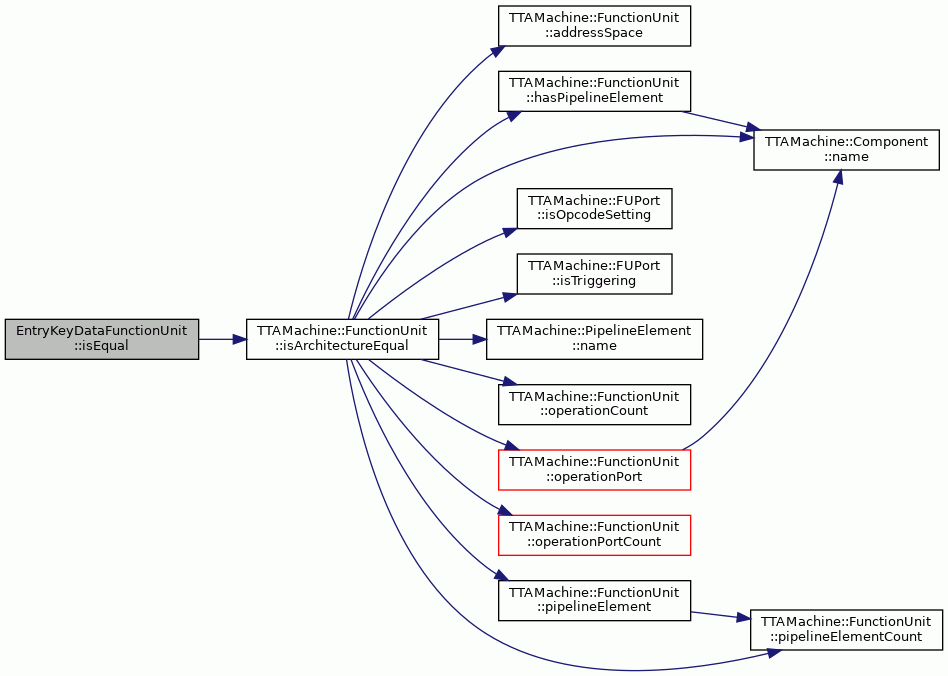

Here is the call graph for this function:

isGreater()

bool EntryKeyDataFunctionUnit::isGreater ( const EntryKeyData *  fieldData ) const

virtual

Checks if another EntryKeyDataFunctionUnit is greater.

Cannot compare to other data types. Cannot say which is greater in case of FunctionUnits and false is returned always.

Parameters

fieldData

FunctionUnit*.

Returns

Always false.

Exceptions

WrongSubclass

Given data type was illegal.

Implements EntryKeyData.

Definition at line 665 of file EntryKeyData.cc.

                                                             {
    return false;
}

isSmaller()

bool EntryKeyDataFunctionUnit::isSmaller ( const EntryKeyData *  fieldData ) const

virtual

Checks if another EntryKeyDataFunctionUnit is smaller.

Cannot compare to other data types. Cannot say which is smaller in case of FunctionUnits and true is returned always.

Parameters

fieldData

FunctionUnit*.

Returns

Always true.

Exceptions

WrongSubclass

Given data type was illegal.

Implements EntryKeyData.

Definition at line 680 of file EntryKeyData.cc.

                                                             {
    return true;
}

operator=()

EntryKeyDataFunctionUnit& EntryKeyDataFunctionUnit::operator= ( const EntryKeyDataFunctionUnit &  )

private

Assignment not allowed.

toString()

std::string EntryKeyDataFunctionUnit::toString ( ) const

virtual

Converts the FunctionUnit name and operations into a string.

Returns

FunctionUnit name and operations as a string.

Implements EntryKeyData.

Definition at line 709 of file EntryKeyData.cc.

                                         {

    string result = "";
    result += data_->name();
    result += ":";
    for (int i = 0; i < data_->operationCount(); i++) {
        result += data_->operation(i)->name();
        if ((i + 1) < data_->operationCount()) {
            result += "_";
        }
    }
    return result;
}

References data_, TTAMachine::HWOperation::name(), TTAMachine::Component::name(), TTAMachine::FunctionUnit::operation(), and TTAMachine::FunctionUnit::operationCount().

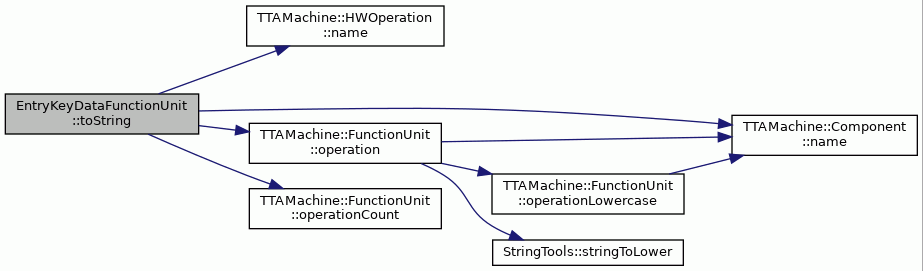

Here is the call graph for this function:

Member Data Documentation

data_

const TTAMachine::FunctionUnit* EntryKeyDataFunctionUnit::data_

private

FunctionUnit* data.

Definition at line 209 of file EntryKeyData.hh.

Referenced by copy(), isEqual(), and toString().

---

The documentation for this class was generated from the following files:

• EntryKeyData.hh
• EntryKeyData.cc
