EntryKeyProperty Class Reference

#include <EntryKeyProperty.hh>

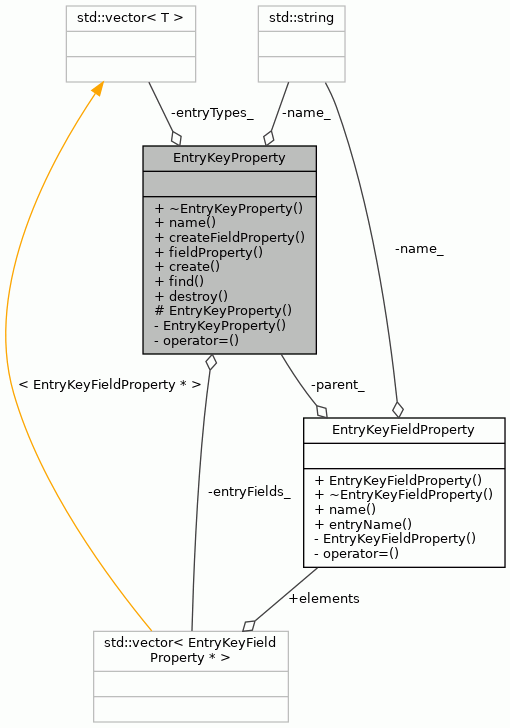

Collaboration diagram for EntryKeyProperty:

Public Member Functions
	~EntryKeyProperty ()
std::string	name () const
EntryKeyFieldProperty *	createFieldProperty (std::string field)
EntryKeyFieldProperty *	fieldProperty (std::string field) const

Static Public Member Functions
static EntryKeyProperty *	create (std::string type)
static EntryKeyProperty *	find (std::string type)
static void	destroy ()

Protected Member Functions
	EntryKeyProperty (std::string propertyName)

Private Types
typedef std::vector< EntryKeyFieldProperty * >	FieldPropertyTable
	Table of field types. More...
typedef std::vector< EntryKeyProperty * >	EntryPropertyTable
	Table of entry types. More...

Private Member Functions
	EntryKeyProperty (const EntryKeyProperty &)
	Copying not allowed. More...
EntryKeyProperty &	operator= (const EntryKeyProperty &)
	Assignment not allowed. More...

Private Attributes
std::string	name_
	Entry type. More...
FieldPropertyTable	entryFields_
	Field types of the entry type. More...

Static Private Attributes
static EntryPropertyTable	entryTypes_
	All known entry types. More...

Detailed Description

Represents a type of an CostDBEntryKey which contains types of its fields, that is, EntryKeyFields.

Using the EntryKeyProperty usually includes finding of the specific EntryKeyProperty with Find(). Then the types of EntryKeyProperty's fields can be accessed using FieldProperty(). Creation of the types is done similarly using first Create() and then CreateFieldProperty().

For each CostDBEntryKey an EntryKeyProperty should be assigned.

Definition at line 57 of file EntryKeyProperty.hh.

Member Typedef Documentation

EntryPropertyTable

typedef std::vector<EntryKeyProperty*> EntryKeyProperty::EntryPropertyTable

private

Table of entry types.

Definition at line 76 of file EntryKeyProperty.hh.

FieldPropertyTable

typedef std::vector<EntryKeyFieldProperty*> EntryKeyProperty::FieldPropertyTable

private

Table of field types.

Definition at line 74 of file EntryKeyProperty.hh.

Constructor & Destructor Documentation

~EntryKeyProperty()

EntryKeyProperty::~EntryKeyProperty

(

)

Destructor.

Deallocates memory reserved for field types.

Definition at line 59 of file EntryKeyProperty.cc.

                                    {

    for (FieldPropertyTable::iterator i = entryFields_.begin();
         i != entryFields_.end(); i++) {

        assert(*i != NULL);
        delete *i;
        *i = NULL;
    }
}

References assert, and entryFields_.

EntryKeyProperty() [1/2]

EntryKeyProperty::EntryKeyProperty ( std::string  propertyName )

protected

Constructor.

Parameters

propertyName

Type of entry.

Definition at line 51 of file EntryKeyProperty.cc.

                                                     : name_(propertyName) {
}

Referenced by create().

EntryKeyProperty() [2/2]

EntryKeyProperty::EntryKeyProperty ( const EntryKeyProperty &  )

private

Copying not allowed.

Member Function Documentation

create()

EntryKeyProperty * EntryKeyProperty::create ( std::string  type )

static

Creates entry type.

If exists, returns the old one.

Parameters

type	Entry type.

Returns

Entry type.

Definition at line 125 of file EntryKeyProperty.cc.

                                    {

    for (EntryPropertyTable::const_iterator i = entryTypes_.begin();
         i != entryTypes_.end(); i++) {

        if ((*i)->name() == type) {
            return (*i);
        }
    }

    EntryKeyProperty* newType = new EntryKeyProperty(type);
    entryTypes_.push_back(newType);
    return newType;
}

References EntryKeyProperty(), and entryTypes_.

Referenced by CostDatabase::CostDatabase().

Here is the call graph for this function:

createFieldProperty()

EntryKeyFieldProperty * EntryKeyProperty::createFieldProperty

(

std::string

field

)

Creates field type.

If exists, returns the old one.

Parameters

field

Type of field.

Returns

Field type.

Definition at line 79 of file EntryKeyProperty.cc.

                                                  {

    for (FieldPropertyTable::const_iterator i = entryFields_.begin();
         i != entryFields_.end(); i++) {

    if ((*i)->name() == field) {
        return (*i);
    }
    }

    EntryKeyFieldProperty* newField = new EntryKeyFieldProperty(field, this);
    entryFields_.push_back(newField);
    return newField;
}

References entryFields_.

Referenced by CostDatabase::CostDatabase().

destroy()

void EntryKeyProperty::destroy ( )

static

Deallocates memory reserved for entry types.

Definition at line 166 of file EntryKeyProperty.cc.

                          {

    for (EntryPropertyTable::iterator i = entryTypes_.begin();
         i != entryTypes_.end(); i++) {

        assert(*i != NULL);
        delete *i;
        *i = NULL;
    }
    entryTypes_.resize(0);
}

References assert, and entryTypes_.

fieldProperty()

EntryKeyFieldProperty * EntryKeyProperty::fieldProperty

(

std::string

field

)

const

Finds field type.

If not found, exits.

Parameters

field

Field type.

Returns

Field type.

Exceptions

KeyNotFound

Requested field was not found.

Definition at line 104 of file EntryKeyProperty.cc.

                                                  {
    for (FieldPropertyTable::const_iterator i = entryFields_.begin();
         i != entryFields_.end(); i++) {

        if ((*i)->name() == field) {
            return (*i);
        }
    }
    throw KeyNotFound(__FILE__, __LINE__, "EntryKeyProperty::fieldProperty");
    return NULL; // stupid return statement to make compiler quiet
}

References entryFields_.

Referenced by CostDatabase::buildBuses(), CostDatabase::buildFunctionUnits(), CostDatabase::buildRegisterFiles(), CostDatabase::buildSockets(), InterpolatingRFEstimator::createSearch(), InterpolatingFUEstimator::createSearch(), InterpolatingFUEstimator::createSearchTypes(), InterpolatingRFEstimator::createSearchTypes(), and CostDBEntryKey::keyFieldOfType().

find()

EntryKeyProperty * EntryKeyProperty::find ( std::string  type )

static

Finds entry type.

If not found, exits.

Parameters

type	Entry type.

Returns

Entry type.

Exceptions

KeyNotFound

Requested field was not found.

Definition at line 150 of file EntryKeyProperty.cc.

                                  {
    for (EntryPropertyTable::const_iterator i = entryTypes_.begin();
         i != entryTypes_.end(); i++) {

        if ((*i)->name() == type) {
            return (*i);
        }
    }
    throw KeyNotFound(__FILE__, __LINE__, "EntryKeyProperty::find");
    return NULL; // stupid return statement to make compiler quiet
}

References entryTypes_.

Referenced by CostDatabase::buildBuses(), CostDatabase::buildFunctionUnits(), CostDatabase::buildRegisterFiles(), CostDatabase::buildSockets(), InterpolatingFUEstimator::initializeEstimator(), and InterpolatingRFEstimator::initializeEstimator().

name()

std::string EntryKeyProperty::name

(

)

const

Referenced by EntryKeyFieldProperty::entryName().

operator=()

EntryKeyProperty& EntryKeyProperty::operator= ( const EntryKeyProperty &  )

private

Assignment not allowed.

Member Data Documentation

entryFields_

FieldPropertyTable EntryKeyProperty::entryFields_

private

Field types of the entry type.

Definition at line 81 of file EntryKeyProperty.hh.

Referenced by createFieldProperty(), fieldProperty(), and ~EntryKeyProperty().

entryTypes_

EntryKeyProperty::EntryPropertyTable EntryKeyProperty::entryTypes_

staticprivate

All known entry types.

Definition at line 84 of file EntryKeyProperty.hh.

Referenced by create(), destroy(), and find().

name_

std::string EntryKeyProperty::name_

private

Entry type.

Definition at line 79 of file EntryKeyProperty.hh.

---

The documentation for this class was generated from the following files:

• EntryKeyProperty.hh
• EntryKeyProperty.cc
