#include <FUResourceConflictDetector.hh>

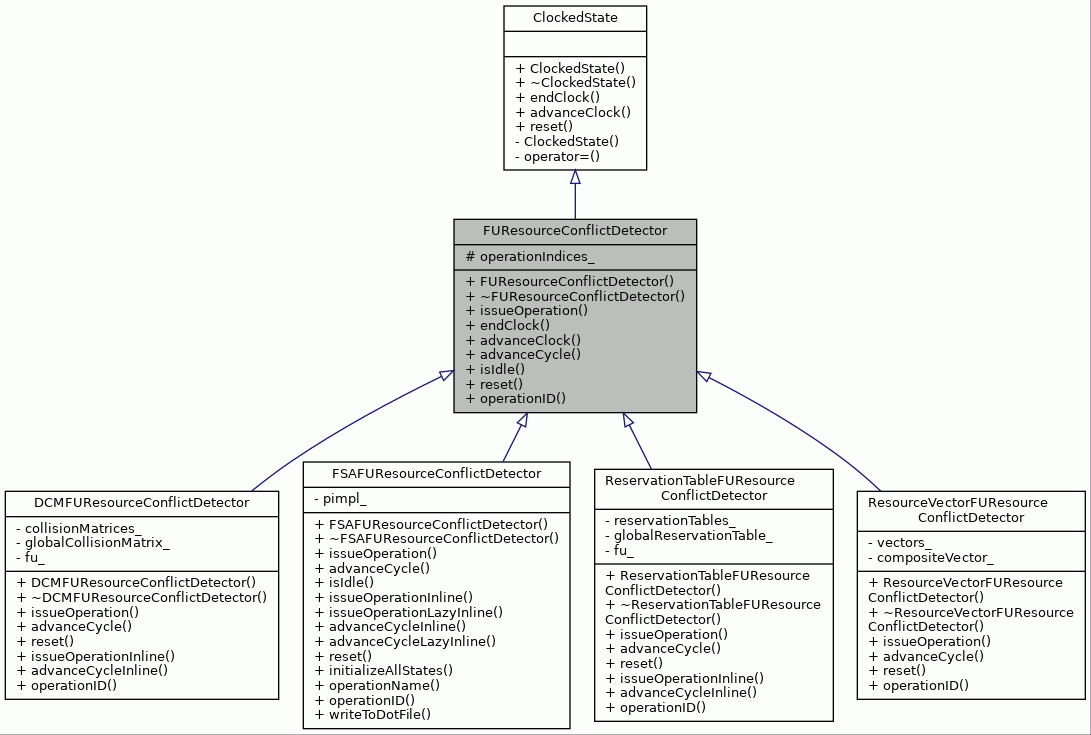

Inheritance diagram for FUResourceConflictDetector:

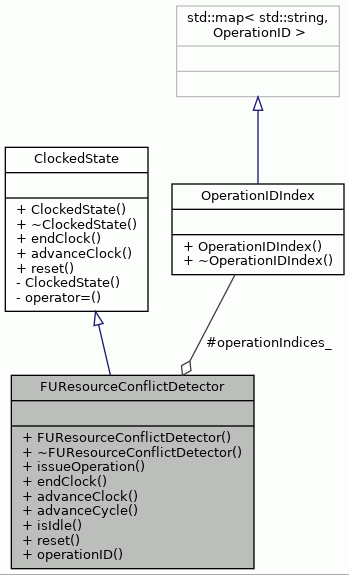

Collaboration diagram for FUResourceConflictDetector:

Public Types
typedef int	OperationID
	Type for identifying operations in the conflict detector interface. More...

Public Member Functions
	FUResourceConflictDetector ()

virtual	~FUResourceConflictDetector ()

virtual bool	issueOperation (OperationID id)

virtual void	endClock ()

virtual void	advanceClock ()

virtual bool	advanceCycle ()

virtual bool	isIdle ()

virtual void	reset ()

virtual OperationID	operationID (const TCEString &operationName) const

Public Member Functions inherited from ClockedState
	ClockedState ()

virtual	~ClockedState ()

Protected Attributes
OperationIDIndex *	operationIndices_
	Map for finding indices for operations quickly. More...

Detailed Description

Interface for classes used for detecting FU resource conflicts.

Definition at line 45 of file FUResourceConflictDetector.hh.

Member Typedef Documentation

◆ OperationID

typedef int FUResourceConflictDetector::OperationID

Type for identifying operations in the conflict detector interface.

Definition at line 49 of file FUResourceConflictDetector.hh.

Constructor & Destructor Documentation

◆ FUResourceConflictDetector()

FUResourceConflictDetector::FUResourceConflictDetector ( )

Constructor.

Definition at line 42 of file FUResourceConflictDetector.cc.

                                                        :
     operationIndices_(new OperationIDIndex()) {
     reset();
 }

References reset().

Here is the call graph for this function:

◆ ~FUResourceConflictDetector()

FUResourceConflictDetector::~FUResourceConflictDetector ( )

virtual

Destructor.

Definition at line 50 of file FUResourceConflictDetector.cc.

                                                         {
     delete operationIndices_;
     operationIndices_ = NULL;
 }

References operationIndices_.

Member Function Documentation

◆ advanceClock()

void FUResourceConflictDetector::advanceClock ( )

virtual

Simulates a cycle advance and reports a conflict by throwing an exception.

Implements ClockedState.

Definition at line 86 of file FUResourceConflictDetector.cc.

                                          {
     advanceCycle();
 }

References advanceCycle().

Referenced by SimulationController::simulateCycle().

Here is the call graph for this function:

◆ advanceCycle()

bool FUResourceConflictDetector::advanceCycle ( )

virtual

Simulates a cycle advance and reports a conflict if detected.

The default implementation always returns true, thus detects no conflicts. This interface is provided for allowing the model to update its state at the point simulation advances to the next cycle.

Returns: False in case a conflict is detected, otherwise true.

Reimplemented in ReservationTableFUResourceConflictDetector, ResourceVectorFUResourceConflictDetector, DCMFUResourceConflictDetector, and FSAFUResourceConflictDetector.

Definition at line 78 of file FUResourceConflictDetector.cc.

                                          {
     return true;
 }

Referenced by advanceClock().

◆ endClock()

void FUResourceConflictDetector::endClock ( )

virtual

Called after advanceClock() has been called to all clocked states.

Implements ClockedState.

Definition at line 95 of file FUResourceConflictDetector.cc.

95 {

96 }

◆ isIdle()

bool FUResourceConflictDetector::isIdle ( )

virtual

Should return true in case the model needs to receive clock advance calls.

Returns: By default always returns false.

Reimplemented in FSAFUResourceConflictDetector.

Definition at line 104 of file FUResourceConflictDetector.cc.

                                    {
     return false;
 }

Referenced by SimulationController::simulateCycle().

◆ issueOperation()

bool FUResourceConflictDetector::issueOperation ( OperationID id )

virtual

Issues an operation and reports a conflict if detected.

The default implementation always returns true, thus detects no conflicts.

Parameters

id	The id of the operation to issue.

Returns: False in case a conflict is detected, otherwise true.

Reimplemented in ReservationTableFUResourceConflictDetector, DCMFUResourceConflictDetector, ResourceVectorFUResourceConflictDetector, and FSAFUResourceConflictDetector.

Definition at line 64 of file FUResourceConflictDetector.cc.

                                                       {
     return true;
 }

Referenced by ConflictDetectingOperationExecutor::startOperation().

◆ operationID()

FUResourceConflictDetector::OperationID FUResourceConflictDetector::operationID ( const TCEString & operationName ) const

virtual

Returns an operation id for the given operation.

Operation IDs are used in the interface for optimizing the access. This method converts OSAL Operations to operation IDs.

Parameters

operation The OSAL Operation to find ID for.

Returns: The operation ID.

Exceptions

KeyNotFound if the operation of given name couldn't be found

Reimplemented in FSAFUResourceConflictDetector, ReservationTableFUResourceConflictDetector, DCMFUResourceConflictDetector, and ResourceVectorFUResourceConflictDetector.

Definition at line 119 of file FUResourceConflictDetector.cc.

 {
     OperationIDIndex::const_iterator i =
         operationIndices_->find(StringTools::stringToLower(operationName));
     if (i == operationIndices_->end())
         throw KeyNotFound(
             __FILE__, __LINE__, __func__, "Operation not found.");
     return (*i).second;
 }
