GUITextGenerator Class Reference

#include <GUITextGenerator.hh>

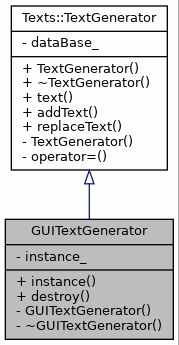

Inheritance diagram for GUITextGenerator:

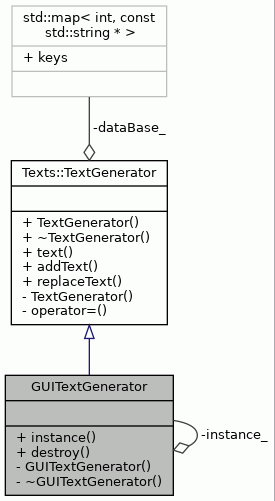

Collaboration diagram for GUITextGenerator:

Public Types
enum	{   TXT_BUTTON_ADD = Texts::LAST__, TXT_BUTTON_ADD_DIALOG, TXT_BUTTON_CANCEL, TXT_BUTTON_DELETE,   TXT_BUTTON_EDIT, TXT_BUTTON_EDIT_DIALOG, TXT_BUTTON_OK, TXT_BUTTON_HELP }
	Ids for the generated texts. More...

Static Public Member Functions
static GUITextGenerator *	instance ()
static void	destroy ()

Private Member Functions
	GUITextGenerator ()
	~GUITextGenerator ()

Static Private Attributes
static GUITextGenerator *	instance_ = NULL

Additional Inherited Members
Public Member Functions inherited from Texts::TextGenerator
	TextGenerator ()
virtual	~TextGenerator ()
virtual boost::format	text (int textId)
virtual void	addText (int textId, const std::string &templateString)
virtual void	replaceText (int textId, const std::string &newString)

Detailed Description

Provides common texts for tce graphical user interfaces.

The class is implemented using the 'singleton' design pattern. Only one instance of this class is created, and the instance can be accessed using the instance() method.

Definition at line 46 of file GUITextGenerator.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

Ids for the generated texts.

Enumerator
TXT_BUTTON_ADD	Label for an add button.
TXT_BUTTON_ADD_DIALOG	Label for add button (with trailing ...).
TXT_BUTTON_CANCEL	Label for cancel button.
TXT_BUTTON_DELETE	Label for delete button.
TXT_BUTTON_EDIT	Label for edit button.
TXT_BUTTON_EDIT_DIALOG	Label for edit button (with trailing ...).
TXT_BUTTON_OK	Label for OK button.
TXT_BUTTON_HELP	Label for help button.

Definition at line 52 of file GUITextGenerator.hh.

         {
        TXT_BUTTON_ADD = Texts::LAST__, ///< Label for an add button.
        TXT_BUTTON_ADD_DIALOG,  ///< Label for add button (with trailing ...).
        TXT_BUTTON_CANCEL,      ///< Label for cancel button.
        TXT_BUTTON_DELETE,      ///< Label for delete button.
        TXT_BUTTON_EDIT,        ///< Label for edit button.
        TXT_BUTTON_EDIT_DIALOG, ///< Label for edit button (with trailing ...).
        TXT_BUTTON_OK,          ///< Label for OK button.
        TXT_BUTTON_HELP         ///< Label for help button.
    };

Constructor & Destructor Documentation

GUITextGenerator()

GUITextGenerator::GUITextGenerator ( )

private

The Constructor.

Initializes string templates to the text generator.

Definition at line 42 of file GUITextGenerator.cc.

                                   {
    addText(TXT_BUTTON_ADD, "Add");
    addText(TXT_BUTTON_ADD_DIALOG, "Add...");
    addText(TXT_BUTTON_CANCEL, "&Cancel");
    addText(TXT_BUTTON_DELETE, "Delete");
    addText(TXT_BUTTON_EDIT, "Edit");
    addText(TXT_BUTTON_EDIT_DIALOG, "Edit...");
    addText(TXT_BUTTON_HELP, "&Help");
    addText(TXT_BUTTON_OK, "&OK");
}

References Texts::TextGenerator::addText(), TXT_BUTTON_ADD, TXT_BUTTON_ADD_DIALOG, TXT_BUTTON_CANCEL, TXT_BUTTON_DELETE, TXT_BUTTON_EDIT, TXT_BUTTON_EDIT_DIALOG, TXT_BUTTON_HELP, and TXT_BUTTON_OK.

Referenced by instance().

Here is the call graph for this function:

~GUITextGenerator()

GUITextGenerator::~GUITextGenerator ( )

private

The Destructor.

Definition at line 57 of file GUITextGenerator.cc.

                                    {
}

Member Function Documentation

destroy()

void GUITextGenerator::destroy ( )

static

Deletes the instance of this command if one exists.

Definition at line 79 of file GUITextGenerator.cc.

                          {
    if (instance_ != NULL) {
        delete instance_;
        instance_ = NULL;
    }
}

References instance_.

instance()

GUITextGenerator * GUITextGenerator::instance ( )

static

Returns the only instance of this class.

Returns

The singleton instance of GUITextGenerator class.

Definition at line 67 of file GUITextGenerator.cc.

                           {
    if (instance_ == NULL) {
        instance_ = new GUITextGenerator();
    }
    return instance_;
}

References GUITextGenerator(), and instance_.

Referenced by GCUDialog::setLabels(), AboutDialog::setTexts(), OSEdAboutDialog::setTexts(), OSEdOptionsDialog::setTexts(), AddModuleDialog::setTexts(), IUPortDialog::setTexts(), RFPortDialog::setTexts(), OperationDialog::setTexts(), BridgeDialog::setTexts(), ResultDialog::setTexts(), ImmediateSlotDialog::setTexts(), FUPortDialog::setTexts(), OTAFormatListDialog::setTexts(), RFGuardDialog::setTexts(), SRPortDialog::setTexts(), TemplateSlotDialog::setTexts(), FUGuardDialog::setTexts(), AddressSpacesDialog::setTexts(), TemplateListDialog::setTexts(), RFDialog::setTexts(), SocketDialog::setTexts(), OutputOperandDialog::setTexts(), BusDialog::setTexts(), IUDialog::setTexts(), InputOperandDialog::setTexts(), SimulateDialog::setTexts(), FUDialog::setTexts(), AddressSpaceDialog::setTexts(), and OperationPropertyDialog::setTexts().

Here is the call graph for this function:

Member Data Documentation

instance_

GUITextGenerator * GUITextGenerator::instance_ = NULL

staticprivate

Definition at line 66 of file GUITextGenerator.hh.

Referenced by destroy(), and instance().

---

The documentation for this class was generated from the following files:

• GUITextGenerator.hh
• GUITextGenerator.cc
