GlobalVsStackAA Class Reference

#include <GlobalVsStackAA.hh>

Inheritance diagram for GlobalVsStackAA:

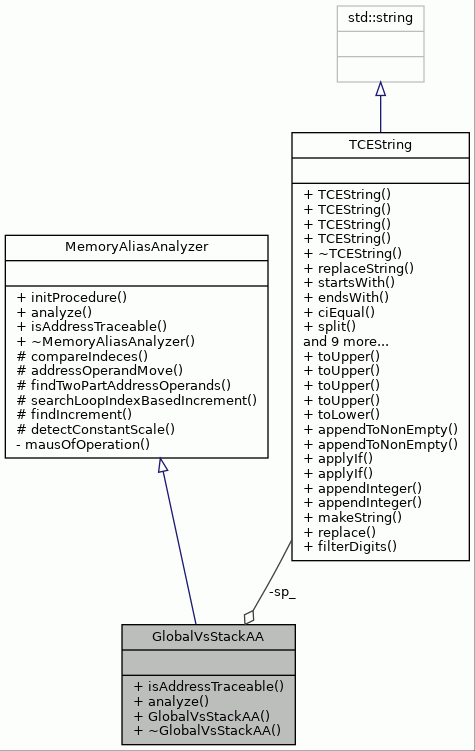

Collaboration diagram for GlobalVsStackAA:

Public Member Functions
virtual bool	isAddressTraceable (DataDependenceGraph &ddg, const ProgramOperation &pop)
virtual AliasingResult	analyze (DataDependenceGraph &ddg, const ProgramOperation &pop1, const ProgramOperation &pop2, MoveNodeUse::BBRelation bbInfo)
	GlobalVsStackAA (const TCEString &sp)
virtual	~GlobalVsStackAA ()
Public Member Functions inherited from MemoryAliasAnalyzer
virtual void	initProcedure (TTAProgram::Procedure &)
virtual	~MemoryAliasAnalyzer ()

Private Attributes
TCEString	sp_

Additional Inherited Members
Public Types inherited from MemoryAliasAnalyzer
enum	AliasingResult { ALIAS_FALSE = 0 , ALIAS_TRUE = 1 , ALIAS_UNKNOWN = 2 , ALIAS_PARTIAL = 3 }
Protected Member Functions inherited from MemoryAliasAnalyzer
AliasingResult	compareIndeces (int index1, int index2, const ProgramOperation &pop1, const ProgramOperation &pop2)
Static Protected Member Functions inherited from MemoryAliasAnalyzer
static const MoveNode *	addressOperandMove (const ProgramOperation &po)
static TwoPartAddressOperandDetection	findTwoPartAddressOperands (const ProgramOperation &po)
static const MoveNode *	searchLoopIndexBasedIncrement (DataDependenceGraph &ddg, const MoveNode &mn, long &loopIncrement)
static const MoveNode *	findIncrement (const MoveNode &mn, long &increment)
static const MoveNode *	detectConstantScale (const MoveNode &mn, int &shiftAmount)

Detailed Description

Definition at line 39 of file GlobalVsStackAA.hh.

Constructor & Destructor Documentation

GlobalVsStackAA()

GlobalVsStackAA::GlobalVsStackAA

(

const TCEString &

sp

)

Definition at line 39 of file GlobalVsStackAA.cc.

                                                    : sp_(sp) {
}

~GlobalVsStackAA()

GlobalVsStackAA::~GlobalVsStackAA ( )

virtual

Definition at line 37 of file GlobalVsStackAA.cc.

{}

Member Function Documentation

analyze()

MemoryAliasAnalyzer::AliasingResult GlobalVsStackAA::analyze ( DataDependenceGraph &  ddg, const ProgramOperation &  pop1, const ProgramOperation &  pop2, MoveNodeUse::BBRelation  bbInfo  )

virtual

Implements MemoryAliasAnalyzer.

Definition at line 17 of file GlobalVsStackAA.cc.

                           {

    long tmp;
    long tmp2;
    long tmp3;
    long tmp4;
    if ((StackAliasAnalyzer::getStackOffset(ddg, pop2, tmp2, tmp4, sp_) &&
         ConstantAliasAnalyzer::getConstantAddress(ddg, pop1, tmp, tmp3)) ||
        (StackAliasAnalyzer::getStackOffset(ddg, pop1, tmp2, tmp4, sp_) &&
         ConstantAliasAnalyzer::getConstantAddress(ddg, pop2, tmp, tmp3))) {
        return ALIAS_FALSE;
    }
    return ALIAS_UNKNOWN;

}

References MemoryAliasAnalyzer::ALIAS_FALSE, MemoryAliasAnalyzer::ALIAS_UNKNOWN, ConstantAliasAnalyzer::getConstantAddress(), StackAliasAnalyzer::getStackOffset(), and sp_.

Here is the call graph for this function:

isAddressTraceable()

bool GlobalVsStackAA::isAddressTraceable ( DataDependenceGraph &  ddg, const ProgramOperation &  pop  )

virtual

Checks whether the analyzer knows anything about the address.

ie. if it can return true or false to some query concerning this address.

Returns

true if analyzer can know something about the address.

Implements MemoryAliasAnalyzer.

Definition at line 7 of file GlobalVsStackAA.cc.

                                                          {
    long tmp;
    long tmp2;
    return ConstantAliasAnalyzer::getConstantAddress(ddg, po, tmp, tmp2) ||
        StackAliasAnalyzer::getStackOffset(ddg, po, tmp, tmp2, sp_);
}

References ConstantAliasAnalyzer::getConstantAddress(), StackAliasAnalyzer::getStackOffset(), and sp_.

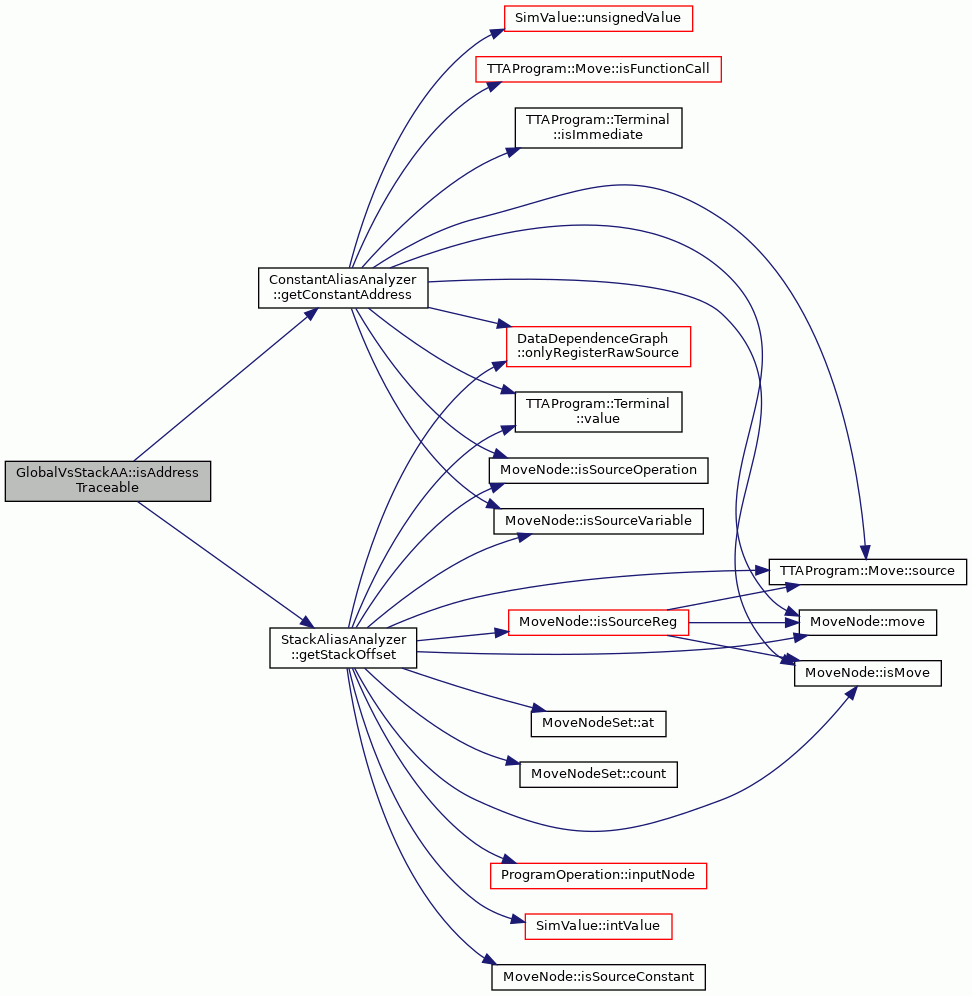

Here is the call graph for this function:

Member Data Documentation

sp_

TCEString GlobalVsStackAA::sp_

private

Definition at line 50 of file GlobalVsStackAA.hh.

Referenced by analyze(), and isAddressTraceable().

---

The documentation for this class was generated from the following files:

• GlobalVsStackAA.hh
• GlobalVsStackAA.cc
