HDB::CostFunctionPlugin Class Reference

#include <CostFunctionPlugin.hh>

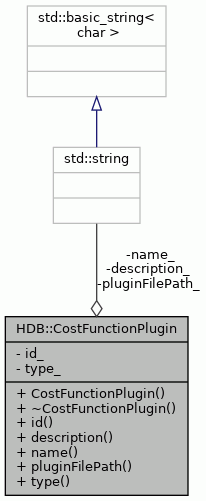

Collaboration diagram for HDB::CostFunctionPlugin:

Public Types
enum	CostFunctionPluginType { COST_FU, COST_RF, COST_DECOMP, COST_ICDEC }
	all supported cost function plugin types More...

Public Member Functions
	CostFunctionPlugin (int id, const std::string &description, const std::string &name, const std::string &pluginFilePath, CostFunctionPluginType type)
virtual	~CostFunctionPlugin ()
int	id () const
std::string	description () const
std::string	name () const
std::string	pluginFilePath () const
CostFunctionPluginType	type () const

Private Attributes
int	id_
	id of the plugin in HDB More...
std::string	description_
	description of the plugin HDB More...
std::string	name_
	(the class) name of the plugin More...
std::string	pluginFilePath_
	the path in the file system of the plugin More...
CostFunctionPluginType	type_
	the type of the plugin More...

Detailed Description

Class that contains data stored in HDB of a cost function plugin.

Definition at line 43 of file CostFunctionPlugin.hh.

Member Enumeration Documentation

CostFunctionPluginType

enum HDB::CostFunctionPlugin::CostFunctionPluginType

all supported cost function plugin types

Enumerator
COST_FU	function unit cost estimator
COST_RF	register file cost estimator
COST_DECOMP	decompressor cost estimator
COST_ICDEC	interconnection network & decoder cost estimator

Definition at line 46 of file CostFunctionPlugin.hh.

                                {
        COST_FU,     ///< function unit cost estimator
        COST_RF,     ///< register file cost estimator
        COST_DECOMP, ///< decompressor cost estimator
        COST_ICDEC   ///< interconnection network & decoder cost estimator
    };

Constructor & Destructor Documentation

CostFunctionPlugin()

HDB::CostFunctionPlugin::CostFunctionPlugin	(	int	id,
		const std::string &	description,
		const std::string &	name,
		const std::string &	pluginFilePath,
		CostFunctionPluginType	type
	)

Constructor.

Parameters

pluginFilePath

Path of the plugin.

Definition at line 42 of file CostFunctionPlugin.cc.

                                 :
    id_(id), description_(description), name_(name),
    pluginFilePath_(pluginFilePath), type_(type) {
}

~CostFunctionPlugin()

HDB::CostFunctionPlugin::~CostFunctionPlugin ( )

virtual

Destructor.

Definition at line 55 of file CostFunctionPlugin.cc.

                                        {
}

Member Function Documentation

description()

std::string HDB::CostFunctionPlugin::description

(

)

const

Returns the description of the plugin.

Returns

Description of the plugin.

Definition at line 74 of file CostFunctionPlugin.cc.

                                      {
    return description_;
}

References description_.

Referenced by HDB::HDBManager::addCostFunctionPlugin(), CostFunctionPluginDialog::CostFunctionPluginDialog(), HDBToHtml::costFunctionPluginToHtml(), and HDB::HDBManager::modifyCostFunctionPlugin().

id()

int HDB::CostFunctionPlugin::id

(

)

const

Returns the id of the plugin.

Returns

Id of the plugin.

Definition at line 64 of file CostFunctionPlugin.cc.

                             {
    return id_;
}

References id_.

Referenced by CostDatabase::buildFunctionUnits(), CostDatabase::buildRegisterFiles(), HDBToHtml::fuEntryToHtml(), and HDBToHtml::rfEntryToHtml().

name()

std::string HDB::CostFunctionPlugin::name

(

)

const

Returns the (class) name of the plugin.

Returns

Name of the plugin.

Definition at line 84 of file CostFunctionPlugin.cc.

                               {
    return name_;
}

References name_.

Referenced by HDB::HDBManager::addCostFunctionPlugin(), CostDatabase::buildBuses(), CostDatabase::buildFunctionUnits(), CostDatabase::buildRegisterFiles(), CostDatabase::buildSockets(), CostFunctionPluginDialog::CostFunctionPluginDialog(), HDBToHtml::costFunctionPluginToHtml(), SetCostFunctionPluginCmd::Do(), CostEstimator::Estimator::fuCostFunctionPluginOfImplementation(), HDBToHtml::fuEntryToHtml(), HDB::HDBManager::modifyCostFunctionPlugin(), CostEstimator::Estimator::rfCostFunctionPluginOfImplementation(), HDBToHtml::rfEntryToHtml(), and HDBBrowserWindow::update().

pluginFilePath()

std::string HDB::CostFunctionPlugin::pluginFilePath

(

)

const

Returns the path of the plugin file.

Returns

Path of the plugin.

Definition at line 94 of file CostFunctionPlugin.cc.

                                         {
    return pluginFilePath_;
}

References pluginFilePath_.

Referenced by HDB::HDBManager::addCostFunctionPlugin(), CostFunctionPluginDialog::CostFunctionPluginDialog(), HDBToHtml::costFunctionPluginToHtml(), CostEstimator::Estimator::fuCostFunctionPluginOfImplementation(), HDB::HDBManager::modifyCostFunctionPlugin(), and CostEstimator::Estimator::rfCostFunctionPluginOfImplementation().

type()

CostFunctionPlugin::CostFunctionPluginType HDB::CostFunctionPlugin::type

(

)

const

Returns the type of the plugin.

Returns

Description of the plugin.

Definition at line 104 of file CostFunctionPlugin.cc.

                               {
    return type_;
}

References type_.

Referenced by HDB::HDBManager::addCostFunctionPlugin(), CostFunctionPluginDialog::CostFunctionPluginDialog(), HDBToHtml::costFunctionPluginToHtml(), and HDB::HDBManager::modifyCostFunctionPlugin().

Member Data Documentation

description_

std::string HDB::CostFunctionPlugin::description_

private

description of the plugin HDB

Definition at line 71 of file CostFunctionPlugin.hh.

Referenced by description().

id_

int HDB::CostFunctionPlugin::id_

private

id of the plugin in HDB

Definition at line 69 of file CostFunctionPlugin.hh.

Referenced by id().

name_

std::string HDB::CostFunctionPlugin::name_

private

(the class) name of the plugin

Definition at line 73 of file CostFunctionPlugin.hh.

Referenced by name().

pluginFilePath_

std::string HDB::CostFunctionPlugin::pluginFilePath_

private

the path in the file system of the plugin

Definition at line 75 of file CostFunctionPlugin.hh.

Referenced by pluginFilePath().

type_

CostFunctionPluginType HDB::CostFunctionPlugin::type_

private

the type of the plugin

Definition at line 77 of file CostFunctionPlugin.hh.

Referenced by type().

---

The documentation for this class was generated from the following files:

• CostFunctionPlugin.hh
• CostFunctionPlugin.cc
