HDLGenerator::Register Class Reference

#include <HDLRegister.hh>

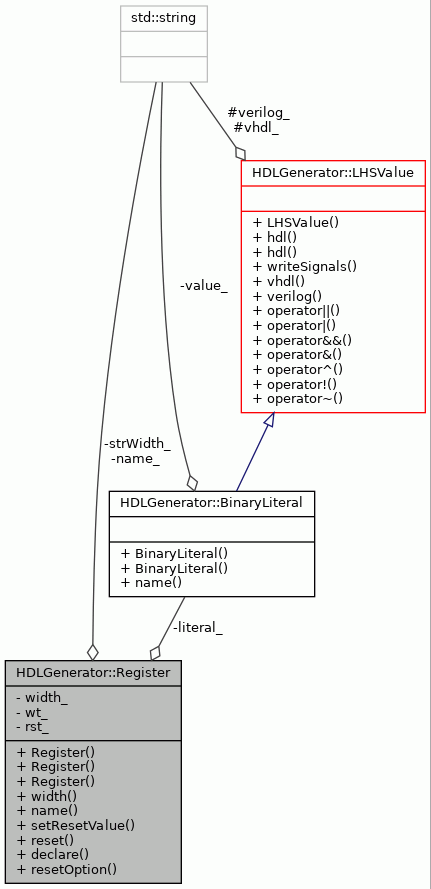

Collaboration diagram for HDLGenerator::Register:

Public Member Functions
	Register (std::string name, int width, WireType wt, ResetOption rst=ResetOption::Mandatory)
	Register (std::string name, int width=1, ResetOption rst=ResetOption::Mandatory)
	Register (std::string name, std::string width, ResetOption rst=ResetOption::Mandatory)
Width	width () noexcept
std::string	name ()
Register &	setResetValue (BinaryLiteral &&rhs)
void	reset (std::ostream &stream, Language lang, int ident)
void	declare (std::ostream &stream, Language lang, int ident)
ResetOption	resetOption () const noexcept

Private Attributes
std::string	name_
std::string	strWidth_
int	width_
WireType	wt_
ResetOption	rst_
BinaryLiteral	literal_

Detailed Description

Sync signal/sync reg.

Definition at line 51 of file HDLRegister.hh.

Constructor & Destructor Documentation

Register() [1/3]

HDLGenerator::Register::Register ( std::string  name, int  width, WireType  wt, ResetOption  rst = ResetOption::Mandatory  )

inline

Definition at line 53 of file HDLRegister.hh.

            : name_(name), strWidth_(), width_(width), wt_(wt),
              rst_(rst), literal_("") {}

Register() [2/3]

HDLGenerator::Register::Register ( std::string  name, int  width = 1, ResetOption  rst = ResetOption::Mandatory  )

inline

Definition at line 57 of file HDLRegister.hh.

            : name_(name), strWidth_(), width_(width),
              wt_(WireType::Auto), rst_(rst), literal_("") {}

References HDLGenerator::Auto.

Register() [3/3]

HDLGenerator::Register::Register ( std::string  name, std::string  width, ResetOption  rst = ResetOption::Mandatory  )

inline

Definition at line 61 of file HDLRegister.hh.

            : name_(name), strWidth_(width), width_(-1),
              wt_(WireType::Auto), rst_(rst), literal_("") {}

References HDLGenerator::Auto.

Member Function Documentation

declare()

void HDLGenerator::Register::declare ( std::ostream &  stream, Language  lang, int  ident  )

inline

Definition at line 100 of file HDLRegister.hh.

                                                                   {
            if (lang == Language::VHDL) {
                stream << StringTools::indent(ident) << "signal "
                       << name() << " : ";
                if (width_ < 0 || width_ > 1 || wt_ == WireType::Vector) {
                    if (strWidth_.empty()) {
                        stream << "std_logic_vector("
                               << std::to_string(width_ - 1)
                               << " downto 0);\n";
                    } else {
                        stream << "std_logic_vector(" << strWidth_
                               << "-1 downto 0);\n";
                    }
                } else {
                    stream << "std_logic;\n";
                }
            } else if (lang == Language::Verilog) {
                stream << StringTools::indent(ident) << "reg ";
                if (width_ < 0 || width_ > 1) {
                    if (strWidth_.empty()) {
                        stream << "[" << std::to_string(width_ - 1) << ":0] ";
                    } else {
                        stream << "[" << strWidth_ << "-1:0] ";
                    }
                }
                stream << name() << ";\n";
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References StringTools::indent(), name(), strWidth_, HDLGenerator::Vector, HDLGenerator::Verilog, HDLGenerator::VHDL, width_, and wt_.

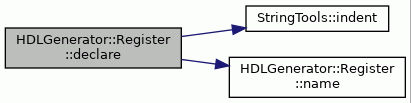

Here is the call graph for this function:

name()

std::string HDLGenerator::Register::name ( )

inline

Definition at line 68 of file HDLRegister.hh.

{ return name_; }

References name_.

Referenced by declare(), and reset().

reset()

void HDLGenerator::Register::reset ( std::ostream &  stream, Language  lang, int  ident  )

inline

Definition at line 75 of file HDLRegister.hh.

                                                                 {
            stream << StringTools::indent(ident) << name() << " <= ";
            if (lang == Language::VHDL) {
                if (literal_.name().empty()) {
                    if (width_ == 1 && wt_ != WireType::Vector) {
                        stream << "'0';\n";
                    } else {
                        stream << "(others => '0');\n";
                    }
                } else {
                    literal_.hdl(stream, lang);
                    stream << ";\n";
                }
            } else if (lang == Language::Verilog) {
                if (literal_.name().empty()) {
                    stream << "0;\n";
                } else {
                    literal_.hdl(stream, lang);
                    stream << ";\n";
                }
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References HDLGenerator::LHSValue::hdl(), StringTools::indent(), literal_, name(), HDLGenerator::BinaryLiteral::name(), HDLGenerator::Vector, HDLGenerator::Verilog, HDLGenerator::VHDL, width_, and wt_.

Referenced by HDLGenerator::Synchronous::hdl(), and HDLGenerator::Synchronous::vhdlReset().

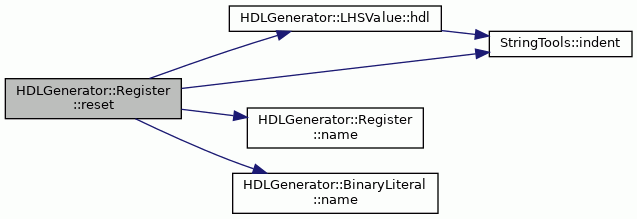

Here is the call graph for this function:

resetOption()

ResetOption HDLGenerator::Register::resetOption ( ) const

inlinenoexcept

Definition at line 131 of file HDLRegister.hh.

{ return rst_; }

References rst_.

Referenced by HDLGenerator::Synchronous::hdl(), and HDLGenerator::Synchronous::vhdlReset().

setResetValue()

Register& HDLGenerator::Register::setResetValue ( BinaryLiteral &&  rhs )

inline

Definition at line 70 of file HDLRegister.hh.

                                                     {
            literal_ = rhs;
            return *this;
        }

References literal_.

width()

Width HDLGenerator::Register::width ( )

inlinenoexcept

Definition at line 66 of file HDLRegister.hh.

{ return {strWidth_, width_}; }

References strWidth_, and width_.

Member Data Documentation

literal_

BinaryLiteral HDLGenerator::Register::literal_

private

Definition at line 139 of file HDLRegister.hh.

Referenced by reset(), and setResetValue().

name_

std::string HDLGenerator::Register::name_

private

Definition at line 134 of file HDLRegister.hh.

Referenced by name().

rst_

ResetOption HDLGenerator::Register::rst_

private

Definition at line 138 of file HDLRegister.hh.

Referenced by resetOption().

strWidth_

std::string HDLGenerator::Register::strWidth_

private

Definition at line 135 of file HDLRegister.hh.

Referenced by declare(), and width().

width_

int HDLGenerator::Register::width_

private

Definition at line 136 of file HDLRegister.hh.

Referenced by declare(), reset(), and width().

wt_

WireType HDLGenerator::Register::wt_

private

Definition at line 137 of file HDLRegister.hh.

Referenced by declare(), and reset().

---

The documentation for this class was generated from the following file:

• HDLRegister.hh
