#include <HexImageWriter.hh>

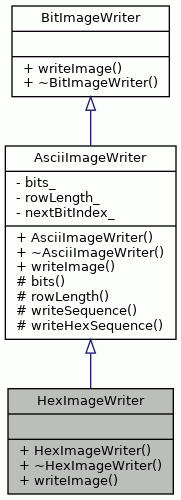

Inheritance diagram for HexImageWriter:

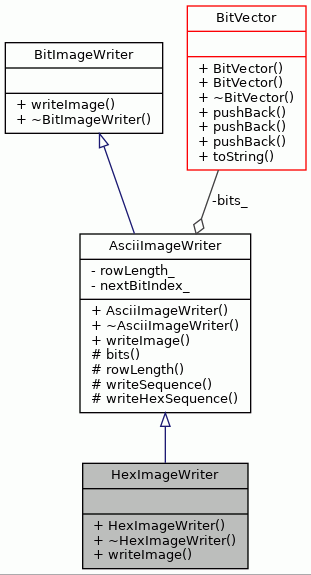

Collaboration diagram for HexImageWriter:

Public Member Functions
	HexImageWriter (const BitVector &bits, int rowLength)

virtual	~HexImageWriter ()

virtual void	writeImage (std::ostream &stream) const

Public Member Functions inherited from AsciiImageWriter
	AsciiImageWriter (const BitVector &bits, int rowLength)

virtual	~AsciiImageWriter ()

Public Member Functions inherited from BitImageWriter
virtual	~BitImageWriter ()

Additional Inherited Members
Protected Member Functions inherited from AsciiImageWriter
const BitVector &	bits () const

int	rowLength () const

void	writeSequence (std::ostream &stream, int length, bool padEnd=false) const

void	writeHexSequence (std::ostream &stream, int length, bool padEnd=false) const

Detailed Description

Writes the bit image in HEX format. It's used for both ASIC and FPGA memory models

Definition at line 46 of file HexImageWriter.hh.

Constructor & Destructor Documentation

◆ HexImageWriter()

HexImageWriter::HexImageWriter	(	const BitVector &	bits,
		int	rowLength
	)

The constructor.

Parameters

bits	The bits to write.
rowLength	Length of the rows to write.

Definition at line 51 of file HexImageWriter.cc.

                                                                    :
     AsciiImageWriter(bits, rowLength) {
 }

◆ ~HexImageWriter()

HexImageWriter::~HexImageWriter ( )

virtual

The destructor.

Definition at line 58 of file HexImageWriter.cc.

58 {

59 }

Member Function Documentation

◆ writeImage()

void HexImageWriter::writeImage ( std::ostream & stream ) const

virtual

Writes the bit image to the given stream.

Parameters

stream The stream to write.

Reimplemented from AsciiImageWriter.

Definition at line 68 of file HexImageWriter.cc.

                                                    {
     const int lineCount =  static_cast<int>(
         ceil(static_cast<double>(bits().size()) / rowLength()));

     const int nibbleCount = static_cast<int>(
         ceil(static_cast<double>(rowLength() / 4)));

     if (lineCount == 0) {
         stream << std::hex << std::setfill('0')
                << std::setw(nibbleCount) << 0 << std::endl;

     } else {
         bool padEndings = false;

         for (int i = 0; i < lineCount; ++i) {
             writeHexSequence(stream, rowLength(), padEndings);
             stream << endl;
         }
     }
 }

References AsciiImageWriter::bits(), AsciiImageWriter::rowLength(), and AsciiImageWriter::writeHexSequence().

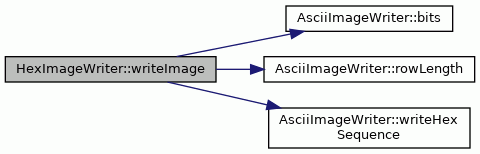

Here is the call graph for this function:

The documentation for this class was generated from the following files:
