#include <ImplementationSimulator.hh>

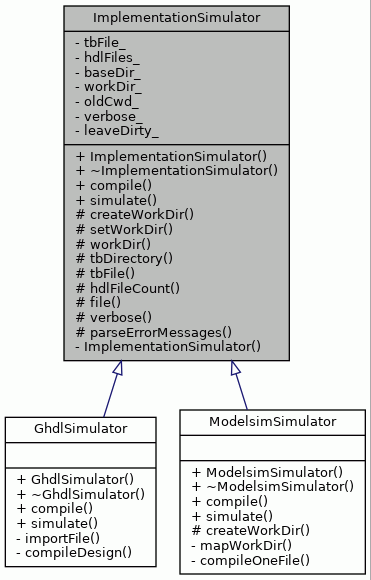

Inheritance diagram for ImplementationSimulator:

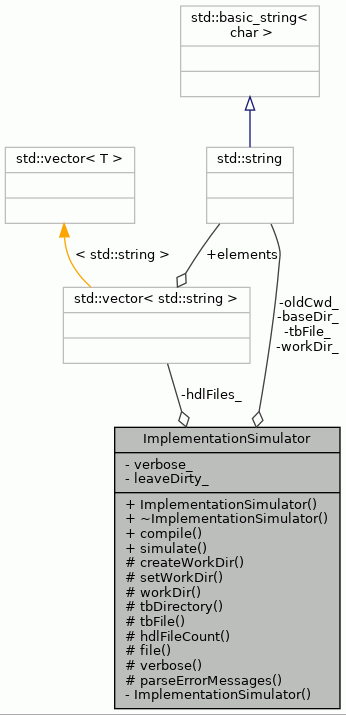

Collaboration diagram for ImplementationSimulator:

Public Member Functions
	ImplementationSimulator (std::string tbFile, std::vector< std::string > hdlFiles, bool verbose, bool leaveDirty)

virtual	~ImplementationSimulator ()

virtual bool	compile (std::vector< std::string > &errors)=0

virtual bool	simulate (std::vector< std::string > &errors)=0

Protected Member Functions
virtual std::string	createWorkDir ()

void	setWorkDir (std::string dir)

std::string	workDir () const

std::string	tbDirectory () const

std::string	tbFile () const

int	hdlFileCount () const

std::string	file (int index) const

bool	verbose ()

void	parseErrorMessages (std::vector< std::string > &inputMsg, std::vector< std::string > &errors)

Private Member Functions
	ImplementationSimulator ()

Private Attributes
std::string	tbFile_
	Testbench file name with path. More...

std::vector< std::string >	hdlFiles_
	Vector containing other vhdl files needed to compile testbench. More...

std::string	baseDir_
	Directory path of testbench file. More...

std::string	workDir_
	Working directory where testbench is compiled and simulated. More...

std::string	oldCwd_
	Old current working directory (before changing to workDir_) More...

bool	verbose_
	Enable verbose output. More...

bool	leaveDirty_
	Don't delete work dir. More...

Detailed Description

Definition at line 39 of file ImplementationSimulator.hh.

Constructor & Destructor Documentation

◆ ImplementationSimulator() [1/2]

ImplementationSimulator::ImplementationSimulator	(	std::string	tbFile,
		std::vector< std::string >	hdlFiles,
		bool	verbose,
		bool	leaveDirty
	)

Definition at line 42 of file ImplementationSimulator.cc.

                     :
     tbFile_(tbFile),
     hdlFiles_(hdlFiles), baseDir_(""), workDir_(""), oldCwd_(""),
     verbose_(verbose), leaveDirty_(leaveDirty) {

     baseDir_ = FileSystem::directoryOfPath(tbFile);
     oldCwd_ = FileSystem::currentWorkingDir();
 }

References baseDir_, FileSystem::currentWorkingDir(), FileSystem::directoryOfPath(), oldCwd_, and tbFile().

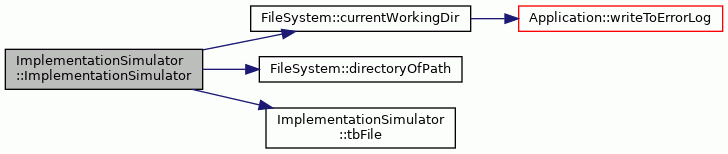

Here is the call graph for this function:

◆ ~ImplementationSimulator()

ImplementationSimulator::~ImplementationSimulator ( )

virtual

Definition at line 55 of file ImplementationSimulator.cc.

                                                   {
     if (!workDir_.empty() && FileSystem::fileExists(workDir_)) {
         if (!leaveDirty_) {
             FileSystem::removeFileOrDirectory(workDir_);
         }
     }
     if (!oldCwd_.empty()) {
         FileSystem::changeWorkingDir(oldCwd_);
     }
 }

References FileSystem::changeWorkingDir(), FileSystem::fileExists(), leaveDirty_, oldCwd_, FileSystem::removeFileOrDirectory(), and workDir_.

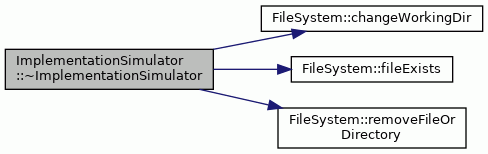

Here is the call graph for this function:

◆ ImplementationSimulator() [2/2]

ImplementationSimulator::ImplementationSimulator ( )

private

Member Function Documentation

◆ compile()

virtual bool ImplementationSimulator::compile ( std::vector< std::string > & errors )

pure virtual

Implemented in ModelsimSimulator, and GhdlSimulator.

Referenced by ImplementationTester::simulateTestbench().

◆ createWorkDir()

std::string ImplementationSimulator::createWorkDir ( )

protectedvirtual

Reimplemented in ModelsimSimulator.

Definition at line 66 of file ImplementationSimulator.cc.

                                                  {
     string work = baseDir_ + FileSystem::DIRECTORY_SEPARATOR + "work";
     if (!FileSystem::createDirectory(work)) {
         work = "";
     }
     workDir_ = work;
     return workDir_;
 }

References baseDir_, FileSystem::createDirectory(), FileSystem::DIRECTORY_SEPARATOR, and workDir_.

Referenced by GhdlSimulator::compile().

Here is the call graph for this function:

◆ file()

std::string ImplementationSimulator::file ( int index ) const

protected

Definition at line 95 of file ImplementationSimulator.cc.

                                                        {
     return hdlFiles_.at(index);
 }

References hdlFiles_.

Referenced by GhdlSimulator::compile(), ModelsimSimulator::compile(), ModelsimSimulator::compileOneFile(), and GhdlSimulator::importFile().

◆ hdlFileCount()

int ImplementationSimulator::hdlFileCount ( ) const

protected

Definition at line 91 of file ImplementationSimulator.cc.

                                                 {
     return hdlFiles_.size();
 }

References hdlFiles_.

Referenced by GhdlSimulator::compile(), and ModelsimSimulator::compile().

◆ parseErrorMessages()

void ImplementationSimulator::parseErrorMessages	(	std::vector< std::string > &	inputMsg,
		std::vector< std::string > &	errors
	)

protected

Definition at line 104 of file ImplementationSimulator.cc.

                                                                   {
     string tag = "TCE Assert";
     for (unsigned int i = 0; i < inputMsg.size(); i++) {
         string::size_type loc = inputMsg.at(i).find(tag, 0);
         if (loc != string::npos) {
             string errorMsg = FileSystem::fileOfPath(tbFile_) + ": "
                 + inputMsg.at(i);
             errors.push_back(errorMsg);
         }
     }
 }

References FileSystem::fileOfPath(), and tbFile_.

Referenced by GhdlSimulator::simulate(), and ModelsimSimulator::simulate().

Here is the call graph for this function:

◆ setWorkDir()

void ImplementationSimulator::setWorkDir ( std::string dir )

protected

Definition at line 75 of file ImplementationSimulator.cc.

                                                       {
     workDir_ = dir;
 }

References workDir_.

Referenced by ModelsimSimulator::createWorkDir().

◆ simulate()

virtual bool ImplementationSimulator::simulate ( std::vector< std::string > & errors )

pure virtual

Implemented in ModelsimSimulator, and GhdlSimulator.

Referenced by ImplementationTester::simulateTestbench().

◆ tbDirectory()

std::string ImplementationSimulator::tbDirectory ( ) const

protected

Definition at line 83 of file ImplementationSimulator.cc.

                                                      {
     return baseDir_;
 }

References baseDir_.

Referenced by GhdlSimulator::compile(), ModelsimSimulator::compile(), ModelsimSimulator::createWorkDir(), and GhdlSimulator::simulate().

◆ tbFile()

std::string ImplementationSimulator::tbFile ( ) const

protected

Definition at line 87 of file ImplementationSimulator.cc.

                                                 {
     return tbFile_;
 }

References tbFile_.

Referenced by GhdlSimulator::compile(), ModelsimSimulator::compile(), and ImplementationSimulator().

◆ verbose()

bool ImplementationSimulator::verbose ( )

protected

Definition at line 99 of file ImplementationSimulator.cc.

                                       {
     return verbose_;
 }

References verbose_.

Referenced by GhdlSimulator::compileDesign(), ModelsimSimulator::compileOneFile(), ModelsimSimulator::createWorkDir(), GhdlSimulator::importFile(), GhdlSimulator::simulate(), and ModelsimSimulator::simulate().

◆ workDir()

std::string ImplementationSimulator::workDir ( ) const

protected

Definition at line 79 of file ImplementationSimulator.cc.

                                                  {
     return workDir_;
 }

References workDir_.

Referenced by GhdlSimulator::compile(), ModelsimSimulator::compile(), GhdlSimulator::compileDesign(), GhdlSimulator::importFile(), and GhdlSimulator::simulate().

Member Data Documentation

◆ baseDir_

std::string ImplementationSimulator::baseDir_

private

Directory path of testbench file.

Definition at line 82 of file ImplementationSimulator.hh.

Referenced by createWorkDir(), ImplementationSimulator(), and tbDirectory().

◆ hdlFiles_

std::vector<std::string> ImplementationSimulator::hdlFiles_

private

Vector containing other vhdl files needed to compile testbench.

Definition at line 80 of file ImplementationSimulator.hh.

Referenced by file(), and hdlFileCount().

◆ leaveDirty_

bool ImplementationSimulator::leaveDirty_

private

Don't delete work dir.

Definition at line 90 of file ImplementationSimulator.hh.

Referenced by ~ImplementationSimulator().

◆ oldCwd_

std::string ImplementationSimulator::oldCwd_

private

Old current working directory (before changing to workDir_)

Definition at line 86 of file ImplementationSimulator.hh.

Referenced by ImplementationSimulator(), and ~ImplementationSimulator().

◆ tbFile_

std::string ImplementationSimulator::tbFile_

private

Testbench file name with path.

Definition at line 78 of file ImplementationSimulator.hh.

Referenced by parseErrorMessages(), and tbFile().

◆ verbose_

bool ImplementationSimulator::verbose_

private

Enable verbose output.

Definition at line 88 of file ImplementationSimulator.hh.

Referenced by verbose().

◆ workDir_

std::string ImplementationSimulator::workDir_

private

Working directory where testbench is compiled and simulated.

Definition at line 84 of file ImplementationSimulator.hh.

Referenced by createWorkDir(), setWorkDir(), workDir(), and ~ImplementationSimulator().

The documentation for this class was generated from the following files:
