#include <InputSocketFigure.hh>

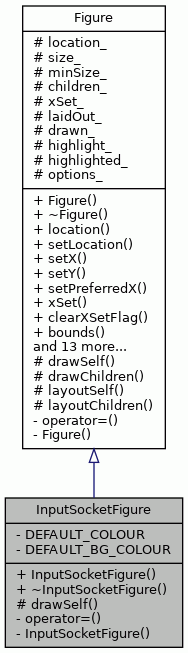

Inheritance diagram for InputSocketFigure:

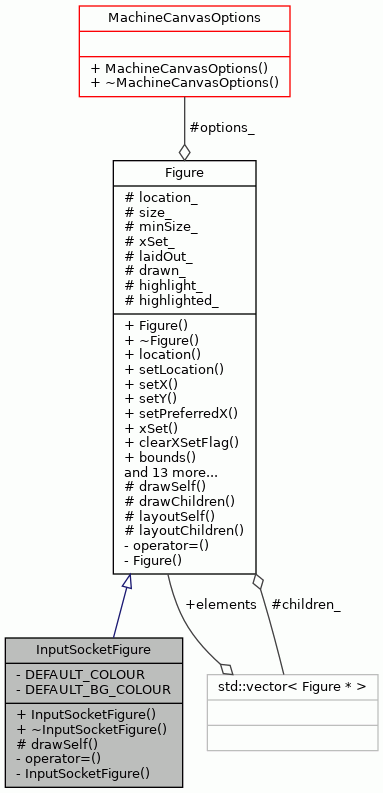

Collaboration diagram for InputSocketFigure:

Public Member Functions
	InputSocketFigure ()

virtual	~InputSocketFigure ()

Public Member Functions inherited from Figure
	Figure ()

virtual	~Figure ()

wxPoint	location () const

void	setLocation (wxPoint point)

void	setX (int x)

void	setY (int y)

void	setPreferredX (int x)

bool	xSet () const

void	clearXSetFlag ()

virtual wxRect	bounds () const

virtual wxRect	virtualBounds () const

void	setBounds (wxSize bounds)

void	setWidth (int width)

void	setHeight (int height)

virtual void	addChild (Figure *child)

int	childCount () const

Figure *	child (int index) const

virtual void	layout (wxDC *dc)

virtual void	draw (wxDC *dc)

void	highlight (const wxColour &colour)

void	clearHighlight ()

void	setOptions (MachineCanvasOptions *options)

MachineCanvasOptions *	options ()

Protected Member Functions
virtual void	drawSelf (wxDC *dc)

Protected Member Functions inherited from Figure
void	drawChildren (wxDC *dc)

virtual void	layoutSelf (wxDC *)

virtual void	layoutChildren (wxDC *)

Private Member Functions
InputSocketFigure &	operator= (InputSocketFigure &old)
	Assignment not allowed. More...

	InputSocketFigure (InputSocketFigure &old)
	Copying not allowed. More...

Static Private Attributes
static const wxColour	DEFAULT_COLOUR = wxColour(0, 0, 0)
	Default colour for the figure. More...

static const wxColour	DEFAULT_BG_COLOUR = wxColour(255, 255, 255)
	Default background colour for the figure. More...

Additional Inherited Members
Protected Attributes inherited from Figure
wxPoint	location_
	Top-left location of the Figure's bounding rectangle. More...

wxSize	size_
	wxSize of the Figure's bounding rectangle. More...

wxSize	minSize_
	Figure's minimum size. More...

std::vector< Figure * >	children_
	Figure's children. More...

bool	xSet_
	Tells if x-coordinate has been fixed. More...

bool	laidOut_
	Tells whether the Figure and its children have been laid out or not. More...

bool	drawn_
	Tells whether the Figure and its children have been drawn or not. More...

wxColour	highlight_
	Highlight colour. More...

bool	highlighted_
	Tells if the figure is highlighted. More...

MachineCanvasOptions *	options_
	Options which are used for customizing figures. More...

Detailed Description

Figure of an input socket.

Definition at line 46 of file InputSocketFigure.hh.

Constructor & Destructor Documentation

◆ InputSocketFigure() [1/2]

InputSocketFigure::InputSocketFigure ( )

The Constructor.

Definition at line 43 of file InputSocketFigure.cc.

                                     : Figure() {
     size_ = wxSize(
     MachineCanvasLayoutConstraints::SOCKET_WIDTH,
     MachineCanvasLayoutConstraints::SOCKET_HEIGHT);
 }

References Figure::size_, MachineCanvasLayoutConstraints::SOCKET_HEIGHT, and MachineCanvasLayoutConstraints::SOCKET_WIDTH.

◆ ~InputSocketFigure()

InputSocketFigure::~InputSocketFigure ( )

virtual

The Destructor.

Definition at line 52 of file InputSocketFigure.cc.

52 {

53 }

◆ InputSocketFigure() [2/2]

InputSocketFigure::InputSocketFigure ( InputSocketFigure & old )

private

Copying not allowed.

Member Function Documentation

◆ drawSelf()

void InputSocketFigure::drawSelf ( wxDC * dc )

protectedvirtual

Draws the input socket's Figure on the given device context.

Parameters

dc	The device context.

Reimplemented from Figure.

Definition at line 61 of file InputSocketFigure.cc.

                                     {

     wxPen pen = wxPen(DEFAULT_COLOUR, 1, wxSOLID);
     dc->SetPen(pen);
     wxBrush brush = wxBrush(DEFAULT_BG_COLOUR, wxSOLID);
     if (highlighted_) {
         brush = wxBrush(highlight_, wxSOLID);
     }
     dc->SetBrush(brush);

     int triangleHeight = MachineCanvasLayoutConstraints::TRIANGLE_HEIGHT;

     wxPoint point1 = wxPoint(size_.GetWidth()/2, 0);
     wxPoint point2 = wxPoint(0, triangleHeight);
     wxPoint point3 = wxPoint(size_.GetWidth(), triangleHeight);
     wxPoint trianglePoints[3] = {point1, point2, point3};

     dc->DrawPolygon(3, trianglePoints, location_.x, location_.y);
     dc->DrawRectangle(
     location_.x, location_.y + triangleHeight, size_.GetWidth(),
     size_.GetHeight() - triangleHeight);

 }

References DEFAULT_BG_COLOUR, DEFAULT_COLOUR, Figure::highlight_, Figure::highlighted_, Figure::location_, Figure::size_, and MachineCanvasLayoutConstraints::TRIANGLE_HEIGHT.

◆ operator=()

InputSocketFigure& InputSocketFigure::operator= ( InputSocketFigure & old )

private

Assignment not allowed.

Member Data Documentation

◆ DEFAULT_BG_COLOUR

const wxColour InputSocketFigure::DEFAULT_BG_COLOUR = wxColour(255, 255, 255)

staticprivate

Default background colour for the figure.

Definition at line 63 of file InputSocketFigure.hh.

Referenced by drawSelf().

◆ DEFAULT_COLOUR

const wxColour InputSocketFigure::DEFAULT_COLOUR = wxColour(0, 0, 0)

staticprivate

Default colour for the figure.

Definition at line 61 of file InputSocketFigure.hh.

Referenced by drawSelf().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Member Functions

Static Private Attributes

Additional Inherited Members
