#include <InstructionExecution.hh>

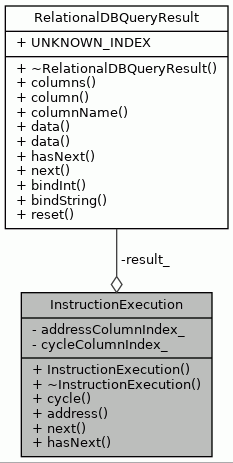

Collaboration diagram for InstructionExecution:

Public Member Functions
	InstructionExecution (RelationalDBQueryResult *result)

virtual	~InstructionExecution ()

ClockCycleCount	cycle () const

InstructionAddress	address () const

void	next ()

bool	hasNext () const

Private Attributes
RelationalDBQueryResult *	result_

int	addressColumnIndex_

int	cycleColumnIndex_

Detailed Description

Class used to navigate through the list of all execution cycles.

This class is also used to access the data of the pointed record.

Definition at line 45 of file InstructionExecution.hh.

Constructor & Destructor Documentation

◆ InstructionExecution()

InstructionExecution::InstructionExecution ( RelationalDBQueryResult * result )

Constructor.

Object is initialized to point to the first record in the record set, if any.

Parameters

result The query result to traverse.

Definition at line 46 of file InstructionExecution.cc.

                                                                           :
     result_(result), addressColumnIndex_(-1), cycleColumnIndex_(-1) {
     cycleColumnIndex_ = result_->column("cycle");
     addressColumnIndex_ = result_->column("address");

     assert(addressColumnIndex_ > -1);
     assert(cycleColumnIndex_ > -1);
     assert(result != NULL);

     if (hasNext()) {
         next();
     }
 }

References addressColumnIndex_, assert, RelationalDBQueryResult::column(), cycleColumnIndex_, hasNext(), next(), and result_.

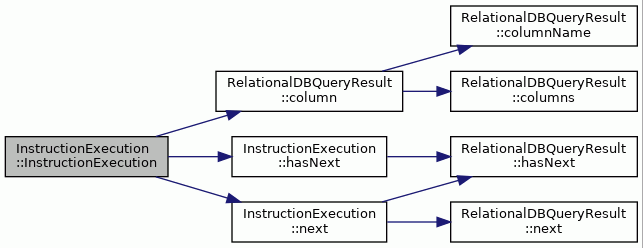

Here is the call graph for this function:

◆ ~InstructionExecution()

InstructionExecution::~InstructionExecution ( )

virtual

Destructor.

Definition at line 63 of file InstructionExecution.cc.

                                             {
     delete result_;
     result_ = NULL;
 }

References result_.

Member Function Documentation

◆ address()

InstructionAddress InstructionExecution::address ( ) const

Returns the instruction address value of the current record.

Returns: The instruction address value.

Exceptions

NotAvailable If the current record is empty.

Definition at line 91 of file InstructionExecution.cc.

                                     {
     if (&result_->data(addressColumnIndex_) == &NullDataObject::instance()) {
         const std::string errorMsg =
             "Tried to fetch data from an empty result set.";
         throw NotAvailable(__FILE__, __LINE__, __func__, errorMsg);
     }
     return result_->data(addressColumnIndex_).integerValue();
 }

References __func__, addressColumnIndex_, RelationalDBQueryResult::data(), NullDataObject::instance(), DataObject::integerValue(), and result_.

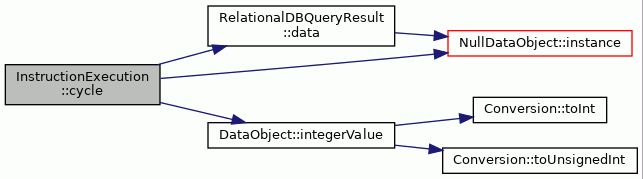

Here is the call graph for this function:

◆ cycle()

ClockCycleCount InstructionExecution::cycle ( ) const

Returns the cycle count value of the current record.

Returns: The cycle count.

Exceptions

NotAvailable If the current record is empty.

Definition at line 75 of file InstructionExecution.cc.

                                   {
     if (&result_->data(cycleColumnIndex_) == &NullDataObject::instance()) {
         const std::string errorMsg =
             "Tried to fetch data from an empty result set.";
         throw NotAvailable(__FILE__, __LINE__, __func__, errorMsg);
     }
     return result_->data(cycleColumnIndex_).integerValue();
 }

References __func__, cycleColumnIndex_, RelationalDBQueryResult::data(), NullDataObject::instance(), DataObject::integerValue(), and result_.

Here is the call graph for this function:

◆ hasNext()

bool InstructionExecution::hasNext ( ) const

Returns true if there are more results available.

Returns: True if more results available.

Definition at line 119 of file InstructionExecution.cc.

                                     {
     return result_->hasNext();
 }

References RelationalDBQueryResult::hasNext(), and result_.

Referenced by InstructionExecution().

Here is the call graph for this function:

◆ next()

void InstructionExecution::next ( )

Advances the navigator to the next record in the query result set.

Exceptions

NotAvailable if there is no more results in the set.

Definition at line 106 of file InstructionExecution.cc.

                            {
     if (!result_->hasNext()) {
         throw NotAvailable(__FILE__, __LINE__, __func__, "No more results.");
     }
     result_->next();
 }
