#include <MDFView.hh>

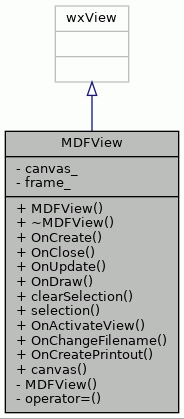

Inheritance diagram for MDFView:

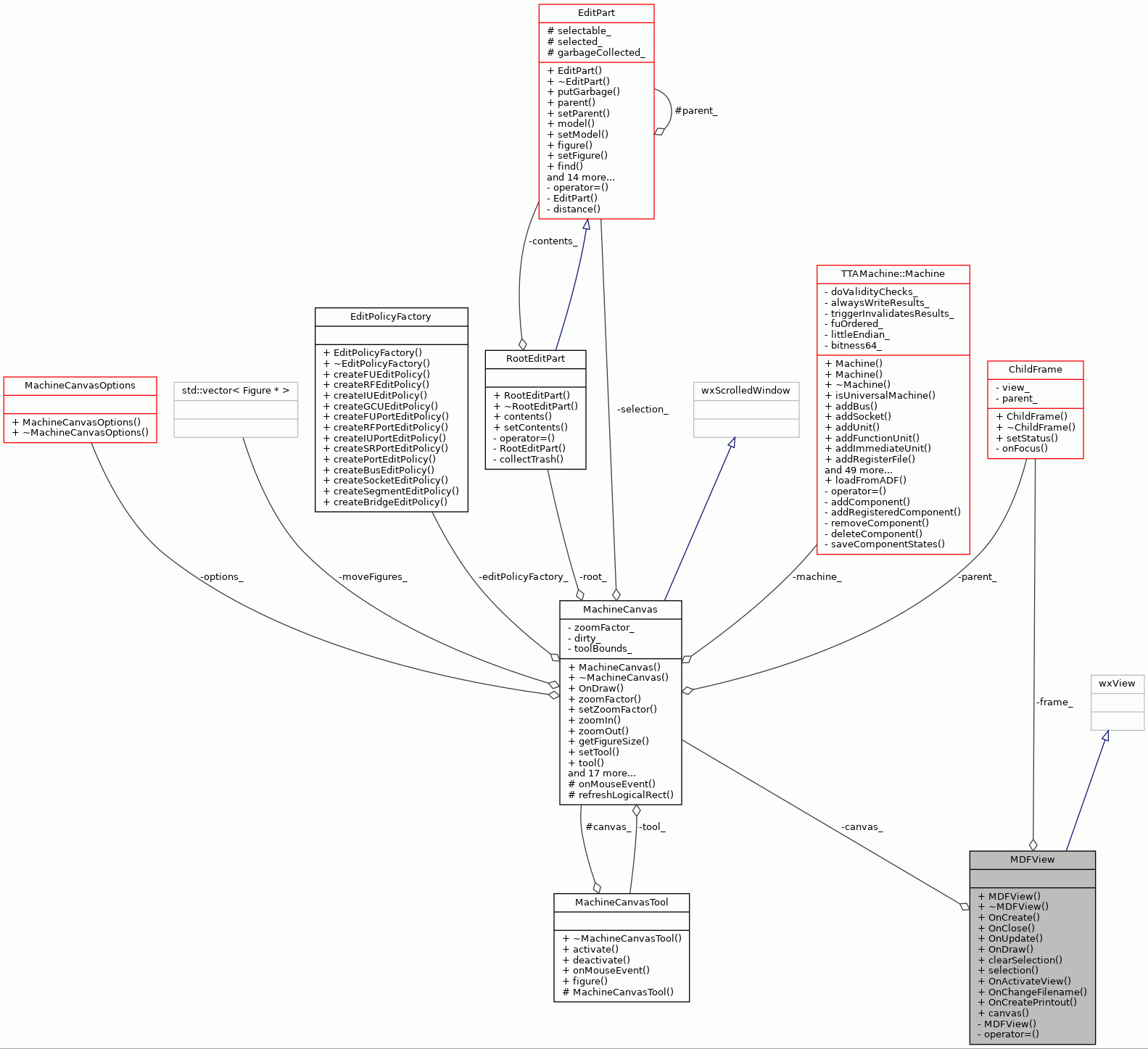

Collaboration diagram for MDFView:

Public Member Functions
	MDFView ()

virtual	~MDFView ()

virtual bool	OnCreate (wxDocument *doc, long)

virtual bool	OnClose (bool deleteWindow)

virtual void	OnUpdate (wxView sender, wxObject hint)

virtual void	OnDraw (wxDC *dc)

void	clearSelection ()

EditPart *	selection ()

virtual void	OnActivateView (bool activate, wxView activateView, wxView deactivateView)

virtual void	OnChangeFilename ()

virtual wxPrintout *	OnCreatePrintout ()

MachineCanvas *	canvas () const

Private Member Functions
	MDFView (const MDFView &)
	Copying forbidden. More...

MDFView &	operator= (const MDFView &)
	Assignment forbidden. More...

Private Attributes
MachineCanvas *	canvas_
	The window where the figures are drawn. More...

ChildFrame *	frame_
	ChildFrame for displaying the view. More...

Detailed Description

Viewing and editing component of a MDFDocument.

Part of the wxWidgets document/view framework. View of a Machine Object Model consists of EditParts defining the editing behaviour of the model components. For each EditPart in the view exists a figure defining the visualization of the component. The EditParts form a tree hierarchy starting from the top level contents EditPart, which is a child of the RootEditPart. This class also keeps track of the selected EditParts.

Definition at line 59 of file MDFView.hh.

Constructor & Destructor Documentation

◆ MDFView() [1/2]

MDFView::MDFView ( )

The Constructor.

Definition at line 60 of file MDFView.cc.

                  :
     wxView(),
     canvas_(NULL),
     frame_(NULL) {
 }

◆ ~MDFView()

MDFView::~MDFView ( )

virtual

The Destructor.

Definition at line 70 of file MDFView.cc.

70 {

71 }

◆ MDFView() [2/2]

MDFView::MDFView ( const MDFView & )

private

Copying forbidden.

Member Function Documentation

◆ canvas()

MachineCanvas * MDFView::canvas ( ) const

Returns pointer to the MachineCanvas of the view.

Returns: MachineCanvas of the view.

Definition at line 229 of file MDFView.cc.

                       {
     return canvas_;
 }

References canvas_.

Referenced by BridgeDialog::BridgeDialog(), ZoomOutCmd::Do(), FitWindowCmd::Do(), FitHeightCmd::Do(), ZoomInCmd::Do(), FitWidthCmd::Do(), SelectCmd::Do(), ToggleUnitDetailsCmd::Do(), EditConnectionsCmd::Do(), ToggleUnitDetailsCmd::isChecked(), BridgeDialog::onCancel(), BridgeDialog::onOK(), SelectTool::popContextMenu(), and ConnectTool::rightClick().

◆ clearSelection()

void MDFView::clearSelection ( )

Clears the component selection.

Definition at line 182 of file MDFView.cc.

                         {
     canvas_->clearSelection();
 }

References canvas_, and MachineCanvas::clearSelection().

Referenced by SelectCmd::Do(), EditConnectionsCmd::Do(), and ConnectTool::leftClick().

Here is the call graph for this function:

◆ OnActivateView()

void MDFView::OnActivateView	(	bool	activate,
		wxView *	activateView,
		wxView *	deactivateView
	)

virtual

Sets the main frame title when the view is activated.

Definition at line 191 of file MDFView.cc.

                                          {

     if (!activate) {
     wxString title = ProDeConstants::EDITOR_NAME;
         wxGetApp().mainFrame()->SetTitle(title);
         return;
     }

     OnUpdate(NULL, NULL);

     // Update main frame title.
     OnChangeFilename();
     wxGetApp().mainFrame()->updateUI();
 }

References ProDeConstants::EDITOR_NAME, OnChangeFilename(), and OnUpdate().

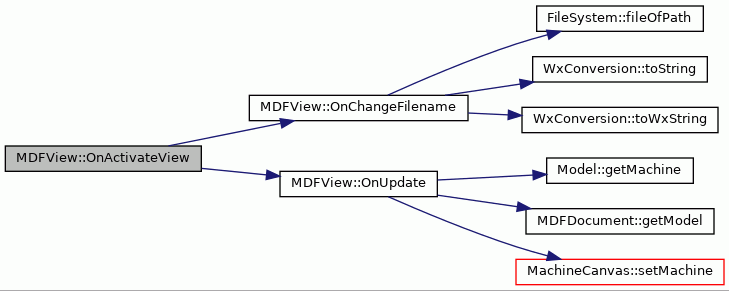

Here is the call graph for this function:

◆ OnChangeFilename()

void MDFView::OnChangeFilename ( )

virtual

Updates the main and child frame titles when the filename changes.

Definition at line 212 of file MDFView.cc.

                           {
     string path = WxConversion::toString(GetDocument()->GetFilename());
     string filename = FileSystem::fileOfPath(path);
     wxString title = ProDeConstants::EDITOR_NAME;
     title.Append(_T(" - "));
     title.Append(WxConversion::toWxString(filename));
     wxGetApp().mainFrame()->SetTitle(title);
     frame_->SetTitle(WxConversion::toWxString(filename));
 }

References ProDeConstants::EDITOR_NAME, FileSystem::fileOfPath(), frame_, WxConversion::toString(), and WxConversion::toWxString().

Referenced by OnActivateView().

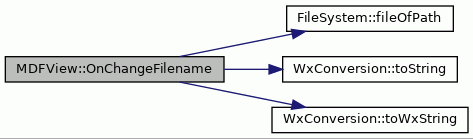

Here is the call graph for this function:

◆ OnClose()

bool MDFView::OnClose ( bool deleteWindow )

virtual

Implements closing behaviour.

Closes the associated document.

Parameters

deleteWindow If true, deletes the frame associated with the view.

Returns: true if the associated document was succesfully closed.

Definition at line 83 of file MDFView.cc.

                                   {

     if (!GetDocument()->Close()) {
       return false;
     }

     Activate(false);

     if (deleteWindow) {
     delete canvas_;
         canvas_ = NULL;
     delete frame_;
         frame_ = NULL;
     }
     return true;
 }

References canvas_, and frame_.

◆ OnCreate()

bool MDFView::OnCreate	(	wxDocument *	doc,
		long
	)

virtual

Creates a ChildFrame and a Canvas for the document when a new view is created.

Parameters

doc	Pointer to the document which this view visualizes.

Returns: True if the ChildFrame and the Canvas was succesfully created.

Definition at line 110 of file MDFView.cc.

                                        {

     if (doc == NULL) {
         return false;
     }

     // create a childframe for the view
     wxDocMDIParentFrame* mainFrame = wxGetApp().mainFrame();
     frame_ = new ChildFrame(doc, this, mainFrame);
     SetFrame(frame_);
     frame_->Show(true);

     // create a canvas for the child frame
     canvas_ = new MachineCanvas(frame_, new ProDeEditPolicyFactory(), frame_);
     // create select tool and set it as active tool for the canvas
     SelectTool* selectTool = new SelectTool(frame_, this);
     canvas_->setTool(selectTool);

     Activate(true);
     return true;
 }

References canvas_, frame_, and MachineCanvas::setTool().

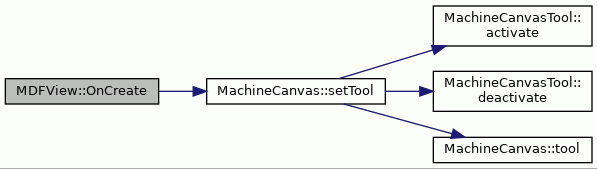

Here is the call graph for this function:

◆ OnCreatePrintout()

wxPrintout * MDFView::OnCreatePrintout ( )

virtual

Creates printout of the machine figure.

Returns: Printout object of the machine figure for printing.

Definition at line 251 of file MDFView.cc.

                           {
     return new ADFPrintout(*canvas_, GetDocument()->GetFilename());
 }

References canvas_.

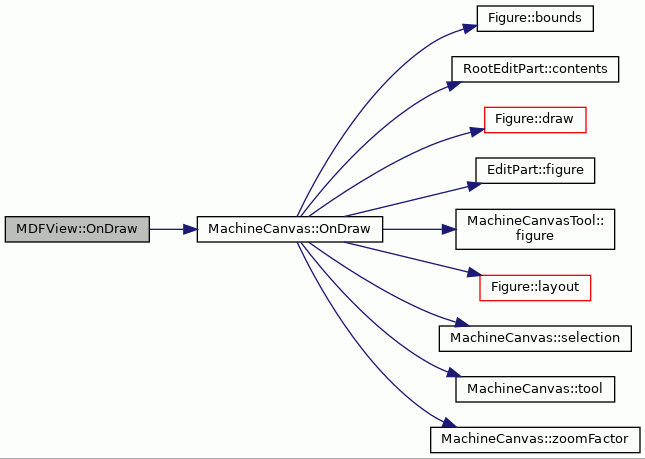

◆ OnDraw()

void MDFView::OnDraw ( wxDC * dc )

virtual

Handles paint events of the view.

Parameters

dc	Device context to draw the machine on.

Definition at line 240 of file MDFView.cc.

                         {
     canvas_->OnDraw(*dc);
 }

References canvas_, and MachineCanvas::OnDraw().

Here is the call graph for this function:

◆ OnUpdate()

void MDFView::OnUpdate	(	wxView *	sender,
		wxObject *	hint
	)

virtual

Updates the model visualization.

Parameters

sender	View that sent the update request, or NULL if no single view requested the update (for instance, when the document is opened).
hint	Unused at the moment but may in future contain application-specific information for making updating more efficient.

Definition at line 144 of file MDFView.cc.

                                         {

     wxDocument* doc = GetDocument();
     assert(doc != NULL);
     MDFDocument* mdfdoc = dynamic_cast<MDFDocument*>(doc);
     assert(mdfdoc != NULL);

     Model* model = mdfdoc->getModel();
     if (model == NULL) {
         // The model is NULL if document opening fails.
         // View is updated even if the document opening fails.
         return;
     }

     Machine* machine = model->getMachine();
     assert(machine != NULL);
     canvas_->setMachine(machine);
 }

References assert, canvas_, Model::getMachine(), MDFDocument::getModel(), machine, and MachineCanvas::setMachine().

Referenced by OnActivateView().

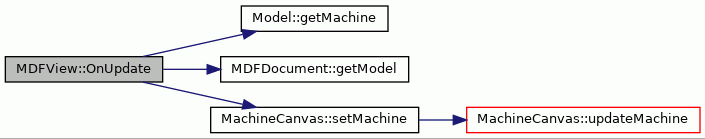

Here is the call graph for this function:

◆ operator=()

MDFView& MDFView::operator= ( const MDFView & )

private

Assignment forbidden.

◆ selection()

EditPart * MDFView::selection ( )

Returns selected component of the view.

Returns: Pointer to the selected EditPart.

Definition at line 169 of file MDFView.cc.

                    {
     if (canvas_ != NULL) {
     return canvas_->selection();
     } else {
     return NULL;
     }
 }

References canvas_, and MachineCanvas::selection().

Referenced by CopyComponentCmd::isEnabled(), CutComponentCmd::isEnabled(), DeleteComponentCmd::isEnabled(), ModifyComponentCmd::isEnabled(), and ConnectTool::leftClick().

Here is the call graph for this function:

Member Data Documentation

◆ canvas_

MachineCanvas* MDFView::canvas_

private

The window where the figures are drawn.

Definition at line 85 of file MDFView.hh.

Referenced by canvas(), clearSelection(), OnClose(), OnCreate(), OnCreatePrintout(), OnDraw(), OnUpdate(), and selection().

◆ frame_

ChildFrame* MDFView::frame_

private

ChildFrame for displaying the view.

Definition at line 87 of file MDFView.hh.

Referenced by OnChangeFilename(), OnClose(), and OnCreate().
