#include <MemoryControl.hh>

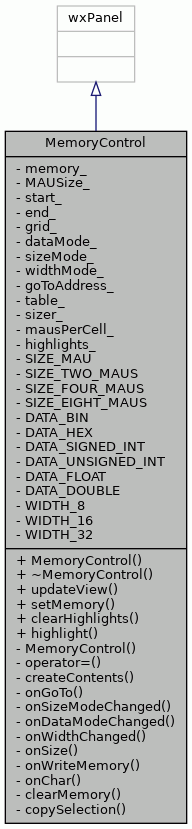

Inheritance diagram for MemoryControl:

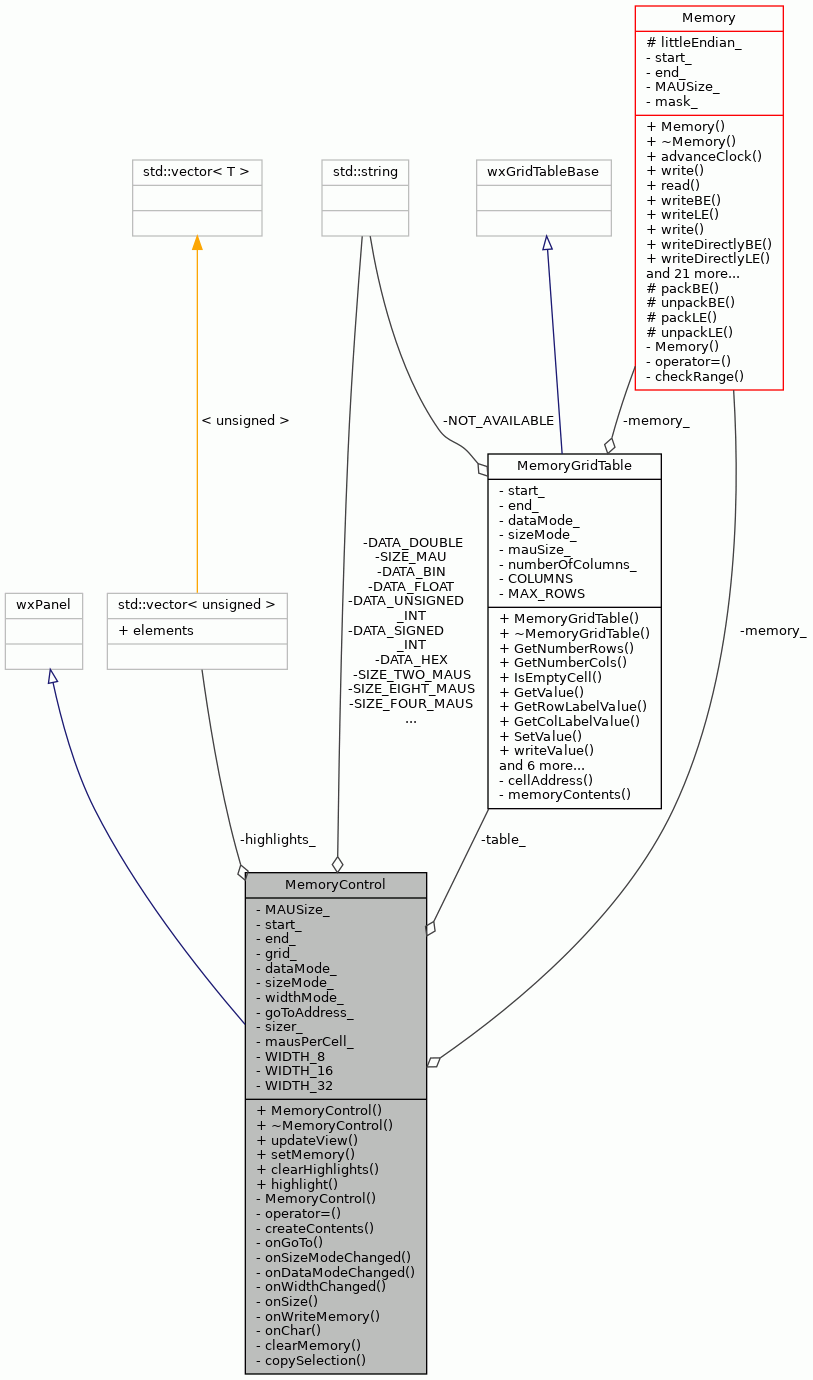

Collaboration diagram for MemoryControl:

Public Member Functions
	MemoryControl (wxWindow parent, Memory memory, wxWindowID id=-1, const wxPoint &pos=wxDefaultPosition, const wxSize &size=wxDefaultSize, const wxString &name=_T("MemoryControl"))

virtual	~MemoryControl ()

void	updateView ()

void	setMemory (Memory *memory)

void	clearHighlights ()

void	highlight (Word address, unsigned count, const wxColour &colour)

Private Types
enum	{ ID_GRID, ID_CHOICE_MODE, ID_CHOICE_DATA, ID_CHOICE_WIDTH, ID_ADDRESS_GO_TO, ID_BUTTON_GO_TO, ID_SPIN_SIZE }

Private Member Functions
	MemoryControl (const MemoryControl &)
	Copying not allowed. More...

MemoryControl &	operator= (const MemoryControl &)
	Assignment not allowed. More...

void	createContents ()

void	onGoTo (wxCommandEvent &event)

void	onSizeModeChanged (wxCommandEvent &)

void	onDataModeChanged (wxCommandEvent &)

void	onWidthChanged (wxCommandEvent &)

void	onSize (wxSizeEvent &)

void	onWriteMemory (wxGridEvent &event)

void	onChar (wxKeyEvent &event)

void	clearMemory ()

void	copySelection ()

Private Attributes
Memory *	memory_
	Used for access to memory contents. More...

int	MAUSize_
	Size of the minimum addressable unit. More...

Word	start_
	Start point of memory. More...

Word	end_
	End point of memory. More...

wxGrid *	grid_
	Grid in which the contents of the memory is written. More...

wxChoice *	dataMode_
	Mode of the data in the cells. More...

wxChoice *	sizeMode_
	Mode of the data size. More...

wxChoice *	widthMode_
	Grid width choicer. More...

wxString	goToAddress_
	Go to address. More...

MemoryGridTable *	table_
	Grid contents. More...

wxBoxSizer *	sizer_
	Top level sizer of the window. More...

unsigned	mausPerCell_
	Number of maus displayed in a cell. More...

std::vector< unsigned >	highlights_

Static Private Attributes
static const std::string	SIZE_MAU = "MAU"
	Size label for byte size. More...

static const std::string	SIZE_TWO_MAUS = "2 MAUs"
	Size label for half word size. More...

static const std::string	SIZE_FOUR_MAUS = "4 MAUs"
	Size label for word size. More...

static const std::string	SIZE_EIGHT_MAUS = "8 MAUs"
	Size label for word size. More...

static const std::string	DATA_BIN = "Binary"
	Data label for binary format. More...

static const std::string	DATA_HEX = "Hex"
	Data label for hexa format. More...

static const std::string	DATA_SIGNED_INT = "Signed int"
	Data label for signed int format. More...

static const std::string	DATA_UNSIGNED_INT = "Unsigned int"
	Data label for unsigned int format. More...

static const std::string	DATA_FLOAT = "Float"
	Data label for float format. More...

static const std::string	DATA_DOUBLE = "Double"
	Data label for double format. More...

static const wxString	WIDTH_8 = _T("8")
	Table width label for 8 column mode. More...

static const wxString	WIDTH_16 = _T("16")
	Table width label for 16 column mode. More...

static const wxString	WIDTH_32 = _T("32")
	Table width label for 32 column mode. More...

Detailed Description

Widget for showing the contents of the memory.

The contents of the memory is shown in bytes, half words, words, or double words, and either in binary, hexa, float, decimal, or double format.

Definition at line 53 of file MemoryControl.hh.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Widget ids.

Enumerator
ID_GRID
ID_CHOICE_MODE
ID_CHOICE_DATA
ID_CHOICE_WIDTH
ID_ADDRESS_GO_TO
ID_BUTTON_GO_TO
ID_SPIN_SIZE

Definition at line 145 of file MemoryControl.hh.

          {
         ID_GRID,
         ID_CHOICE_MODE,
         ID_CHOICE_DATA,
     ID_CHOICE_WIDTH,
         ID_ADDRESS_GO_TO,
         ID_BUTTON_GO_TO,
         ID_SPIN_SIZE
     };

Constructor & Destructor Documentation

◆ MemoryControl() [1/2]

MemoryControl::MemoryControl	(	wxWindow *	parent,
		Memory *	memory,
		wxWindowID	id = `-1`,
		const wxPoint &	pos = `wxDefaultPosition`,
		const wxSize &	size = `wxDefaultSize`,
		const wxString &	name = `_T("MemoryControl")`
	)

Constructor.

Parameters

parent	Parent window.
memory	The memory.
start	The start point of memory.
end	The end point of memory.
id	Id of the widget.
pos	Position of the widget.
size	Size of the widget.
name	Name of the widget.

Definition at line 92 of file MemoryControl.cc.

                           :
     wxPanel(parent, id, pos, size, wxTAB_TRAVERSAL, name),
     memory_(memory), MAUSize_(memory->MAUSize()),
     start_(memory->start()), end_(memory->end()),
     grid_(NULL),
     goToAddress_(_T("0")),
     table_(NULL),
     sizer_(NULL),
     mausPerCell_(1) {

     createContents();

     dataMode_->Append(WxConversion::toWxString(DATA_BIN));
     dataMode_->Append(WxConversion::toWxString(DATA_HEX));
     dataMode_->Append(WxConversion::toWxString(DATA_SIGNED_INT));
     dataMode_->Append(WxConversion::toWxString(DATA_UNSIGNED_INT));
     dataMode_->Append(WxConversion::toWxString(DATA_FLOAT));
     dataMode_->Append(WxConversion::toWxString(DATA_DOUBLE));

     dataMode_->SetSelection(1);

     sizeMode_->Append(WxConversion::toWxString(SIZE_MAU));
     if (MAUSize_ <= 32) {
         sizeMode_->Append(WxConversion::toWxString(SIZE_TWO_MAUS));
     }
     if (MAUSize_ <= 16) {
         sizeMode_->Append(WxConversion::toWxString(SIZE_FOUR_MAUS));
     }
     if (MAUSize_ <= 8) {
         sizeMode_->Append(WxConversion::toWxString(SIZE_EIGHT_MAUS));
     }

     sizeMode_->SetSelection(0);

     widthMode_->Append(WIDTH_8);
     widthMode_->Append(WIDTH_16);
     widthMode_->Append(WIDTH_32);

     widthMode_->SetSelection(0);

     wxTextValidator hexValidator(wxFILTER_INCLUDE_CHAR_LIST, &goToAddress_);

 #if wxCHECK_VERSION(2, 5, 4)
     wxArrayString includes;
     includes.Add(_T("0"));
     includes.Add(_T("1"));
     includes.Add(_T("2"));
     includes.Add(_T("3"));
     includes.Add(_T("4"));
     includes.Add(_T("5"));
     includes.Add(_T("6"));
     includes.Add(_T("7"));
     includes.Add(_T("8"));
     includes.Add(_T("9"));
     includes.Add(_T("a"));
     includes.Add(_T("b"));
     includes.Add(_T("c"));
     includes.Add(_T("d"));
     includes.Add(_T("e"));
     includes.Add(_T("f"));
     includes.Add(_T("A"));
     includes.Add(_T("B"));
     includes.Add(_T("C"));
     includes.Add(_T("D"));
     includes.Add(_T("E"));
     includes.Add(_T("F"));
     hexValidator.SetIncludes(includes);
 #else
     hexValidator.SetIncludeList(
     wxStringList(
         _T("0"), _T("1"), _T("2"), _T("3"), _T("4"), _T("5"), _T("6"),
         _T("7"), _T("8"), _T("9"), _T("a"), _T("b"), _T("c"), _T("d"),
         _T("e"), _T("f"), _T("A"), _T("B"), _T("C"), _T("D"), _T("E"),
         _T("F"), NULL));
 #endif

     FindWindow(ID_ADDRESS_GO_TO)->SetValidator(hexValidator);
     updateView();
 }

References WxConversion::toWxString().

Here is the call graph for this function:

◆ ~MemoryControl()

MemoryControl::~MemoryControl ( )

virtual

Destructor.

Definition at line 182 of file MemoryControl.cc.

182 {

183 }

◆ MemoryControl() [2/2]

MemoryControl::MemoryControl ( const MemoryControl & )

private

Copying not allowed.

Member Function Documentation

◆ clearHighlights()

void MemoryControl::clearHighlights ( )

Definition at line 553 of file MemoryControl.cc.

                                {
     int cols = table_->GetNumberCols();
     while (!highlights_.empty()) {
         int row = *highlights_.begin() / cols;
         int col = *highlights_.begin() % cols;
         grid_->SetCellBackgroundColour(row, col, *wxWHITE);
         highlights_.erase(highlights_.begin());
     }
 }

References MemoryGridTable::GetNumberCols(), grid_, highlights_, and table_.

Referenced by ProximMemoryWindow::onSimulationStop(), onSizeModeChanged(), onWidthChanged(), and setMemory().

Here is the call graph for this function:

◆ clearMemory()

void MemoryControl::clearMemory ( )

private

Clears the contents of the selected cells, that is, the contents is set to zero.

Definition at line 445 of file MemoryControl.cc.

                            {

     wxGridCellCoordsArray topLeft = grid_->GetSelectionBlockTopLeft();
     wxGridCellCoordsArray botRight = grid_->GetSelectionBlockBottomRight();

     int currentRow = topLeft[0].GetRow();
     int currentCol = topLeft[0].GetCol();

     int endRow = botRight[0].GetRow();
     int endCol = botRight[0].GetCol();

     while (currentRow <= endRow) {
         currentCol = topLeft[0].GetCol();
         while (currentCol <= endCol) {

             UIntWord data = 0;
             table_->writeValue(currentRow, currentCol, data);
             currentCol++;
         }
         currentRow++;
     }
     updateView();

 }

References grid_, table_, updateView(), and MemoryGridTable::writeValue().

Referenced by onChar().

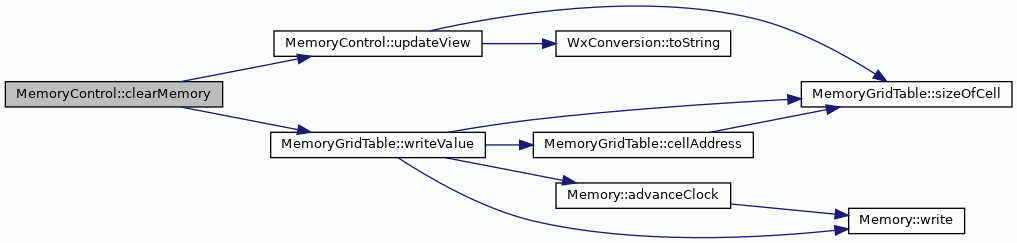

Here is the call graph for this function:

◆ copySelection()

void MemoryControl::copySelection ( )

private

Copies contents of the selected cells to the clipboard.

Definition at line 515 of file MemoryControl.cc.

                              {

     if (grid_ == NULL || !(grid_->IsSelection())) {
         return;
     }

     if (wxTheClipboard->Open()) {

         wxTextDataObject* data = new wxTextDataObject();
         wxString contents;

         wxGridCellCoordsArray topLs = grid_->GetSelectionBlockTopLeft();
         wxGridCellCoordsArray bottomRs = grid_->GetSelectionBlockBottomRight();

         for (unsigned i = 0; i < topLs.Count(); i++) {
             if (i > 0) {
                 contents.Append(_T("\n"));
             }
             int row = topLs.Item(i).GetRow();
             for (; row <= bottomRs.Item(i).GetRow(); row++) {
                 int col = topLs.Item(i).GetCol();
                 for (; col <= bottomRs.Item(i).GetCol(); col++) {
                     contents.Append(grid_->GetCellValue(row, col));
                     contents.Append(_T(" "));
                 }
                 contents.Append(_T("\n"));
             }
         }

         data->SetText(contents);

         wxTheClipboard->SetData(data);
         wxTheClipboard->Close();
     }
 }

References grid_.

Referenced by onChar().

◆ createContents()

void MemoryControl::createContents ( )

private

Creates the components of the widget.

Definition at line 190 of file MemoryControl.cc.

                               {

     sizer_ = new wxBoxSizer(wxVERTICAL);

     table_ = new MemoryGridTable(*memory_);
     grid_ = new wxGrid(this, ID_GRID, wxDefaultPosition, wxDefaultSize);
     grid_->SetTable(table_);

     grid_->SetDefaultCellAlignment(wxALIGN_RIGHT, wxALIGN_BOTTOM);
     grid_->SetRowLabelSize(100);
     grid_->SetDefaultCellFont(
         wxFont(12, wxFONTFAMILY_MODERN, wxFONTSTYLE_NORMAL,
                wxFONTWEIGHT_NORMAL));

     grid_->EnableEditing(false);
     grid_->DisableDragGridSize();
     grid_->DisableDragRowSize();

     sizer_->Add(grid_, 1, wxGROW|wxALL, 5);

     dataMode_ = new wxChoice(
         this, ID_CHOICE_DATA, wxDefaultPosition, wxDefaultSize, 0, NULL, 0);
     sizeMode_ = new wxChoice(
         this, ID_CHOICE_MODE, wxDefaultPosition, wxDefaultSize, 0, NULL, 0);
     widthMode_ = new wxChoice(
     this, ID_CHOICE_WIDTH, wxDefaultPosition, wxDefaultSize, 0, NULL, 0);

     wxTextCtrl* addressCtrl = new wxTextCtrl(
         this, ID_ADDRESS_GO_TO, wxT(""), wxDefaultPosition, wxDefaultSize,
         wxTE_PROCESS_ENTER);

     wxButton* goTo = new wxButton(this, ID_BUTTON_GO_TO, wxT("Go to"));
     wxSizer* sizer1 = new wxBoxSizer(wxHORIZONTAL);

     wxStaticText* columnsLabel = new wxStaticText(this, -1, _T("Columns:"));
     wxStaticText* asLabel = new wxStaticText(this, -1, _T("as"));

     sizer1->Add(sizeMode_, 0, wxALIGN_CENTER|wxALL, 5);
     sizer1->Add(asLabel, 0, wxALIGN_CENTER|wxALL, 5);
     sizer1->Add(dataMode_, 0, wxALIGN_CENTER|wxALL, 5);
     sizer1->Add(addressCtrl, 0, wxALIGN_CENTER|wxALL, 5);
     sizer1->Add(goTo, 0, wxALIGN_CENTER|wxALL, 5);
     sizer1->Add(columnsLabel, 0, wxALIGN_CENTER|wxALL, 5);
     sizer1->Add(widthMode_, 0, wxALIGN_CENTER|wxALL, 5);

     sizer_->Add(sizer1, 0, wxALIGN_CENTER|wxALL, 5);

     SetSizer(sizer_);
     Fit();
 }

References dataMode_, grid_, ID_ADDRESS_GO_TO, ID_BUTTON_GO_TO, ID_CHOICE_DATA, ID_CHOICE_MODE, ID_CHOICE_WIDTH, ID_GRID, memory_, sizeMode_, sizer_, table_, and widthMode_.

◆ highlight()

void MemoryControl::highlight	(	Word	address,
		unsigned	count,
		const wxColour &	colour
	)

Definition at line 564 of file MemoryControl.cc.

                                                                              {
     if (count < 1 || address < start_ || address + count > end_) {
         throw OutOfRange(__FILE__, __LINE__, __func__);
     }

     int cols = table_->GetNumberCols();
     for (unsigned i = 0; i < count; i++) {
         unsigned cell = (address - start_ + i) / mausPerCell_;
         int row = cell / cols;
         int col = cell % cols;
         highlights_.push_back(cell);
         grid_->SetCellBackgroundColour(row, col, colour);
     }
 }

References __func__, end_, MemoryGridTable::GetNumberCols(), grid_, highlights_, mausPerCell_, start_, and table_.

Referenced by ProximMemoryWindow::onSimulationStop().

Here is the call graph for this function:

◆ onChar()

void MemoryControl::onChar ( wxKeyEvent & event )

private

Handles the event when key is pressed.

Two hardcoded keyboard commands currently exist: delete and copy.

Parameters

event Key event ot be handled.

Definition at line 421 of file MemoryControl.cc.

                                        {

     if (event.GetKeyCode() == WXK_DELETE) {
         if (grid_->IsSelection()) {
             clearMemory();
         }
     } else if (event.m_controlDown &&
                (event.GetKeyCode() == 'c' ||
                 event.GetKeyCode() == 'C' ||
                 event.GetKeyCode() == WXK_INSERT)) {

         // Copy contents of the selected cells to the clipboard.
         if (grid_->IsSelection()) {
             copySelection();
         }
     }
 }

References clearMemory(), copySelection(), and grid_.

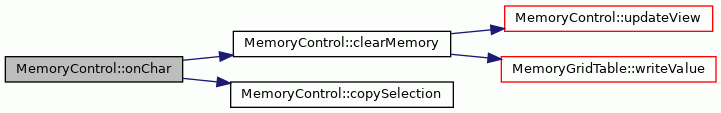

Here is the call graph for this function:

◆ onDataModeChanged()

void MemoryControl::onDataModeChanged ( wxCommandEvent & )

private

Handles the event when the data mode is changed.

Definition at line 344 of file MemoryControl.cc.

                                                 {

     string dataMode = WxConversion::toString(dataMode_->GetStringSelection());

     if (dataMode == DATA_BIN) {
     table_->setDataMode(MemoryGridTable::DATA_BIN);
     } else if (dataMode == DATA_HEX) {
     table_->setDataMode(MemoryGridTable::DATA_HEX);
     } else if (dataMode == DATA_SIGNED_INT) {
     table_->setDataMode(MemoryGridTable::DATA_SIGNED_INT);
     } else if (dataMode == DATA_UNSIGNED_INT) {
     table_->setDataMode(MemoryGridTable::DATA_UNSIGNED_INT);
     } else if (dataMode == DATA_FLOAT) {
     table_->setDataMode(MemoryGridTable::DATA_FLOAT);
     } else if (dataMode == DATA_DOUBLE) {
     table_->setDataMode(MemoryGridTable::DATA_DOUBLE);
     }
     updateView();
 }

References MemoryGridTable::DATA_BIN, DATA_BIN, MemoryGridTable::DATA_DOUBLE, DATA_DOUBLE, MemoryGridTable::DATA_FLOAT, DATA_FLOAT, MemoryGridTable::DATA_HEX, DATA_HEX, MemoryGridTable::DATA_SIGNED_INT, DATA_SIGNED_INT, MemoryGridTable::DATA_UNSIGNED_INT, DATA_UNSIGNED_INT, dataMode_, MemoryGridTable::setDataMode(), table_, WxConversion::toString(), and updateView().

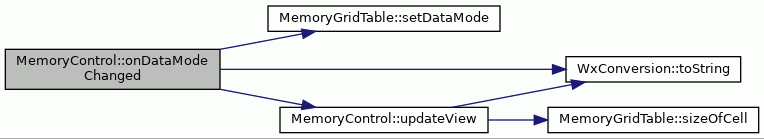

Here is the call graph for this function:

◆ onGoTo()

void MemoryControl::onGoTo ( wxCommandEvent & event )

private

Handles the event when Go to button is pushed.

The row which represents the asked address is selected.

Definition at line 248 of file MemoryControl.cc.

                                      {

     TransferDataFromWindow();
     if (goToAddress_ != _T("")) {

         Word addr = 0;
         try {
             // add 0x to the beginning of the address string
             goToAddress_ = _T("0x") + goToAddress_;
             addr = Conversion::toInt(WxConversion::toString(goToAddress_));
         } catch (const NumberFormatException& n) {
             string msg = "Invalid number: " +
                 WxConversion::toString(goToAddress_);
             ErrorDialog dialog(this, WxConversion::toWxString(msg));
             dialog.ShowModal();
             return;
         }

         if (addr >= end_) {
             string msg = "Address " + WxConversion::toString(goToAddress_) +
                 " out of memory bounds.";
             ErrorDialog dialog(this, WxConversion::toWxString(msg));
             dialog.ShowModal();
             return;
         }

         int row = 0;
     int col = 0;
     table_->findAddress(addr, row, col);
         //grid_->SetCellBackgroundColour(row, col, *wxGREEN);
         grid_->MakeCellVisible(row, col);
         grid_->SetGridCursor(row, col);
         updateView();
     }
 }

References end_, MemoryGridTable::findAddress(), goToAddress_, grid_, table_, Conversion::toInt(), WxConversion::toString(), WxConversion::toWxString(), and updateView().

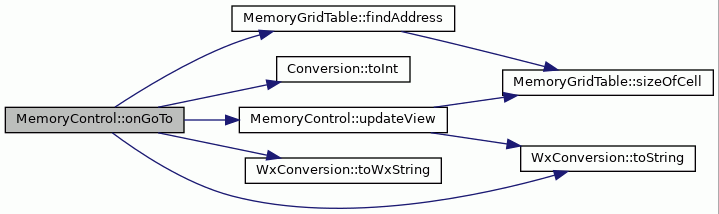

Here is the call graph for this function:

◆ onSize()

void MemoryControl::onSize ( wxSizeEvent & event )

private

Handles the event when the size of the window is changed.

Definition at line 368 of file MemoryControl.cc.

                                         {
     updateView();
     event.Skip();
 }

References updateView().

Here is the call graph for this function:

◆ onSizeModeChanged()

void MemoryControl::onSizeModeChanged ( wxCommandEvent & )

private

Handles the event size in which data is shown is changed.

Definition at line 317 of file MemoryControl.cc.

                                                 {

     clearHighlights();
     string sizeMode = WxConversion::toString(sizeMode_->GetStringSelection());

     if (sizeMode == SIZE_MAU) {
         mausPerCell_ = 1;
     table_->setSizeMode(MemoryGridTable::SIZE_MAU);
     } else if (sizeMode == SIZE_TWO_MAUS) {
         mausPerCell_ = 2;
     table_->setSizeMode(MemoryGridTable::SIZE_TWO_MAUS);
     } else if (sizeMode == SIZE_FOUR_MAUS) {
         mausPerCell_ = 4;
     table_->setSizeMode(MemoryGridTable::SIZE_FOUR_MAUS);
     } else if (sizeMode == SIZE_EIGHT_MAUS) {
         mausPerCell_ = 8;
     table_->setSizeMode(MemoryGridTable::SIZE_EIGHT_MAUS);
     }

     updateView();
 }

References clearHighlights(), mausPerCell_, MemoryGridTable::setSizeMode(), MemoryGridTable::SIZE_EIGHT_MAUS, SIZE_EIGHT_MAUS, MemoryGridTable::SIZE_FOUR_MAUS, SIZE_FOUR_MAUS, MemoryGridTable::SIZE_MAU, SIZE_MAU, MemoryGridTable::SIZE_TWO_MAUS, SIZE_TWO_MAUS, sizeMode_, table_, WxConversion::toString(), and updateView().

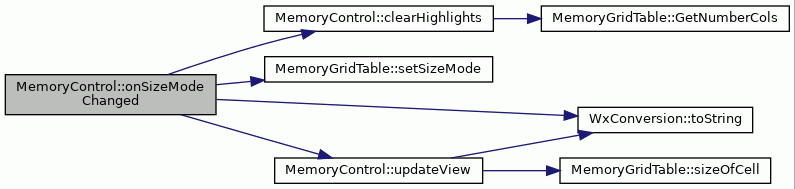

Here is the call graph for this function:

◆ onWidthChanged()

void MemoryControl::onWidthChanged ( wxCommandEvent & )

private

Event handler for the grid width choicer.

Definition at line 496 of file MemoryControl.cc.

                                              {
     clearHighlights();
     wxString width = widthMode_->GetStringSelection();
     if (width == WIDTH_8) {
     table_->setNumberOfColumns(8);
     } else if (width == WIDTH_16) {
     table_->setNumberOfColumns(16);
     } else  if (width == WIDTH_32) {
     table_->setNumberOfColumns(32);
     }
     grid_->SetTable(table_);
     updateView();
 }

References clearHighlights(), grid_, MemoryGridTable::setNumberOfColumns(), table_, updateView(), WIDTH_16, WIDTH_32, WIDTH_8, and widthMode_.

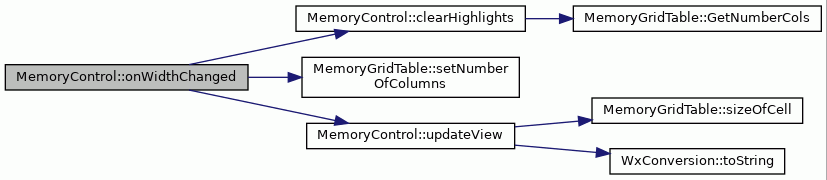

Here is the call graph for this function:

◆ onWriteMemory()

void MemoryControl::onWriteMemory ( wxGridEvent & event )

private

Handles the event when user double clicks a memory cell.

A new dialog is opened in which user can type a new value for the cell.

Definition at line 379 of file MemoryControl.cc.

                                                {

     int column = event.GetCol();
     int row = event.GetRow();

     string stringValue =
         WxConversion::toString(grid_->GetCellValue(row, column));

     int value = 0;
     MemoryValueDialog dialog(this, table_->sizeOfCell() * MAUSize_);
     dialog.CenterOnParent();

     try {
         value = Conversion::toInt(stringValue);
         dialog.setValue(value);
     } catch (const NumberFormatException& n) {
         // can not convert for some reason (do something?)
         dialog.setValue(0);
     }

     if(dialog.ShowModal() == wxID_OK) {

     if (dialog.mode() != NumberControl::MODE_DOUBLE) {
         UIntWord memoryValue = dialog.intValue();
         table_->writeValue(row, column, memoryValue);
     } else {
         DoubleWord memoryValue = dialog.doubleValue();
         table_->writeValue(row, column, memoryValue);
     }
         updateView();
     }

 }

References MemoryValueDialog::doubleValue(), grid_, MemoryValueDialog::intValue(), MAUSize_, MemoryValueDialog::mode(), NumberControl::MODE_DOUBLE, MemoryValueDialog::setValue(), MemoryGridTable::sizeOfCell(), table_, Conversion::toInt(), WxConversion::toString(), updateView(), and MemoryGridTable::writeValue().

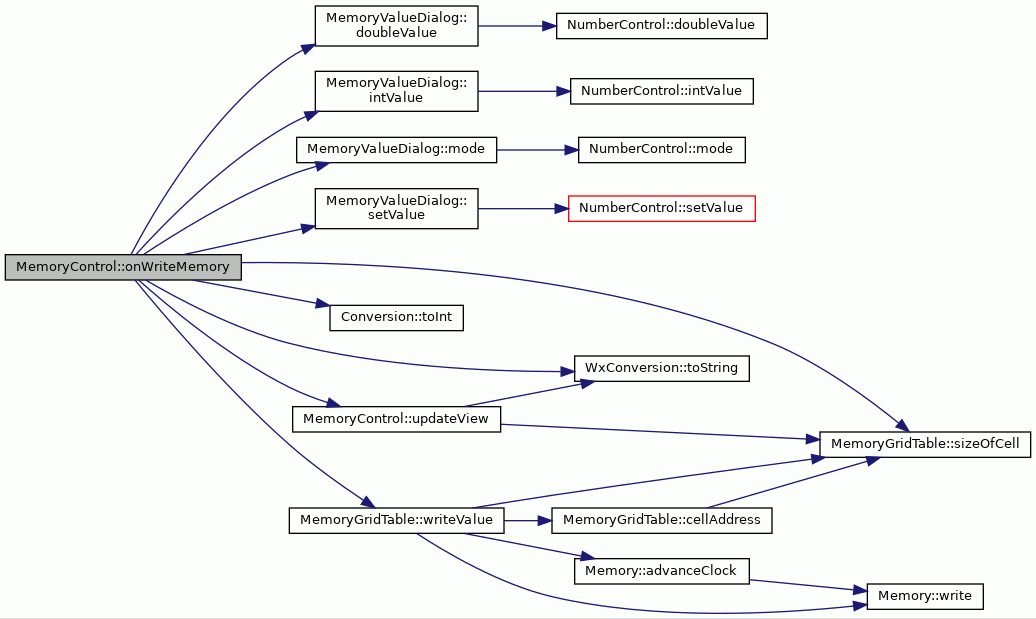

Here is the call graph for this function:

◆ operator=()

MemoryControl& MemoryControl::operator= ( const MemoryControl & )

private

Assignment not allowed.

◆ setMemory()

void MemoryControl::setMemory ( Memory * memory )

Sets the memory to display in the window.

Parameters

memory Memory to display.

Definition at line 477 of file MemoryControl.cc.

                                        {

     clearHighlights();
     MAUSize_ = memory->MAUSize();
     memory_ = memory;
     start_ = memory->start();
     end_ = memory->end();

     table_ = new MemoryGridTable(*memory_);
     grid_->SetTable(table_);

     updateView();
 }

References clearHighlights(), Memory::end(), end_, grid_, Memory::MAUSize(), MAUSize_, memory_, Memory::start(), start_, table_, and updateView().

Referenced by ProximMemoryWindow::loadMemory().

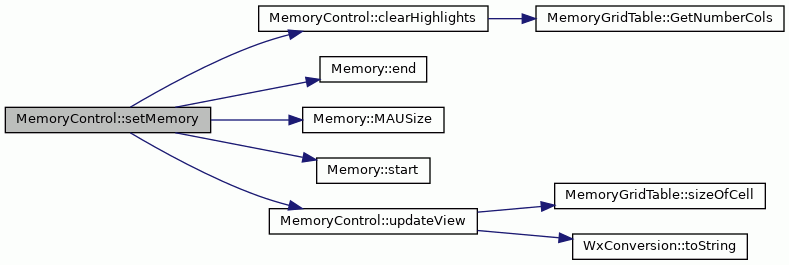

Here is the call graph for this function:

◆ updateView()

void MemoryControl::updateView ( )

Updates the contents of the memory.

Data is retrieved only for those area that is visible to user.

Definition at line 290 of file MemoryControl.cc.

                           {

     unsigned digits = table_->sizeOfCell() * MAUSize_;

     string dataMode = WxConversion::toString(dataMode_->GetStringSelection());

     if (dataMode == DATA_HEX) {
         digits = (digits / 4) + 3;
     } else if (dataMode == DATA_SIGNED_INT ||
                dataMode == DATA_UNSIGNED_INT) {

         digits = (digits / 3) + 1;
     } else if (dataMode == DATA_FLOAT ||
                dataMode == DATA_DOUBLE) {

         digits = 16;
     }

     grid_->SetDefaultColSize(digits * 12, true);
     grid_->ForceRefresh();
 }

References DATA_DOUBLE, DATA_FLOAT, DATA_HEX, DATA_SIGNED_INT, DATA_UNSIGNED_INT, dataMode_, grid_, MAUSize_, MemoryGridTable::sizeOfCell(), table_, and WxConversion::toString().

Referenced by clearMemory(), MemoryDialog::handleEvent(), onDataModeChanged(), onGoTo(), ProximMemoryWindow::onSimulationStop(), onSize(), onSizeModeChanged(), onWidthChanged(), onWriteMemory(), and setMemory().

Here is the call graph for this function:

Member Data Documentation

◆ DATA_BIN

const string MemoryControl::DATA_BIN = "Binary"

staticprivate

Data label for binary format.

Definition at line 86 of file MemoryControl.hh.

Referenced by onDataModeChanged().

◆ DATA_DOUBLE

const string MemoryControl::DATA_DOUBLE = "Double"

staticprivate

Data label for double format.

Definition at line 96 of file MemoryControl.hh.

Referenced by onDataModeChanged(), and updateView().

◆ DATA_FLOAT

const string MemoryControl::DATA_FLOAT = "Float"

staticprivate

Data label for float format.

Definition at line 94 of file MemoryControl.hh.

Referenced by onDataModeChanged(), and updateView().

◆ DATA_HEX

const string MemoryControl::DATA_HEX = "Hex"

staticprivate

Data label for hexa format.

Definition at line 88 of file MemoryControl.hh.

Referenced by onDataModeChanged(), and updateView().

◆ DATA_SIGNED_INT

const string MemoryControl::DATA_SIGNED_INT = "Signed int"

staticprivate

Data label for signed int format.

Definition at line 90 of file MemoryControl.hh.

Referenced by onDataModeChanged(), and updateView().

◆ DATA_UNSIGNED_INT

const string MemoryControl::DATA_UNSIGNED_INT = "Unsigned int"

staticprivate

Data label for unsigned int format.

Definition at line 92 of file MemoryControl.hh.

Referenced by onDataModeChanged(), and updateView().

◆ dataMode_

wxChoice* MemoryControl::dataMode_

private

Mode of the data in the cells.

Definition at line 127 of file MemoryControl.hh.

Referenced by createContents(), onDataModeChanged(), and updateView().

◆ end_

Word MemoryControl::end_

private

End point of memory.

Definition at line 123 of file MemoryControl.hh.

Referenced by highlight(), onGoTo(), and setMemory().

◆ goToAddress_

wxString MemoryControl::goToAddress_

private

Go to address.

Definition at line 133 of file MemoryControl.hh.

Referenced by onGoTo().

◆ grid_

wxGrid* MemoryControl::grid_

private

Grid in which the contents of the memory is written.

Definition at line 125 of file MemoryControl.hh.

Referenced by clearHighlights(), clearMemory(), copySelection(), createContents(), highlight(), onChar(), onGoTo(), onWidthChanged(), onWriteMemory(), setMemory(), and updateView().

◆ highlights_

std::vector<unsigned> MemoryControl::highlights_

private

Definition at line 141 of file MemoryControl.hh.

Referenced by clearHighlights(), and highlight().

◆ MAUSize_

int MemoryControl::MAUSize_

private

Size of the minimum addressable unit.

Definition at line 119 of file MemoryControl.hh.

Referenced by onWriteMemory(), setMemory(), and updateView().

◆ mausPerCell_

unsigned MemoryControl::mausPerCell_

private

Number of maus displayed in a cell.

Definition at line 139 of file MemoryControl.hh.

Referenced by highlight(), and onSizeModeChanged().

◆ memory_

Memory* MemoryControl::memory_

private

Used for access to memory contents.

Definition at line 117 of file MemoryControl.hh.

Referenced by createContents(), and setMemory().

◆ SIZE_EIGHT_MAUS

const string MemoryControl::SIZE_EIGHT_MAUS = "8 MAUs"

staticprivate

Size label for word size.

Definition at line 83 of file MemoryControl.hh.

Referenced by onSizeModeChanged().

◆ SIZE_FOUR_MAUS

const string MemoryControl::SIZE_FOUR_MAUS = "4 MAUs"

staticprivate

Size label for word size.

Definition at line 81 of file MemoryControl.hh.

Referenced by onSizeModeChanged().

◆ SIZE_MAU

const string MemoryControl::SIZE_MAU = "MAU"

staticprivate

Size label for byte size.

Definition at line 77 of file MemoryControl.hh.

Referenced by onSizeModeChanged().

◆ SIZE_TWO_MAUS

const string MemoryControl::SIZE_TWO_MAUS = "2 MAUs"

staticprivate

Size label for half word size.

Definition at line 79 of file MemoryControl.hh.

Referenced by onSizeModeChanged().

◆ sizeMode_

wxChoice* MemoryControl::sizeMode_

private

Mode of the data size.

Definition at line 129 of file MemoryControl.hh.

Referenced by createContents(), and onSizeModeChanged().

◆ sizer_

wxBoxSizer* MemoryControl::sizer_

private

Top level sizer of the window.

Definition at line 137 of file MemoryControl.hh.

Referenced by createContents().

◆ start_

Word MemoryControl::start_

private

Start point of memory.

Definition at line 121 of file MemoryControl.hh.

Referenced by highlight(), and setMemory().

◆ table_

MemoryGridTable* MemoryControl::table_

private

Grid contents.

Definition at line 135 of file MemoryControl.hh.

Referenced by clearHighlights(), clearMemory(), createContents(), highlight(), onDataModeChanged(), onGoTo(), onSizeModeChanged(), onWidthChanged(), onWriteMemory(), setMemory(), and updateView().

◆ WIDTH_16

const wxString MemoryControl::WIDTH_16 = _T("16")

staticprivate

Table width label for 16 column mode.

Definition at line 101 of file MemoryControl.hh.

Referenced by onWidthChanged().

◆ WIDTH_32

const wxString MemoryControl::WIDTH_32 = _T("32")

staticprivate

Table width label for 32 column mode.

Definition at line 103 of file MemoryControl.hh.

Referenced by onWidthChanged().

◆ WIDTH_8

const wxString MemoryControl::WIDTH_8 = _T("8")

staticprivate

Table width label for 8 column mode.

Definition at line 99 of file MemoryControl.hh.

Referenced by onWidthChanged().

◆ widthMode_

wxChoice* MemoryControl::widthMode_

private

Grid width choicer.

Definition at line 131 of file MemoryControl.hh.

Referenced by createContents(), and onWidthChanged().

The documentation for this class was generated from the following files:

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ MemoryControl() [1/2]

◆ ~MemoryControl()

◆ MemoryControl() [2/2]

Member Function Documentation

◆ clearHighlights()

◆ clearMemory()

◆ copySelection()

◆ createContents()

◆ highlight()

◆ onChar()

◆ onDataModeChanged()

◆ onGoTo()

◆ onSize()

◆ onSizeModeChanged()

◆ onWidthChanged()

◆ onWriteMemory()

◆ operator=()

◆ setMemory()

◆ updateView()

Member Data Documentation

◆ DATA_BIN

◆ DATA_DOUBLE

◆ DATA_FLOAT

◆ DATA_HEX

◆ DATA_SIGNED_INT

◆ DATA_UNSIGNED_INT

◆ dataMode_

◆ end_

◆ goToAddress_

◆ grid_

◆ highlights_

◆ MAUSize_

◆ mausPerCell_

◆ memory_

◆ SIZE_EIGHT_MAUS

◆ SIZE_FOUR_MAUS

◆ SIZE_MAU

◆ SIZE_TWO_MAUS

◆ sizeMode_

◆ sizer_

◆ start_

◆ table_

◆ WIDTH_16

◆ WIDTH_32

◆ WIDTH_8

◆ widthMode_
