MoveFigure Class Reference

#include <MoveFigure.hh>

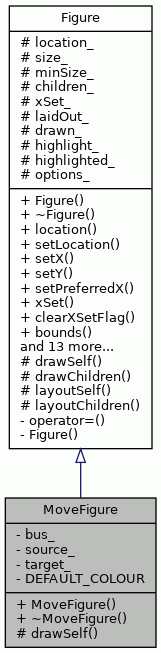

Inheritance diagram for MoveFigure:

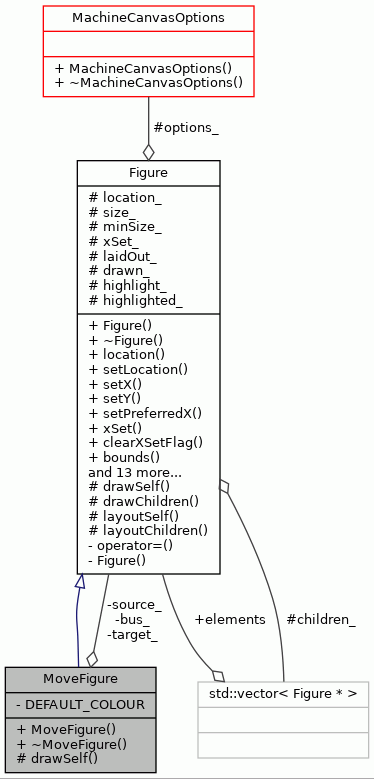

Collaboration diagram for MoveFigure:

Public Member Functions
	MoveFigure (Figure *bus, Figure *source, Figure *target)
virtual	~MoveFigure ()
Public Member Functions inherited from Figure
	Figure ()
virtual	~Figure ()
wxPoint	location () const
void	setLocation (wxPoint point)
void	setX (int x)
void	setY (int y)
void	setPreferredX (int x)
bool	xSet () const
void	clearXSetFlag ()
virtual wxRect	bounds () const
virtual wxRect	virtualBounds () const
void	setBounds (wxSize bounds)
void	setWidth (int width)
void	setHeight (int height)
virtual void	addChild (Figure *child)
int	childCount () const
Figure *	child (int index) const
virtual void	layout (wxDC *dc)
virtual void	draw (wxDC *dc)
void	highlight (const wxColour &colour)
void	clearHighlight ()
void	setOptions (MachineCanvasOptions *options)
MachineCanvasOptions *	options ()

Protected Member Functions
virtual void	drawSelf (wxDC *dc)
Protected Member Functions inherited from Figure
void	drawChildren (wxDC *dc)
virtual void	layoutSelf (wxDC *)
virtual void	layoutChildren (wxDC *)

Private Attributes
Figure *	bus_
	Figure of the bus where the move is done.
Figure *	source_
	Figure of the source port.
Figure *	target_
	Figure of the TargetPort.

Static Private Attributes
static const wxColour	DEFAULT_COLOUR = wxColour(255, 255, 0)
	Default colour of the figure.

Additional Inherited Members
Protected Attributes inherited from Figure
wxPoint	location_
	Top-left location of the Figure's bounding rectangle.
wxSize	size_
	wxSize of the Figure's bounding rectangle.
wxSize	minSize_
	Figure's minimum size.
std::vector< Figure * >	children_
	Figure's children.
bool	xSet_
	Tells if x-coordinate has been fixed.
bool	laidOut_
	Tells whether the Figure and its children have been laid out or not.
bool	drawn_
	Tells whether the Figure and its children have been drawn or not.
wxColour	highlight_
	Highlight colour.
bool	highlighted_
	Tells if the figure is highlighted.
MachineCanvasOptions *	options_
	Options which are used for customizing figures.

Detailed Description

Figure of a move.

Definition at line 41 of file MoveFigure.hh.

Constructor & Destructor Documentation

MoveFigure()

MoveFigure::MoveFigure	(	Figure *	bus,
		Figure *	source,
		Figure *	target
	)

The Constructor.

Parameters

bus	Figure of the bus which transports the move.
source	Figure of the source port of the move.
target	Figure of the target port of the move.

Definition at line 45 of file MoveFigure.cc.

                                                                 :
    Figure(), bus_(bus), source_(source), target_(target) {

        laidOut_ = true;
}

References Figure::laidOut_.

~MoveFigure()

MoveFigure::~MoveFigure ( )

virtual

The Destructor.

Definition at line 55 of file MoveFigure.cc.

                        {
}

Member Function Documentation

drawSelf()

void MoveFigure::drawSelf ( wxDC *  dc )

protectedvirtual

Draws the move figure on a device context.

Parameters

dc	Device context where to draw the figure.

Reimplemented from Figure.

Definition at line 65 of file MoveFigure.cc.

                             {

    assert(bus_ != NULL);

    wxPen pen = wxPen(DEFAULT_COLOUR, 4, wxSOLID);
    wxBrush brush = wxBrush(DEFAULT_COLOUR, wxSOLID);
    dc->SetPen(pen);
    dc->SetBrush(brush);

    int offset = MachineCanvasLayoutConstraints::PORT_WIDTH / 2;
    int busY = bus_->location().y + bus_->bounds().GetHeight()/2;

    int sourceX = 0;
    int targetX = 0;

    // Draw source port -> bus line.
    if (source_ != NULL) {
        sourceX = source_->location().x + source_->bounds().GetWidth()/2;
        int sourceY = source_->location().y + offset * 2;
        dc->DrawLine(sourceX, sourceY, sourceX, busY);
        int size = std::max(
            std::min(source_->bounds().GetWidth(),
                     (MachineCanvasLayoutConstraints::BUS_SPACE-2)),
            (MachineCanvasLayoutConstraints::SOCKET_WIDTH));
        dc->DrawCircle(sourceX, busY, size/2);
    }

    // Draw bus -> target port line.
    if (target_ != NULL) {
        targetX = target_->location().x + target_->bounds().GetWidth()/2;
        int targetY = target_->location().y + offset * 2;
        dc->DrawLine(targetX, targetY, targetX, busY);
        int size = std::max(
            std::min(target_->bounds().GetWidth(),
                     (MachineCanvasLayoutConstraints::BUS_SPACE-2)),
            (MachineCanvasLayoutConstraints::SOCKET_WIDTH));
        dc->DrawCircle(targetX, busY, size/2);
    }

    // Draw line on the bus.
    if (target_ != NULL && source_ != NULL) {
        dc->DrawLine(sourceX, busY, targetX, busY);
    } else {
        // Source or target missing. Draw move over the whole bus.
        sourceX = bus_->location().x;
        targetX = bus_->location().x + bus_->bounds().GetWidth();
        dc->DrawLine(sourceX, busY, targetX, busY);
    }
}

References assert, Figure::bounds(), bus_, MachineCanvasLayoutConstraints::BUS_SPACE, DEFAULT_COLOUR, Figure::location(), MachineCanvasLayoutConstraints::PORT_WIDTH, MachineCanvasLayoutConstraints::SOCKET_WIDTH, source_, and target_.

Here is the call graph for this function:

Member Data Documentation

bus_

Figure* MoveFigure::bus_

private

Figure of the bus where the move is done.

Definition at line 53 of file MoveFigure.hh.

Referenced by drawSelf().

DEFAULT_COLOUR

const wxColour MoveFigure::DEFAULT_COLOUR = wxColour(255, 255, 0)

staticprivate

Default colour of the figure.

Definition at line 51 of file MoveFigure.hh.

Referenced by drawSelf().

source_

Figure* MoveFigure::source_

private

Figure of the source port.

Definition at line 55 of file MoveFigure.hh.

Referenced by drawSelf().

target_

Figure* MoveFigure::target_

private

Figure of the TargetPort.

Definition at line 57 of file MoveFigure.hh.

Referenced by drawSelf().

---

The documentation for this class was generated from the following files:

• MoveFigure.hh
• MoveFigure.cc
