OSEdUserManualCmd Class Reference

#include <OSEdUserManualCmd.hh>

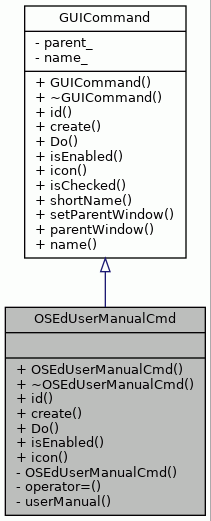

Inheritance diagram for OSEdUserManualCmd:

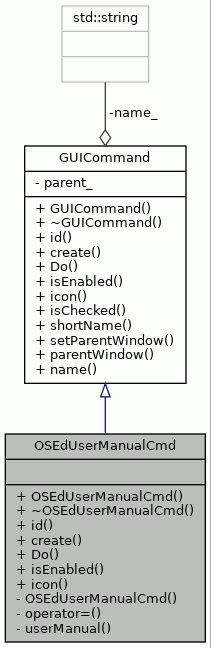

Collaboration diagram for OSEdUserManualCmd:

Public Member Functions
	OSEdUserManualCmd ()
virtual	~OSEdUserManualCmd ()
virtual int	id () const
virtual GUICommand *	create () const
virtual bool	Do ()
virtual bool	isEnabled ()
virtual std::string	icon () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Private Member Functions
	OSEdUserManualCmd (const OSEdUserManualCmd &)
	Copying not allowed. More...
OSEdUserManualCmd &	operator= (const OSEdUserManualCmd &)
	Assignment not allowed. More...
std::string	userManual () const

Detailed Description

Command for opening user manual browser.

Definition at line 43 of file OSEdUserManualCmd.hh.

Constructor & Destructor Documentation

OSEdUserManualCmd() [1/2]

OSEdUserManualCmd::OSEdUserManualCmd

(

)

Constructor.

Definition at line 49 of file OSEdUserManualCmd.cc.

                                     :
    GUICommand(OSEdConstants::CMD_NAME_USER_MANUAL, NULL) {
}

Referenced by create().

~OSEdUserManualCmd()

OSEdUserManualCmd::~OSEdUserManualCmd ( )

virtual

Destructor.

Definition at line 56 of file OSEdUserManualCmd.cc.

                                      {
}

OSEdUserManualCmd() [2/2]

OSEdUserManualCmd::OSEdUserManualCmd ( const OSEdUserManualCmd &  )

private

Copying not allowed.

Member Function Documentation

create()

GUICommand * OSEdUserManualCmd::create ( ) const

virtual

Creates new command.

Returns

New command.

Implements GUICommand.

Definition at line 75 of file OSEdUserManualCmd.cc.

                                {
    return new OSEdUserManualCmd();
}

References OSEdUserManualCmd().

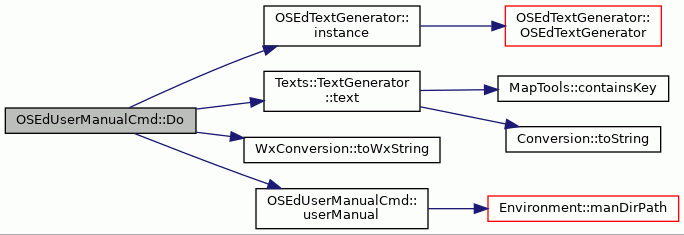

Here is the call graph for this function:

Do()

bool OSEdUserManualCmd::Do ( )

virtual

Executes the command.

Returns

True if execution is successful.

Implements GUICommand.

Definition at line 85 of file OSEdUserManualCmd.cc.

                      {

    string manualFile = userManual();

    OSEdTextGenerator& texts = OSEdTextGenerator::instance();
    format fmt = texts.text(OSEdTextGenerator::TXT_USER_MANUAL_TITLE);

    HelpBrowser* browser = new HelpBrowser(
        WxConversion::toWxString(fmt.str()),
        WxConversion::toWxString(manualFile), wxDefaultPosition,
        wxSize(800, 600));

    browser->Show(true);
    return true;
}

References OSEdTextGenerator::instance(), Texts::TextGenerator::text(), WxConversion::toWxString(), OSEdTextGenerator::TXT_USER_MANUAL_TITLE, and userManual().

Here is the call graph for this function:

icon()

string OSEdUserManualCmd::icon ( ) const

virtual

Returns the icon path.

Returns

Empty string (icons not used).

Implements GUICommand.

Definition at line 120 of file OSEdUserManualCmd.cc.

                              {
    return "";
}

id()

int OSEdUserManualCmd::id ( ) const

virtual

Returns the id of the command.

Returns

The id of the command.

Implements GUICommand.

Definition at line 65 of file OSEdUserManualCmd.cc.

                            {
    return OSEdConstants::CMD_USER_MANUAL;
}

References OSEdConstants::CMD_USER_MANUAL.

isEnabled()

bool OSEdUserManualCmd::isEnabled ( )

virtual

Returns true if command is enabled.

Command is enabled when user manual exists.

Returns

True if command is enabled.

Implements GUICommand.

Definition at line 109 of file OSEdUserManualCmd.cc.

                             {
    string manualFile = userManual();
    return FileSystem::fileExists(manualFile);
}

References FileSystem::fileExists(), and userManual().

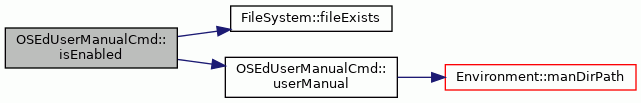

Here is the call graph for this function:

operator=()

OSEdUserManualCmd& OSEdUserManualCmd::operator= ( const OSEdUserManualCmd &  )

private

Assignment not allowed.

userManual()

std::string OSEdUserManualCmd::userManual ( ) const

private

Returns the user manual location.

Returns

User manual location.

Definition at line 130 of file OSEdUserManualCmd.cc.

                                    {
    return Environment::manDirPath("OSALGUI") +
        FileSystem::DIRECTORY_SEPARATOR + "OSALGUI" +
        FileSystem::DIRECTORY_SEPARATOR + OSEdConstants::USER_MANUAL_NAME;
}

References FileSystem::DIRECTORY_SEPARATOR, Environment::manDirPath(), and OSEdConstants::USER_MANUAL_NAME.

Referenced by Do(), and isEnabled().

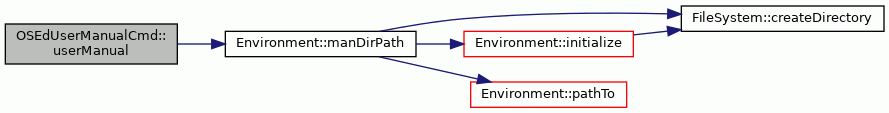

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• OSEdUserManualCmd.hh
• OSEdUserManualCmd.cc
