#include <OperationNode.hh>

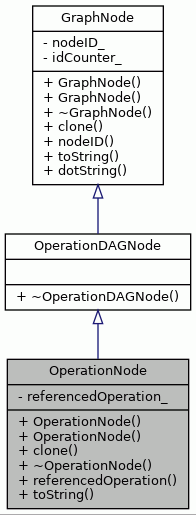

Inheritance diagram for OperationNode:

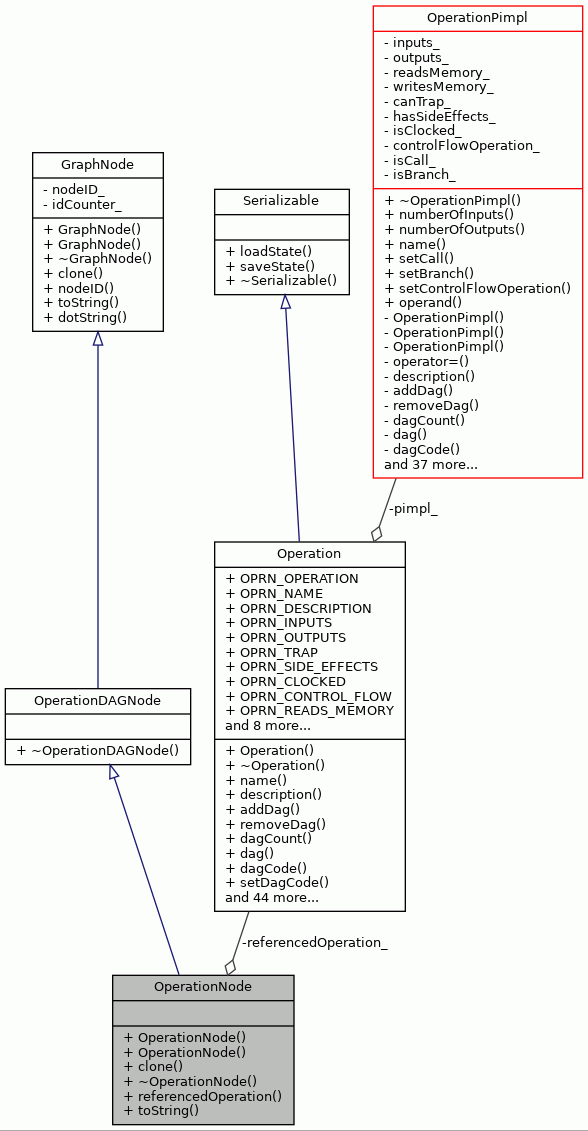

Collaboration diagram for OperationNode:

Public Member Functions
	OperationNode (Operation &operation)

	OperationNode (const OperationNode &other)

virtual GraphNode *	clone () const

virtual	~OperationNode ()

Operation &	referencedOperation () const

virtual std::string	toString () const

Public Member Functions inherited from OperationDAGNode
virtual	~OperationDAGNode ()

Public Member Functions inherited from GraphNode
	GraphNode (int nodeID)

	GraphNode ()

virtual	~GraphNode ()

int	nodeID () const

virtual std::string	dotString () const

Private Attributes
Operation *	referencedOperation_

Detailed Description

One operation node of the operation DAG.

Definition at line 47 of file OperationNode.hh.

Constructor & Destructor Documentation

◆ OperationNode() [1/2]

OperationNode::OperationNode ( Operation & op )

Constructor.

Parameters

Definition at line 44 of file OperationNode.cc.

                                           :
     OperationDAGNode(), referencedOperation_(&op) {
 }

Referenced by clone().

◆ OperationNode() [2/2]

OperationNode::OperationNode ( const OperationNode & other )

Definition at line 48 of file OperationNode.cc.

                                                        :
     OperationDAGNode(), referencedOperation_(&(other.referencedOperation())) {
 }

◆ ~OperationNode()

virtual OperationNode::~OperationNode ( )

inlinevirtual

Definition at line 54 of file OperationNode.hh.

54 {}

Member Function Documentation

◆ clone()

GraphNode * OperationNode::clone ( ) const

virtual

Clones node. Needed for dynamic binding, when copying instances through the base class.

Returns: Dynamically allocated copy of the node.

Reimplemented from GraphNode.

Definition at line 60 of file OperationNode.cc.

                            {
     return new OperationNode(*this);
 }

References OperationNode().

Here is the call graph for this function:

◆ referencedOperation()

Operation & OperationNode::referencedOperation ( ) const

Returns operation that is referred from current node.

Returns: Operation that is referred from current node.

Definition at line 70 of file OperationNode.cc.

                                          {
     assert(referencedOperation_ != NULL);
     return *referencedOperation_;
 }

References assert, and referencedOperation_.

Referenced by OperationDAGBehavior::canBeSimulated(), Automagic::canGenerateFromDAG(), ProGeTools::canGenerateFromDAG(), OperationDAGBuilder::connectOperandToNode(), OperationDAGSelector::countUnknownOperations(), TDGen::dagNodeToString(), TDGen::emulatingOpNodeLLVMName(), OperationDAGSelector::findDags(), MemoryAliasAnalyzer::findTwoPartAddressOperands(), TDGen::immediateOperandNameForEmulatedOperation(), MemoryAliasAnalyzer::mausOfOperation(), Automagic::nodeLatency(), ProGeTools::nodeLatency(), OperationDAGBehavior::OperationDAGBehavior(), TDGen::operationDAGCanBeMatched(), TDGen::operationNodeToString(), FUGen::scheduleOperations(), FUGen::subOpName(), and OperationDAGConverter::writeNode().

◆ toString()

std::string OperationNode::toString ( ) const

virtual

Returns a node description as a string.

Used for printing graph into .dot file. This is used for a label in the default dotString() implementation.

Returns: The node ID as a string.

Reimplemented from GraphNode.

Definition at line 76 of file OperationNode.cc.

                               {
     return referencedOperation_->name();
 }

References Operation::name(), and referencedOperation_.

Referenced by OperationDAGBuilder::connectOperandToNode().

Here is the call graph for this function:

Member Data Documentation

◆ referencedOperation_

Operation* OperationNode::referencedOperation_

private

Definition at line 60 of file OperationNode.hh.

Referenced by referencedOperation(), and toString().

The documentation for this class was generated from the following files:
