#include <OutputPSocketResource.hh>

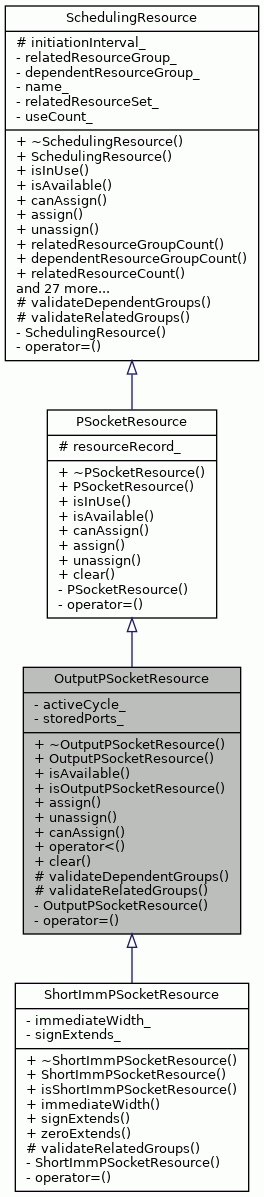

Inheritance diagram for OutputPSocketResource:

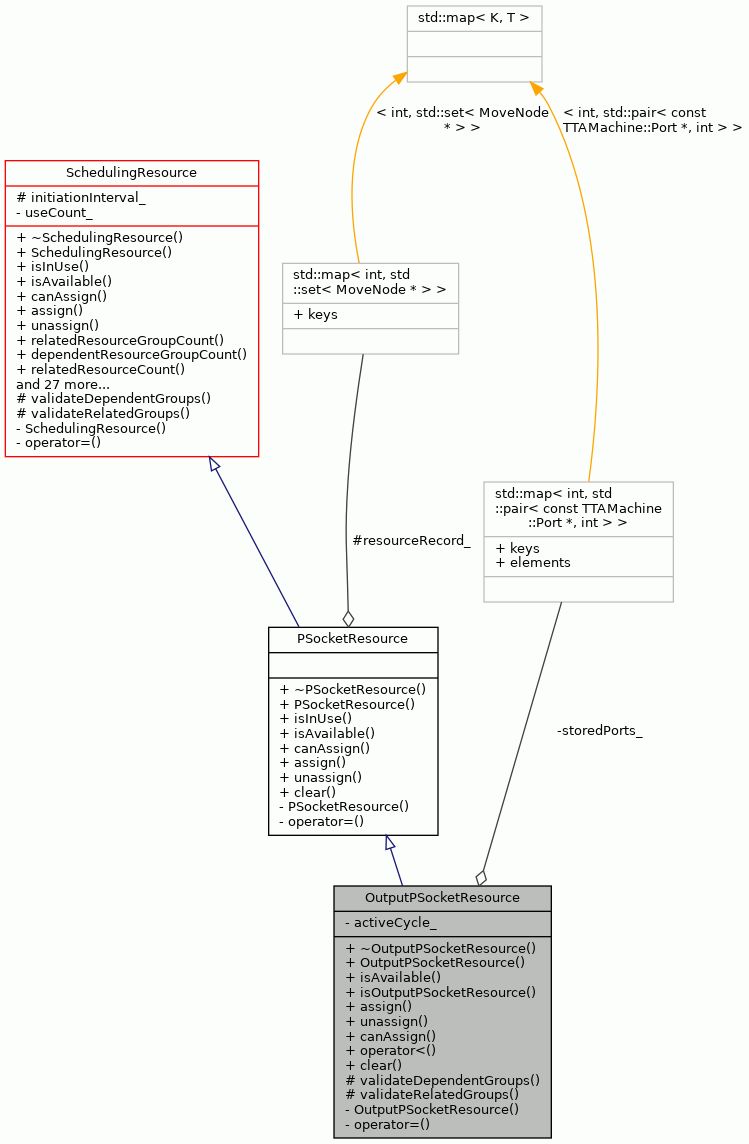

Collaboration diagram for OutputPSocketResource:

Public Member Functions
virtual	~OutputPSocketResource ()

	OutputPSocketResource (const std::string &name, unsigned int initiationInterval=0)

virtual bool	isAvailable (const int cycle) const override

virtual bool	isOutputPSocketResource () const override

virtual void	assign (const int cycle, MoveNode &node) override

virtual void	unassign (const int cycle, MoveNode &node) override

virtual bool	canAssign (const int cycle, const MoveNode &node) const override

virtual bool	operator< (const SchedulingResource &other) const override

void	clear () override

Public Member Functions inherited from PSocketResource
virtual	~PSocketResource ()

	PSocketResource (const std::string &name, unsigned int initiationInterval=0)

virtual bool	isInUse (const int cycle) const override

void	clear () override

Public Member Functions inherited from SchedulingResource
virtual	~SchedulingResource ()

	SchedulingResource (const std::string &name, const unsigned int ii=0)

virtual int	relatedResourceGroupCount () const

virtual int	dependentResourceGroupCount () const

int	relatedResourceCount (const int group) const

int	dependentResourceCount (const int group) const

virtual void	addToRelatedGroup (const int group, SchedulingResource &resource)

virtual void	addToDependentGroup (const int group, SchedulingResource &resource)

virtual SchedulingResource &	relatedResource (const int group, const int index) const

virtual SchedulingResource &	dependentResource (const int group, const int index) const

virtual bool	hasRelatedResource (const SchedulingResource &sResource) const

virtual bool	hasDependentResource (const SchedulingResource &sResource) const

virtual const std::string &	name () const

virtual int	useCount () const

virtual void	increaseUseCount ()

virtual void	decreaseUseCount ()

virtual bool	isInputPSocketResource () const

virtual bool	isShortImmPSocketResource () const

virtual bool	isInputFUResource () const

virtual bool	isOutputFUResource () const

virtual bool	isExecutionPipelineResource () const

virtual bool	isBusResource () const

virtual bool	isSegmentResource () const

virtual bool	isIUResource () const

virtual bool	isITemplateResource () const

int	instructionIndex (int cycle) const

void	setInitiationInterval (unsigned int ii)

int	initiationInterval () const

virtual void	setMaxCycle (unsigned int)

Protected Member Functions
virtual bool	validateDependentGroups () override

virtual bool	validateRelatedGroups () override

Private Member Functions
	OutputPSocketResource (const OutputPSocketResource &)

OutputPSocketResource &	operator= (const OutputPSocketResource &)

Private Attributes
int	activeCycle_

std::map< int, std::pair< const TTAMachine::Port *, int > >	storedPorts_

Additional Inherited Members
Protected Types inherited from PSocketResource
typedef std::map< int, std::set< MoveNode * > >	ResourceRecordType

Protected Attributes inherited from PSocketResource
ResourceRecordType	resourceRecord_

Protected Attributes inherited from SchedulingResource
int	initiationInterval_

Detailed Description

An interface for scheduling resources of Resource Model The derived class OutputPSocketResource

Definition at line 52 of file OutputPSocketResource.hh.

Constructor & Destructor Documentation

◆ ~OutputPSocketResource()

OutputPSocketResource::~OutputPSocketResource ( )

virtual

Destructor.

Definition at line 54 of file OutputPSocketResource.cc.

54 {}

◆ OutputPSocketResource() [1/2]

OutputPSocketResource::OutputPSocketResource	(	const std::string &	name,
		unsigned int	initiationInterval = `0`
	)

Constructor.

Parameters

name	Name of resource.

Definition at line 48 of file OutputPSocketResource.cc.

48 :

49 PSocketResource(name, initiationInterval), activeCycle_(-1) {}

◆ OutputPSocketResource() [2/2]

OutputPSocketResource::OutputPSocketResource ( const OutputPSocketResource & )

private

Member Function Documentation

◆ assign()

void OutputPSocketResource::assign	(	const int	cycle,
		MoveNode &	node
	)

overridevirtual

Assign resource to given node for given cycle.

Parameters

cycle	Cycle to assign
node	MoveNode to assign

Reimplemented from PSocketResource.

Definition at line 83 of file OutputPSocketResource.cc.

 {
     PSocketResource::assign(cycle, node);
     auto i = storedPorts_.find(instructionIndex(cycle));
     if (i == storedPorts_.end()) {
         const TTAMachine::Port* newPort = &node.move().source().port();
         storedPorts_[instructionIndex(cycle)] =
             std::make_pair(newPort,1);
     } else {
         i->second.second++;
     }
 }

References PSocketResource::assign(), SchedulingResource::instructionIndex(), MoveNode::move(), TTAProgram::Terminal::port(), TTAProgram::Move::source(), and storedPorts_.

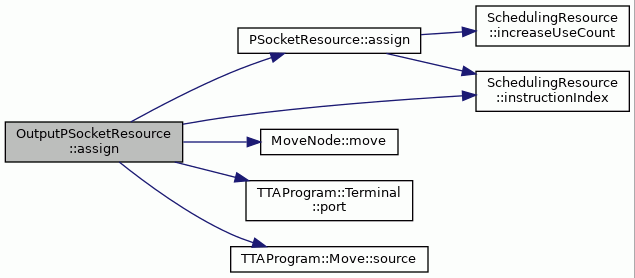

Here is the call graph for this function:

◆ canAssign()

bool OutputPSocketResource::canAssign	(	const int	cycle,
		const MoveNode &	node
	)		const

overridevirtual

Return true if resource can be assigned for given resource in given cycle.

Parameters

cycle	Cycle to test
node	MoveNode to test

Returns: true if node can be assigned to cycle

Reimplemented from PSocketResource.

Definition at line 124 of file OutputPSocketResource.cc.

           {
     MoveNode& mNode = const_cast<MoveNode&>(node);
     auto i = storedPorts_.find(instructionIndex(cycle));
     if (mNode.move().source().isFUPort()) {
         if (i != storedPorts_.end()) {
             const TTAMachine::Port* storedP = i->second.first;
             if (&mNode.move().source().port() != storedP) {
                 return false;
             }
         }
     }
     if (mNode.move().source().isImmediateRegister()) {
         if (i != storedPorts_.end()) {
             return false;
         }
     }
     if (node.move().source().isGPR()) {
         if (i != storedPorts_.end()) {
             const TTAMachine::Port* storedP =
                 i->second.first;
             if (mNode.move().source().port().parentUnit() !=
                 storedP->parentUnit()) {
                 return false;
             }
         }

         ResourceRecordType::const_iterator iter = resourceRecord_.find(cycle);
         if (iter != resourceRecord_.end()) {
             std::set<MoveNode*> movesInCycle = iter->second;
             for (std::set<MoveNode*>::iterator it = movesInCycle.begin();
                  it != movesInCycle.end(); it++) {
 #ifdef NO_OVERCOMMIT
                 return false;
 #else
                 MoveNode* mn = *it;
                 if (node.move().isUnconditional() ||
                     mn->move().isUnconditional()) {
                     if (node.move().source().port().parentUnit() !=
                         mn->move().source().port().parentUnit() ||
                             node.move().source().index() !=
                             mn->move().source().index()) {
                         return false;
                     } else {
                         continue;
                     }

                 }
                 if (!node.move().guard().guard().isOpposite(
                         mn->move().guard().guard())) {
                     if (!node.move().source().equals(
                             mn->move().source())) {
                         return false;
                     }
                 }
 #endif
             }
         }
     }
     activeCycle_ = cycle;
     return true;
 }

References activeCycle_, TTAProgram::Terminal::equals(), TTAProgram::MoveGuard::guard(), TTAProgram::Move::guard(), TTAProgram::Terminal::index(), SchedulingResource::instructionIndex(), TTAProgram::Terminal::isFUPort(), TTAProgram::Terminal::isGPR(), TTAProgram::Terminal::isImmediateRegister(), TTAMachine::Guard::isOpposite(), TTAProgram::Move::isUnconditional(), MoveNode::move(), TTAMachine::Port::parentUnit(), TTAProgram::Terminal::port(), PSocketResource::resourceRecord_, TTAProgram::Move::source(), and storedPorts_.

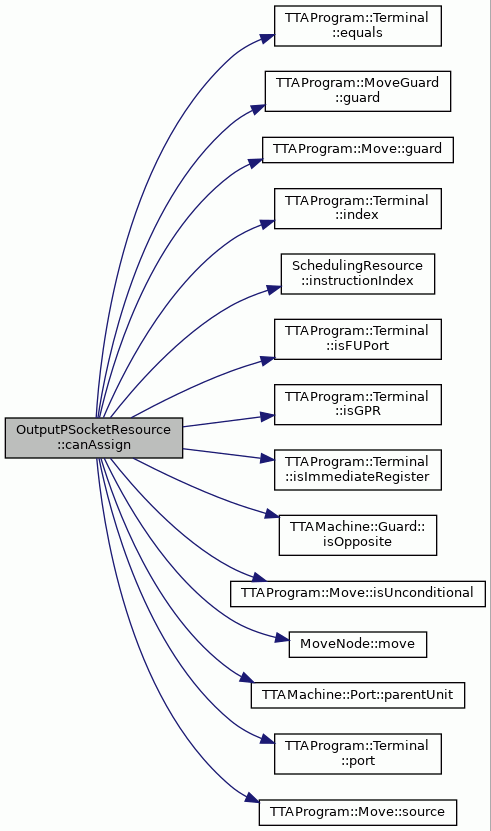

Here is the call graph for this function:

◆ clear()

void OutputPSocketResource::clear ( )

overridevirtual

Clears bookkeeping of the scheduling resource.

After this call the state of the resource should be identical to a newly-created and initialized resource.

Reimplemented from SchedulingResource.

Definition at line 305 of file OutputPSocketResource.cc.

                              {
     PSocketResource::clear();
     storedPorts_.clear();
 }

References PSocketResource::clear(), and storedPorts_.

Here is the call graph for this function:

◆ isAvailable()

bool OutputPSocketResource::isAvailable ( const int cycle ) const

overridevirtual

Test if resource OutputPSocketResource is available.

Parameters

cycle Cycle which to test.

Returns: Always true, multiple reads are possible.

Reimplemented from PSocketResource.

Definition at line 63 of file OutputPSocketResource.cc.

                                                   {
     return true;
 }

◆ isOutputPSocketResource()

bool OutputPSocketResource::isOutputPSocketResource ( ) const

overridevirtual

Return true always.

Returns: True always.

Reimplemented from SchedulingResource.

Definition at line 73 of file OutputPSocketResource.cc.

                                                      {
     return true;
 }

◆ operator<()

bool OutputPSocketResource::operator< ( const SchedulingResource & other ) const

overridevirtual

Comparison operator.

Favours sockets which have less connections.

TODO: precalc/cache these to optimize scheduling time?

Reimplemented from SchedulingResource.

Definition at line 232 of file OutputPSocketResource.cc.

                                                                        {
     const OutputPSocketResource *opsr =
         dynamic_cast<const OutputPSocketResource*>(&other);
     if (opsr == NULL) {
         return false;
     }

     // first priority is to put reads from same source to same psocket.
     // so favour the one with most moves in current cycle.
     int myCount = 0;
     int otherCount = 0;
     ResourceRecordType::const_iterator myIter = resourceRecord_.find(activeCycle_);
     if (myIter != resourceRecord_.end()) {
         myCount = myIter->second.size();
     }

     ResourceRecordType::const_iterator otherIter = opsr->resourceRecord_.find(opsr->activeCycle_);
     if (otherIter != opsr->resourceRecord_.end()) {
         otherCount = otherIter->second.size();
     }
     if (myCount  < otherCount) {
         return false;
     } else if (myCount > otherCount) {
         return true;
     }

     // favour sockets which have connections to busses with fewest connections
     // calculate the connections..
     int connCount = 0;
     int connCount2 = 0;

     int rrCount2 = relatedResourceCount(2);
     for (int i = 0; i < rrCount2; i++) {
         SchedulingResource& r = relatedResource(2,i);
         connCount += r.relatedResourceCount(0);
     }

     int oRRCount2 = other.relatedResourceCount(2);

     for (int i = 0; i < oRRCount2; i++) {
         SchedulingResource& r = other.relatedResource(2,i);
         connCount2 += r.relatedResourceCount(0);
     }

     // then the comparison.
     if (connCount < connCount2) {
         return true;
     }

     if (connCount > connCount2) {
         return false;
     }

     // favour sockets with less buses.
     if (rrCount2 < oRRCount2) {
         return true;
     }
     if (rrCount2 > oRRCount2) {
         return false;
     }

     // then use the default use count, name comparison,
     // but in opposite direction, facouring already used
     return other.SchedulingResource::operator<(*this);
 }

References activeCycle_, SchedulingResource::relatedResource(), SchedulingResource::relatedResourceCount(), and PSocketResource::resourceRecord_.

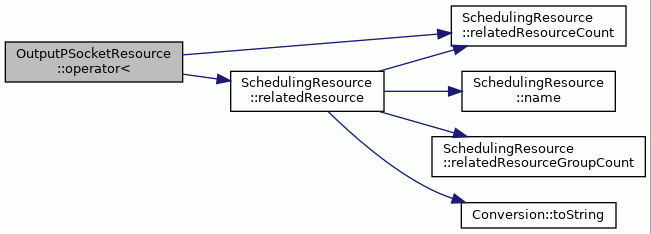

Here is the call graph for this function:

◆ operator=()

OutputPSocketResource& OutputPSocketResource::operator= ( const OutputPSocketResource & )

private

◆ unassign()

void OutputPSocketResource::unassign	(	const int	cycle,
		MoveNode &	node
	)

overridevirtual

Unassign resource from given node for given cycle.

Parameters

cycle	Cycle to remove assignment from
node	MoveNode to remove assignment from

Reimplemented from PSocketResource.

Definition at line 103 of file OutputPSocketResource.cc.

 {
     PSocketResource::unassign(cycle, node);
     auto i = storedPorts_.find(instructionIndex(cycle));
     if (i != storedPorts_.end()) {
         if (i->second.second == 1) {
             storedPorts_.erase(i);
         } else {
             i->second.second--;
         }
     }
 }

References SchedulingResource::instructionIndex(), storedPorts_, and PSocketResource::unassign().

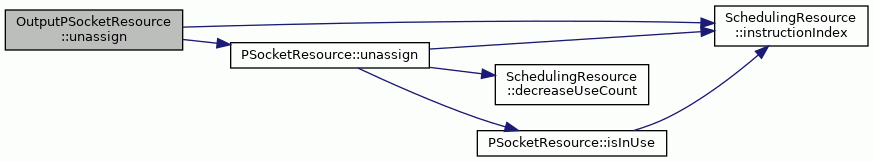

Here is the call graph for this function:

◆ validateDependentGroups()

bool OutputPSocketResource::validateDependentGroups ( )

overrideprotectedvirtual

Tests if all referred resources in dependent groups are of proper types.

Returns: True if all dependent groups are empty.

Reimplemented from SchedulingResource.

Definition at line 194 of file OutputPSocketResource.cc.

                                                {
     for (int i = 0; i < dependentResourceGroupCount(); i++) {
         if (dependentResourceCount(i) > 0) {
             return false;
         }
     }
     return true;
 }

References SchedulingResource::dependentResourceCount(), and SchedulingResource::dependentResourceGroupCount().

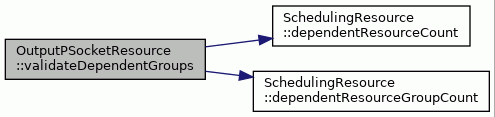

Here is the call graph for this function:

◆ validateRelatedGroups()

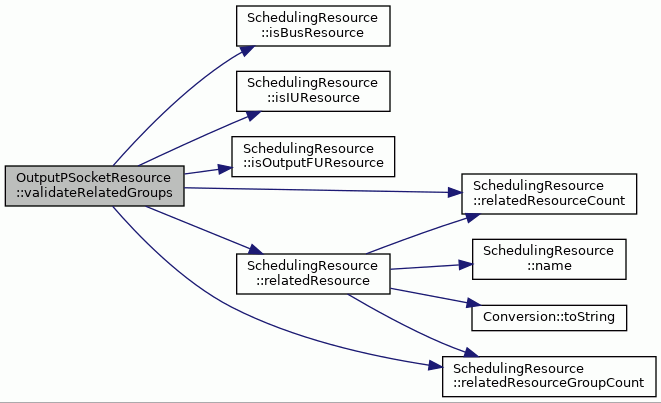

bool OutputPSocketResource::validateRelatedGroups ( )

overrideprotectedvirtual

Tests if all referred resources in related groups are of proper types.

Returns: True if all resources in related groups are Segment or OutputFU or IU resources.

Reimplemented from SchedulingResource.

Reimplemented in ShortImmPSocketResource.

Definition at line 211 of file OutputPSocketResource.cc.

                                              {
     for (int i = 0; i < relatedResourceGroupCount(); i++) {
         for (int j = 0, count = relatedResourceCount(i); j < count; j++) {
             if (!(relatedResource(i, j).isOutputFUResource() ||
                 relatedResource(i, j).isBusResource() ||
                 relatedResource(i, j).isIUResource())) {
                 return false;
             }
         }
     }
     return true;
 }

References SchedulingResource::isBusResource(), SchedulingResource::isIUResource(), SchedulingResource::isOutputFUResource(), SchedulingResource::relatedResource(), SchedulingResource::relatedResourceCount(), and SchedulingResource::relatedResourceGroupCount().

Here is the call graph for this function:

Member Data Documentation

◆ activeCycle_

int OutputPSocketResource::activeCycle_

mutableprivate

Definition at line 69 of file OutputPSocketResource.hh.

Referenced by canAssign(), and operator<().

◆ storedPorts_

std::map<int, std::pair<const TTAMachine::Port*, int> > OutputPSocketResource::storedPorts_

private

Definition at line 75 of file OutputPSocketResource.hh.

Referenced by assign(), canAssign(), clear(), and unassign().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~OutputPSocketResource()

◆ OutputPSocketResource() [1/2]

◆ OutputPSocketResource() [2/2]

Member Function Documentation

◆ assign()

◆ canAssign()

◆ clear()

◆ isAvailable()

◆ isOutputPSocketResource()

◆ operator<()

◆ operator=()

◆ unassign()

◆ validateDependentGroups()

◆ validateRelatedGroups()

Member Data Documentation

◆ activeCycle_

◆ storedPorts_
