#include <ParserStructs.hh>

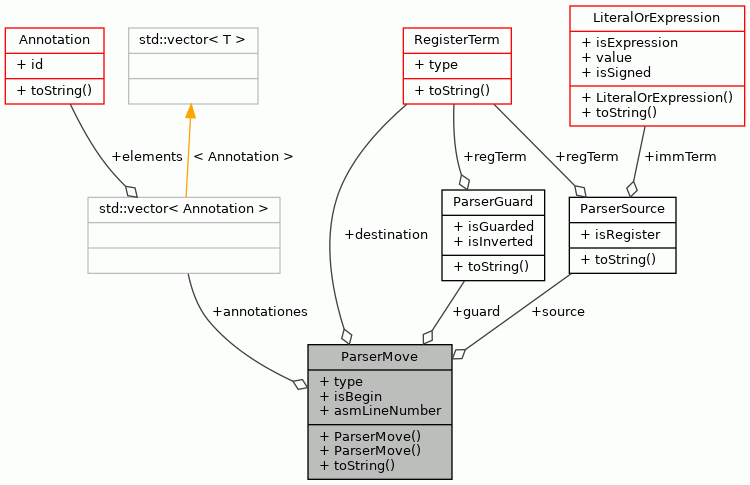

Collaboration diagram for ParserMove:

Public Types
enum	MoveType { EMPTY, LONG_IMMEDIATE, TRANSPORT }
	Types of instruction slots. More...

Public Member Functions
	ParserMove ()

	ParserMove (MoveType aType, bool begin)

std::string	toString () const

Public Attributes
MoveType	type
	Type of move. More...

bool	isBegin
	Tells whether the slot is the first of the instruction. More...

ParserGuard	guard
	Guard field. More...

ParserSource	source
	Source field. More...

RegisterTerm	destination
	Destination field. More...

UValue	asmLineNumber
	Line number of source code for errors. More...

std::vector< Annotation >	annotationes

Detailed Description

All info of one parsed instruction slot.

Instruction slot defines a move or long immediate. An instruction slot can also be empty (unused).

Definition at line 391 of file ParserStructs.hh.

Member Enumeration Documentation

◆ MoveType

enum ParserMove::MoveType

Types of instruction slots.

Enumerator
EMPTY	Empty move slot.
LONG_IMMEDIATE	Encoding of one long immediate slot.
TRANSPORT	Data transport (move).

Definition at line 394 of file ParserStructs.hh.

                   {
         EMPTY,          ///< Empty move slot.
         LONG_IMMEDIATE, ///< Encoding of one long immediate slot.
         TRANSPORT       ///< Data transport (move).
     };

Constructor & Destructor Documentation

◆ ParserMove() [1/2]

ParserMove::ParserMove ( )

inline

Empty constructor.

All values are set by hand.

Definition at line 422 of file ParserStructs.hh.

422 {

423 }

◆ ParserMove() [2/2]

ParserMove::ParserMove	(	MoveType	aType,
		bool	begin
	)

inline

Constructor.

Parameters

aType	Type of created move.
begin	Is first move of an instruction.

Definition at line 431 of file ParserStructs.hh.

                                            :
         type(aType), isBegin(begin) {
     }

Member Function Documentation

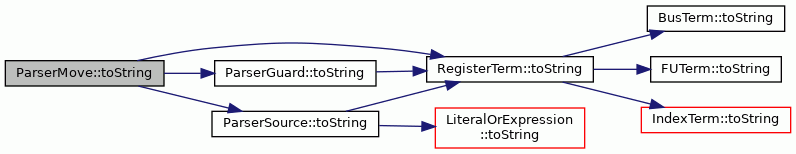

◆ toString()

std::string ParserMove::toString ( ) const

inline

String representation of term for error message generation.

Definition at line 438 of file ParserStructs.hh.

                                {
         std::stringstream retVal;
         switch (type) {
         case EMPTY:
             retVal << "...";
             break;

         case LONG_IMMEDIATE:
             retVal << "[" << destination.toString()
                    << "=" <<  source.toString()
                    << "]";

             for (unsigned int i = 0;i < annotationes.size();i++) {
                 retVal << annotationes[i].toString();
             }

             break;

         case TRANSPORT:
             retVal << guard.toString() << " "
                    << source.toString() << " -> "
                    << destination.toString();

             for (unsigned int i = 0;i < annotationes.size();i++) {
                 retVal << annotationes[i].toString();
             }

             break;

         default:
             retVal << "Unknown move type!\n";
         }
         return retVal.str();
     }
