ProDeRFEditPolicy Class Reference

#include <ProDeRFEditPolicy.hh>

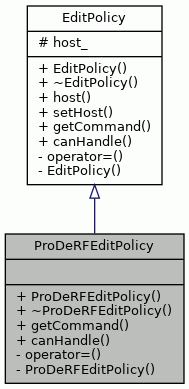

Inheritance diagram for ProDeRFEditPolicy:

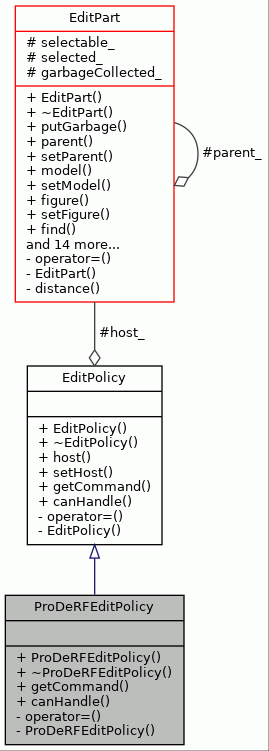

Collaboration diagram for ProDeRFEditPolicy:

Public Member Functions
	ProDeRFEditPolicy ()
virtual	~ProDeRFEditPolicy ()
virtual ComponentCommand *	getCommand (Request *request)
virtual bool	canHandle (Request *request) const
Public Member Functions inherited from EditPolicy
	EditPolicy ()
virtual	~EditPolicy ()
EditPart *	host () const
void	setHost (EditPart *host)

Private Member Functions
ProDeRFEditPolicy &	operator= (ProDeRFEditPolicy &old)
	Assignment not allowed. More...
	ProDeRFEditPolicy (ProDeRFEditPolicy &old)
	Copying not allowed. More...

Additional Inherited Members
Protected Attributes inherited from EditPolicy
EditPart *	host_
	Host EditPart of this EditPolicy. More...

Detailed Description

Determines how a register file EditPart acts when a Request is performed on it.

Converts a given Request to a Command if the EditPolicy supports the Request.

Definition at line 50 of file ProDeRFEditPolicy.hh.

Constructor & Destructor Documentation

ProDeRFEditPolicy() [1/2]

ProDeRFEditPolicy::ProDeRFEditPolicy

(

)

The Constructor.

Definition at line 56 of file ProDeRFEditPolicy.cc.

                                    : EditPolicy() {
}

~ProDeRFEditPolicy()

ProDeRFEditPolicy::~ProDeRFEditPolicy ( )

virtual

The Destructor.

Definition at line 62 of file ProDeRFEditPolicy.cc.

                                      {
}

ProDeRFEditPolicy() [2/2]

ProDeRFEditPolicy::ProDeRFEditPolicy ( ProDeRFEditPolicy &  old )

private

Copying not allowed.

Member Function Documentation

canHandle()

bool ProDeRFEditPolicy::canHandle ( Request *  request ) const

virtual

Tells whether this EditPolicy is able to handle a certain type of Request.

Parameters

request

Request to be asked if it can be handled.

Returns

True if the Request can be handled, false otherwise.

Implements EditPolicy.

Definition at line 128 of file ProDeRFEditPolicy.cc.

                                                   {
    Request::RequestType type = request->type();
    if (type == Request::MODIFY_REQUEST ||
    type == Request::DELETE_REQUEST ||
        type == Request::COPY_REQUEST ||
        type == Request::STATUS_REQUEST) {
    return true;
    } else {
    return false;
    }
}

References Request::COPY_REQUEST, Request::DELETE_REQUEST, Request::MODIFY_REQUEST, Request::STATUS_REQUEST, and Request::type().

Here is the call graph for this function:

getCommand()

ComponentCommand * ProDeRFEditPolicy::getCommand ( Request *  request )

virtual

Returns the Command corresponding to the type of the Request.

Parameters

request

Request to be handled.

Returns

NULL if the Request cannot be handled.

Implements EditPolicy.

Definition at line 72 of file ProDeRFEditPolicy.cc.

                                              {

    Request::RequestType type = request->type();

    if (type == Request::MODIFY_REQUEST) {
        ModifyRFCmd* modifyCmd = new ModifyRFCmd(host_);
        return modifyCmd;

    } else if (type == Request::DELETE_REQUEST) {
        DeleteRFCmd* deleteCmd = new DeleteRFCmd(host_);
        return deleteCmd;

    } else if (type == Request::COPY_REQUEST) {
        CopyComponent* copyCmd = new CopyComponent(host_);
        return copyCmd;

    } else if (type == Request::STATUS_REQUEST) {

        RegisterFile* rf = dynamic_cast<RegisterFile*>(host_->model());
        ProDeTextGenerator* generator = ProDeTextGenerator::instance();
        format fmt = generator->text(ProDeTextGenerator::STATUS_REGISTER_FILE);
        string type = "";
        if (rf->isNormal()) {
            type = generator->text(
                ProDeTextGenerator::TXT_RF_TYPE_NORMAL).str();
        } else if (rf->isVolatile()) {
            type = generator->text(
                ProDeTextGenerator::TXT_RF_TYPE_VOLATILE).str();
        } else if (rf->isReserved()) {
            type = generator->text(
                ProDeTextGenerator::TXT_RF_TYPE_RESERVED).str();
        } else {
            // unknown rf type
            assert(false);
        }

        fmt % rf->name() % type %
            Conversion::toString(rf->numberOfRegisters()) %
            Conversion::toString(rf->width());

        SetStatusTextCmd* statusCmd = new SetStatusTextCmd(fmt.str());
        return statusCmd;

    } else {
    return NULL;
    }
}

References assert, Request::COPY_REQUEST, Request::DELETE_REQUEST, EditPolicy::host_, ProDeTextGenerator::instance(), TTAMachine::RegisterFile::isNormal(), TTAMachine::RegisterFile::isReserved(), TTAMachine::RegisterFile::isVolatile(), EditPart::model(), Request::MODIFY_REQUEST, TTAMachine::Component::name(), TTAMachine::BaseRegisterFile::numberOfRegisters(), ProDeTextGenerator::STATUS_REGISTER_FILE, Request::STATUS_REQUEST, Texts::TextGenerator::text(), Conversion::toString(), ProDeTextGenerator::TXT_RF_TYPE_NORMAL, ProDeTextGenerator::TXT_RF_TYPE_RESERVED, ProDeTextGenerator::TXT_RF_TYPE_VOLATILE, Request::type(), and TTAMachine::BaseRegisterFile::width().

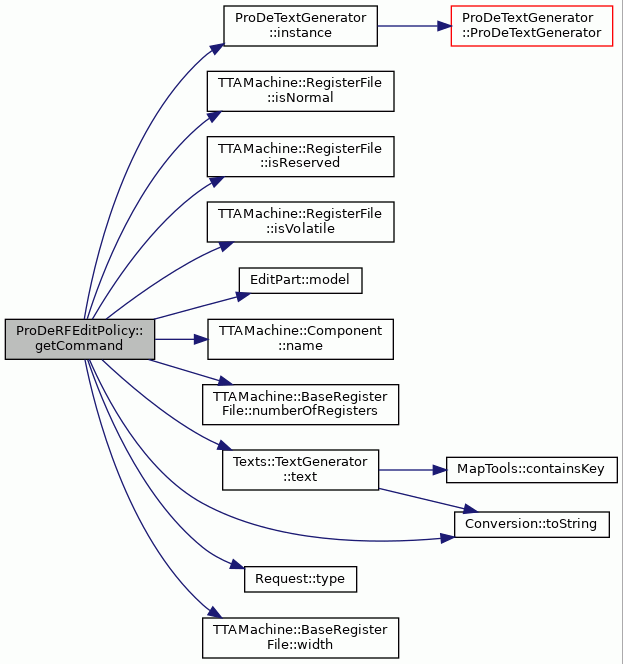

Here is the call graph for this function:

operator=()

ProDeRFEditPolicy& ProDeRFEditPolicy::operator= ( ProDeRFEditPolicy &  old )

private

Assignment not allowed.

---

The documentation for this class was generated from the following files:

• ProDeRFEditPolicy.hh
• ProDeRFEditPolicy.cc
