#include <ProgramDependenceEdge.hh>

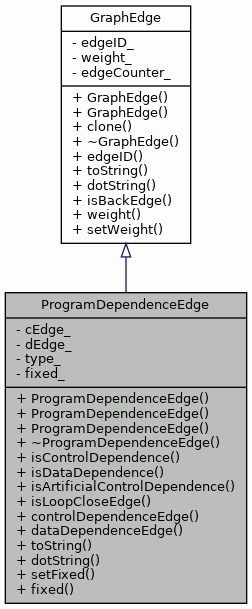

Inheritance diagram for ProgramDependenceEdge:

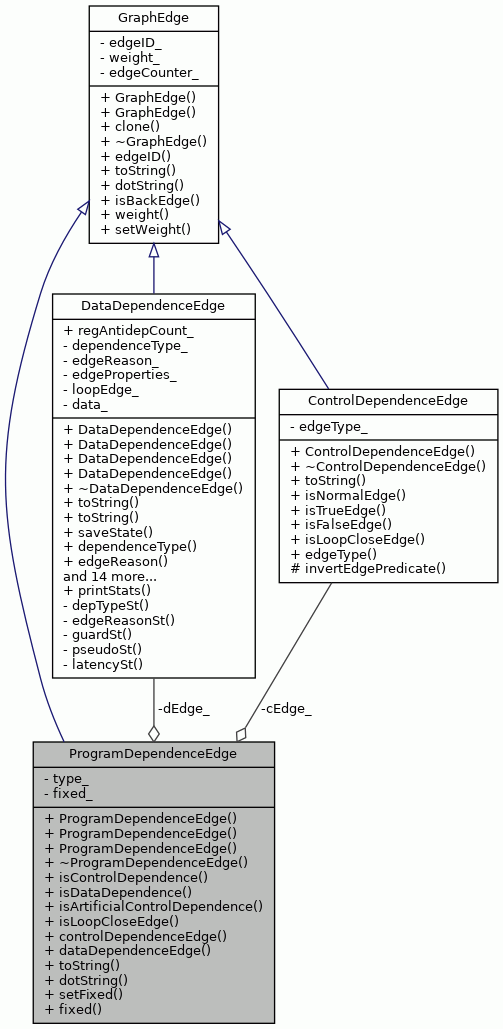

Collaboration diagram for ProgramDependenceEdge:

Public Types
enum	EdgeType { PDG_EDGE_CONTROL , PDG_EDGE_DATA , PDG_EDGE_LOOP_CLOSE , PDG_EDGE_CONTROL_ARTIFICIAL }

Public Member Functions
	ProgramDependenceEdge (ControlDependenceEdge &cEdge)

	ProgramDependenceEdge (DataDependenceEdge &cEdge)

	ProgramDependenceEdge (EdgeType type=PDG_EDGE_CONTROL_ARTIFICIAL)

virtual	~ProgramDependenceEdge ()

bool	isControlDependence () const

bool	isDataDependence () const

bool	isArtificialControlDependence () const

bool	isLoopCloseEdge () const

ControlDependenceEdge &	controlDependenceEdge ()

DataDependenceEdge &	dataDependenceEdge ()

TCEString	toString () const

TCEString	dotString () const

void	setFixed ()

bool	fixed ()

Public Member Functions inherited from GraphEdge
	GraphEdge ()

	GraphEdge (const GraphEdge &edge)

virtual GraphEdge *	clone () const

virtual	~GraphEdge ()

virtual int	edgeID () const

virtual bool	isBackEdge () const

int	weight () const

void	setWeight (int w)

Private Attributes
ControlDependenceEdge *	cEdge_

DataDependenceEdge *	dEdge_

EdgeType	type_

bool	fixed_
	Set to fixed if edge is not to be moved any more while serializing.

Detailed Description

Definition at line 41 of file ProgramDependenceEdge.hh.

Member Enumeration Documentation

◆ EdgeType

enum ProgramDependenceEdge::EdgeType

Enumerator
PDG_EDGE_CONTROL
PDG_EDGE_DATA	Indicates Control Dependence Edge from CDG.
PDG_EDGE_LOOP_CLOSE	Indicates Data Dependence Edge from DDG.
PDG_EDGE_CONTROL_ARTIFICIAL	Loop close edge from close node to loop entry. Indicates artificial control edge for serialization

Definition at line 43 of file ProgramDependenceEdge.hh.

                  {
        PDG_EDGE_CONTROL, /// Indicates Control Dependence Edge from CDG
        PDG_EDGE_DATA, /// Indicates Data Dependence Edge from DDG
        PDG_EDGE_LOOP_CLOSE, /// Loop close edge from close node to loop entry
        PDG_EDGE_CONTROL_ARTIFICIAL /// Indicates artificial control edge for
                                    /// serialization
    };

Constructor & Destructor Documentation

◆ ProgramDependenceEdge() [1/3]

ProgramDependenceEdge::ProgramDependenceEdge ( ControlDependenceEdge & cEdge )

Constructor, makes new Program Dependence Edge with reference to original Control Dependence Edge in CDG.

Parameters

cEdge Control Dependence Edge

Definition at line 50 of file ProgramDependenceEdge.cc.

    : cEdge_(&cEdge), dEdge_(NULL), type_(PDG_EDGE_CONTROL), fixed_(false) {
    if (cEdge.isLoopCloseEdge()) {
        type_ = PDG_EDGE_LOOP_CLOSE;
    } else {
        type_ = PDG_EDGE_CONTROL;
    }
}

References ControlDependenceEdge::isLoopCloseEdge(), PDG_EDGE_CONTROL, PDG_EDGE_LOOP_CLOSE, and type_.

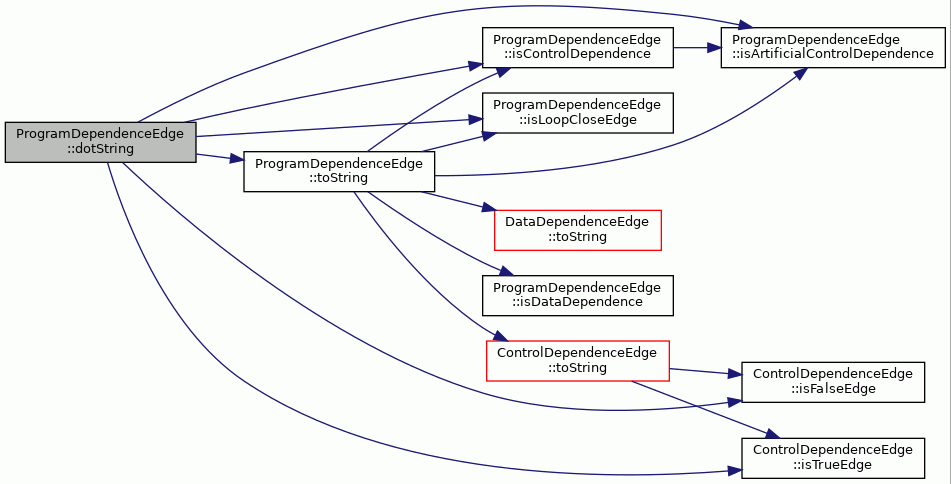

Here is the call graph for this function:

◆ ProgramDependenceEdge() [2/3]

ProgramDependenceEdge::ProgramDependenceEdge ( DataDependenceEdge & dEdge )

Constructor, makes new Program Dependence Edge with reference to original Data Dependence Edge in DDG.

Parameters

dEdge Data Dependence Edge

Definition at line 65 of file ProgramDependenceEdge.cc.

67 : cEdge_(NULL), dEdge_(&dEdge), type_(PDG_EDGE_DATA), fixed_(false) {

68}

◆ ProgramDependenceEdge() [3/3]

ProgramDependenceEdge::ProgramDependenceEdge ( EdgeType type = PDG_EDGE_CONTROL_ARTIFICIAL )

Constructor, makes new Program Dependence Edge without reference to original Control Dependence Edge in CDG. It is artificial edge.

Definition at line 41 of file ProgramDependenceEdge.cc.

42 : cEdge_(NULL), dEdge_(NULL), type_(type), fixed_(false) {

43}

◆ ~ProgramDependenceEdge()

ProgramDependenceEdge::~ProgramDependenceEdge ( )

virtual

Empty destructor.

Definition at line 73 of file ProgramDependenceEdge.cc.

73 {

74}

Member Function Documentation

◆ controlDependenceEdge()

ControlDependenceEdge & ProgramDependenceEdge::controlDependenceEdge ( )

Returns reference to control dependence edge of CDG.

Returns: control dependence edge of underlying CDG

Definition at line 166 of file ProgramDependenceEdge.cc.

                                             {
    if (cEdge_ != NULL) {
        return *cEdge_;
    } else {
        throw InvalidData(__FILE__, __LINE__, __func__,
            "Not a control dependence edge!");
    }
}

References __func__, and cEdge_.

◆ dataDependenceEdge()

DataDependenceEdge & ProgramDependenceEdge::dataDependenceEdge ( )

Returns reference to data dependence edge of CDG.

Returns: data dependence edge of underlying DDG

Definition at line 179 of file ProgramDependenceEdge.cc.

                                          {
    return *dEdge_;
}

References dEdge_.

Referenced by ProgramDependenceGraph::moveDDGedges().

◆ dotString()

TCEString ProgramDependenceEdge::dotString ( ) const

virtual

Returns the edge description as a string in .dot format.

Returns: string describing the edge payload in .dot format

Reimplemented from GraphEdge.

Definition at line 101 of file ProgramDependenceEdge.cc.

                                       {
    if (isArtificialControlDependence()) {
       return TCEString("label=\"") + toString() + "\",color=green";
    }
    if (isLoopCloseEdge()) {
       return TCEString("label=\"") + toString() + "\",color=cyan";
    }

    if (isControlDependence()) {
        if (cEdge_->isTrueEdge()) {
            return TCEString("label=\"") + toString() + "\",color=blue";
        }
        if (cEdge_->isFalseEdge()) {
            return TCEString("label=\"") + toString() + "\",color=red";
        }
        return TCEString("label=\"") + toString() + "\"";
    }
    return TCEString("label=\"") + toString() + "\",style=dashed";
}

References cEdge_, isArtificialControlDependence(), isControlDependence(), ControlDependenceEdge::isFalseEdge(), isLoopCloseEdge(), ControlDependenceEdge::isTrueEdge(), and toString().

Here is the call graph for this function:

◆ fixed()

bool ProgramDependenceEdge::fixed ( )

inline

Definition at line 66 of file ProgramDependenceEdge.hh.

66{ return fixed_; }

References fixed_.

◆ isArtificialControlDependence()

bool ProgramDependenceEdge::isArtificialControlDependence ( ) const

Tests if edge is artificial control dependence type. Artificial edges are added during PDG synchronization.

Returns: true if edge is artificial control dependence

Definition at line 147 of file ProgramDependenceEdge.cc.

                                                           {
    return type_ == PDG_EDGE_CONTROL_ARTIFICIAL;
}

References PDG_EDGE_CONTROL_ARTIFICIAL, and type_.

Referenced by dotString(), isControlDependence(), and toString().

◆ isControlDependence()

bool ProgramDependenceEdge::isControlDependence ( ) const

Tests if edge is control dependence type.

Returns: true if edge is control dependence

Definition at line 126 of file ProgramDependenceEdge.cc.

                                                 {
    if (isArtificialControlDependence()) {
        return true;
    }
    return type_ == PDG_EDGE_CONTROL && cEdge_ != NULL ;
}

References cEdge_, isArtificialControlDependence(), PDG_EDGE_CONTROL, and type_.

Referenced by dotString(), and toString().

Here is the call graph for this function:

◆ isDataDependence()

bool ProgramDependenceEdge::isDataDependence ( ) const

Tests if edge is data dependence type.

Returns: true if edge is data dependence

Definition at line 137 of file ProgramDependenceEdge.cc.

                                              {
    return type_ == PDG_EDGE_DATA && dEdge_ != NULL;
}

References dEdge_, PDG_EDGE_DATA, and type_.

Referenced by toString().

◆ isLoopCloseEdge()

bool ProgramDependenceEdge::isLoopCloseEdge ( ) const

Tests if edge is loop close edge from artificial close node to loop entry node

Returns: true if edge is loop close edge

Definition at line 157 of file ProgramDependenceEdge.cc.

                                             {
    return type_ == PDG_EDGE_LOOP_CLOSE;
}

References PDG_EDGE_LOOP_CLOSE, and type_.

Referenced by dotString(), and toString().

◆ setFixed()

void ProgramDependenceEdge::setFixed ( )

inline

Definition at line 65 of file ProgramDependenceEdge.hh.

65{ fixed_ = true; }

References fixed_.

◆ toString()

TCEString ProgramDependenceEdge::toString ( ) const

virtual

Returns the edge description as a string.

Returns: string describing the edge payload

Reimplemented from GraphEdge.

Definition at line 81 of file ProgramDependenceEdge.cc.

                                      {
    if (isArtificialControlDependence()) {
        return "PDG_ARTIFICIAL";
    }
    if (isLoopCloseEdge()) {
        return "LoopClose";
    }
    if (isDataDependence()) {
        return dEdge_->toString();
    }
    if (isControlDependence()) {
        return cEdge_->toString();
    }
    return "Error!";
}

References cEdge_, dEdge_, isArtificialControlDependence(), isControlDependence(), isDataDependence(), isLoopCloseEdge(), ControlDependenceEdge::toString(), and DataDependenceEdge::toString().

Referenced by dotString().

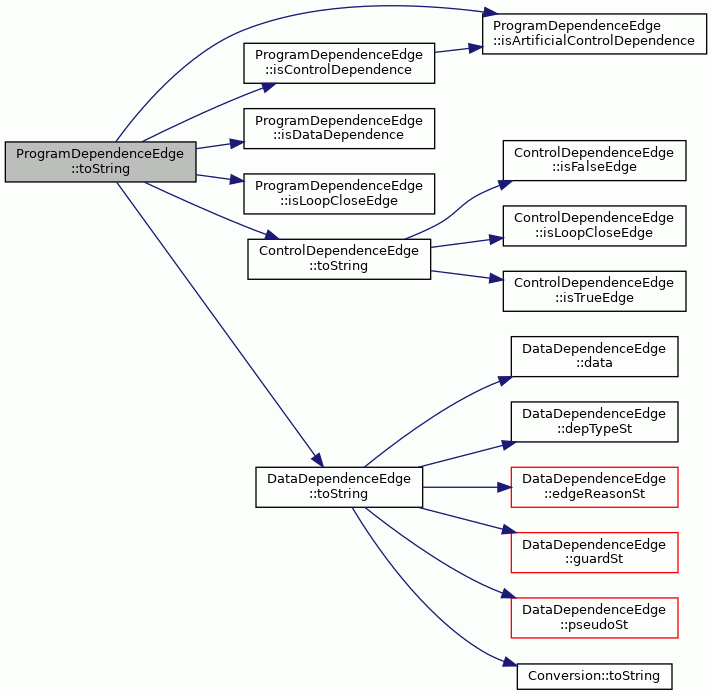

Here is the call graph for this function:

Member Data Documentation

◆ cEdge_

ControlDependenceEdge* ProgramDependenceEdge::cEdge_

private

Definition at line 68 of file ProgramDependenceEdge.hh.

Referenced by controlDependenceEdge(), dotString(), isControlDependence(), and toString().

◆ dEdge_

DataDependenceEdge* ProgramDependenceEdge::dEdge_

private

Definition at line 69 of file ProgramDependenceEdge.hh.

Referenced by dataDependenceEdge(), isDataDependence(), and toString().

◆ fixed_

bool ProgramDependenceEdge::fixed_

private

Set to fixed if edge is not to be moved any more while serializing.

Definition at line 72 of file ProgramDependenceEdge.hh.

Referenced by fixed(), and setFixed().

◆ type_

EdgeType ProgramDependenceEdge::type_

private

Definition at line 70 of file ProgramDependenceEdge.hh.

Referenced by isArtificialControlDependence(), isControlDependence(), isDataDependence(), isLoopCloseEdge(), and ProgramDependenceEdge().

The documentation for this class was generated from the following files:
