#include <ProgramDependenceNode.hh>

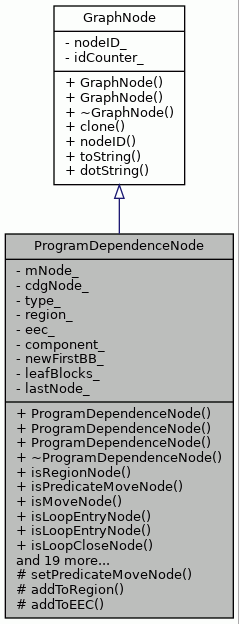

Inheritance diagram for ProgramDependenceNode:

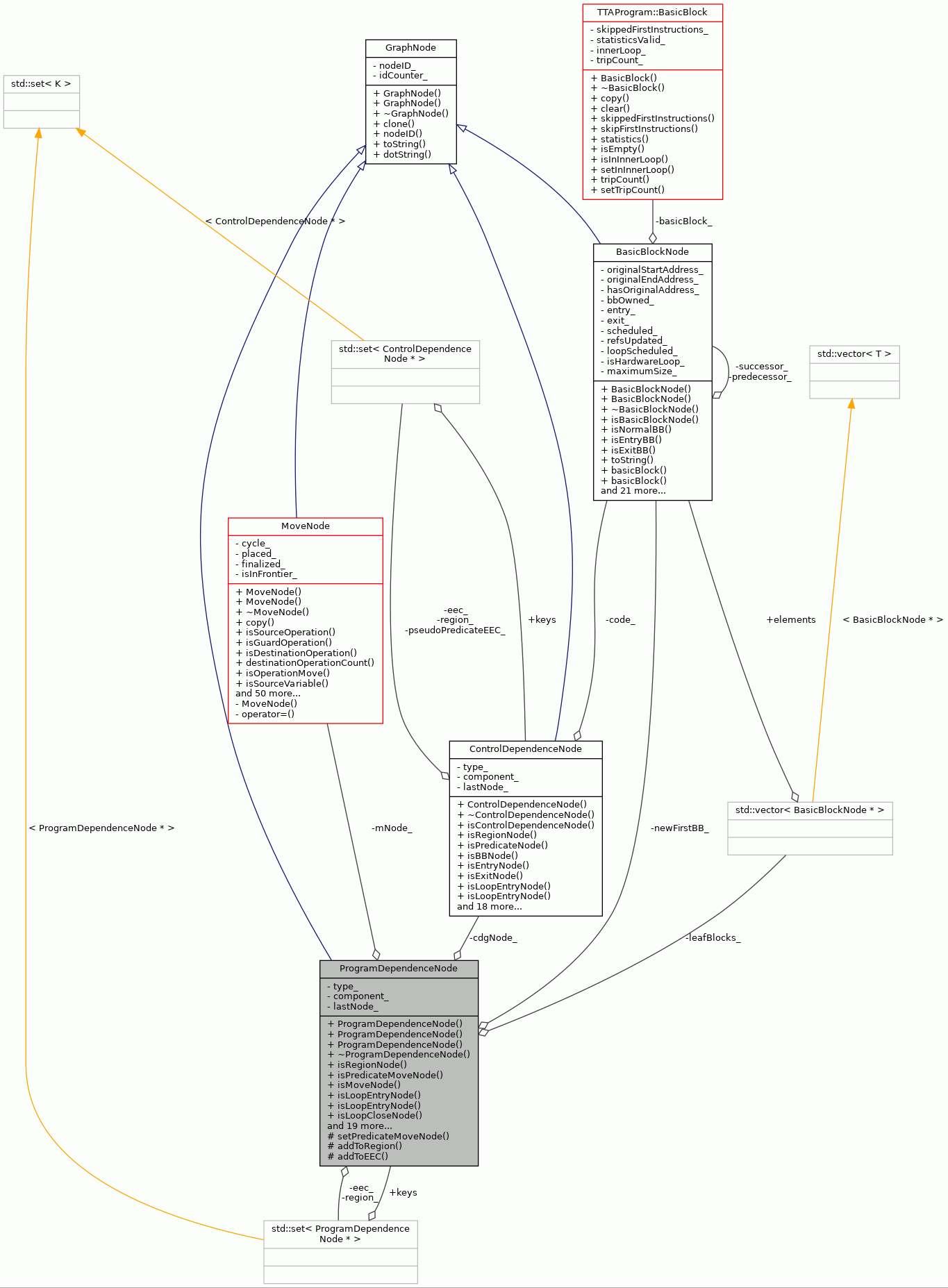

Collaboration diagram for ProgramDependenceNode:

Public Types
enum	NodeType { PDG_NODE_REGION, PDG_NODE_PREDICATE, PDG_NODE_MOVE, PDG_NODE_LOOPENTRY, PDG_NODE_LOOPCLOSE }

typedef std::set< ProgramDependenceNode * >	NodesInfo

Public Member Functions
	ProgramDependenceNode (NodeType type=PDG_NODE_REGION)

	ProgramDependenceNode (ControlDependenceNode &cdgNode, NodeType type=PDG_NODE_REGION)

	ProgramDependenceNode (MoveNode &mNode, NodeType type=PDG_NODE_MOVE)

virtual	~ProgramDependenceNode ()

bool	isRegionNode () const

bool	isPredicateMoveNode () const

bool	isMoveNode () const

bool	isLoopEntryNode () const

bool	isLoopEntryNode (int component) const

bool	isLoopCloseNode () const

bool	isLastNode () const

void	setLoopEntryNode (int component)

void	setComponent (int component)

void	setLastNode ()

int	component () const

MoveNode &	moveNode ()

const MoveNode &	moveNode () const

ControlDependenceNode &	cdgNode ()

const ControlDependenceNode &	cdgNode () const

std::string	dotString () const

std::string	toString () const

const NodesInfo &	region ()

const NodesInfo &	eec ()

void	printRelations () const

BasicBlockNode *	newFirstBB ()

void	setNewFirstBB (BasicBlockNode *newBB)

std::vector< BasicBlockNode * >	leafBlocks ()

void	addLeafBlock (BasicBlockNode *newLeaf)

void	addLeafBlocks (std::vector< BasicBlockNode * > newLeafs)

Public Member Functions inherited from GraphNode
	GraphNode (int nodeID)

	GraphNode ()

virtual	~GraphNode ()

virtual GraphNode *	clone () const

int	nodeID () const

Protected Member Functions
void	setPredicateMoveNode ()

void	addToRegion (ProgramDependenceNode &node)

void	addToEEC (ProgramDependenceNode &node)

Private Attributes
MoveNode *	mNode_

ControlDependenceNode *	cdgNode_

NodeType	type_

NodesInfo	region_
	Stores "region" information for computing serialization information. More...

NodesInfo	eec_
	Stores "eec" information for computing serialization information. More...

int	component_
	Number of strong component the node belongs to. Node can be part of several strong components so this value have practical meaning only for loop close nodes - close just one loop, and loop entry nodes - marks a component in which node is loop entry. Still can be regular region of larger loop Full list of nodes that belongs to actual components is available in strongComponents_ vector in PDG. More...

BasicBlockNode *	newFirstBB_
	First basic block of a subgraph of a region. More...

std::vector< BasicBlockNode * >	leafBlocks_
	Vector of basic blocks of a subgraph that do not have outgoing edged and will need to get connected. More...

bool	lastNode_
	Indicates that node must be scheduled last between it's siblings because it's subgraph contains close node and it's parent is entry. More...

Friends
class	ProgramDependenceGraph

Detailed Description

Definition at line 43 of file ProgramDependenceNode.hh.

Member Typedef Documentation

◆ NodesInfo

typedef std::set<ProgramDependenceNode*> ProgramDependenceNode::NodesInfo

Definition at line 64 of file ProgramDependenceNode.hh.

Member Enumeration Documentation

◆ NodeType

enum ProgramDependenceNode::NodeType

Enumerator
PDG_NODE_REGION
PDG_NODE_PREDICATE
PDG_NODE_MOVE
PDG_NODE_LOOPENTRY
PDG_NODE_LOOPCLOSE

Definition at line 45 of file ProgramDependenceNode.hh.

                   {
         PDG_NODE_REGION, // Region nodes of PDG
         PDG_NODE_PREDICATE, // Predicate nodes of PDG
         PDG_NODE_MOVE,   // Single statements nodes
         PDG_NODE_LOOPENTRY, // Region that is loop entry node
         PDG_NODE_LOOPCLOSE // Region that is loop entry node
     };

Constructor & Destructor Documentation

◆ ProgramDependenceNode() [1/3]

ProgramDependenceNode::ProgramDependenceNode ( NodeType type = PDG_NODE_REGION )

Constructor creating Program Dependence Node which is empty. Does not have related CDG node. For example Loop Close node.

Parameters

type	Type of the node

Definition at line 45 of file ProgramDependenceNode.cc.

     : GraphNode(), type_(type), component_(-1), newFirstBB_(NULL),
     lastNode_(false) {
     mNode_ = NULL;
     cdgNode_ = NULL;
 }

References cdgNode_, and mNode_.

◆ ProgramDependenceNode() [2/3]

ProgramDependenceNode::ProgramDependenceNode	(	ControlDependenceNode &	cdgNode,
		NodeType	type = `PDG_NODE_REGION`
	)

Constructor creating Program Dependence Node from Control Dependence region node.

Parameters

cdgNode	node of CDG
type	Type of the node

Definition at line 59 of file ProgramDependenceNode.cc.

     : GraphNode(), cdgNode_(&cdgNode), type_(type), component_(-1),
     newFirstBB_(NULL), lastNode_(false) {
     mNode_ = NULL;
 }

References mNode_.

◆ ProgramDependenceNode() [3/3]

ProgramDependenceNode::ProgramDependenceNode	(	MoveNode &	mNode,
		NodeType	type = `PDG_NODE_MOVE`
	)

Constructor creating Program Dependence Node from Data Dependence node.

Parameters

mNode	MoveNode of DDG
type	Type of the node

Definition at line 72 of file ProgramDependenceNode.cc.

     : GraphNode(), mNode_(&mNode), type_(type), component_(-1),
     newFirstBB_(NULL), lastNode_(false) {
     cdgNode_ = NULL;
 }

References cdgNode_.

◆ ~ProgramDependenceNode()

ProgramDependenceNode::~ProgramDependenceNode ( )

virtual

Empty destructor.

Definition at line 83 of file ProgramDependenceNode.cc.

                                               {
     region_.clear();
     eec_.clear();
 }

References eec_, and region_.

Member Function Documentation

◆ addLeafBlock()

void ProgramDependenceNode::addLeafBlock ( BasicBlockNode * newLeaf )

inline

Definition at line 90 of file ProgramDependenceNode.hh.

90 {

91 leafBlocks_.push_back(newLeaf); }

References leafBlocks_.

Referenced by ProgramDependenceGraph::processPredicate(), and ProgramDependenceGraph::processRegion().

◆ addLeafBlocks()

void ProgramDependenceNode::addLeafBlocks ( std::vector< BasicBlockNode * > newLeafs )

inline

Definition at line 92 of file ProgramDependenceNode.hh.

                                                             {
         leafBlocks_.insert(leafBlocks_.end(), newLeafs.begin(), newLeafs.end());
     }

References leafBlocks_.

Referenced by ProgramDependenceGraph::processRegion().

◆ addToEEC()

void ProgramDependenceNode::addToEEC ( ProgramDependenceNode & node )

protected

Add node to "eec" set for computing serialization information

Parameters

node	Node to add to the set

Definition at line 270 of file ProgramDependenceNode.cc.

                                                            {
     eec_.insert(&node);
 }

References eec_.

Referenced by ProgramDependenceGraph::computeEECInfo(), ProgramDependenceGraph::copyRegionEECComponent(), and ProgramDependenceGraph::serializePDG().

◆ addToRegion()

void ProgramDependenceNode::addToRegion ( ProgramDependenceNode & node )

protected

Add node to "region" set for computing serialization information

Parameters

node	Node to add to the set

Definition at line 250 of file ProgramDependenceNode.cc.

                                                               {
     region_.insert(&node);
 }

References region_.

Referenced by ProgramDependenceGraph::computeRegionInfo(), ProgramDependenceGraph::copyRegionEECComponent(), ProgramDependenceGraph::regionHelper(), and ProgramDependenceGraph::serializePDG().

◆ cdgNode() [1/2]

const ControlDependenceNode & ProgramDependenceNode::cdgNode ( )

Returns CDGNode corresponding to given node in CDG.

Returns: CDGNode corresponding to given node in CDG

Returns CDGNode corresponding to given node in CDG as constant.

Returns: CDGNode corresponding to given node in CDG as constant

Definition at line 214 of file ProgramDependenceNode.cc.

                                {
     if ((type_ == PDG_NODE_REGION
         || type_ == PDG_NODE_LOOPENTRY
         || type_ == PDG_NODE_LOOPCLOSE)
         && cdgNode_ != NULL) {
         return *cdgNode_;
     } else {
         TCEString msg = "ControlNode type does not contain CDGNode in ";
         msg += toString() + "!";
         throw InvalidData(__FILE__, __LINE__, __func__, msg);
     }
 }

References __func__, cdgNode_, PDG_NODE_LOOPCLOSE, PDG_NODE_LOOPENTRY, PDG_NODE_REGION, toString(), and type_.

Referenced by ProgramDependenceGraph::copyRegionEECComponent().

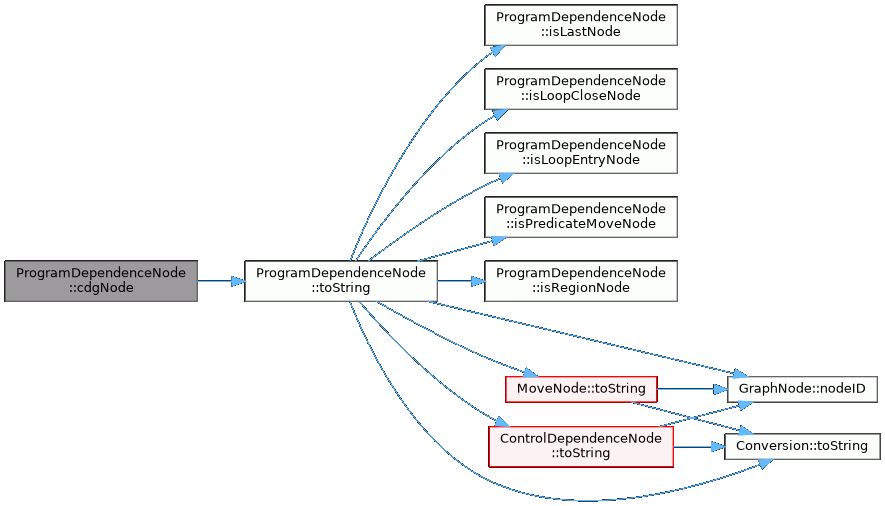

Here is the call graph for this function:

◆ cdgNode() [2/2]

const ControlDependenceNode& ProgramDependenceNode::cdgNode ( ) const

◆ component()

int ProgramDependenceNode::component ( ) const

inline

Definition at line 76 of file ProgramDependenceNode.hh.

76 { return component_;}

References component_.

Referenced by ProgramDependenceGraph::computeEECInfo(), ProgramDependenceGraph::computeRegionInfo(), ProgramDependenceGraph::copyRegionEECComponent(), isLoopEntryNode(), ProgramDependenceGraph::processLoopEntry(), setComponent(), and setLoopEntryNode().

◆ dotString()

std::string ProgramDependenceNode::dotString ( ) const

virtual

Returns content of a node as a string in .dot format.

Returns: string representing content of a node in .dot format

Reimplemented from GraphNode.

Definition at line 140 of file ProgramDependenceNode.cc.

                                        {
     if (isPredicateMoveNode()) {
         return TCEString("label=\"") +
             toString() + "\",shape=box,color=green";
     }
     if (isRegionNode()) {
         return TCEString("label=\"")
             + toString() + "\",shape=box,color=blue";
     }
     if (isMoveNode() && moveNode().isMove() && moveNode().move().isCall()) {
         return TCEString("label=\"")
                     + toString() + "\",shape=box,color=red";
     }
     if (isLoopEntryNode()) {
         return TCEString("label=\"")
             + toString() + "\",shape=box,color=red";
     }
     if (isLoopCloseNode()) {
         return TCEString("label=\"")
             + toString() + "\",shape=box,color=yellow";
     }

     return TCEString("label=\"") + toString() + "\"";
 }

References isLoopCloseNode(), isLoopEntryNode(), isMoveNode(), isPredicateMoveNode(), isRegionNode(), moveNode(), and toString().

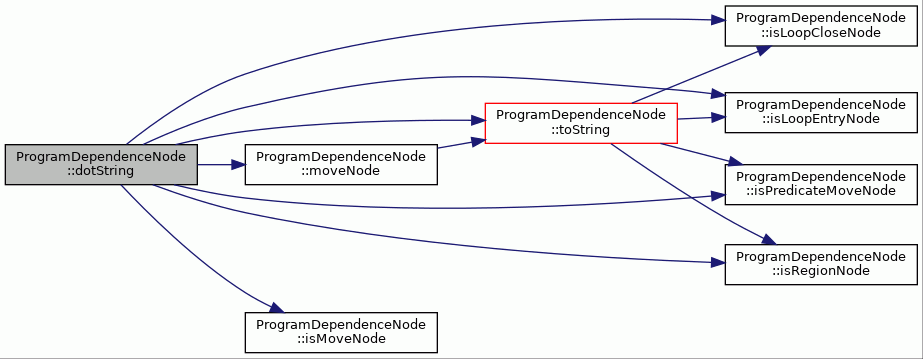

Here is the call graph for this function:

◆ eec()

const ProgramDependenceNode::NodesInfo & ProgramDependenceNode::eec ( )

Returns the "eec" set for given node

Returns: the "eec" set for given node

Definition at line 281 of file ProgramDependenceNode.cc.

                            {
     return eec_;
 }

References eec_.

Referenced by ProgramDependenceGraph::compareSiblings(), and ProgramDependenceGraph::computeEECInfo().

◆ isLastNode()

bool ProgramDependenceNode::isLastNode ( ) const

inline

Definition at line 72 of file ProgramDependenceNode.hh.

72 { return lastNode_;}

References lastNode_.

Referenced by ProgramDependenceGraph::compareSiblings(), and toString().

◆ isLoopCloseNode()

bool ProgramDependenceNode::isLoopCloseNode ( ) const

inline

Definition at line 71 of file ProgramDependenceNode.hh.

71 { return type_ == PDG_NODE_LOOPCLOSE;}

References PDG_NODE_LOOPCLOSE, and type_.

Referenced by ProgramDependenceGraph::compareSiblings(), ProgramDependenceGraph::computeEECInfo(), ProgramDependenceGraph::computeRelations(), ProgramDependenceGraph::copyRegionEECComponent(), dotString(), ProgramDependenceGraph::processPredicate(), ProgramDependenceGraph::regionHelper(), and toString().

◆ isLoopEntryNode() [1/2]

bool ProgramDependenceNode::isLoopEntryNode ( ) const

inline

Definition at line 68 of file ProgramDependenceNode.hh.

68 { return type_ == PDG_NODE_LOOPENTRY;}

References PDG_NODE_LOOPENTRY, and type_.

Referenced by ProgramDependenceGraph::compareSiblings(), ProgramDependenceGraph::computeRegionInfo(), ProgramDependenceGraph::computeRelations(), ProgramDependenceGraph::copyRegionEECComponent(), dotString(), ProgramDependenceGraph::processPredicate(), ProgramDependenceGraph::processRegion(), ProgramDependenceGraph::regionHelper(), and toString().

◆ isLoopEntryNode() [2/2]

bool ProgramDependenceNode::isLoopEntryNode ( int component ) const

inline

Definition at line 69 of file ProgramDependenceNode.hh.

69 {

70 return type_ == PDG_NODE_LOOPENTRY && component_ == component;}

References component(), component_, PDG_NODE_LOOPENTRY, and type_.

Here is the call graph for this function:

◆ isMoveNode()

bool ProgramDependenceNode::isMoveNode ( ) const

inline

Definition at line 67 of file ProgramDependenceNode.hh.

67 { return type_ == PDG_NODE_MOVE;}

References PDG_NODE_MOVE, and type_.

Referenced by ProgramDependenceGraph::compareSiblings(), dotString(), ProgramDependenceGraph::processRegion(), and ProgramDependenceGraph::ProgramDependenceGraph().

◆ isPredicateMoveNode()

bool ProgramDependenceNode::isPredicateMoveNode ( ) const

inline

Definition at line 66 of file ProgramDependenceNode.hh.

66 { return type_ == PDG_NODE_PREDICATE;}

References PDG_NODE_PREDICATE, and type_.

Referenced by ProgramDependenceGraph::compareSiblings(), ProgramDependenceGraph::computeRelations(), ProgramDependenceGraph::copyRegionEECComponent(), dotString(), ProgramDependenceGraph::ProgramDependenceGraph(), ProgramDependenceGraph::regionHelper(), and toString().

◆ isRegionNode()

bool ProgramDependenceNode::isRegionNode ( ) const

inline

Definition at line 65 of file ProgramDependenceNode.hh.

65 { return type_ == PDG_NODE_REGION;}

References PDG_NODE_REGION, and type_.

Referenced by ProgramDependenceGraph::compareSiblings(), ProgramDependenceGraph::computeRelations(), ProgramDependenceGraph::copyRegionEECComponent(), dotString(), ProgramDependenceGraph::regionHelper(), and toString().

◆ leafBlocks()

std::vector<BasicBlockNode*> ProgramDependenceNode::leafBlocks ( )

inline

Definition at line 89 of file ProgramDependenceNode.hh.

89 { return leafBlocks_;}

References leafBlocks_.

Referenced by ProgramDependenceGraph::processRegion().

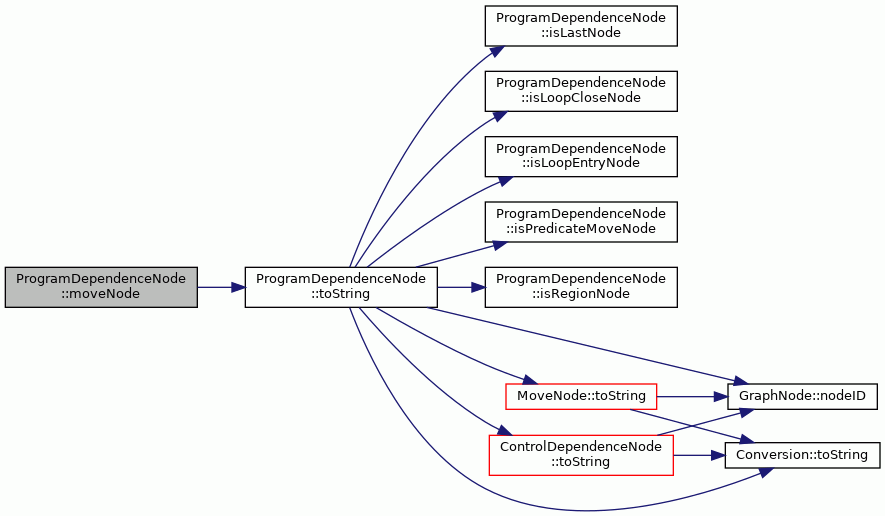

◆ moveNode() [1/2]

const MoveNode & ProgramDependenceNode::moveNode ( )

Returns MoveNode corresponding to given node in DDG.

Returns: MoveNode corresponding to given node in DDG

Returns MoveNode corresponding to given node in DDG as constant.

Returns: MoveNode corresponding to given node in DDG as constant

Definition at line 182 of file ProgramDependenceNode.cc.

                                 {
     if ((type_ == PDG_NODE_MOVE || type_ == PDG_NODE_PREDICATE)
         && mNode_ != NULL) {
         return *mNode_;
     } else {
         TCEString msg = "MoveNode type does not contain move in ";
         msg += toString() + "!";
         throw InvalidData(__FILE__, __LINE__, __func__, msg);
     }
 }

References __func__, mNode_, PDG_NODE_MOVE, PDG_NODE_PREDICATE, toString(), and type_.

Referenced by ProgramDependenceGraph::copyRegionEECComponent(), dotString(), ProgramDependenceGraph::processPredicate(), ProgramDependenceGraph::processRegion(), ProgramDependenceGraph::ProgramDependenceGraph(), and ProgramDependenceGraph::removeGuardedJump().

Here is the call graph for this function:

◆ moveNode() [2/2]

const MoveNode& ProgramDependenceNode::moveNode ( ) const

◆ newFirstBB()

BasicBlockNode* ProgramDependenceNode::newFirstBB ( )

inline

Definition at line 87 of file ProgramDependenceNode.hh.

87 { return newFirstBB_;}

References newFirstBB_.

Referenced by ProgramDependenceGraph::processPredicate(), and ProgramDependenceGraph::processRegion().

◆ printRelations()

void ProgramDependenceNode::printRelations ( ) const

Definition at line 297 of file ProgramDependenceNode.cc.

                                             {
     Application::logStream() << "Relations: ";
     for (NodesInfo::const_iterator iter = region_.begin();
         iter != region_.end();
         iter ++) {
         Application::logStream() << (*iter)->toString() << ", ";
     }
     Application::logStream() << std::endl;
     Application::logStream() << "EEC: ";
     for (NodesInfo::const_iterator iter = eec_.begin();
         iter != eec_.end();
         iter ++) {
         Application::logStream() << (*iter)->toString() << ", ";
     }
     Application::logStream() << std::endl;

 }

References eec_, Application::logStream(), and region_.

Referenced by ProgramDependenceGraph::processRegion().

Here is the call graph for this function:

◆ region()

const ProgramDependenceNode::NodesInfo & ProgramDependenceNode::region ( )

Returns the "region" set for given node

Returns: the "region" set for given node

Definition at line 260 of file ProgramDependenceNode.cc.

                               {
     return region_;
 }

References region_.

Referenced by ProgramDependenceGraph::computeEECInfo(), ProgramDependenceGraph::computeRegionInfo(), and ProgramDependenceGraph::regionHelper().

◆ setComponent()

void ProgramDependenceNode::setComponent ( int component )

inline

Definition at line 74 of file ProgramDependenceNode.hh.

74 { component_ = component;}

References component(), and component_.

Referenced by ProgramDependenceGraph::copyRegionEECComponent(), and ProgramDependenceGraph::detectStrongComponents().

Here is the call graph for this function:

◆ setLastNode()

void ProgramDependenceNode::setLastNode ( )

inline

Definition at line 75 of file ProgramDependenceNode.hh.

75 { lastNode_ = true; }

References lastNode_.

Referenced by ProgramDependenceGraph::copyRegionEECComponent(), and ProgramDependenceGraph::ProgramDependenceGraph().

◆ setLoopEntryNode()

void ProgramDependenceNode::setLoopEntryNode ( int component )

Sets the node to be loop entry node of a given component (loop)

Parameters

component Component of which the node is loop entry node

Definition at line 292 of file ProgramDependenceNode.cc.

                                                      {
     type_ = PDG_NODE_LOOPENTRY;
     component_ = component;
 }

References component(), component_, PDG_NODE_LOOPENTRY, and type_.

Referenced by ProgramDependenceGraph::detectStrongComponents().

Here is the call graph for this function:

◆ setNewFirstBB()

void ProgramDependenceNode::setNewFirstBB ( BasicBlockNode * newBB )

inline

Definition at line 88 of file ProgramDependenceNode.hh.

88 { newFirstBB_ = newBB;}

References newFirstBB_.

Referenced by ProgramDependenceGraph::processLoopClose(), ProgramDependenceGraph::processPredicate(), and ProgramDependenceGraph::processRegion().

◆ setPredicateMoveNode()

void ProgramDependenceNode::setPredicateMoveNode ( )

protected

Sets node to be predicate node

Definition at line 168 of file ProgramDependenceNode.cc.

                                             {
     if (type_ != PDG_NODE_MOVE && type_ != PDG_NODE_PREDICATE) {
         TCEString msg = "Trying to create predicate move from Region in ";
         msg += toString() + "!";
         throw InvalidData(__FILE__, __LINE__, __func__, msg);
     }
     type_ = PDG_NODE_PREDICATE;
 }

References __func__, PDG_NODE_MOVE, PDG_NODE_PREDICATE, toString(), and type_.

Referenced by ProgramDependenceGraph::removeGuardedJump().

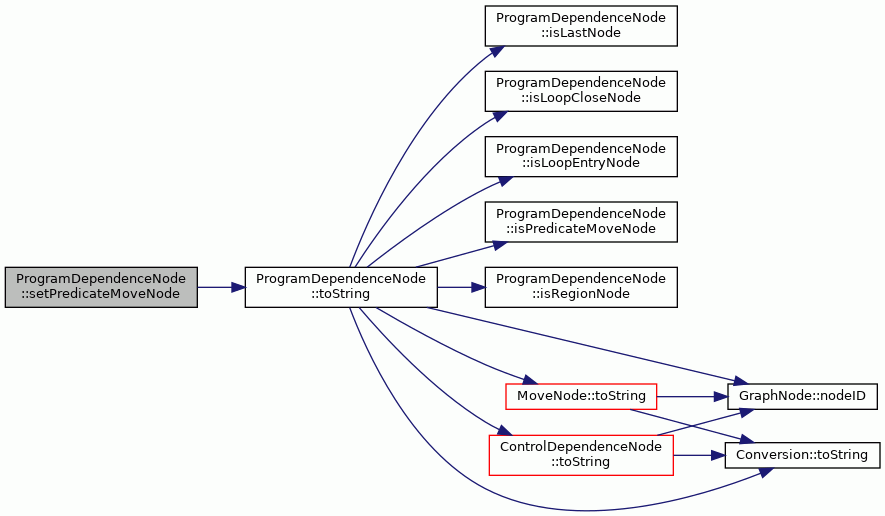

Here is the call graph for this function:

◆ toString()

std::string ProgramDependenceNode::toString ( ) const

virtual

Returns content of a node as a string.

Returns: string representing content of a node

Node added during strong components detection to collect edges pointing to loop entry from outside the loop. Do not have cdg equivalent if analysis was done directly on pdg

Loop entry is region node converted during detection of loops Exists in CDG even if loop detection was done on PDG

Node added during strong components detection to collect edges pointing to loop entry from inside the loop. Do not have cdg equivalent if analysis was done directly on pdg

Reimplemented from GraphNode.

Definition at line 93 of file ProgramDependenceNode.cc.

                                       {
     TCEString result;
     if (isRegionNode()) {
         if (cdgNode_ != NULL) {
             result += cdgNode_->toString() + ": " +
                 Conversion::toString(nodeID());
         } else {
             /// Node added during strong components detection
             /// to collect edges pointing to loop entry from outside the loop.
             /// Do not have cdg equivalent if analysis was done directly on pdg
             result += "Collect_" +  Conversion::toString(nodeID());
         }
     }
     if (isLoopEntryNode()) {
         /// Loop entry is region node converted during detection of loops
         /// Exists in CDG even if loop detection was done on PDG
         result += "LoopEntry_" + Conversion::toString(nodeID()) +
             ": " + cdgNode_->toString();
     }
     if (isLoopCloseNode()) {
         /// Node added during strong components detection
         /// to collect edges pointing to loop entry from inside the loop.
         /// Do not have cdg equivalent if analysis was done directly on pdg
         if (cdgNode_ != NULL) {
             result += "LoopClose_" + Conversion::toString(nodeID()) +
                 ": " + cdgNode_->toString();
         } else {
             result += "LoopClose_" + Conversion::toString(nodeID());
         }
     }
     if (isPredicateMoveNode()) {
         result += "Predicate: " + mNode_->toString() + ": " +
             Conversion::toString(nodeID());
     }
     if (isLastNode()) {
         result += "_LAST";
     }
     if (mNode_ != NULL && !isPredicateMoveNode()) {
         result+= mNode_->toString() + ": " + Conversion::toString(nodeID());
     }
     return result;
 }

References cdgNode_, isLastNode(), isLoopCloseNode(), isLoopEntryNode(), isPredicateMoveNode(), isRegionNode(), mNode_, GraphNode::nodeID(), Conversion::toString(), ControlDependenceNode::toString(), and MoveNode::toString().

Referenced by cdgNode(), ProgramDependenceGraph::computeEECInfo(), ProgramDependenceGraph::detectStrongComponents(), dotString(), moveNode(), ProgramDependenceGraph::processPredicate(), ProgramDependenceGraph::processRegion(), ProgramDependenceGraph::removeGuardedJump(), and setPredicateMoveNode().

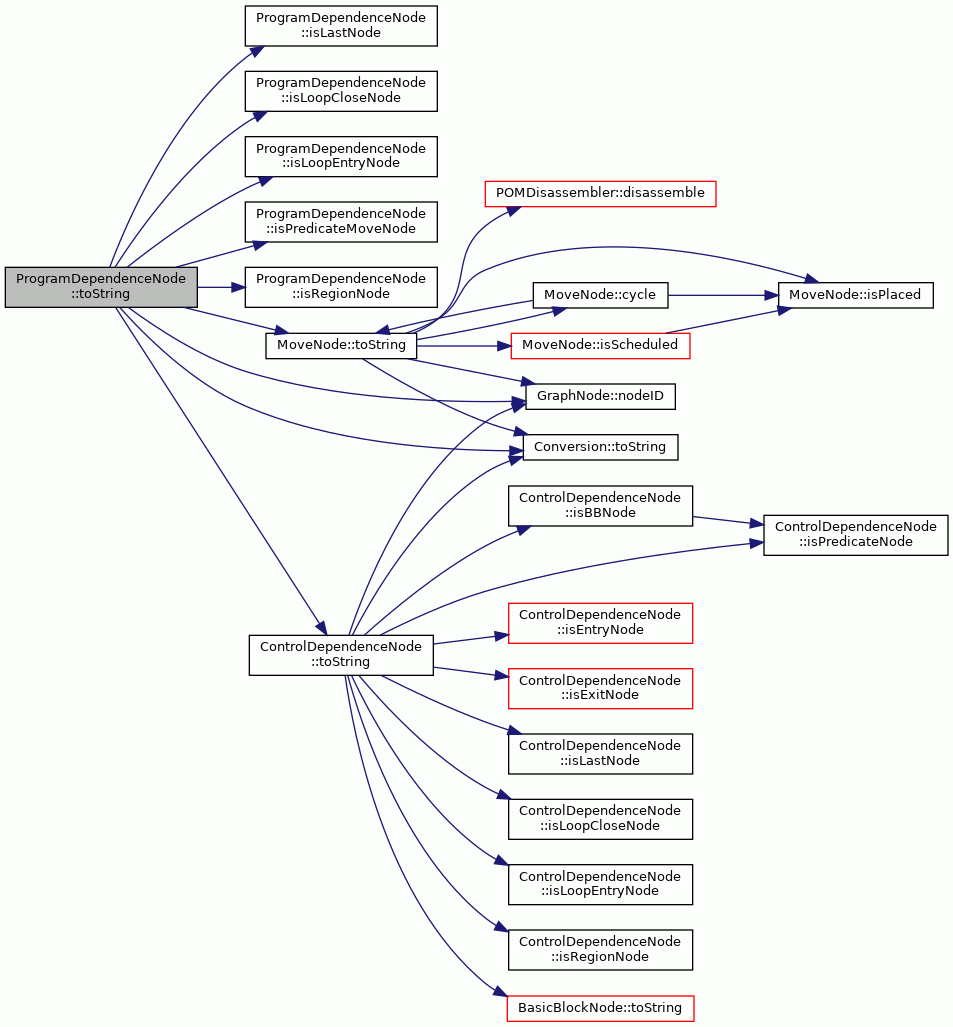

Here is the call graph for this function:

Friends And Related Function Documentation

◆ ProgramDependenceGraph

friend class ProgramDependenceGraph

friend

Definition at line 97 of file ProgramDependenceNode.hh.

Member Data Documentation

◆ cdgNode_

ControlDependenceNode* ProgramDependenceNode::cdgNode_

private

Definition at line 103 of file ProgramDependenceNode.hh.

Referenced by cdgNode(), ProgramDependenceNode(), and toString().

◆ component_

int ProgramDependenceNode::component_

private

Number of strong component the node belongs to. Node can be part of several strong components so this value have practical meaning only for loop close nodes - close just one loop, and loop entry nodes - marks a component in which node is loop entry. Still can be regular region of larger loop Full list of nodes that belongs to actual components is available in strongComponents_ vector in PDG.

Definition at line 116 of file ProgramDependenceNode.hh.

Referenced by component(), isLoopEntryNode(), setComponent(), and setLoopEntryNode().

◆ eec_

NodesInfo ProgramDependenceNode::eec_

private

Stores "eec" information for computing serialization information.

Definition at line 108 of file ProgramDependenceNode.hh.

Referenced by addToEEC(), eec(), printRelations(), and ~ProgramDependenceNode().

◆ lastNode_

bool ProgramDependenceNode::lastNode_

private

Indicates that node must be scheduled last between it's siblings because it's subgraph contains close node and it's parent is entry.

Definition at line 124 of file ProgramDependenceNode.hh.

Referenced by isLastNode(), and setLastNode().

◆ leafBlocks_

std::vector<BasicBlockNode*> ProgramDependenceNode::leafBlocks_

private

Vector of basic blocks of a subgraph that do not have outgoing edged and will need to get connected.

Definition at line 121 of file ProgramDependenceNode.hh.

Referenced by addLeafBlock(), addLeafBlocks(), and leafBlocks().

◆ mNode_

MoveNode* ProgramDependenceNode::mNode_

private

Definition at line 102 of file ProgramDependenceNode.hh.

Referenced by moveNode(), ProgramDependenceNode(), and toString().

◆ newFirstBB_

BasicBlockNode* ProgramDependenceNode::newFirstBB_

private

First basic block of a subgraph of a region.

Definition at line 118 of file ProgramDependenceNode.hh.

Referenced by newFirstBB(), and setNewFirstBB().

◆ region_

NodesInfo ProgramDependenceNode::region_

private

Stores "region" information for computing serialization information.

Definition at line 106 of file ProgramDependenceNode.hh.

Referenced by addToRegion(), printRelations(), region(), and ~ProgramDependenceNode().

◆ type_

NodeType ProgramDependenceNode::type_

private

Definition at line 104 of file ProgramDependenceNode.hh.

Referenced by cdgNode(), isLoopCloseNode(), isLoopEntryNode(), isMoveNode(), isPredicateMoveNode(), isRegionNode(), moveNode(), setLoopEntryNode(), and setPredicateMoveNode().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ NodesInfo

Member Enumeration Documentation

◆ NodeType

Constructor & Destructor Documentation

◆ ProgramDependenceNode() [1/3]

◆ ProgramDependenceNode() [2/3]

◆ ProgramDependenceNode() [3/3]

◆ ~ProgramDependenceNode()

Member Function Documentation

◆ addLeafBlock()

◆ addLeafBlocks()

◆ addToEEC()

◆ addToRegion()

◆ cdgNode() [1/2]

◆ cdgNode() [2/2]

◆ component()

◆ dotString()

◆ eec()

◆ isLastNode()

◆ isLoopCloseNode()

◆ isLoopEntryNode() [1/2]

◆ isLoopEntryNode() [2/2]

◆ isMoveNode()

◆ isPredicateMoveNode()

◆ isRegionNode()

◆ leafBlocks()

◆ moveNode() [1/2]

◆ moveNode() [2/2]

◆ newFirstBB()

◆ printRelations()

◆ region()

◆ setComponent()

◆ setLastNode()

◆ setLoopEntryNode()

◆ setNewFirstBB()

◆ setPredicateMoveNode()

◆ toString()

Friends And Related Function Documentation

◆ ProgramDependenceGraph

Member Data Documentation

◆ cdgNode_

◆ component_

◆ eec_

◆ lastNode_

◆ leafBlocks_

◆ mNode_

◆ newFirstBB_

◆ region_

◆ type_
