#include <ProximLineReader.hh>

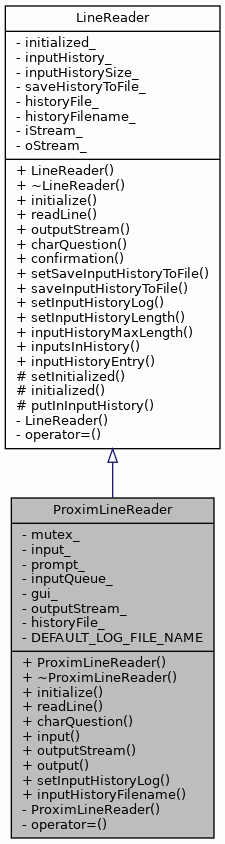

Inheritance diagram for ProximLineReader:

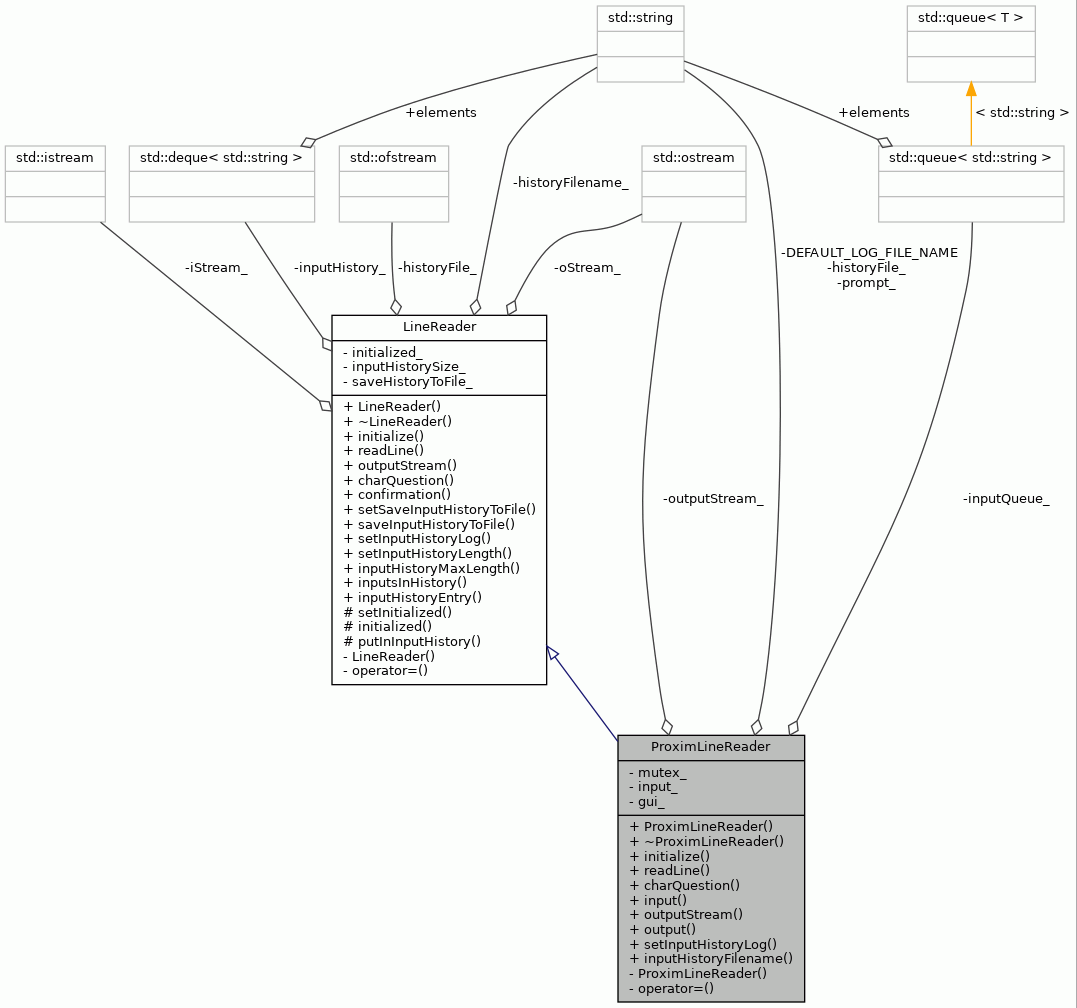

Collaboration diagram for ProximLineReader:

Public Member Functions
	ProximLineReader ()

virtual	~ProximLineReader ()

virtual void	initialize (std::string defPrompt="", FILE in=stdin, FILE out=stdout, FILE *err=stderr)

virtual std::string	readLine (std::string prompt="")

virtual char	charQuestion (std::string question, std::string allowedChars, bool caseSensitive=false, char defaultAnswer='\0')

void	input (std::string command)

virtual std::ostream &	outputStream ()

void	output (std::string text)

virtual void	setInputHistoryLog (const std::string &historyFilename)

std::string	inputHistoryFilename () const

Public Member Functions inherited from LineReader
	LineReader (std::istream &iStream=std::cin, std::ostream &oStream=std::cout)

virtual	~LineReader ()

bool	confirmation (std::string question, char defaultAnswer='n', char yesChar='y', char noChar='n')

virtual void	setSaveInputHistoryToFile (bool flag)

virtual bool	saveInputHistoryToFile () const

virtual void	setInputHistoryLength (std::size_t length)

virtual size_t	inputHistoryMaxLength () const

virtual std::size_t	inputsInHistory () const

virtual std::string	inputHistoryEntry (std::size_t age) const

Private Member Functions
	ProximLineReader (const ProximLineReader &)
	Copying not allowed. More...

ProximLineReader &	operator= (const ProximLineReader &)
	Assignment not allowed. More...

Private Attributes
wxMutex *	mutex_

wxCondition *	input_
	Condition, which is signaled when user input is received from the GUI. More...

std::string	prompt_
	Input prompt. More...

std::queue< std::string >	inputQueue_
	Input queue. More...

wxEvtHandler *	gui_
	GUI to send the events to. More...

std::ostream *	outputStream_
	Output stream which converts the output to SimulatorEvents. More...

std::string	historyFile_
	Name of the input history file. More...

Static Private Attributes
static const std::string	DEFAULT_LOG_FILE_NAME = ".proximHistory"

Additional Inherited Members
Protected Member Functions inherited from LineReader
void	setInitialized ()

bool	initialized () const

void	putInInputHistory (const std::string &inputLine)

Detailed Description

Handles user input passing between the simulator and GUI threads in Proxim.

This class is designed to act as an interface between two threads: A GUI thread handling the user interface, and a worker thread running the simulator engine. The worker thread waits for the user input by listening to the 'input_' condition. When the line reader receives input from the GUI thread, the worker thread is signaled about the input by setting the input_ condition. If the worker thread is busy and not listening to the input_ condition signal when the GUI thread signals about user input, the signal is lost and the user input is ignored. Therefore the user input should be disabled in the GUI when the worker thread is busy. ProximLineReader requests user input and sends simulator engine output to the GUI thread using SimulatorEvents and the standard wxWidgets event handling system.

Definition at line 60 of file ProximLineReader.hh.

Constructor & Destructor Documentation

◆ ProximLineReader() [1/2]

ProximLineReader::ProximLineReader ( )

The Constructor.

Definition at line 48 of file ProximLineReader.cc.

                                    :
     LineReader(),
     mutex_(new wxMutex()),
     input_(new wxCondition(*mutex_)),
     outputStream_(new ProximLROutputStream(this)) {

     setInputHistoryLog(DEFAULT_LOG_FILE_NAME);
 }

References DEFAULT_LOG_FILE_NAME, and setInputHistoryLog().

Here is the call graph for this function:

◆ ~ProximLineReader()

ProximLineReader::~ProximLineReader ( )

virtual

The Destructor.

Definition at line 61 of file ProximLineReader.cc.

                                     {
     mutex_->Unlock();
     delete mutex_;
     delete input_;
 }

References input_, and mutex_.

◆ ProximLineReader() [2/2]

ProximLineReader::ProximLineReader ( const ProximLineReader & )

private

Copying not allowed.

Member Function Documentation

◆ charQuestion()

char ProximLineReader::charQuestion	(	std::string	question,
		std::string	allowedChars,
		bool	caseSensitive = `false`,
		char	defaultAnswer = `'\0'`
	)

virtual

Requests answer to a char question from the GUI thread.

Parameters

question	Question to ask from the user.
allowedChars	Allowed answers.
caseSensitive	True, if the answer characters are case sensitive.
defaultAnswer	Default answer to the question.

Returns: Answer to the char question.

Implements LineReader.

Definition at line 148 of file ProximLineReader.cc.

                     {
     if (!initialized()) {
         throw ObjectNotInitialized(__FILE__, __LINE__);
     }


     // Char question answer is requested from the GUI thread until
     // a valid answer is received.
     std::string answer;
     do {
         if (inputQueue_.empty()) {
             output(question + " [" + allowedChars + "]? ");
             input_->Wait();
         }
         answer = inputQueue_.front();
         inputQueue_.pop();

         output(answer + "\n");

         if (answer.length() != 1) {
             continue;
         }
     } while (allowedChars.find(answer, 0) == std::string::npos);

     return answer[0];
 }

References LineReader::initialized(), input_, inputQueue_, and output().

Here is the call graph for this function:

◆ initialize()

void ProximLineReader::initialize	(	std::string	defPrompt = `""`,
		FILE *	in = `stdin`,
		FILE *	out = `stdout`,
		FILE *	err = `stderr`
	)

virtual

Initializes the linereader.

The FILE* pointer parameters specified in the base class are not used.

Parameters

defPrompt Default prompt.

Implements LineReader.

Definition at line 76 of file ProximLineReader.cc.

                                               {

     gui_ = wxGetApp().GetTopWindow();
     prompt_ = defPrompt;
     setInitialized();

     // Set the linereader output stream as OSAL output stream.
     OperationGlobals::setOutputStream(outputStream());
 }

References gui_, outputStream(), prompt_, LineReader::setInitialized(), and OperationGlobals::setOutputStream().

Referenced by ProximSimulationThread::initialize().

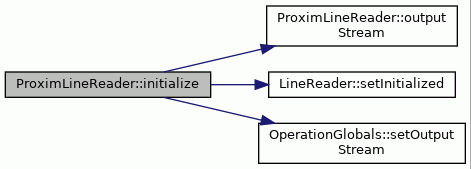

Here is the call graph for this function:

◆ input()

void ProximLineReader::input ( std::string input )

This function is called by the GUI thread to set the user input.

The input_ condtion is signaled about the user input.

Parameters

command The user input.

Definition at line 131 of file ProximLineReader.cc.

                                        {
     inputQueue_.push(input);
     // Signal simulation about the input.
     input_->Signal();
 }

References input_, and inputQueue_.

Referenced by ProximExecuteFileCmd::Do(), ProximQuitCmd::Do(), ProximCmdHistoryWindow::onCommandDClick(), AddBreakpointDialog::onOK(), WatchPropertiesDialog::onOK(), AddWatchDialog::onOK(), BreakpointPropertiesDialog::onOK(), SimulatorSettingsDialog::onOK(), readLine(), and ConsoleWindow::textEntered().

◆ inputHistoryFilename()

std::string ProximLineReader::inputHistoryFilename ( ) const

Returns input history log file name.

Returns: Name of the input history log file.

Definition at line 310 of file ProximLineReader.cc.

                                              {
     return historyFile_;
 }

References historyFile_.

Referenced by SimulatorSettingsDialog::onOK(), and SimulatorSettingsDialog::TransferDataToWindow().

◆ operator=()

ProximLineReader& ProximLineReader::operator= ( const ProximLineReader & )

private

Assignment not allowed.

◆ output()

void ProximLineReader::output ( std::string text )

Definition at line 194 of file ProximLineReader.cc.

                                          {
     SimulatorEvent event(SimulatorEvent::EVT_SIMULATOR_OUTPUT, output);
     wxPostEvent(gui_, event);
 }

References SimulatorEvent::EVT_SIMULATOR_OUTPUT, and gui_.

Referenced by charQuestion(), ProximLROutputBuffer::flushBuffer(), ProximLROutputBuffer::overflow(), and readLine().

◆ outputStream()

std::ostream & ProximLineReader::outputStream ( )

virtual

Returns an outputstream, which the worker thread can use to write text to the GUI.

Returns: Reference to an output stream, which can be utilized to write text to the GUI.

Reimplemented from LineReader.

Definition at line 185 of file ProximLineReader.cc.

                                {
     return *outputStream_;
 }

References outputStream_.

Referenced by initialize().

◆ readLine()

std::string ProximLineReader::readLine ( std::string prompt = "" )

virtual

Waits for input from the GUI thread.

The input_ condition timeout is set as 100ms. After the timeout an empty input is returned. This is done because the worker thread needs to check its stop and delete requests at regular intervals.

Parameters

prompt Prompt used for requesting the user input.

Implements LineReader.

Definition at line 98 of file ProximLineReader.cc.

                                            {
     if (!initialized()) {
         std::string method = "ProximLineReader::readLine";
         throw ObjectNotInitialized(__FILE__, __LINE__, method);
     }

     if (prompt == "") {
        prompt = prompt_;
     }

     if (inputQueue_.empty()) {
         output(prompt);
         mutex_->TryLock();
         input_->Wait();
     }
     std::string input = inputQueue_.front();
     inputQueue_.pop();

     output(input + "\n");

     // Append read input to the command history.
     putInInputHistory(input);
     return input;
 }

References LineReader::initialized(), input(), input_, inputQueue_, mutex_, output(), prompt_, and LineReader::putInInputHistory().

Referenced by ProximSimulationThread::Entry().

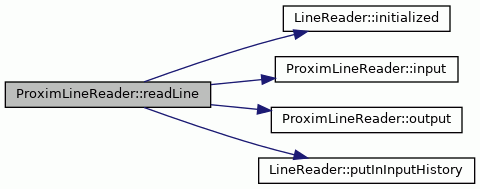

Here is the call graph for this function:

◆ setInputHistoryLog()

void ProximLineReader::setInputHistoryLog ( const std::string & historyFileName )

virtual

Sets the name of the input history log file.

Parameters

hisoryFileName Name of the input history log file.

Reimplemented from LineReader.

Definition at line 299 of file ProximLineReader.cc.

                                                                      {
     historyFile_ = historyFileName;
     LineReader::setInputHistoryLog(historyFileName);
 }

References historyFile_, and LineReader::setInputHistoryLog().

Referenced by ProximLineReader().

Here is the call graph for this function:

Member Data Documentation

◆ DEFAULT_LOG_FILE_NAME

const std::string ProximLineReader::DEFAULT_LOG_FILE_NAME = ".proximHistory"

staticprivate

Definition at line 106 of file ProximLineReader.hh.

Referenced by ProximLineReader().

◆ gui_

wxEvtHandler* ProximLineReader::gui_

private

GUI to send the events to.

Definition at line 99 of file ProximLineReader.hh.

Referenced by initialize(), and output().

◆ historyFile_

std::string ProximLineReader::historyFile_

private

Name of the input history file.

Definition at line 104 of file ProximLineReader.hh.

Referenced by inputHistoryFilename(), and setInputHistoryLog().

◆ input_

wxCondition* ProximLineReader::input_

private

Condition, which is signaled when user input is received from the GUI.

Definition at line 93 of file ProximLineReader.hh.

Referenced by charQuestion(), input(), readLine(), and ~ProximLineReader().

◆ inputQueue_

std::queue<std::string> ProximLineReader::inputQueue_

private

Input queue.

Definition at line 97 of file ProximLineReader.hh.

Referenced by charQuestion(), input(), and readLine().

◆ mutex_

wxMutex* ProximLineReader::mutex_

private

Definition at line 91 of file ProximLineReader.hh.

Referenced by readLine(), and ~ProximLineReader().

◆ outputStream_

std::ostream* ProximLineReader::outputStream_

private

Output stream which converts the output to SimulatorEvents.

Definition at line 101 of file ProximLineReader.hh.

Referenced by outputStream().

◆ prompt_

std::string ProximLineReader::prompt_

private

Input prompt.

Definition at line 95 of file ProximLineReader.hh.

Referenced by initialize(), and readLine().

The documentation for this class was generated from the following files:
