ProximPortEditPolicy Class Reference

#include <ProximPortEditPolicy.hh>

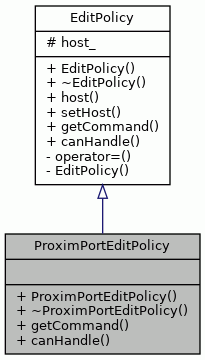

Inheritance diagram for ProximPortEditPolicy:

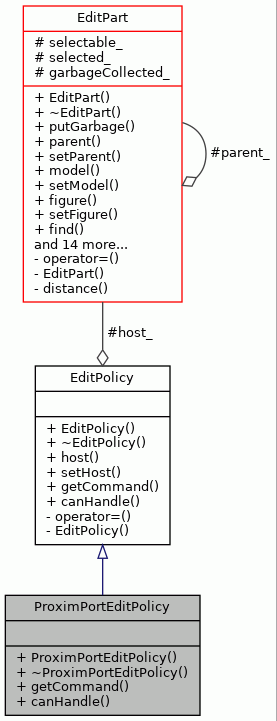

Collaboration diagram for ProximPortEditPolicy:

Public Member Functions
	ProximPortEditPolicy ()
virtual	~ProximPortEditPolicy ()
virtual ComponentCommand *	getCommand (Request *request)
virtual bool	canHandle (Request *request) const
Public Member Functions inherited from EditPolicy
	EditPolicy ()
virtual	~EditPolicy ()
EditPart *	host () const
void	setHost (EditPart *host)

Additional Inherited Members
Protected Attributes inherited from EditPolicy
EditPart *	host_
	Host EditPart of this EditPolicy. More...

Detailed Description

Edit policy for Proxim machine state window ports.

Definition at line 41 of file ProximPortEditPolicy.hh.

Constructor & Destructor Documentation

ProximPortEditPolicy()

ProximPortEditPolicy::ProximPortEditPolicy

(

)

The Constructor.

Definition at line 46 of file ProximPortEditPolicy.cc.

                                           :
    EditPolicy() {
}

~ProximPortEditPolicy()

ProximPortEditPolicy::~ProximPortEditPolicy ( )

virtual

The Destructor.

Definition at line 54 of file ProximPortEditPolicy.cc.

                                            {
}

Member Function Documentation

canHandle()

bool ProximPortEditPolicy::canHandle ( Request *  request ) const

virtual

Tells whether this EditPolicy can handle request of the given type.

Parameters

Request

to be handled.

Returns

True, if the editpolicy can handle give request type.

Implements EditPolicy.

Definition at line 64 of file ProximPortEditPolicy.cc.

                                                      {

    Request::RequestType type = request->type();
    if (type == Request::STATUS_REQUEST) {
        return true;
    } else if (type == Request::DETAILS_REQUEST) {
        // Details only available for function unit ports.
        const FUPort* fuPort =
            dynamic_cast<const FUPort*>(host_->model());

        if (fuPort != NULL) {
            return true;
        }
    }

    return false;
}

References Request::DETAILS_REQUEST, EditPolicy::host_, EditPart::model(), Request::STATUS_REQUEST, and Request::type().

Here is the call graph for this function:

getCommand()

ComponentCommand * ProximPortEditPolicy::getCommand ( Request *  request )

virtual

Returns command correspoding to the request type.

Parameters

request

Request to handle.

Returns

NULL, if the request can't be handled.

Implements EditPolicy.

Definition at line 90 of file ProximPortEditPolicy.cc.

                                                 {

    Request::RequestType type = request->type();

    if (type == Request::STATUS_REQUEST) {
        const Port* port = dynamic_cast<Port*>(host_->model());
        assert(port != NULL);
        std::string name = port->name();
        return new ProximComponentStatusCmd("Port: " + name);
    } else if (type == Request::DETAILS_REQUEST) {
        const FUPort* fuPort =
            dynamic_cast<const FUPort*>(host_->model());
        if (fuPort == NULL) {
            return NULL;
        } else {
            return new ProximFUPortDetailsCmd(*fuPort);
        }
    }

    return NULL;
}

References assert, Request::DETAILS_REQUEST, EditPolicy::host_, EditPart::model(), TTAMachine::Port::name(), Request::STATUS_REQUEST, and Request::type().

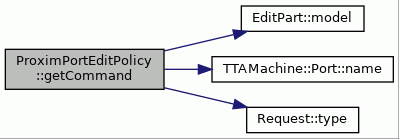

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ProximPortEditPolicy.hh
• ProximPortEditPolicy.cc
