#include <ScriptInterpreter.hh>

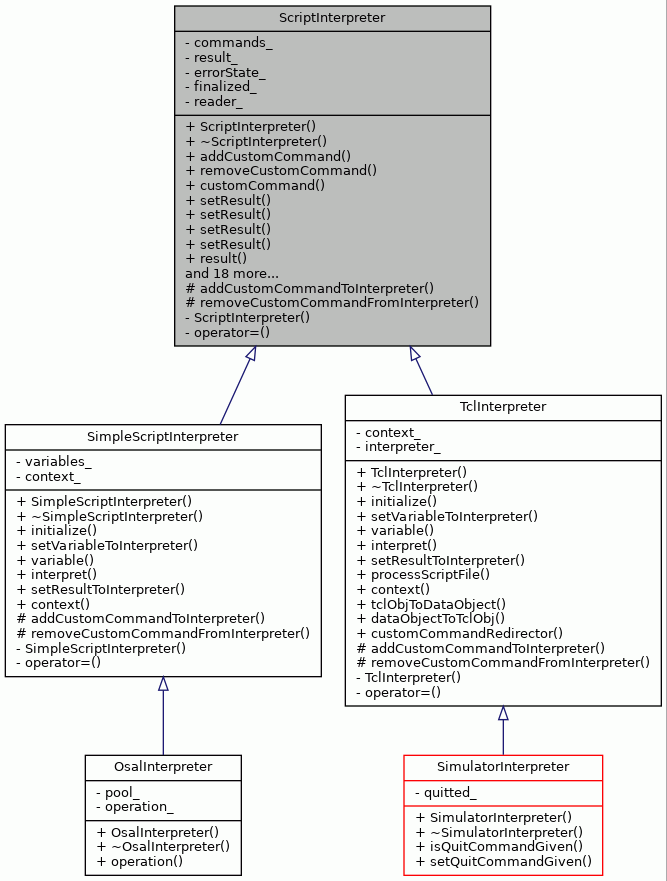

Inheritance diagram for ScriptInterpreter:

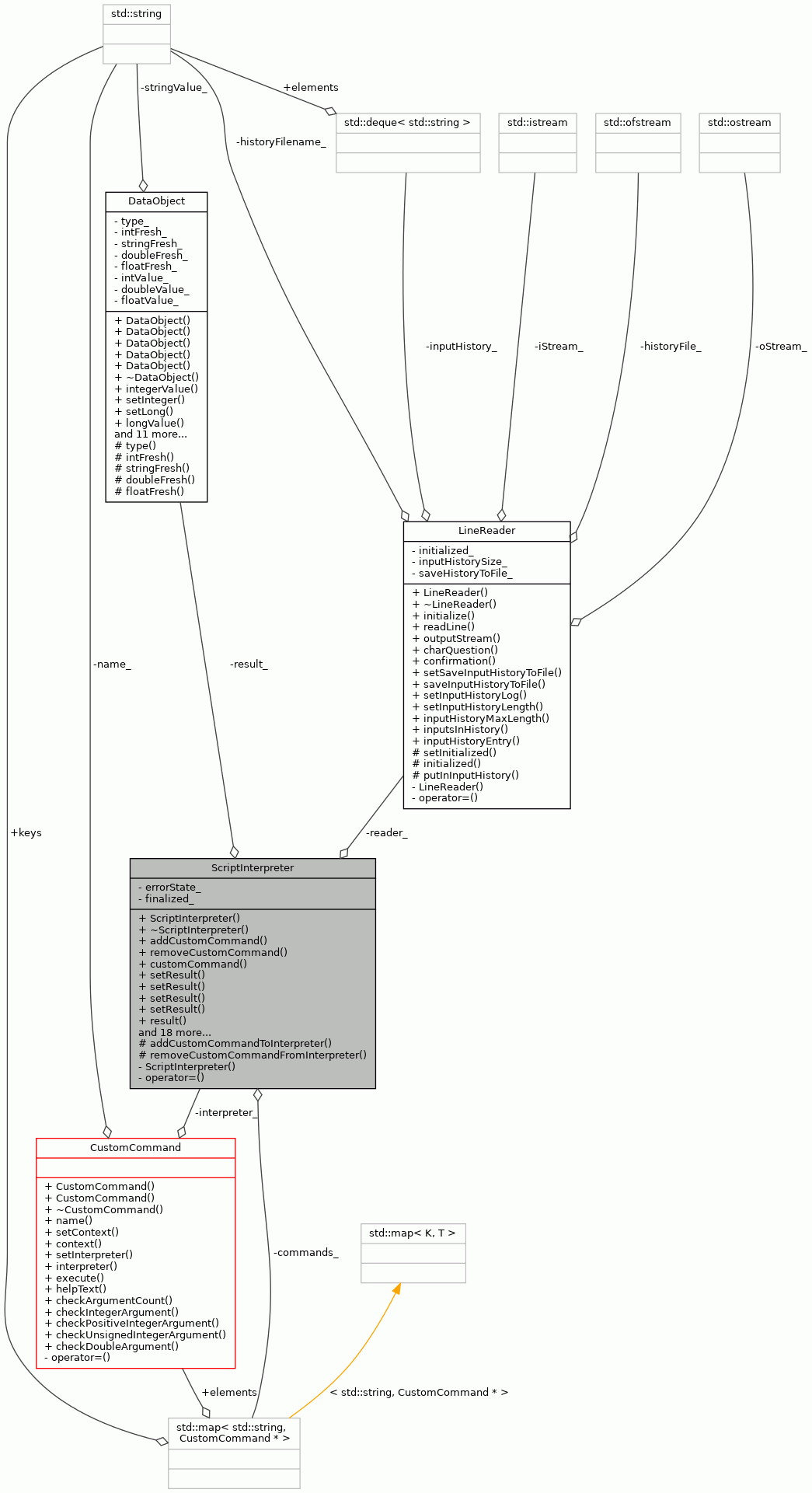

Collaboration diagram for ScriptInterpreter:

Public Member Functions
	ScriptInterpreter ()

virtual	~ScriptInterpreter ()

virtual void	addCustomCommand (CustomCommand *command)

virtual void	removeCustomCommand (const std::string &commandName)

virtual CustomCommand *	customCommand (const std::string &commandName)

virtual void	setResult (DataObject *result)

virtual void	setResult (const std::string &result)

virtual void	setResult (int result)

virtual void	setResult (double result)

virtual std::string	result ()

virtual void	setError (bool state)

virtual void	setError (std::string errorMessage)

virtual bool	error () const

virtual void	setVariable (const std::string &interpreterVariableName, const std::string &value)

virtual void	setVariable (const std::string &interpreterVariableName, int value)

virtual std::string	variableStringValue (const std::string &interpreterVariableName)

virtual int	variableIntegerValue (const std::string &interpreterVariableName)

virtual bool	processScriptFile (const std::string &scriptFileName)

virtual void	finalize ()

virtual void	setLineReader (LineReader *reader)

virtual LineReader *	lineReader () const

std::vector< std::string >	customCommandsSortedByName ()

virtual void	initialize (int argc, char argv[], InterpreterContext context, LineReader *reader)=0

virtual void	setVariableToInterpreter (const std::string &name, const DataObject &value)=0

virtual DataObject	variable (const std::string &name)=0

virtual bool	interpret (const std::string &commandLine)=0

virtual void	setResultToInterpreter (const DataObject &value)=0

virtual InterpreterContext &	context () const =0

Protected Member Functions
virtual void	addCustomCommandToInterpreter (const CustomCommand &command)=0

virtual void	removeCustomCommandFromInterpreter (const CustomCommand &command)=0

Private Types
typedef std::map< std::string, CustomCommand * >::iterator	MapIter
	Iterator for map. More...

typedef std::map< std::string, CustomCommand * >::value_type	ValType
	val_type for map. More...

Private Member Functions
	ScriptInterpreter (const ScriptInterpreter &)
	Copying not allowed. More...

ScriptInterpreter &	operator= (const ScriptInterpreter &)
	Assignment not allowed. More...

Private Attributes
std::map< std::string, CustomCommand * >	commands_
	Map containing all custom commands for interpreter. More...

DataObject *	result_
	The latest interpreter result. More...

bool	errorState_
	Indicates whether we are in error state. More...

bool	finalized_
	True if Interpreter is finalized. More...

LineReader *	reader_
	LineReader for interpreter. More...

Detailed Description

Abstract base class for all interpreters.

Interpreter processes its input, takes actions according to it and returns to wait more input.

Definition at line 55 of file ScriptInterpreter.hh.

Member Typedef Documentation

◆ MapIter

typedef std::map<std::string, CustomCommand*>::iterator ScriptInterpreter::MapIter

private

Iterator for map.

Definition at line 117 of file ScriptInterpreter.hh.

◆ ValType

typedef std::map<std::string, CustomCommand*>::value_type ScriptInterpreter::ValType

private

val_type for map.

Definition at line 119 of file ScriptInterpreter.hh.

Constructor & Destructor Documentation

◆ ScriptInterpreter() [1/2]

ScriptInterpreter::ScriptInterpreter ( )

Constructor.

Definition at line 50 of file ScriptInterpreter.cc.

                                      :
     result_(NULL), errorState_(false), finalized_(false) {
 }

◆ ~ScriptInterpreter()

ScriptInterpreter::~ScriptInterpreter ( )

virtual

Destructor.

Definition at line 57 of file ScriptInterpreter.cc.

                                       {

     if (!finalized_) {
         string method = "ScriptInterpreter::~ScriptInterpreter()";
         string message = "Interpreter not finalized.";
         Application::writeToErrorLog(__FILE__, __LINE__, method, message);
     }

     MapTools::deleteAllValues(commands_);

     if (result_ != NULL) {
         delete result_;
     }
 }

References commands_, MapTools::deleteAllValues(), finalized_, result_, and Application::writeToErrorLog().

Here is the call graph for this function:

◆ ScriptInterpreter() [2/2]

ScriptInterpreter::ScriptInterpreter ( const ScriptInterpreter & )

private

Copying not allowed.

Member Function Documentation

◆ addCustomCommand()

void ScriptInterpreter::addCustomCommand ( CustomCommand * command )

virtual

Adds a custom command to interpreter.

Parameters

command The command to be added.

Definition at line 78 of file ScriptInterpreter.cc.

                                                           {
     command->setInterpreter(this);
     commands_.insert(ValType(command->name(), command));
     addCustomCommandToInterpreter(*command);
 }

References addCustomCommandToInterpreter(), commands_, CustomCommand::name(), and CustomCommand::setInterpreter().

Referenced by CompiledSimInterpreter::CompiledSimInterpreter(), main(), and SimulatorInterpreter::SimulatorInterpreter().

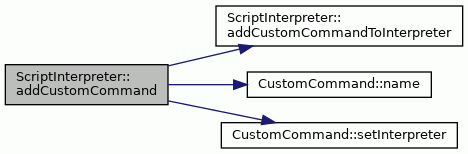

Here is the call graph for this function:

◆ addCustomCommandToInterpreter()

virtual void ScriptInterpreter::addCustomCommandToInterpreter ( const CustomCommand & command )

protectedpure virtual

Implemented in TclInterpreter, and SimpleScriptInterpreter.

Referenced by addCustomCommand().

◆ context()

virtual InterpreterContext& ScriptInterpreter::context ( ) const

pure virtual

Implemented in TclInterpreter, and SimpleScriptInterpreter.

Referenced by ConfCommand::execute(), MachCommand::execute(), ProgCommand::execute(), BackTraceCommand::execute(), DisassembleCommand::execute(), and SimControlLanguageCommand::simulatorFrontend().

◆ customCommand()

CustomCommand * ScriptInterpreter::customCommand ( const std::string & commandName )

virtual

Returns a custom command with a given name.

Returns NULL if CustomCommand is not found.

Parameters

commandName The name of the wanted command.

Returns: The pointer to a wanted custom command.

Definition at line 110 of file ScriptInterpreter.cc.

                                                              {

     if (!MapTools::containsKey(commands_, commandName)) {
         return NULL;
     }

     MapIter mi = commands_.find(commandName);
     return (*mi).second;
 }

References commands_, and MapTools::containsKey().

Referenced by HelpCommand::execute(), CmdHelp::execute(), and SimpleScriptInterpreter::interpret().

Here is the call graph for this function:

◆ customCommandsSortedByName()

vector< string > ScriptInterpreter::customCommandsSortedByName ( )

Returns a vector of alphabetically sorted names of CustomCommands.

Returns: CustomCommands sorted by name.

Definition at line 342 of file ScriptInterpreter.cc.

                                               {

     vector<string> names;

     MapIter it = commands_.begin();
     while (it != commands_.end()) {
         names.push_back((*it).second->name());
         it++;
     }

     vector<string>::iterator first = names.begin();
     vector<string>::iterator last = names.end();
     stable_sort(first , last);
     return names;
 }

References commands_.

Referenced by HelpCommand::execute(), and CmdHelp::execute().

◆ error()

bool ScriptInterpreter::error ( ) const

virtual

Returns true, if interpreter is in error state.

Returns: True, if interpreter is in error state.

Definition at line 229 of file ScriptInterpreter.cc.

                                {
     return errorState_;
 }

References errorState_.

Referenced by ProximSimulationThread::Entry().

◆ finalize()

void ScriptInterpreter::finalize ( )

virtual

Removes all created CustomCommands from interpreter.

This is called before interpreter is deleted.

Definition at line 329 of file ScriptInterpreter.cc.

                             {
     for (MapIter mi = commands_.begin(); mi != commands_.end(); mi++) {
         removeCustomCommandFromInterpreter(*(*mi).second);
     }
     finalized_ = true;
 }

References commands_, finalized_, and removeCustomCommandFromInterpreter().

Referenced by main(), and SimulatorInterpreter::~SimulatorInterpreter().

Here is the call graph for this function:

◆ initialize()

virtual void ScriptInterpreter::initialize	(	int	argc,
		char *	argv[],
		InterpreterContext *	context,
		LineReader *	reader
	)

pure virtual

Implemented in TclInterpreter, and SimpleScriptInterpreter.

◆ interpret()

virtual bool ScriptInterpreter::interpret ( const std::string & commandLine )

pure virtual

Implemented in TclInterpreter, and SimpleScriptInterpreter.

Referenced by Script::execute(), and processScriptFile().

◆ lineReader()

LineReader * ScriptInterpreter::lineReader ( ) const

virtual

Returns the LineReader instance.

LineReader is needed by some CustomCommands. ScriptInterpreter may also need it.

Returns: LineReader instance.

Definition at line 367 of file ScriptInterpreter.cc.

                                     {
     return reader_;
 }

References reader_.

Referenced by SetHistoryFilename::execute(), SetHistorySave::execute(), SetHistorySize::execute(), TclInterpreter::interpret(), SimControlLanguageCommand::outputStream(), and SimulatorInterpreter::SimulatorInterpreter().

◆ operator=()

ScriptInterpreter& ScriptInterpreter::operator= ( const ScriptInterpreter & )

private

Assignment not allowed.

◆ processScriptFile()

bool ScriptInterpreter::processScriptFile ( const std::string & scriptFileName )

virtual

Opens a script file and processes it.

Parameters

scriptFileName The name of the script file.

Returns: True, if process is successful, false otherwise.

Exceptions

UnreachableStream If file cannot be opened.

Reimplemented in TclInterpreter.

Definition at line 303 of file ScriptInterpreter.cc.

                                                                     {
     ifstream fileStream(scriptFileName.c_str());

     if (fileStream.bad()) {
         string method = "ScriptInterpreter::processScriptFile";
         string message = "Cannot open file " + scriptFileName;
         throw UnreachableStream(__FILE__, __LINE__, method, message);
     }

     string line;
     while (getline(fileStream, line)) {
         if (!interpret(line)) {
             fileStream.close();
             return false;
         }
     }
     fileStream.close();
     return true;
 }

References interpret().

Here is the call graph for this function:

◆ removeCustomCommand()

void ScriptInterpreter::removeCustomCommand ( const std::string & commandName )

virtual

Removes a custom command from interpreter.

Reserved memory for CustomCommand is freed.

Parameters

commandName The name of the command that is removed.

Definition at line 92 of file ScriptInterpreter.cc.

                                                                    {
     if (MapTools::containsKey(commands_, commandName)) {
         MapIter mi = commands_.find(commandName);
         removeCustomCommandFromInterpreter(*(*mi).second);
         delete (*mi).second;
         commands_.erase(mi);
     }
 }

References commands_, MapTools::containsKey(), and removeCustomCommandFromInterpreter().

Referenced by CompiledSimInterpreter::CompiledSimInterpreter().

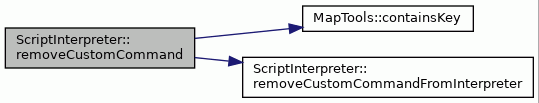

Here is the call graph for this function:

◆ removeCustomCommandFromInterpreter()

virtual void ScriptInterpreter::removeCustomCommandFromInterpreter ( const CustomCommand & command )

protectedpure virtual

Implemented in TclInterpreter, and SimpleScriptInterpreter.

Referenced by finalize(), and removeCustomCommand().

◆ result()

string ScriptInterpreter::result ( )

virtual

Returns the result of last executed command as a string.

Returns: Last result as string.

Exceptions

NumberFormatException If converting result to string fails.

Definition at line 191 of file ScriptInterpreter.cc.

                           {
     if (result_ != NULL) {
         return result_->stringValue();
     } else {
         return "";
     }
 }

References result_, and DataObject::stringValue().

Referenced by ProximSimulationThread::Entry(), Script::execute(), executeCommand(), SimpleScriptInterpreter::interpret(), SimulatorCLI::interpreteAndPrintResults(), Proxim::OnInit(), SimulatorCLI::run(), setError(), setResult(), and DesignSpaceExplorer::simulate().

Here is the call graph for this function:

◆ setError() [1/2]

void ScriptInterpreter::setError ( bool state )

virtual

Sets or unsets the error state of interpreter.

Parameters

state The error state flag.

Definition at line 205 of file ScriptInterpreter.cc.

                                       {
     errorState_ = state;
 }

References errorState_.

◆ setError() [2/2]

void ScriptInterpreter::setError ( std::string errorMessage )

virtual

Sets an error message and sets errors status of interpreter.

Parameters

errorMessage The error message.

Definition at line 215 of file ScriptInterpreter.cc.

                                                   {
     DataObject* result = new DataObject();
     result->setString(errorMessage);
     setResult(result);
     setError(true);
 }

References result(), setError(), and setResult().

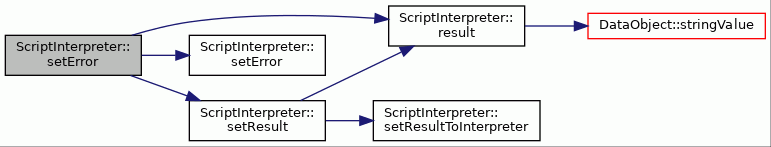

Here is the call graph for this function:

◆ setLineReader()

void ScriptInterpreter::setLineReader ( LineReader * reader )

virtual

Sets the LineReader for the interpreter.

Parameters

reader The LineReader.

Definition at line 377 of file ScriptInterpreter.cc.

                                                    {
     reader_ = reader;
 }

References reader_.

Referenced by SimpleScriptInterpreter::initialize(), and TclInterpreter::initialize().

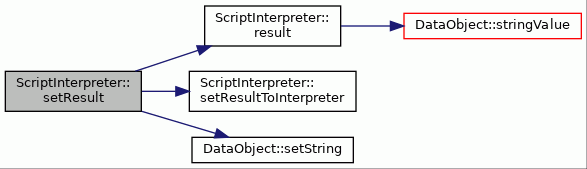

◆ setResult() [1/4]

void ScriptInterpreter::setResult ( const std::string & result )

virtual

Stores the result of last executed command.

Sets result also to concrete interpreter.

Parameters

result The result.

Definition at line 144 of file ScriptInterpreter.cc.

                                                     {
     if (result_ == NULL) {
         result_ = new DataObject();
     }
     result_->setString(result);
     setResultToInterpreter(*result_);
 }

References result(), result_, setResultToInterpreter(), and DataObject::setString().

Here is the call graph for this function:

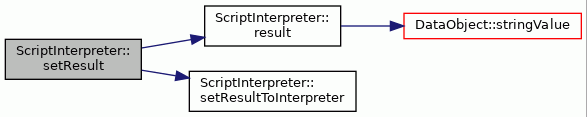

◆ setResult() [2/4]

void ScriptInterpreter::setResult ( DataObject * result )

virtual

Stores the result of last executed command.

Sets result also to concrete interpreter.

Parameters

result The result.

Definition at line 128 of file ScriptInterpreter.cc.

                                                {
     if (result_ != NULL) {
         delete result_;
     }
     result_ = result;
     setResultToInterpreter(*result);
 }

References result(), result_, and setResultToInterpreter().

Referenced by SimControlLanguageCommand::askConditionFromUser(), SimControlLanguageCommand::askExpressionFromUser(), CustomCommand::checkArgumentCount(), CustomCommand::checkDoubleArgument(), CustomCommand::checkIntegerArgument(), CustomCommand::checkPositiveIntegerArgument(), SimControlLanguageCommand::checkSimulationEnded(), SimControlLanguageCommand::checkSimulationInitialized(), SimControlLanguageCommand::checkSimulationNotAlreadyRunning(), SimControlLanguageCommand::checkSimulationStopped(), CustomCommand::checkUnsignedIntegerArgument(), ConditionScript::conditionOk(), HelpCommand::execute(), MachCommand::execute(), ConfCommand::execute(), ProgCommand::execute(), MemDumpCommand::execute(), SymbolAddressCommand::execute(), MemWriteCommand::execute(), SettingCommand::execute(), CmdHelp::execute(), CmdTrigger::execute(), CmdReset::execute(), CmdQuit::execute(), InfoRegistersCommand::execute(), CmdOutput::execute(), CmdRegister::execute(), CmdMem::execute(), CmdAdvanceClock::execute(), InfoImmediatesCommand::execute(), InfoRegFilesCommand::execute(), InfoIunitsCommand::execute(), InfoBussesCommand::execute(), InfoPortsCommand::execute(), InfoSegmentsCommand::execute(), InfoFunitsCommand::execute(), InfoProcCommand::execute(), InfoStatsCommand::execute(), InfoProgramCommand::execute(), SimpleScriptInterpreter::interpret(), TclInterpreter::interpret(), ExpressionScript::resultChanged(), setError(), and SimControlLanguageCommand::setErrorMessage().

Here is the call graph for this function:

◆ setResult() [3/4]

void ScriptInterpreter::setResult ( double result )

virtual

Stores the result of last executed command.

Sets result also to concrete interpreter.

Parameters

result The result.

Definition at line 176 of file ScriptInterpreter.cc.

                                           {
     if (result_ == NULL) {
         result_ = new DataObject();
     }
     result_->setDouble(result);
     setResultToInterpreter(*result_);
 }

References result(), result_, DataObject::setDouble(), and setResultToInterpreter().

Here is the call graph for this function:

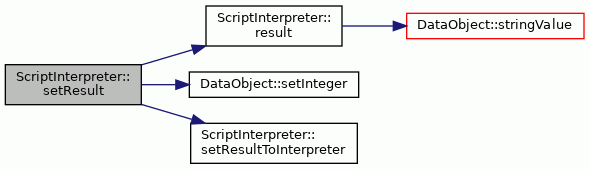

◆ setResult() [4/4]

void ScriptInterpreter::setResult ( int result )

virtual

Stores the result of last executed command.

Sets result also to concrete interpreter.

Parameters

result The result.

Definition at line 160 of file ScriptInterpreter.cc.

                                        {
     if (result_ == NULL) {
         result_ = new DataObject();
     }
     result_->setInteger(result);
     setResultToInterpreter(*result_);
 }

References result(), result_, DataObject::setInteger(), and setResultToInterpreter().

Here is the call graph for this function:

◆ setResultToInterpreter()

virtual void ScriptInterpreter::setResultToInterpreter ( const DataObject & value )

pure virtual

Implemented in TclInterpreter, and SimpleScriptInterpreter.

Referenced by setResult().

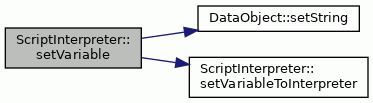

◆ setVariable() [1/2]

void ScriptInterpreter::setVariable	(	const std::string &	interpreterVariableName,
		const std::string &	value
	)

virtual

Sets value for a variable.

Parameters

interpreterVariableName	The name of the variable.
value	The value for a variable.

Definition at line 240 of file ScriptInterpreter.cc.

                             {

     DataObject object;
     object.setString(value);
     setVariableToInterpreter(interpreterVariableName, object);
 }

References DataObject::setString(), and setVariableToInterpreter().

Referenced by TclInterpreter::initialize().

Here is the call graph for this function:

◆ setVariable() [2/2]

void ScriptInterpreter::setVariable	(	const std::string &	interpreterVariableName,
		int	value
	)

virtual

Sets the value for interpreter variable.

Parameters

interpreterVariableName	The name of the variable.
value	The value for the variable.

Definition at line 256 of file ScriptInterpreter.cc.

                {

     DataObject object;
     object.setInteger(value);
     setVariableToInterpreter(interpreterVariableName, object);
 }

References DataObject::setInteger(), and setVariableToInterpreter().

Here is the call graph for this function:

◆ setVariableToInterpreter()

virtual void ScriptInterpreter::setVariableToInterpreter	(	const std::string &	name,
		const DataObject &	value
	)

pure virtual

Implemented in TclInterpreter, and SimpleScriptInterpreter.

Referenced by setVariable().

◆ variable()

virtual DataObject ScriptInterpreter::variable ( const std::string & name )

pure virtual

Implemented in TclInterpreter, and SimpleScriptInterpreter.

Referenced by variableIntegerValue(), and variableStringValue().

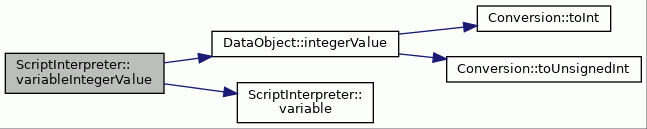

◆ variableIntegerValue()

int ScriptInterpreter::variableIntegerValue ( const std::string & interpreterVariableName )

virtual

Returns the value of the integer variable.

Parameters

interpreterVariableName The name of the variable.

Returns: The value of the variable.

Exceptions

NumberFormatException If converting variable to integer fails.

Definition at line 288 of file ScriptInterpreter.cc.

                                               {
     DataObject var = variable(interpreterVariableName);
     int value = var.integerValue();
     return value;
 }

References DataObject::integerValue(), and variable().

Here is the call graph for this function:

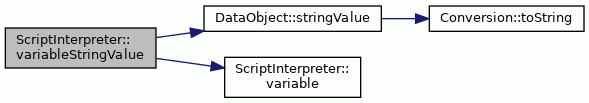

◆ variableStringValue()

string ScriptInterpreter::variableStringValue ( const std::string & interpreterVariableName )

virtual

Returns the value of the string variable.

Parameters

interpreterVariableName The name of the variable.

Returns: The value of the variable.

Exceptions

NumberFormatException If converting variable to string fails.

Definition at line 273 of file ScriptInterpreter.cc.

                                               {
     DataObject var = variable(interpreterVariableName);
     string value = var.stringValue();
     return value;
 }

References DataObject::stringValue(), and variable().

Here is the call graph for this function:

Member Data Documentation

◆ commands_

std::map<std::string, CustomCommand*> ScriptInterpreter::commands_

private

Map containing all custom commands for interpreter.

Definition at line 127 of file ScriptInterpreter.hh.

Referenced by addCustomCommand(), customCommand(), customCommandsSortedByName(), finalize(), removeCustomCommand(), and ~ScriptInterpreter().

◆ errorState_

bool ScriptInterpreter::errorState_

private

Indicates whether we are in error state.

Definition at line 131 of file ScriptInterpreter.hh.

Referenced by error(), and setError().

◆ finalized_

bool ScriptInterpreter::finalized_

private

True if Interpreter is finalized.

Definition at line 133 of file ScriptInterpreter.hh.

Referenced by finalize(), and ~ScriptInterpreter().

◆ reader_

LineReader* ScriptInterpreter::reader_

private

LineReader for interpreter.

Definition at line 135 of file ScriptInterpreter.hh.

Referenced by lineReader(), and setLineReader().

◆ result_

DataObject* ScriptInterpreter::result_

private

The latest interpreter result.

Definition at line 129 of file ScriptInterpreter.hh.

Referenced by result(), setResult(), and ~ScriptInterpreter().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ MapIter

◆ ValType

Constructor & Destructor Documentation

◆ ScriptInterpreter() [1/2]

◆ ~ScriptInterpreter()

◆ ScriptInterpreter() [2/2]

Member Function Documentation

◆ addCustomCommand()

◆ addCustomCommandToInterpreter()

◆ context()

◆ customCommand()

◆ customCommandsSortedByName()

◆ error()

◆ finalize()

◆ initialize()

◆ interpret()

◆ lineReader()

◆ operator=()

◆ processScriptFile()

◆ removeCustomCommand()

◆ removeCustomCommandFromInterpreter()

◆ result()

◆ setError() [1/2]

◆ setError() [2/2]

◆ setLineReader()

◆ setResult() [1/4]

◆ setResult() [2/4]

◆ setResult() [3/4]

◆ setResult() [4/4]

◆ setResultToInterpreter()

◆ setVariable() [1/2]

◆ setVariable() [2/2]

◆ setVariableToInterpreter()

◆ variable()

◆ variableIntegerValue()

◆ variableStringValue()

Member Data Documentation

◆ commands_

◆ errorState_

◆ finalized_

◆ reader_

◆ result_
