SimulationEventHandler Class Reference

#include <SimulationEventHandler.hh>

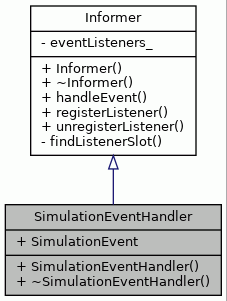

Inheritance diagram for SimulationEventHandler:

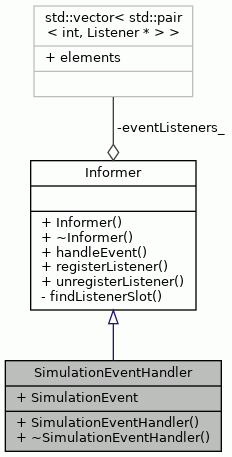

Collaboration diagram for SimulationEventHandler:

Public Types
enum	{   SE_NEW_INSTRUCTION = 0, SE_CYCLE_END, SE_RUNTIME_ERROR, SE_SIMULATION_STOPPED,   SE_MEMORY_ACCESS }
	simulation specific event codes More...

Public Member Functions
	SimulationEventHandler ()
virtual	~SimulationEventHandler ()
Public Member Functions inherited from Informer
	Informer ()
virtual	~Informer ()
void	handleEvent (int event)
virtual bool	registerListener (int event, Listener *listener)
virtual bool	unregisterListener (int event, Listener *listener)

Public Attributes
enum SimulationEventHandler:: { ... }	SimulationEvent
	simulation specific event codes More...

Detailed Description

The informer of the simulation specific events.

Definition at line 41 of file SimulationEventHandler.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

simulation specific event codes

Enumerator
SE_NEW_INSTRUCTION	Generated before executing a new instructon.
SE_CYCLE_END	Generated before advancing the simulator clock at the end of a simulation cycle.
SE_RUNTIME_ERROR	Sent when a runtime error is detected in the simulated program.
SE_SIMULATION_STOPPED	Generated after simulation has stopped, temporarily or permantently, and control is being returned to user interface.
SE_MEMORY_ACCESS	Genereated when memory read or write is initiated.

Definition at line 47 of file SimulationEventHandler.hh.

         {
        SE_NEW_INSTRUCTION = 0,
        ///< Generated before executing a new instructon.
        SE_CYCLE_END,       ///< Generated before advancing the simulator
                            ///< clock at the end of a simulation cycle.
        SE_RUNTIME_ERROR,   ///< Sent when a runtime error is detected in
                            ///< the simulated program.
        SE_SIMULATION_STOPPED, ///< Generated after simulation has stopped,
                               ///< temporarily or permantently, and control
                               ///< is being returned to user interface.
        SE_MEMORY_ACCESS    ///< Genereated when memory read or write is
                            ///< initiated.

    } SimulationEvent;

Constructor & Destructor Documentation

SimulationEventHandler()

SimulationEventHandler::SimulationEventHandler

(

)

Constructor.

Definition at line 38 of file SimulationEventHandler.cc.

                                               {
}

~SimulationEventHandler()

SimulationEventHandler::~SimulationEventHandler ( )

virtual

Destructor.

Definition at line 44 of file SimulationEventHandler.cc.

                                                {
}

Member Data Documentation

SimulationEvent

enum { ... } SimulationEventHandler::SimulationEvent

simulation specific event codes

---

The documentation for this class was generated from the following files:

• SimulationEventHandler.hh
• SimulationEventHandler.cc
