#include <SocketContainerFigure.hh>

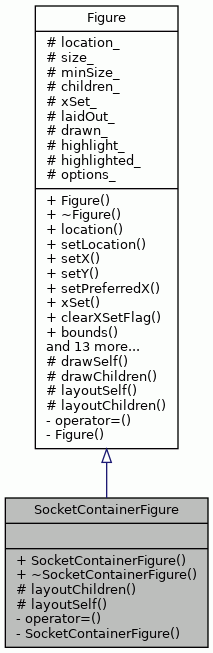

Inheritance diagram for SocketContainerFigure:

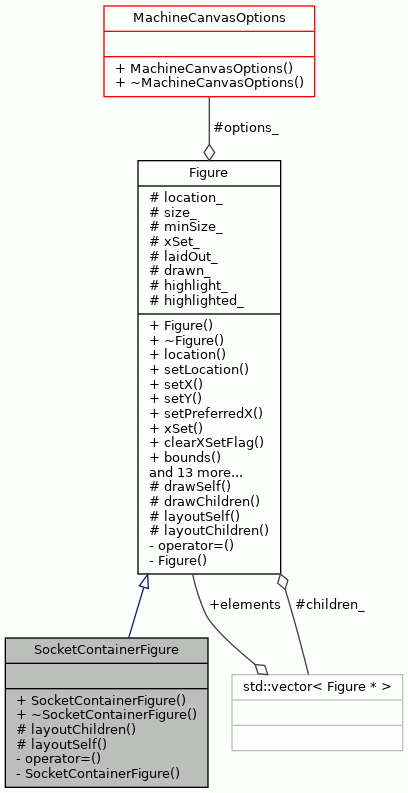

Collaboration diagram for SocketContainerFigure:

Public Member Functions
	SocketContainerFigure ()

virtual	~SocketContainerFigure ()

Public Member Functions inherited from Figure
	Figure ()

virtual	~Figure ()

wxPoint	location () const

void	setLocation (wxPoint point)

void	setX (int x)

void	setY (int y)

void	setPreferredX (int x)

bool	xSet () const

void	clearXSetFlag ()

virtual wxRect	bounds () const

virtual wxRect	virtualBounds () const

void	setBounds (wxSize bounds)

void	setWidth (int width)

void	setHeight (int height)

virtual void	addChild (Figure *child)

int	childCount () const

Figure *	child (int index) const

virtual void	layout (wxDC *dc)

virtual void	draw (wxDC *dc)

void	highlight (const wxColour &colour)

void	clearHighlight ()

void	setOptions (MachineCanvasOptions *options)

MachineCanvasOptions *	options ()

Protected Member Functions
virtual void	layoutChildren (wxDC *)

virtual void	layoutSelf (wxDC *)

Protected Member Functions inherited from Figure
virtual void	drawSelf (wxDC *dc)

void	drawChildren (wxDC *dc)

Private Member Functions
SocketContainerFigure &	operator= (SocketContainerFigure &old)
	Assignment not allowed. More...

	SocketContainerFigure (SocketContainerFigure &old)
	Copying not allowed. More...

Additional Inherited Members
Protected Attributes inherited from Figure
wxPoint	location_
	Top-left location of the Figure's bounding rectangle. More...

wxSize	size_
	wxSize of the Figure's bounding rectangle. More...

wxSize	minSize_
	Figure's minimum size. More...

std::vector< Figure * >	children_
	Figure's children. More...

bool	xSet_
	Tells if x-coordinate has been fixed. More...

bool	laidOut_
	Tells whether the Figure and its children have been laid out or not. More...

bool	drawn_
	Tells whether the Figure and its children have been drawn or not. More...

wxColour	highlight_
	Highlight colour. More...

bool	highlighted_
	Tells if the figure is highlighted. More...

MachineCanvasOptions *	options_
	Options which are used for customizing figures. More...

Detailed Description

Figure of a container EditPart for sockets.

Definition at line 46 of file SocketContainerFigure.hh.

Constructor & Destructor Documentation

◆ SocketContainerFigure() [1/2]

SocketContainerFigure::SocketContainerFigure ( )

The Constructor.

Definition at line 44 of file SocketContainerFigure.cc.

44 : Figure() {

45 }

◆ ~SocketContainerFigure()

SocketContainerFigure::~SocketContainerFigure ( )

virtual

The Destructor.

Definition at line 50 of file SocketContainerFigure.cc.

50 {

51 }

◆ SocketContainerFigure() [2/2]

SocketContainerFigure::SocketContainerFigure ( SocketContainerFigure & old )

private

Copying not allowed.

Member Function Documentation

◆ layoutChildren()

void SocketContainerFigure::layoutChildren ( wxDC * dc )

protectedvirtual

Lays out child sockets.

Parameters

dc	Device context.

Reimplemented from Figure.

Definition at line 59 of file SocketContainerFigure.cc.

                                               {

     int unknownSocketX = location_.x + size_.GetWidth();

     // set locations for sockets not connected to any port

     vector<Figure*>::iterator i = children_.begin();
     for(; i != children_.end(); i++) {

     if ((*i)->location().x == 0) {
         (*i)->setX(unknownSocketX);
         unknownSocketX += MachineCanvasLayoutConstraints::SOCKET_WIDTH +
         MachineCanvasLayoutConstraints::SOCKET_SPACE;
     }

     (*i)->setY(location_.y);
     if (size_.GetHeight() > (*i)->bounds().GetHeight()) {
         (*i)->setHeight(size_.GetHeight());
     }
     (*i)->layout(dc);
     (*i)->clearXSetFlag();
     }
 }

References Figure::children_, Figure::location_, Figure::size_, MachineCanvasLayoutConstraints::SOCKET_SPACE, and MachineCanvasLayoutConstraints::SOCKET_WIDTH.

◆ layoutSelf()

void SocketContainerFigure::layoutSelf ( wxDC * )

protectedvirtual

Calculates and sets the width of the container.

Depends on the amount and position of sockets.

Reimplemented from Figure.

Definition at line 89 of file SocketContainerFigure.cc.

                                        {

     int maxIndex = 0;
     int maxX = 0;

     for (unsigned int i = 0; i < children_.size(); i++) {
     if (children_[i]->location().x > maxX) {
         maxX = children_[i]->location().x;
         maxIndex = i;
     }
     }

     int rightBound = maxX + children_[maxIndex]->bounds().GetWidth() +
     MachineCanvasLayoutConstraints::SOCKET_WIDTH;

     if (rightBound > location_.x + size_.GetWidth()) {
         size_.SetWidth(rightBound - location_.x);
     }

     if (children_[0]->bounds().GetHeight() > size_.GetHeight()) {
     size_.SetHeight(children_[0]->bounds().GetHeight());
     }
 }

References Figure::bounds(), Figure::children_, Figure::location(), Figure::location_, Figure::size_, and MachineCanvasLayoutConstraints::SOCKET_WIDTH.

Here is the call graph for this function:

◆ operator=()

SocketContainerFigure& SocketContainerFigure::operator= ( SocketContainerFigure & old )

private

Assignment not allowed.

The documentation for this class was generated from the following files:
