#include <ASpaceSection.hh>

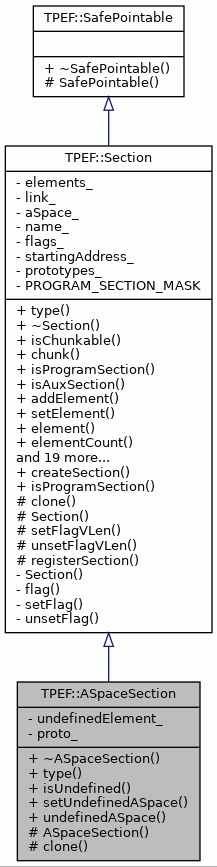

Inheritance diagram for TPEF::ASpaceSection:

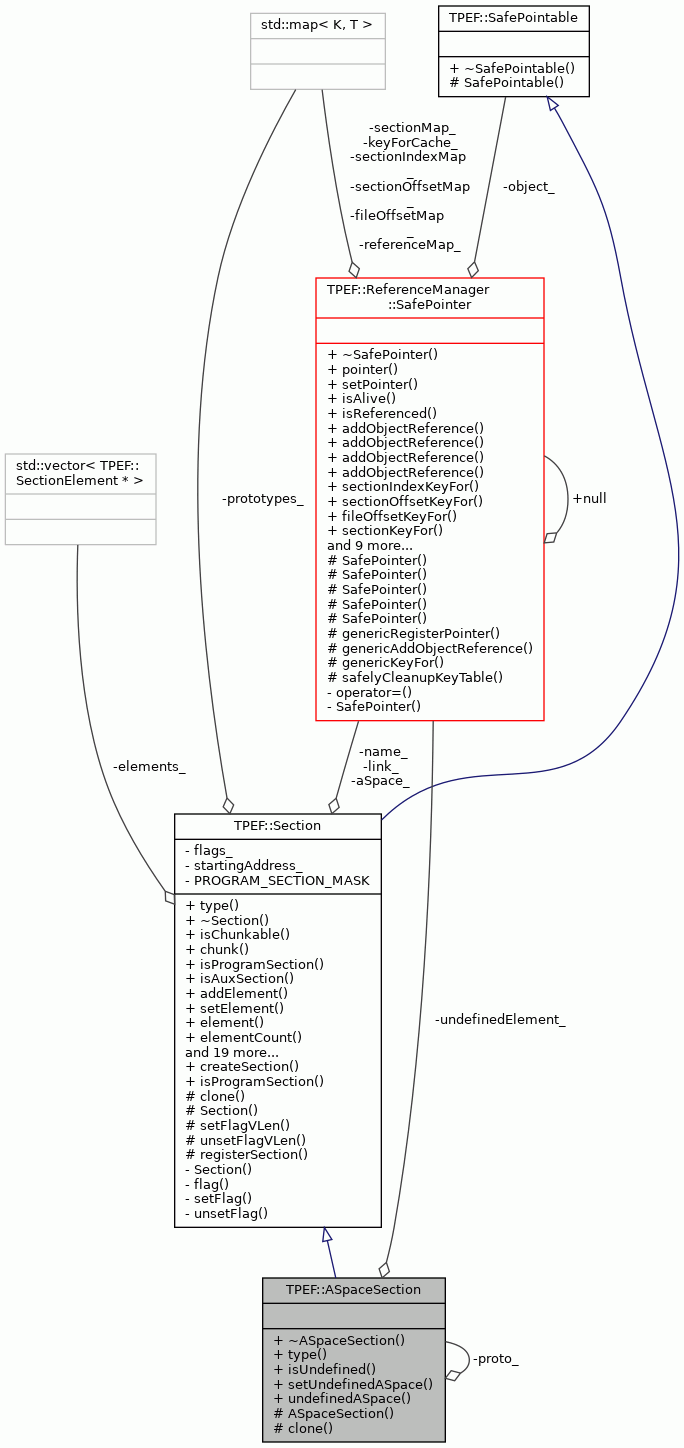

Collaboration diagram for TPEF::ASpaceSection:

Public Member Functions
virtual	~ASpaceSection ()

virtual SectionType	type () const

bool	isUndefined (ASpaceElement *aSpace) const

void	setUndefinedASpace (ASpaceElement *aSpace)

ASpaceElement *	undefinedASpace () const

Public Member Functions inherited from TPEF::Section
virtual	~Section ()

virtual bool	isChunkable () const

virtual Chunk *	chunk (SectionOffset offset) const

bool	isProgramSection () const

bool	isAuxSection () const

virtual void	addElement (SectionElement *element)

virtual void	setElement (Word index, SectionElement *element)

SectionElement *	element (Word index) const

Word	elementCount () const

void	setFlagNoBits ()

void	unsetFlagNoBits ()

bool	noBits () const

bool	vLen () const

Byte	flags () const

void	setFlags (Byte flagByte)

void	setStartingAddress (AddressImage address)

AddressImage	startingAddress () const

void	setLink (const ReferenceManager::SafePointer *aLink)

void	setLink (Section *aLink)

Section *	link () const

void	setASpace (const ReferenceManager::SafePointer *addrSpace)

void	setASpace (ASpaceElement *addrSpace)

ASpaceElement *	aSpace () const

void	setName (const ReferenceManager::SafePointer *sectionName)

void	setName (Chunk *sectionName)

Chunk *	name () const

virtual bool	isDataSection () const

virtual bool	isCodeSection () const

Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Protected Member Functions
	ASpaceSection (bool init)

virtual Section *	clone () const

Protected Member Functions inherited from TPEF::Section
	Section ()

void	setFlagVLen ()

void	unsetFlagVLen ()

Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Private Attributes
const ReferenceManager::SafePointer *	undefinedElement_
	Undefined address space. This element is not allowed to be removed from section is recognized as special undefined address space. More...

Static Private Attributes
static ASpaceSection	proto_
	Prototype instance. More...

Additional Inherited Members
Public Types inherited from TPEF::Section
enum	SectionType { ST_NULL = 0x00, ST_STRTAB = 0x01, ST_SYMTAB = 0x02, ST_DEBUG = 0x03, ST_RELOC = 0x04, ST_LINENO = 0x05, ST_NOTE = 0x06, ST_ADDRSP = 0x07, ST_MR = 0x0A, ST_CODE = 0x81, ST_DATA = 0x82, ST_UDATA = 0x83, ST_LEDATA = 0x84, ST_DUMMY = 0xff }

enum	SectionFlag { SF_VLEN = 0x40, SF_NOBITS = 0x80 }

Static Public Member Functions inherited from TPEF::Section
static Section *	createSection (SectionType type)

static bool	isProgramSection (SectionType type)

Static Protected Member Functions inherited from TPEF::Section
static void	registerSection (const Section *section)

Detailed Description

Address space section.

Definition at line 44 of file ASpaceSection.hh.

Constructor & Destructor Documentation

◆ ~ASpaceSection()

TPEF::ASpaceSection::~ASpaceSection ( )

virtual

Destructor

Definition at line 63 of file ASpaceSection.cc.

63 {

64 }

◆ ASpaceSection()

TPEF::ASpaceSection::ASpaceSection ( bool init )

protected

Constructor.

Parameters

init	true if registeration is wanted

Definition at line 48 of file ASpaceSection.cc.

                                       :
     Section(), undefinedElement_(&SafePointer::null) {

     if (init) {
         Section::registerSection(this);
     }

     unsetFlagVLen();
     unsetFlagNoBits();
     setStartingAddress(0);
 }

References TPEF::Section::registerSection(), TPEF::Section::setStartingAddress(), TPEF::Section::unsetFlagNoBits(), and TPEF::Section::unsetFlagVLen().

Referenced by clone().

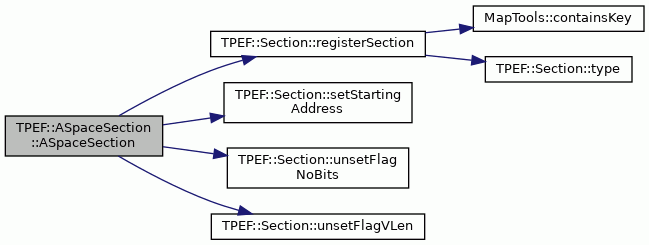

Here is the call graph for this function:

Member Function Documentation

◆ clone()

Section * TPEF::ASpaceSection::clone ( ) const

protectedvirtual

Creates an instance of class.

Returns: Newly created section.

Implements TPEF::Section.

Definition at line 82 of file ASpaceSection.cc.

                            {
     return new ASpaceSection(false);
 }

References ASpaceSection().

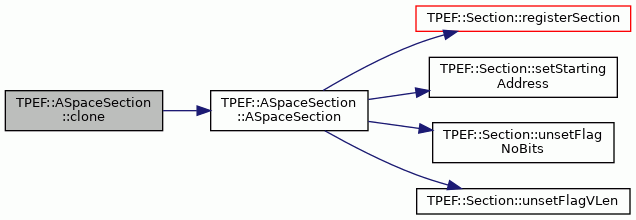

Here is the call graph for this function:

◆ isUndefined()

bool TPEF::ASpaceSection::isUndefined ( ASpaceElement * aSpace ) const

Checks if the parameter, is undefined address space.

Parameters

aSpace Element to check.

Returns: True, if parameter is the undefined address space.

Definition at line 93 of file ASpaceSection.cc.

                                                       {
     assert(aSpace != NULL);
     assert(undefinedElement_ != &SafePointer::null);
     return (undefinedElement_->pointer() == aSpace);
 }

References TPEF::Section::aSpace(), assert, TPEF::ReferenceManager::SafePointer::null, TPEF::ReferenceManager::SafePointer::pointer(), and undefinedElement_.

Referenced by TPEFDumper::addressSpaceString(), and TPEF::TPEFRelocSectionReader::finalize().

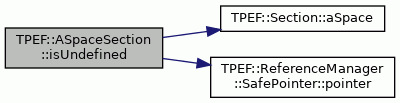

Here is the call graph for this function:

◆ setUndefinedASpace()

void TPEF::ASpaceSection::setUndefinedASpace ( ASpaceElement * aSpace )

Set undefined address space.

This method must be runned, before checking of undefined address space is allowed. If set is runned many times, it overrides earlier setings.

Parameters

aSpace Element to define as undefined address space.

Definition at line 109 of file ASpaceSection.cc.

                                                        {
     assert(aSpace != NULL);
     assert(aSpace->MAU() == 0);
     assert(aSpace->align() == 0);
     assert(aSpace->wordSize() == 0);
     undefinedElement_ = SafePointer::replaceReference(
         undefinedElement_, aSpace);
 }

References TPEF::ASpaceElement::align(), TPEF::Section::aSpace(), assert, TPEF::ASpaceElement::MAU(), TPEF::ReferenceManager::SafePointer::replaceReference(), undefinedElement_, and TPEF::ASpaceElement::wordSize().

Referenced by TTAProgram::ProgramWriter::createBinary(), TPEF::TPEFASpaceSectionReader::readData(), TPEF::AOutReader::readData(), and MachineResourceManager::undefinedAddressSpace().

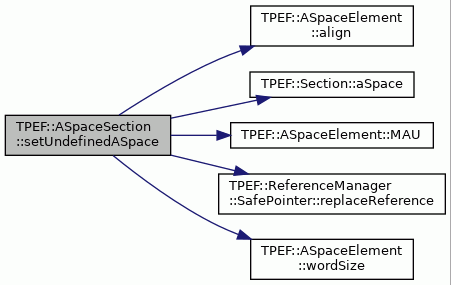

Here is the call graph for this function:

◆ type()

Section::SectionType TPEF::ASpaceSection::type ( ) const

virtual

Returns sections type.

Returns: type of section.

Implements TPEF::Section.

Definition at line 72 of file ASpaceSection.cc.

                           {
     return ST_ADDRSP;
 }

References TPEF::Section::ST_ADDRSP.

◆ undefinedASpace()

ASpaceElement * TPEF::ASpaceSection::undefinedASpace ( ) const

Returns undefined address space element.

Returns: Undefined address space element.

Definition at line 124 of file ASpaceSection.cc.

                                      {
     return dynamic_cast<ASpaceElement*>(
         undefinedElement_->pointer());
 }

References TPEF::ReferenceManager::SafePointer::pointer(), and undefinedElement_.

Referenced by TTAProgram::ProgramWriter::createRelocSections().

Here is the call graph for this function:

Member Data Documentation

◆ proto_

ASpaceSection TPEF::ASpaceSection::proto_

staticprivate

Prototype instance.

Definition at line 62 of file ASpaceSection.hh.

◆ undefinedElement_

const ReferenceManager::SafePointer* TPEF::ASpaceSection::undefinedElement_

private

Undefined address space. This element is not allowed to be removed from section is recognized as special undefined address space.

Definition at line 66 of file ASpaceSection.hh.

Referenced by isUndefined(), setUndefinedASpace(), and undefinedASpace().
