TPEF::DataSymElement Class Reference

#include <DataSymElement.hh>

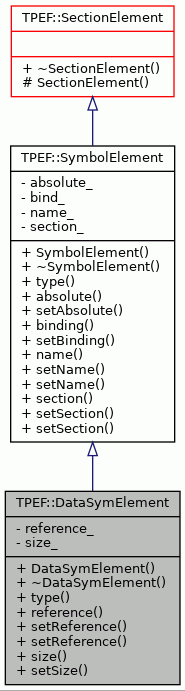

Inheritance diagram for TPEF::DataSymElement:

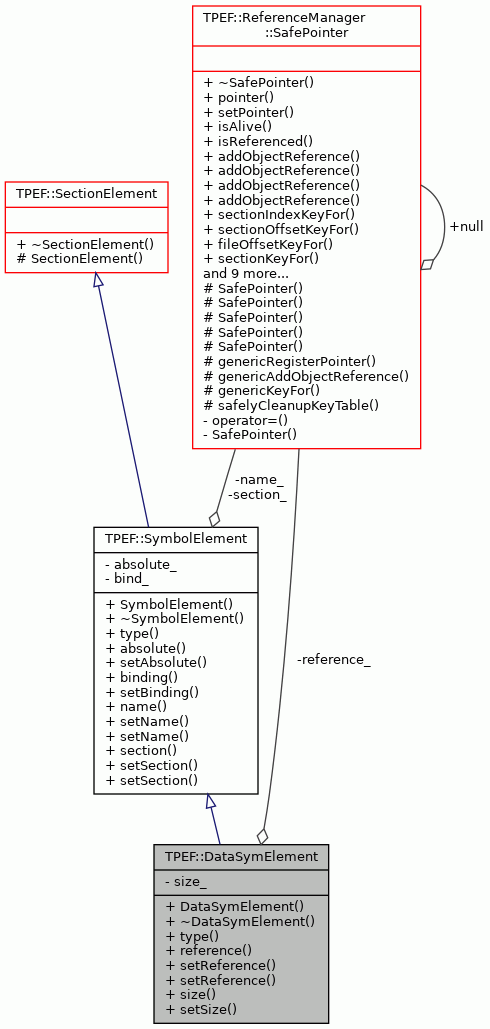

Collaboration diagram for TPEF::DataSymElement:

Public Member Functions
	DataSymElement ()
virtual	~DataSymElement ()
virtual SymbolType	type () const
Chunk *	reference () const
void	setReference (Chunk *aReference)
void	setReference (const ReferenceManager::SafePointer *aReference)
Word	size () const
void	setSize (Word aSize)
Public Member Functions inherited from TPEF::SymbolElement
	SymbolElement ()
virtual	~SymbolElement ()
bool	absolute () const
void	setAbsolute (bool anAbsoluteness)
SymbolBinding	binding () const
void	setBinding (SymbolBinding aBinding)
Chunk *	name () const
void	setName (Chunk *aName)
void	setName (const ReferenceManager::SafePointer *aName)
Section *	section () const
void	setSection (Section *aSect)
void	setSection (const ReferenceManager::SafePointer *aSect)
Public Member Functions inherited from TPEF::SectionElement
virtual	~SectionElement ()
Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Private Attributes
const ReferenceManager::SafePointer *	reference_
	Referred object.
Word	size_
	Size of referred object in MAUs.

Additional Inherited Members
Public Types inherited from TPEF::SymbolElement
enum	SymbolBinding { STB_LOCAL = 0x0 , STB_GLOBAL = 0x1 , STB_WEAK = 0x2 }
	Binding types of symbol. More...
enum	SymbolType {   STT_NOTYPE = 0x0 , STT_DATA = 0x1 , STT_CODE = 0x2 , STT_SECTION = 0x3 ,   STT_FILE = 0x4 , STT_PROCEDURE = 0x5 }
	Type of symbol element. More...
Protected Member Functions inherited from TPEF::SectionElement
	SectionElement ()
Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Detailed Description

Definition at line 41 of file DataSymElement.hh.

Constructor & Destructor Documentation

DataSymElement()

TPEF::DataSymElement::DataSymElement

(

)

Constructor.

Definition at line 43 of file DataSymElement.cc.

                               :
    SymbolElement(),
    reference_(&SafePointer::null),
    size_(0) {
}

~DataSymElement()

TPEF::DataSymElement::~DataSymElement ( )

virtual

Destructor.

Definition at line 52 of file DataSymElement.cc.

                                {
}

Member Function Documentation

reference()

Chunk * TPEF::DataSymElement::reference

(

)

const

Returns object which element refers.

Returns

object which element refers.

Definition at line 71 of file DataSymElement.cc.

                                {
    return dynamic_cast<Chunk*>(reference_->pointer());
}

References TPEF::ReferenceManager::SafePointer::pointer(), and reference_.

Referenced by TTAProgram::TPEFProgramFactory::createLabels(), TPEFDumper::section(), and TPEF::TPEFSymbolSectionWriter::writeValueAndSize().

Here is the call graph for this function:

setReference() [1/2]

void TPEF::DataSymElement::setReference

(

Chunk *

aReference

)

Sets object which element refers.

Parameters

aReference

Object which element refers.

Definition at line 81 of file DataSymElement.cc.

                                              {
    reference_ = SafePointer::replaceReference(reference_, aReference);
}

References reference_, and TPEF::ReferenceManager::SafePointer::replaceReference().

Referenced by TTAProgram::ProgramWriter::createBinary(), LabelManager::createSymbolWithReference(), and TPEF::AOutSymbolSectionReader::initializeSymbol().

Here is the call graph for this function:

setReference() [2/2]

void TPEF::DataSymElement::setReference

(

const ReferenceManager::SafePointer *

aReference

)

Sets object which element refers.

Parameters

aReference

Object which element refers.

Definition at line 91 of file DataSymElement.cc.

                                                   {
    reference_ = aReference;
}

References reference_.

setSize()

void TPEF::DataSymElement::setSize

(

Word

aSize

)

Sets size of referred object in MAUs.

Parameters

aSize

of the referred object in MAUs.

Definition at line 112 of file DataSymElement.cc.

                                  {
    size_ = aSize;
}

References size_.

Referenced by TPEF::AOutSymbolSectionReader::initializeSymbol().

size()

Word TPEF::DataSymElement::size

(

)

const

Returns size of the referred object in MAUs.

Returns

Size of the referred object in MAUs.

Definition at line 102 of file DataSymElement.cc.

                           {
    return size_;
}

References size_.

Referenced by TPEF::TPEFSymbolSectionWriter::writeValueAndSize().

type()

SymbolElement::SymbolType TPEF::DataSymElement::type ( ) const

virtual

Returns type of the element.

Returns

Type of the element.

Implements TPEF::SymbolElement.

Definition at line 61 of file DataSymElement.cc.

                           {
    return STT_DATA;
}

References TPEF::SymbolElement::STT_DATA.

Member Data Documentation

reference_

const ReferenceManager::SafePointer* TPEF::DataSymElement::reference_

private

Referred object.

Definition at line 57 of file DataSymElement.hh.

Referenced by reference(), setReference(), and setReference().

size_

Word TPEF::DataSymElement::size_

private

Size of referred object in MAUs.

Definition at line 59 of file DataSymElement.hh.

Referenced by setSize(), and size().

---

The documentation for this class was generated from the following files:

• DataSymElement.hh
• DataSymElement.cc
