TPEF::DebugElement Class Reference

#include <DebugElement.hh>

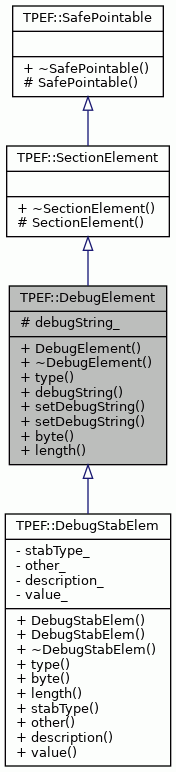

Inheritance diagram for TPEF::DebugElement:

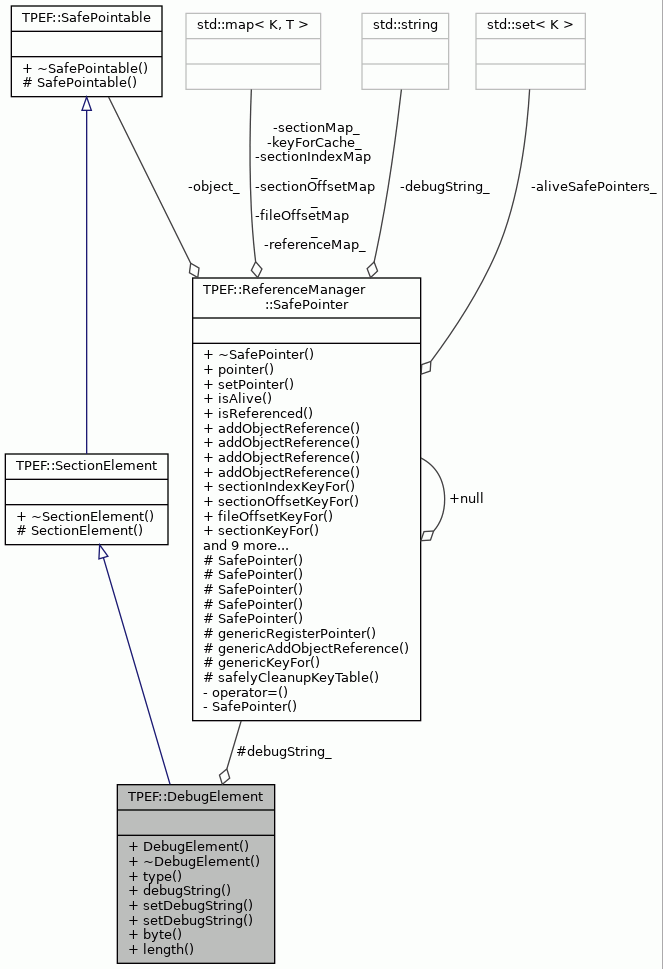

Collaboration diagram for TPEF::DebugElement:

Public Types
enum	ElementType { DE_STAB = 0x1 }

Public Member Functions
	DebugElement ()
virtual	~DebugElement ()
virtual ElementType	type () const =0
Chunk *	debugString () const
void	setDebugString (const ReferenceManager::SafePointer *aString)
void	setDebugString (Chunk *aString)
virtual Byte	byte (Word index) const =0
	Returns one byte of additional data. More...
virtual Word	length () const =0
	Returns the length of additional data of debug element. More...
Public Member Functions inherited from TPEF::SectionElement
virtual	~SectionElement ()
Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Protected Attributes
const ReferenceManager::SafePointer *	debugString_
	String of debug element. More...

Additional Inherited Members
Protected Member Functions inherited from TPEF::SectionElement
	SectionElement ()
Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Detailed Description

Base class for all kinds of TPEF elements that belong to debug sections.

Allows representing data of any debug element. All types of TPEF debug elements share a common property: a string that defines (part of) the information stored in the element.

Definition at line 56 of file DebugElement.hh.

Member Enumeration Documentation

ElementType

enum TPEF::DebugElement::ElementType

Enumerator
DE_STAB

Definition at line 58 of file DebugElement.hh.

                     {
        DE_STAB = 0x1
    };

Constructor & Destructor Documentation

DebugElement()

TPEF::DebugElement::DebugElement

(

)

Constructor.

Definition at line 43 of file DebugElement.cc.

                           : SectionElement() {
}

~DebugElement()

TPEF::DebugElement::~DebugElement ( )

virtual

Destructor.

Definition at line 49 of file DebugElement.cc.

                            {
}

Member Function Documentation

byte()

virtual Byte TPEF::DebugElement::byte ( Word  index ) const

pure virtual

Returns one byte of additional data.

Implemented in TPEF::DebugStabElem.

Referenced by TPEF::TPEFDebugSectionWriter::actualWriteData(), and TPEFDumper::section().

debugString()

Chunk * TPEF::DebugElement::debugString

(

)

const

Returns the debug string.

Returns

Debug string.

Definition at line 58 of file DebugElement.cc.

                                {
    return dynamic_cast<Chunk*>(debugString_->pointer());
}

References debugString_, and TPEF::ReferenceManager::SafePointer::pointer().

Referenced by TPEF::TPEFDebugSectionWriter::actualWriteData(), and TPEFDumper::section().

Here is the call graph for this function:

length()

virtual Word TPEF::DebugElement::length ( ) const

pure virtual

Returns the length of additional data of debug element.

Implemented in TPEF::DebugStabElem.

Referenced by TPEF::TPEFDebugSectionWriter::actualWriteData(), and TPEFDumper::section().

setDebugString() [1/2]

void TPEF::DebugElement::setDebugString

(

Chunk *

aString

)

Sets the debug string.

Parameters

aString

The debug string.

Definition at line 78 of file DebugElement.cc.

                                           {
    using namespace ReferenceManager;
    debugString_ = SafePointer::replaceReference(debugString_, aString);
}

References debugString_, and TPEF::ReferenceManager::SafePointer::replaceReference().

Here is the call graph for this function:

setDebugString() [2/2]

void TPEF::DebugElement::setDebugString

(

const ReferenceManager::SafePointer *

aString

)

Sets the debug string.

Parameters

aString

Debug string to set.

Definition at line 68 of file DebugElement.cc.

                                                                       {
    debugString_ = aString;
}

References debugString_.

Referenced by TPEF::AOutSymbolSectionReader::initializeSymbol(), and TPEF::TPEFDebugSectionReader::readData().

type()

virtual ElementType TPEF::DebugElement::type ( ) const

pure virtual

Implemented in TPEF::DebugStabElem.

Referenced by TPEF::TPEFDebugSectionWriter::actualWriteData(), and TPEFDumper::section().

Member Data Documentation

debugString_

const ReferenceManager::SafePointer* TPEF::DebugElement::debugString_

protected

String of debug element.

Definition at line 78 of file DebugElement.hh.

Referenced by debugString(), and setDebugString().

---

The documentation for this class was generated from the following files:

• DebugElement.hh
• DebugElement.cc
