#include <LineNumSection.hh>

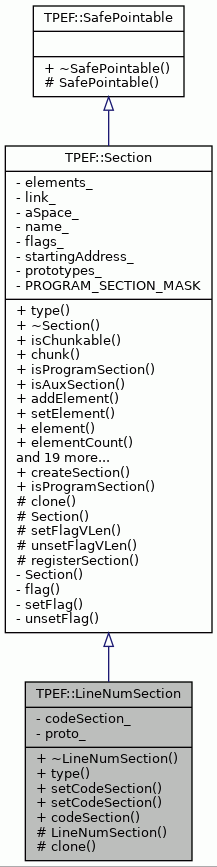

Inheritance diagram for TPEF::LineNumSection:

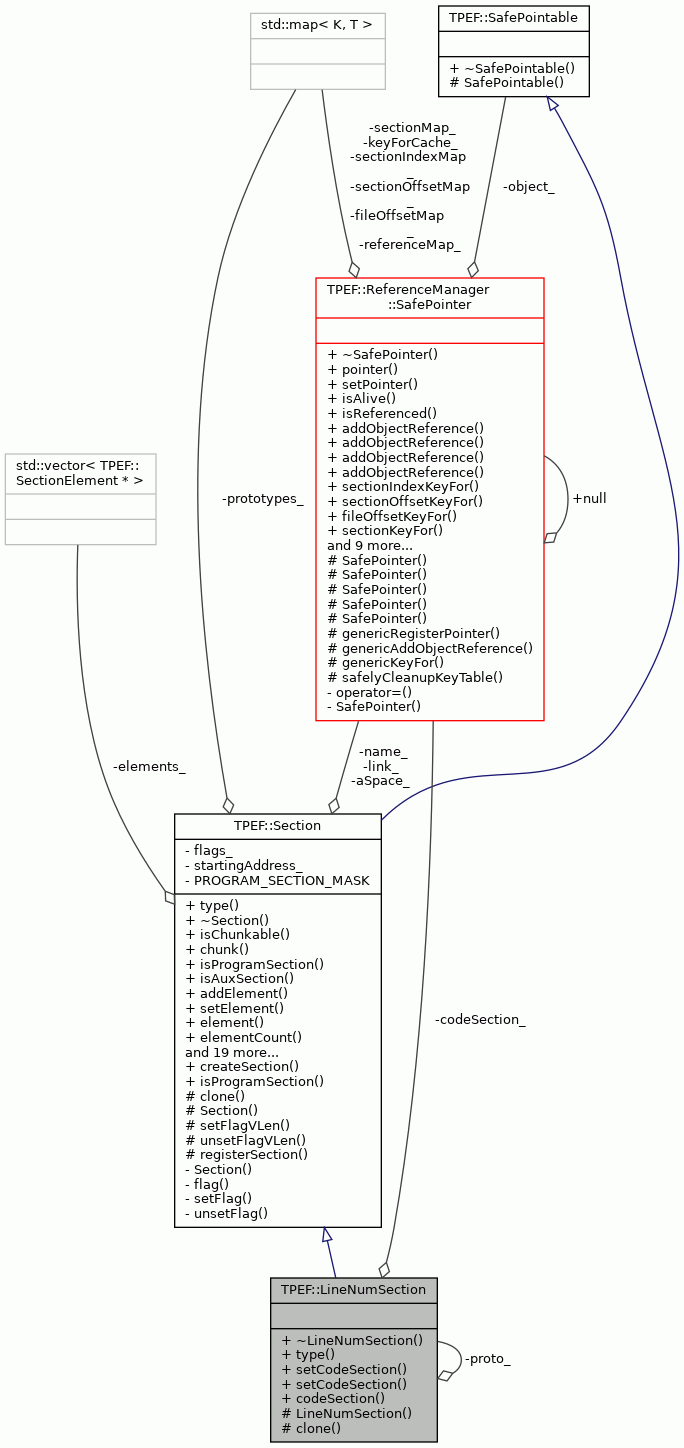

Collaboration diagram for TPEF::LineNumSection:

Public Member Functions
virtual	~LineNumSection ()

virtual SectionType	type () const

void	setCodeSection (const ReferenceManager::SafePointer *codeSect)

void	setCodeSection (CodeSection *codeSect)

CodeSection *	codeSection () const

Public Member Functions inherited from TPEF::Section
virtual	~Section ()

virtual bool	isChunkable () const

virtual Chunk *	chunk (SectionOffset offset) const

bool	isProgramSection () const

bool	isAuxSection () const

virtual void	addElement (SectionElement *element)

virtual void	setElement (Word index, SectionElement *element)

SectionElement *	element (Word index) const

Word	elementCount () const

void	setFlagNoBits ()

void	unsetFlagNoBits ()

bool	noBits () const

bool	vLen () const

Byte	flags () const

void	setFlags (Byte flagByte)

void	setStartingAddress (AddressImage address)

AddressImage	startingAddress () const

void	setLink (const ReferenceManager::SafePointer *aLink)

void	setLink (Section *aLink)

Section *	link () const

void	setASpace (const ReferenceManager::SafePointer *addrSpace)

void	setASpace (ASpaceElement *addrSpace)

ASpaceElement *	aSpace () const

void	setName (const ReferenceManager::SafePointer *sectionName)

void	setName (Chunk *sectionName)

Chunk *	name () const

virtual bool	isDataSection () const

virtual bool	isCodeSection () const

Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Protected Member Functions
	LineNumSection (bool init)

virtual Section *	clone () const

Protected Member Functions inherited from TPEF::Section
	Section ()

void	setFlagVLen ()

void	unsetFlagVLen ()

Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Private Attributes
const ReferenceManager::SafePointer *	codeSection_
	Stores text section which we refer with lines.

Static Private Attributes
static LineNumSection	proto_
	Protorype instance of section.

Additional Inherited Members
Public Types inherited from TPEF::Section
enum	SectionType { ST_NULL = 0x00 , ST_STRTAB = 0x01 , ST_SYMTAB = 0x02 , ST_DEBUG = 0x03 , ST_RELOC = 0x04 , ST_LINENO = 0x05 , ST_NOTE = 0x06 , ST_ADDRSP = 0x07 , ST_MR = 0x0A , ST_CODE = 0x81 , ST_DATA = 0x82 , ST_UDATA = 0x83 , ST_LEDATA = 0x84 , ST_DUMMY = 0xff }

enum	SectionFlag { SF_VLEN = 0x40 , SF_NOBITS = 0x80 }

Static Public Member Functions inherited from TPEF::Section
static Section *	createSection (SectionType type)

static bool	isProgramSection (SectionType type)

Static Protected Member Functions inherited from TPEF::Section
static void	registerSection (const Section *section)

Detailed Description

Prosessor Line number section.

Definition at line 47 of file LineNumSection.hh.

Constructor & Destructor Documentation

◆ ~LineNumSection()

TPEF::LineNumSection::~LineNumSection ( )

virtual

Destructor.

Definition at line 62 of file LineNumSection.cc.

62 {

63}

◆ LineNumSection()

TPEF::LineNumSection::LineNumSection ( bool init )

protected

Constructor.

Parameters

init	True if instance should register itself to base class.

Definition at line 47 of file LineNumSection.cc.

                                        : Section(),
    codeSection_(&SafePointer::null) {

    if (init) {
        Section::registerSection(this);
    }

    unsetFlagNoBits();
    unsetFlagVLen();
    setStartingAddress(0);
}

References TPEF::Section::registerSection(), TPEF::Section::setStartingAddress(), TPEF::Section::unsetFlagNoBits(), and TPEF::Section::unsetFlagVLen().

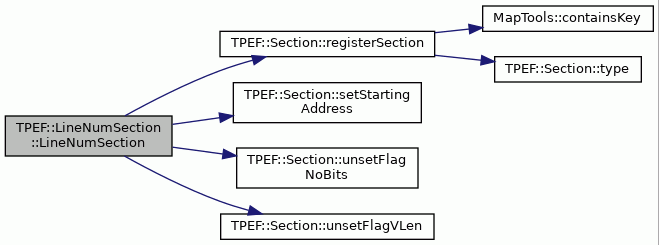

Here is the call graph for this function:

Member Function Documentation

◆ clone()

Section * TPEF::LineNumSection::clone ( ) const

protectedvirtual

Creates an instance of section.

Returns: Newly created section.

Implements TPEF::Section.

Definition at line 81 of file LineNumSection.cc.

                            {
    return new LineNumSection(false);
}

◆ codeSection()

CodeSection * TPEF::LineNumSection::codeSection ( ) const

Returns text section which lines are stored in this section.

Returns: Text section which lines are stored in this section.

Definition at line 112 of file LineNumSection.cc.

                                  {
    return dynamic_cast<CodeSection*>(codeSection_->pointer());
}

References codeSection_, and TPEF::ReferenceManager::SafePointer::pointer().

Here is the call graph for this function:

◆ setCodeSection() [1/2]

void TPEF::LineNumSection::setCodeSection ( CodeSection * codeSect )

Sets text section which instructions are referred in this section.

Parameters

Section to set.

Definition at line 102 of file LineNumSection.cc.

                                                    {
    codeSection_ = SafePointer::replaceReference(codeSection_, codeSect);
}

References codeSection_, and TPEF::ReferenceManager::SafePointer::replaceReference().

Here is the call graph for this function:

◆ setCodeSection() [2/2]

void TPEF::LineNumSection::setCodeSection ( const ReferenceManager::SafePointer * codeSect )

Sets text section which instructions are referred in this section.

Parameters

Section to set.

Definition at line 91 of file LineNumSection.cc.

                                                 {
    codeSection_ = codeSect;
}

References codeSection_.

◆ type()

Section::SectionType TPEF::LineNumSection::type ( ) const

virtual

Returns section's type.

Returns: Type of section.

Implements TPEF::Section.

Definition at line 71 of file LineNumSection.cc.

                           {
    return ST_LINENO;
}

References TPEF::Section::ST_LINENO.

Member Data Documentation

◆ codeSection_

const ReferenceManager::SafePointer* TPEF::LineNumSection::codeSection_

private

Stores text section which we refer with lines.

Definition at line 63 of file LineNumSection.hh.

Referenced by codeSection(), setCodeSection(), and setCodeSection().

◆ proto_

LineNumSection TPEF::LineNumSection::proto_

staticprivate

Protorype instance of section.

Definition at line 65 of file LineNumSection.hh.
