#include <NullSection.hh>

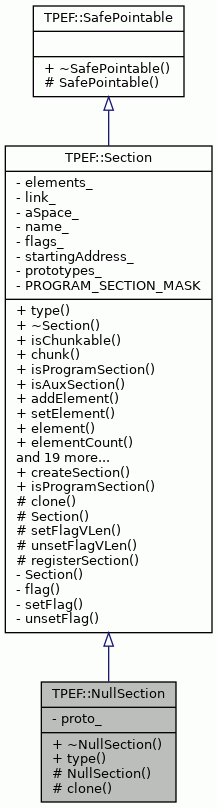

Inheritance diagram for TPEF::NullSection:

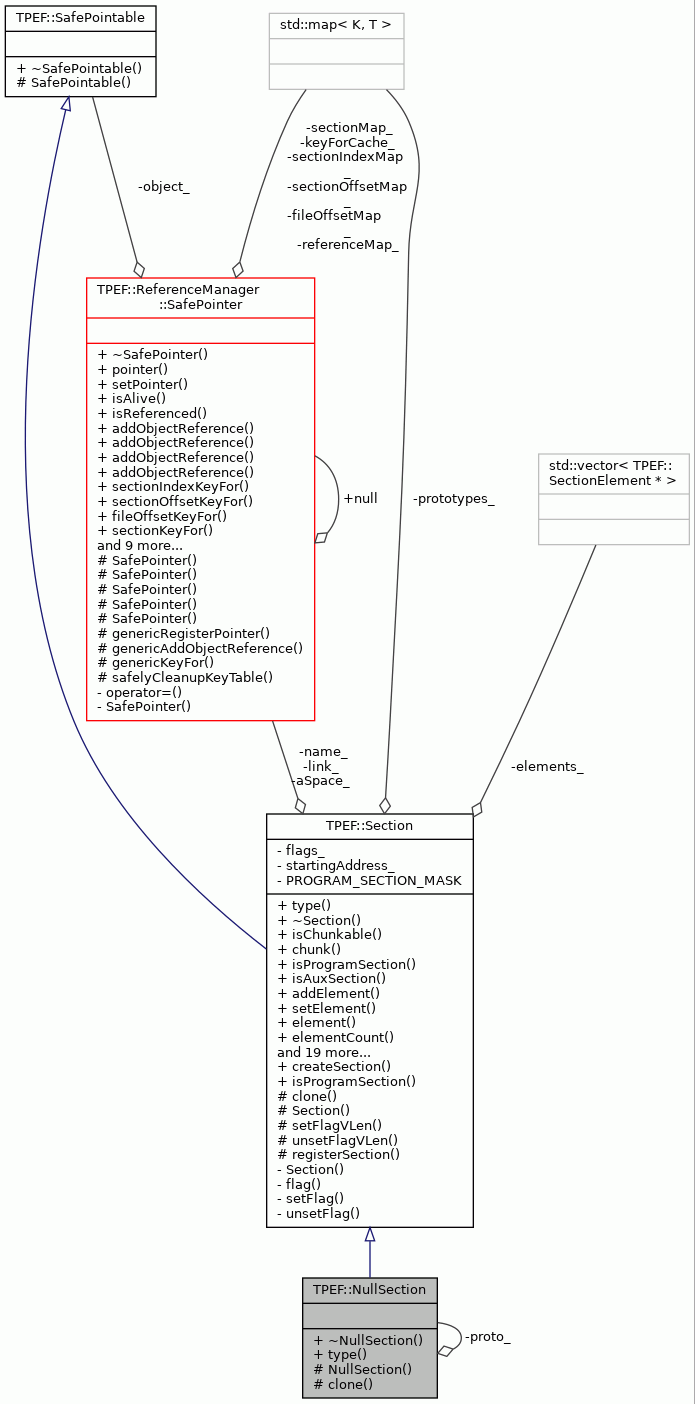

Collaboration diagram for TPEF::NullSection:

Public Member Functions
virtual	~NullSection ()

virtual SectionType	type () const

Public Member Functions inherited from TPEF::Section
virtual	~Section ()

virtual bool	isChunkable () const

virtual Chunk *	chunk (SectionOffset offset) const

bool	isProgramSection () const

bool	isAuxSection () const

virtual void	addElement (SectionElement *element)

virtual void	setElement (Word index, SectionElement *element)

SectionElement *	element (Word index) const

Word	elementCount () const

void	setFlagNoBits ()

void	unsetFlagNoBits ()

bool	noBits () const

bool	vLen () const

Byte	flags () const

void	setFlags (Byte flagByte)

void	setStartingAddress (AddressImage address)

AddressImage	startingAddress () const

void	setLink (const ReferenceManager::SafePointer *aLink)

void	setLink (Section *aLink)

Section *	link () const

void	setASpace (const ReferenceManager::SafePointer *addrSpace)

void	setASpace (ASpaceElement *addrSpace)

ASpaceElement *	aSpace () const

void	setName (const ReferenceManager::SafePointer *sectionName)

void	setName (Chunk *sectionName)

Chunk *	name () const

virtual bool	isDataSection () const

virtual bool	isCodeSection () const

Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Protected Member Functions
	NullSection (bool init)

virtual Section *	clone () const

Protected Member Functions inherited from TPEF::Section
	Section ()

void	setFlagVLen ()

void	unsetFlagVLen ()

Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Static Private Attributes
static NullSection	proto_
	Prototype instance of section. More...

Additional Inherited Members
Public Types inherited from TPEF::Section
enum	SectionType { ST_NULL = 0x00, ST_STRTAB = 0x01, ST_SYMTAB = 0x02, ST_DEBUG = 0x03, ST_RELOC = 0x04, ST_LINENO = 0x05, ST_NOTE = 0x06, ST_ADDRSP = 0x07, ST_MR = 0x0A, ST_CODE = 0x81, ST_DATA = 0x82, ST_UDATA = 0x83, ST_LEDATA = 0x84, ST_DUMMY = 0xff }

enum	SectionFlag { SF_VLEN = 0x40, SF_NOBITS = 0x80 }

Static Public Member Functions inherited from TPEF::Section
static Section *	createSection (SectionType type)

static bool	isProgramSection (SectionType type)

Static Protected Member Functions inherited from TPEF::Section
static void	registerSection (const Section *section)

Detailed Description

Null section.

Definition at line 46 of file NullSection.hh.

Constructor & Destructor Documentation

◆ ~NullSection()

TPEF::NullSection::~NullSection ( )

virtual

Destructor.

Definition at line 58 of file NullSection.cc.

58 {

59 }

◆ NullSection()

TPEF::NullSection::NullSection ( bool init )

protected

Constructor.

Parameters

init	True if instance should register itself to base class.

Definition at line 45 of file NullSection.cc.

                                   : Section() {
     if (init) {
         Section::registerSection(this);
     }
     // null section does not contain data.
     setFlagNoBits();
     unsetFlagVLen();
     setStartingAddress(0);
 }

References TPEF::Section::registerSection(), TPEF::Section::setFlagNoBits(), TPEF::Section::setStartingAddress(), and TPEF::Section::unsetFlagVLen().

Referenced by clone().

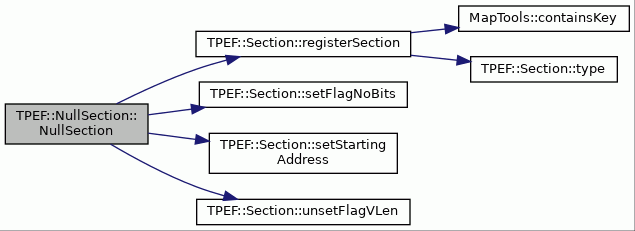

Here is the call graph for this function:

Member Function Documentation

◆ clone()

Section * TPEF::NullSection::clone ( ) const

protectedvirtual

Creates an instance of section.

Returns: Newly created section.

Implements TPEF::Section.

Definition at line 77 of file NullSection.cc.

                          {
     return new NullSection(false);
 }

References NullSection().

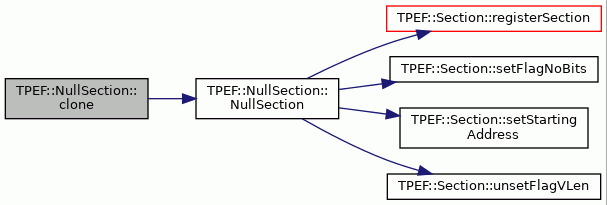

Here is the call graph for this function:

◆ type()

Section::SectionType TPEF::NullSection::type ( ) const

virtual

Returns section's type.

Returns: Type of section.

Implements TPEF::Section.

Definition at line 67 of file NullSection.cc.

                         {
     return ST_NULL;
 }

References TPEF::Section::ST_NULL.

Member Data Documentation

◆ proto_

NullSection TPEF::NullSection::proto_

staticprivate

Prototype instance of section.

Definition at line 58 of file NullSection.hh.

The documentation for this class was generated from the following files:
